U7‑Pro‑XG‑Wall – Ubiquiti UniFi U7 Pro XG Wall WiFi 7 Access Point
Description
Description
The U7‑Pro‑XG‑Wall is a high‑performance wall‑mounted WiFi 7 access point designed for enterprise and high‑density environments requiring multi‑gigabit wireless performance. Built on 802.11be (WiFi 7), it delivers ultra‑low latency, higher throughput and exceptional efficiency across 2.4 GHz, 5 GHz and 6 GHz bands.
Equipped with a powerful 10 GbE PoE+ uplink, the U7‑Pro‑XG‑Wall eliminates wired bottlenecks and enables true next‑generation wireless speeds. With support for 300+ concurrent clients and advanced RF optimisation, it is ideal for modern offices, hotels, apartments and commercial deployments where ceiling mounting is impractical.
Seamlessly managed through the UniFi Network application, the U7‑Pro‑XG‑Wall integrates effortlessly into existing UniFi infrastructures while offering premium performance in a compact, discreet wall‑mount form factor.
Key Features:
- WiFi 7 (802.11be) tri‑band support including 6 GHz
- Up to 10 GbE uplink for multi‑gigabit networking
- 6 spatial streams for high‑density environments
- Supports 300+ connected devices
- PoE+ powered for simplified installation
- Advanced roaming, band steering and RF management
- Compact wall‑mounted design
Ideal for:
- Enterprise offices and meeting spaces
- Hotels, serviced apartments and MDUs
- Education and healthcare environments
- High‑performance residential installations
Compatible Products:
UniFi Network Application
FAQs:
Does the U7‑Pro‑XG‑Wall support 6 GHz?
Yes, it fully supports 6 GHz as part of its tri‑band WiFi 7 design.
Is a PoE injector included?
No, the U7‑Pro‑XG‑Wall requires a PoE+ capable switch or injector, which is sold separately.
Can it be ceiling mounted?
No, this model is designed specifically for wall‑mounted installations.
Specifications39 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 155 x 108 x 33.5 mm / (6.1 x 4.3 x 1.3'') |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 10 GbE |
| Mounting | Wall |
| Power Method | PoE+ |
| Performance | |
| MIMO · 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 6 GHz | 5.8 Gbps (BW320) |
| Max. Data Rate · 5 GHz | 4.3 Gbps (BW240) |
| Max. Data Rate · 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain · 6 GHz | 6 dBi |
| Antenna Gain · 5 GHz | 6 dBi |
| Antenna Gain · 2.4 GHz | 4 dBi |
| Max. TX Power · 6 GHz | 24 dBm |
| Max. TX Power · 5 GHz | 26 dBm |
| Max. TX Power · 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11be (WiFi 7) | 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) / 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 22W |
| Supported Voltage Range | 42.5–57V DC |

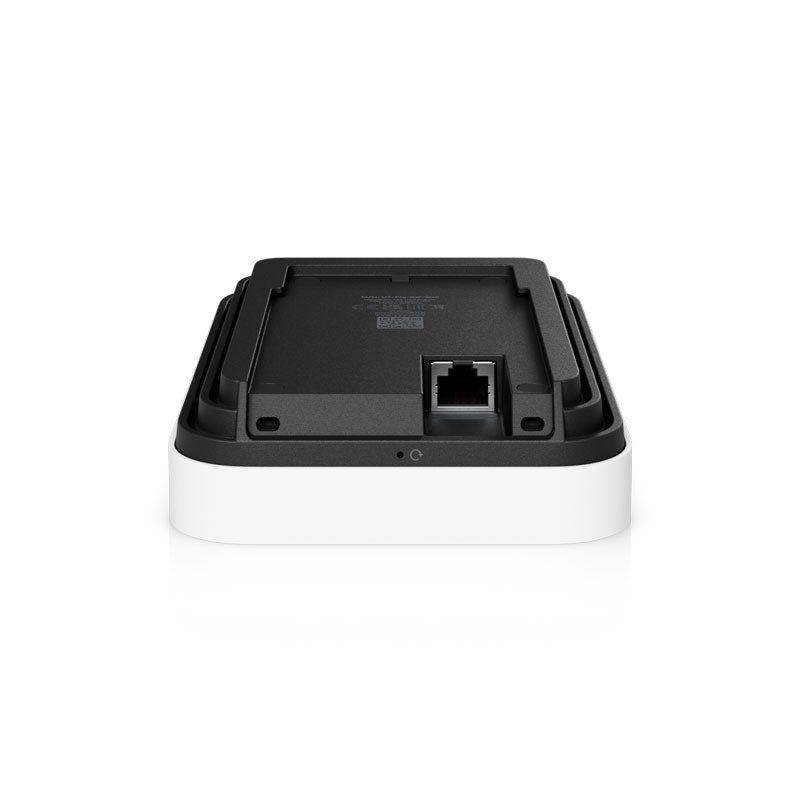

| Networking Interface | (1) 10 GbE RJ45 port |
| Weight | 505 g (1.1 lb) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| LEDs · System | W/B |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements · UniFi Network | Version 10.0 and later |
| Application Requirements · Mobile App | iOS™ version 10.29.3 and later / Android™ version 10.31.1 and later |
