UA-Intercom-Viewer Ubiquiti UniFi Access Intercom Viewer
Description
Description
Intercom Viewer

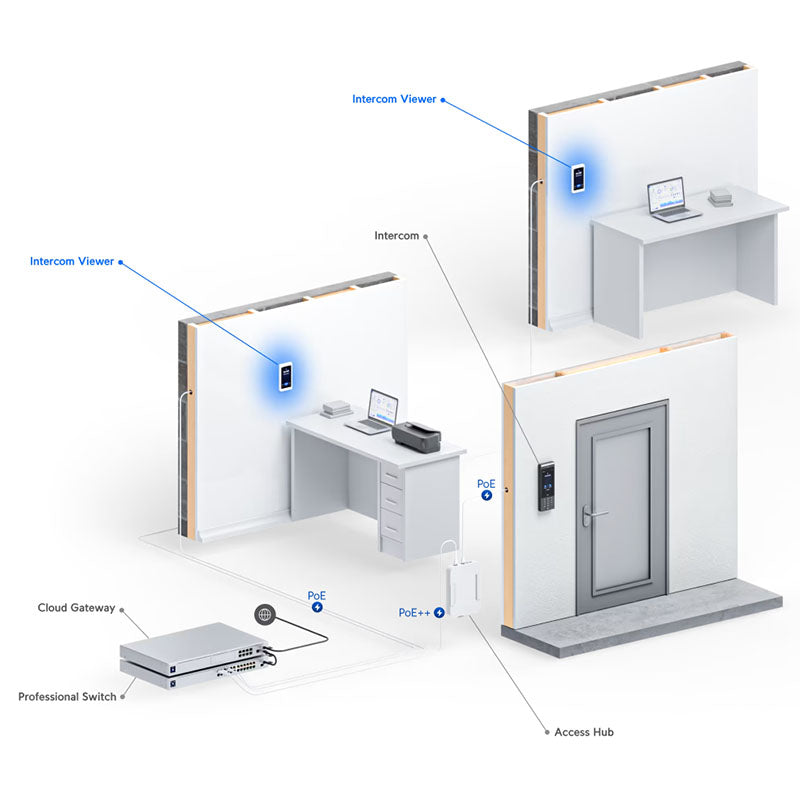

Display that pairs with the Access Intercom for visitor screening and remote access control, to mount in multiple locations throughout your building.
Features:
Two-way audio
Instant live view
5" touch display
Connect and power using a PoE switch
View the UA-Intercom here
Click HERE to access the Datasheet - UA-Intercom
Click HERE to access the Datasheet - UA-Intercom-Viewer
Click HERE to access the Installation Guide - UA-Intercom
Click HERE to access the Installation Guide - UA-Intercom-Viewer
Click HERE to access the Installation Guide - UACC-Intercom-SAM
Click HERE to access the Installation Guide - UACC-Intercom-FM
Click HERE to access the Installation Guide - UACC-Intercom-Sunshield
Specifications26 specifications · 4 sections
| Overview | |
|---|---|

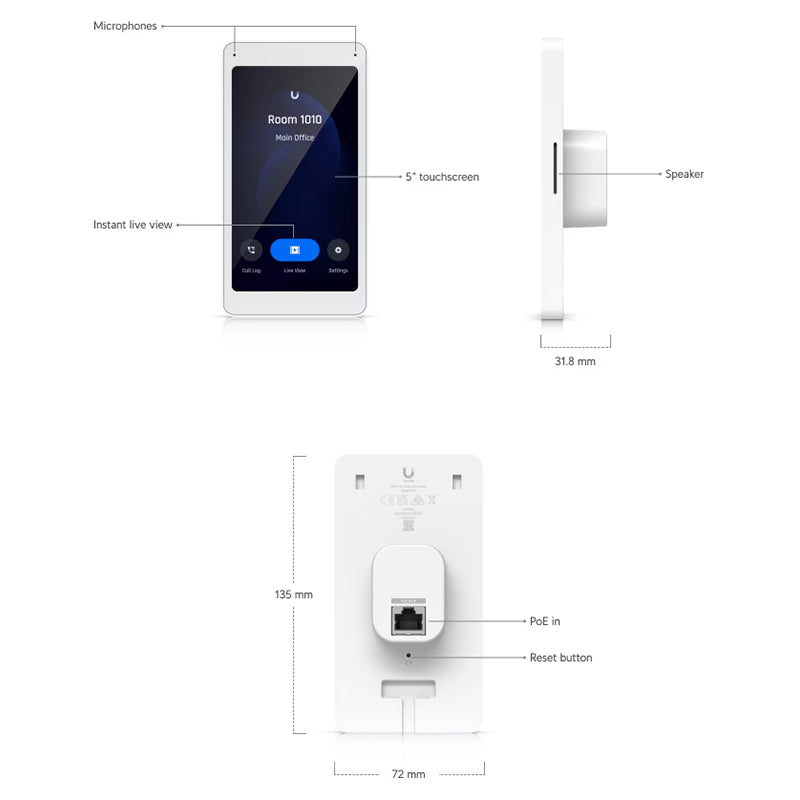

| Dimensions | 135 x 72 x 31.8 mm / (5.3 x 2.8 x 1.3") |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| Mechanical | |
| Weight | 168 g (5.9 oz) |
| Enclosure Material | Glass, polycarbonate |
| Mount Material | Aluminum alloy |

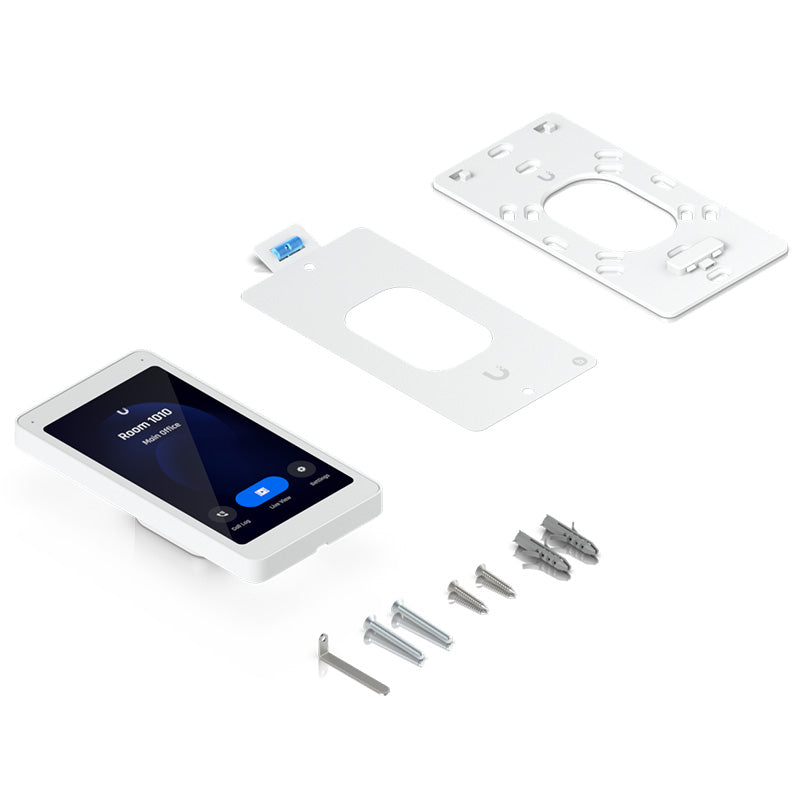

| Mounting | Wall (Included) / Gang box mount (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Indoor only |
| Networking Interface | (1) 10/100 Mbps RJ45 port |
| Connectivity | Ethernet |
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 44–57V DC |
| Display · Size | 127 mm (5") diagonal |
| Display · Luminance | 300 nits (Typical) |
| Display · Screen Orientation | Portrait |
| Display · Resolution | 1280 x 720 px |
| Buttons | (1) Factory reset |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Intercom-Viewer, V01 |
| Ambient Operating Temperature | 0 to 40° C / (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
