Wave-MLO5 Ubiquiti UISP Dual 5 GHz WiFi 7-based Radio
Regular price
$1,025.36 NZD
Unit price
/
Unavailable
Add to cart, then request a quote for our best price.
Description
Description
High-performance dual 5 GHz WiFi 7-based radios with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity.
Features:
5 GHz, 100+ km link range
5+ Gbps throughput
Dedicated spectral analysis radio
Channel puncturing

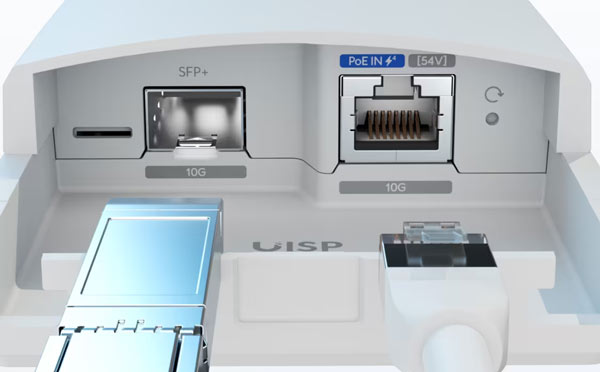

(1) 10 GbE and (1) SFP+ port
Integrated Bluetooth
Compatible with airMAX antenna, airFiber X antenna, UISP Dish and UISP Horn
Note. MLO operation is limited to 20 km, with longer ranges coming soon via future firmware updates.
Click HERE to access the Datasheet
Specifications33 specifications · 5 sections
| Mechanical | |
|---|---|
| Dimensions | 249.3 x 82 x 47.6 mm / (9.8 x 3.2 x 1.9") |
| Weight | 575 g (1.3 lb) |
| Enclosure Material | Aluminum alloy, UV-resistant polycarbonate |
| Mount Material | Strap: stainless steel / Universal bracket: UV-resistant polycarbonate |
| Mounting | Pole Mount |
| Pole Mount Diameter | 1—2" (25.4—50.8 mm) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core IPQ5322 at 1.5 GHz |
| Memory | DDR4 1 GB |
| Networking Interface | (1) 10 GbE RJ45 port / (1) 10G SFP+ port |
| Max. Power Consumption | 20W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) / Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| Power Supply | 54V DC, 0.56A, 10 GbE PoE adapter (Included) |
| MIMO · 5 GHz | (2) 2 x 2 |
| Max. TX Power · 5 GHz | 24 dBm |
| RF Connections | (2) RP-SMA (Waterproof) / (1) GPS (Waterproof) |
| Buttons | (1) Factory reset |
| LEDs · Power | (1) Blue |
| LEDs · Ethernet | (1) Blue |
| LEDs · GPS | (1) Blue |
| LEDs · Signal Strength | (4) Blue |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating Modes | PtP |
| Network | Bridge Mode |
| System | |
| Total Throughput | 5+ Gbps |
| Max. Range | 100 km (62.1 mi) |
| Encryption | WPA3-PSK (AES) |
| Radio Frequency | |
| Operating Frequency · Worldwide | 5180 – 5320 MHz / 5500 – 5700 MHz / 5745 – 5825 MHz |
| Channel Bandwidth | Radio 1: 20, 40, 80, 160 MHz / Radio 2: 20, 40, 80, 160, 240 MHz |
| Modulation | BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (⅔), 64QAM (¾), 64QAM (⅚), 256QAM (¾), 256QAM (⅚), 1024QAM (¾), 1024QAM (⅚), 4096QAM (¾), 4096QAM (⅚) |
Source: Ubiquiti technical specifications, checked 13 Oct 2026.Model Wave-MLO5 · Ubiquiti's spec sheet
