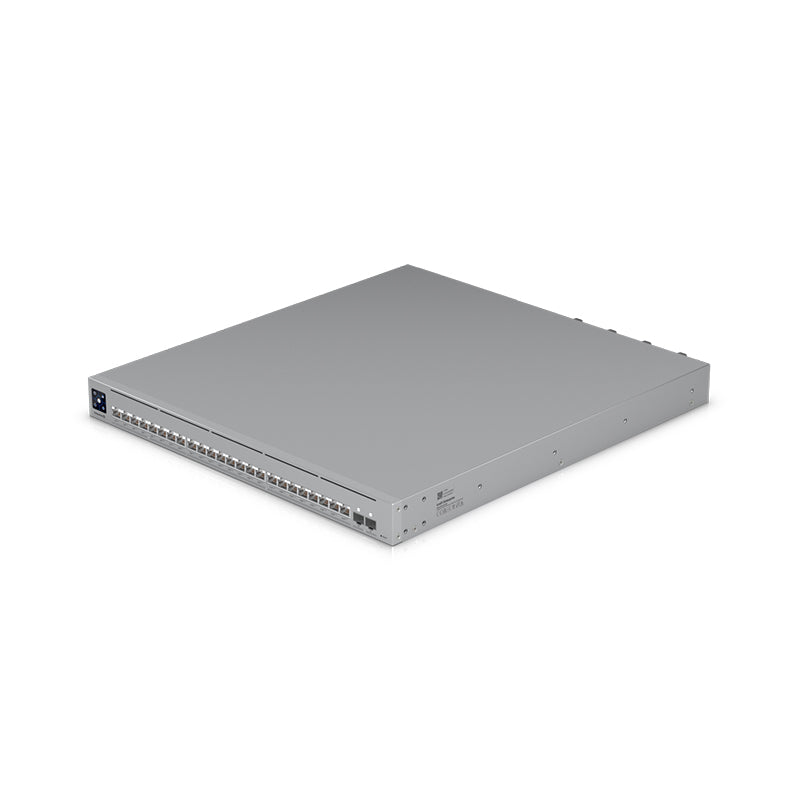

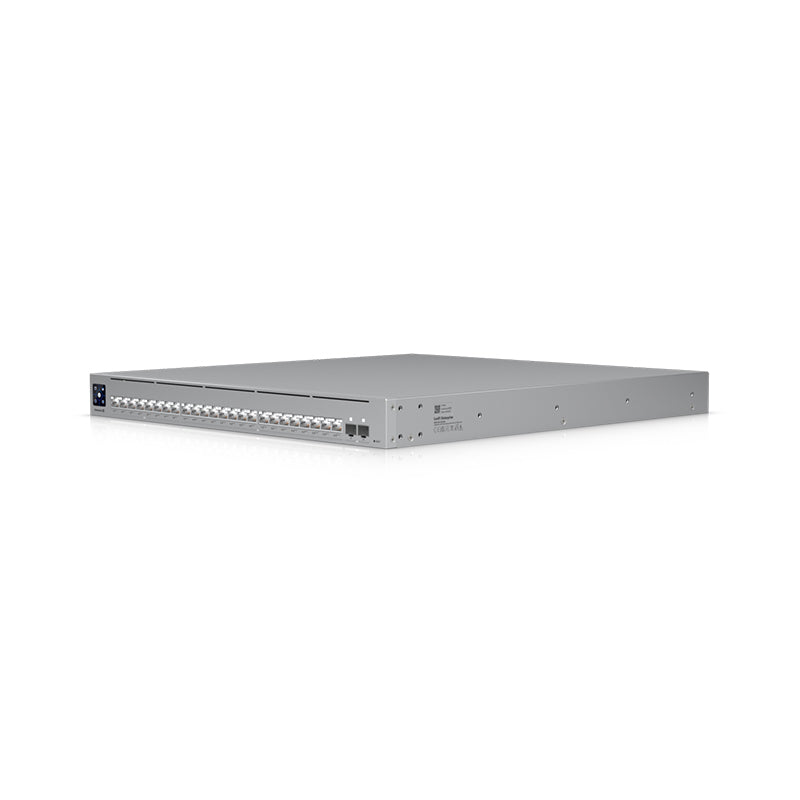

ECS-24-PoE (1050W) Ubiquiti Enterprise Campus 24 PoE Switch
We do not hold this locally right now, but it is in stock in Australia and the UK. Contact us and we will tell you what is possible.
Description
Description
Enterprise-grade, Layer 3 Etherlighting™ PoE switch with (8) 2.5 GbE PoE+++, (16) 10 GbE PoE+++, and (2) 25G SFP28 ports for high availability system design.
Features:

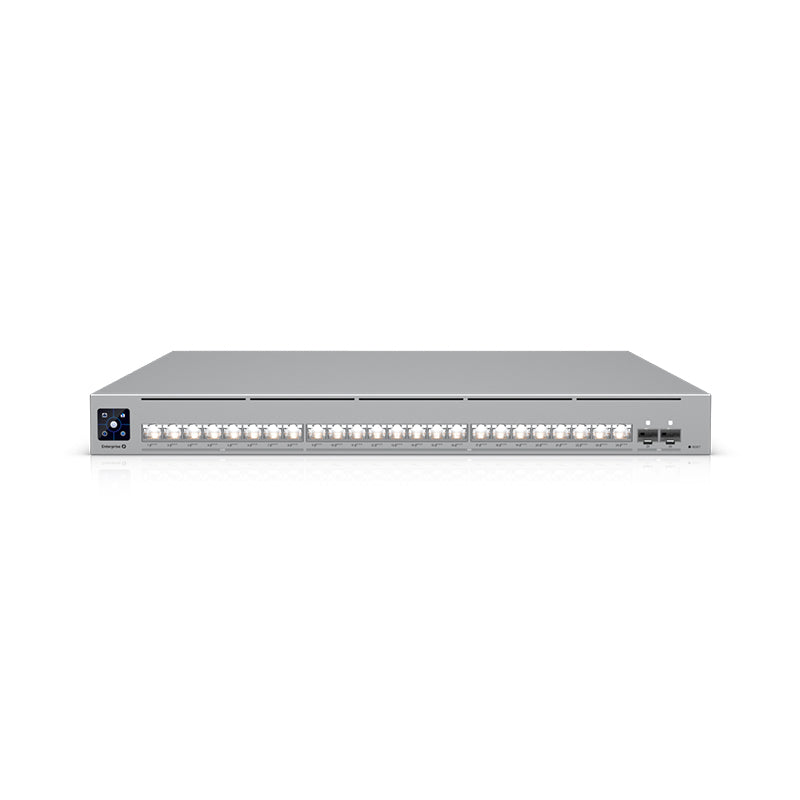

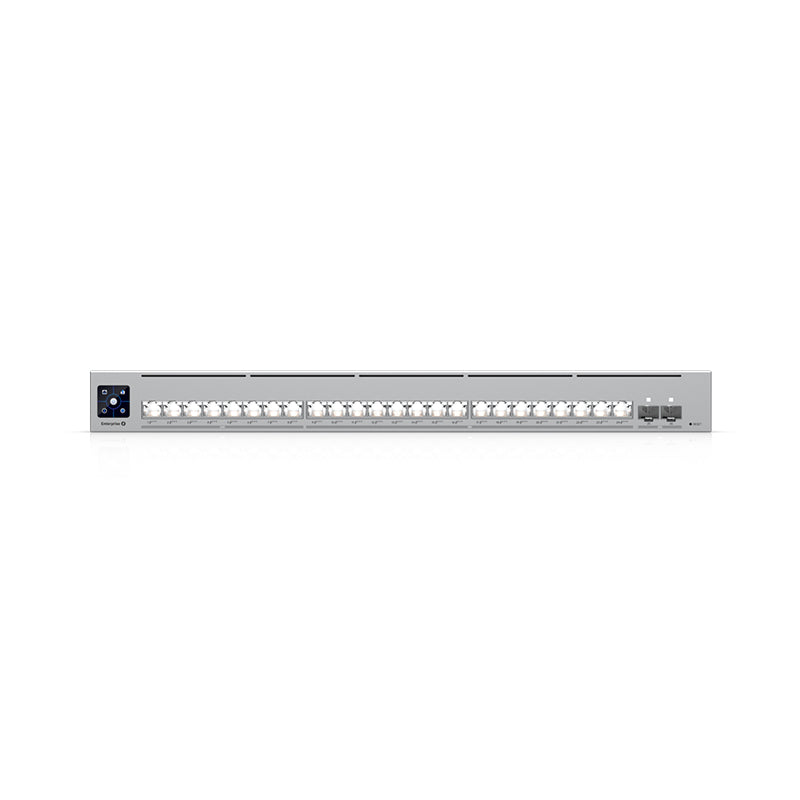

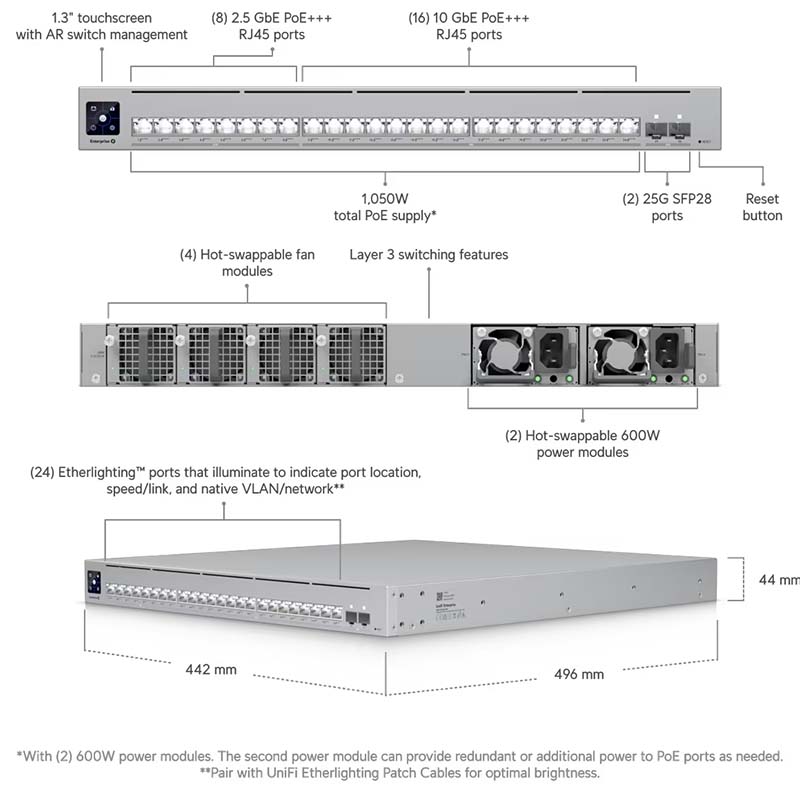

(8) 2.5 GbE PoE+++, (16) 10 GbE PoE+++ ports
(2) 25G SFP28 ports

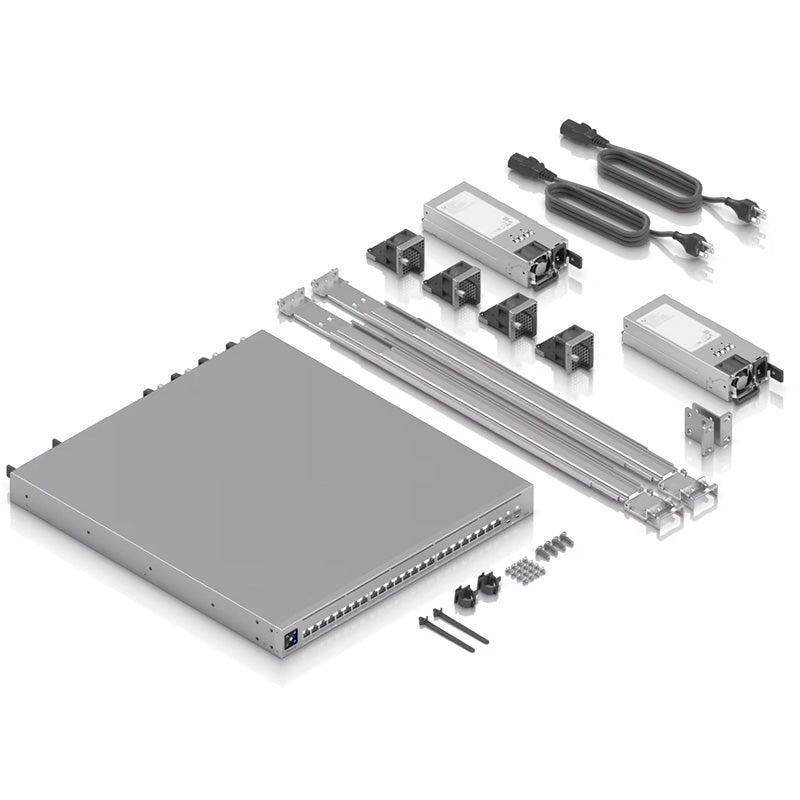

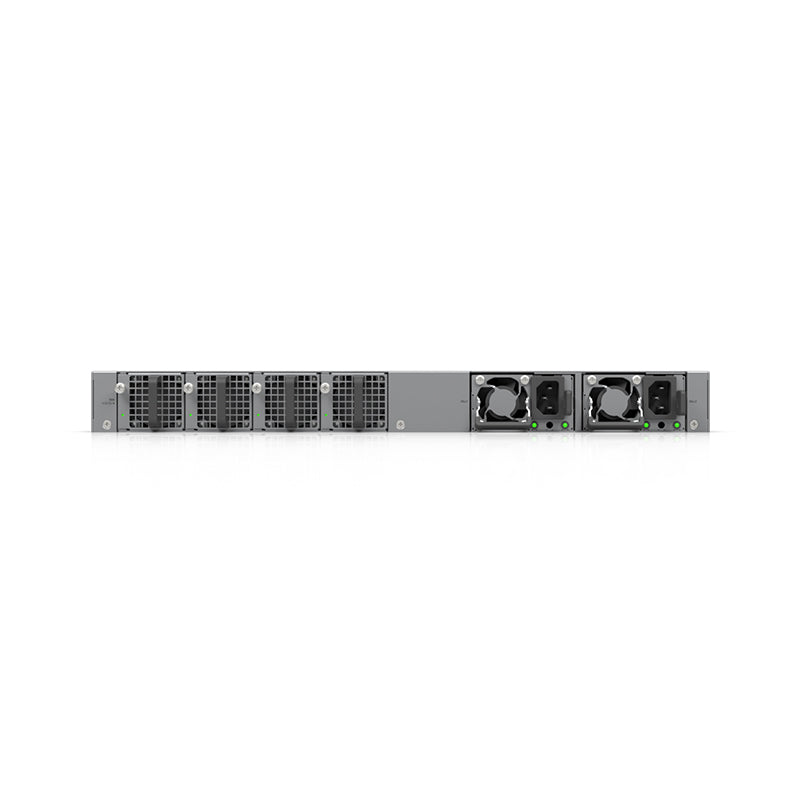

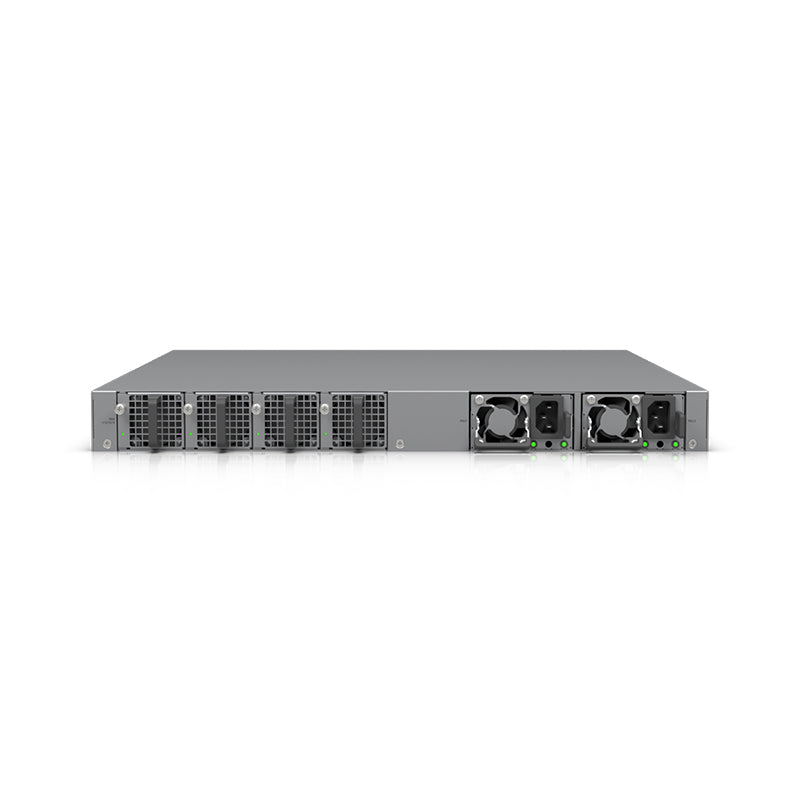

(2) included hot-swappable power modules, with power sharing to expand total PoE availability, or 1+1 redundancy
(4) included hot-swappable fan modules, with 3+1 redundancy

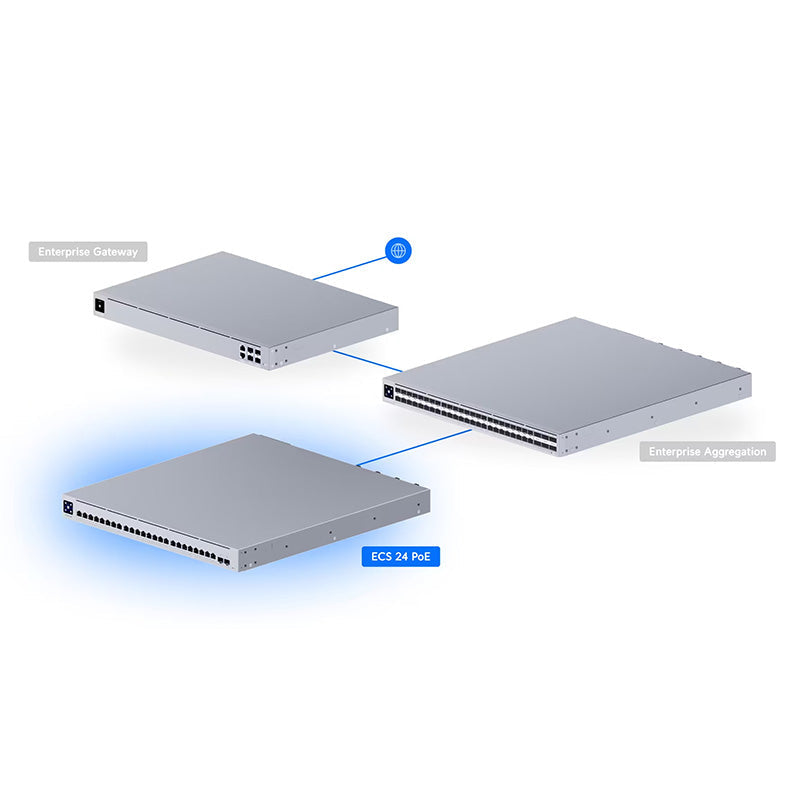

*Recommend pairing it with Enterprise Campus Aggregation.
Specifications39 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 43.7 x 496 mm / (17.4 x 1.7 x 19.5") |
| Port Layout · 2.5 GbE RJ45 | 8 (All PoE+++) / (2.5G/1G/100M/10M) |
| Port Layout · 10 GbE RJ45 | 16 (All PoE+++) / (10G/5G/2.5G/1G/100M/10M) |
| Port Layout · 25G SFP28 | 2 / (25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 100-240V AC Shared Mode: 1,050W with (2) 600W modules / 100-240V AC Redundant Mode: 450W with (2) 600W modules / / 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules / 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules / 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules / 100-120V AC Redundant Mode: 850W with (2) 1,200W modules |
| Redundancy | (2) Hot-Swappable PSUs / (4) Hot-Swappable Fans |
| Form Factor | Rack Mount (1U, Full-Depth) |
| Performance | |
| Switching Capacity | 460 Gbps |
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| Access Lists · IPv4 | 256 |
| Access Lists · MAC | 256 |
| Hardware | |
| PoE Ports · PoE+++ | 24 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Max. PoE Wattage per Port by PSE · PoE++ | 60W |
| Max. PoE Wattage per Port by PSE · PoE+++ | 90W |
| Max. Power Consumption | 150W (Excluding PoE Output) / 2,400W (Including PoE Output) |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 600W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 512 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 9.46 kg (20.9 lb) / With mounting brackets: 9.56 kg (21.1 lb) |
| Enclosure Material | SGCC steel |

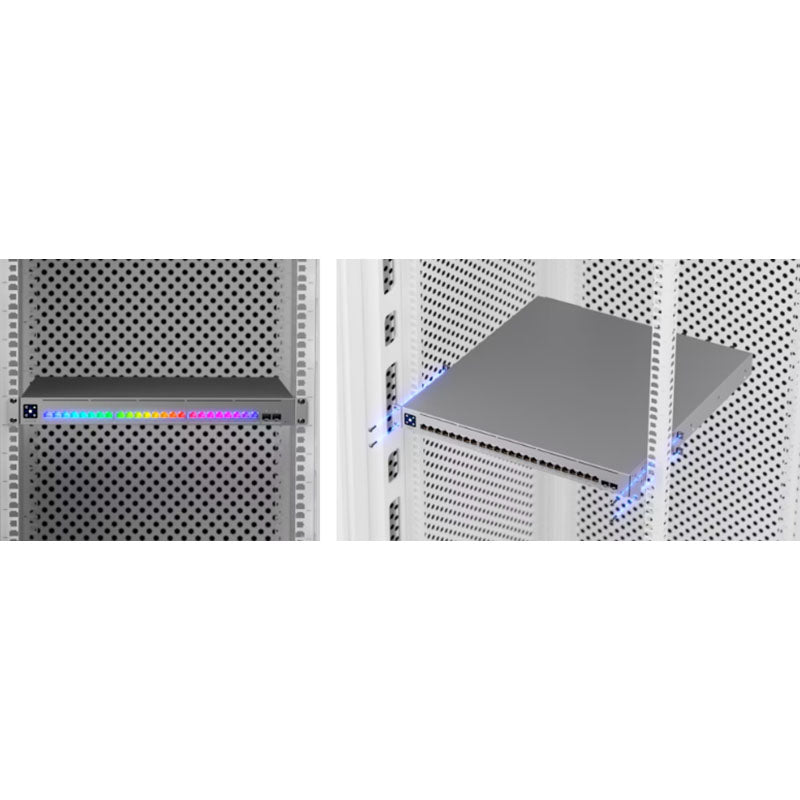

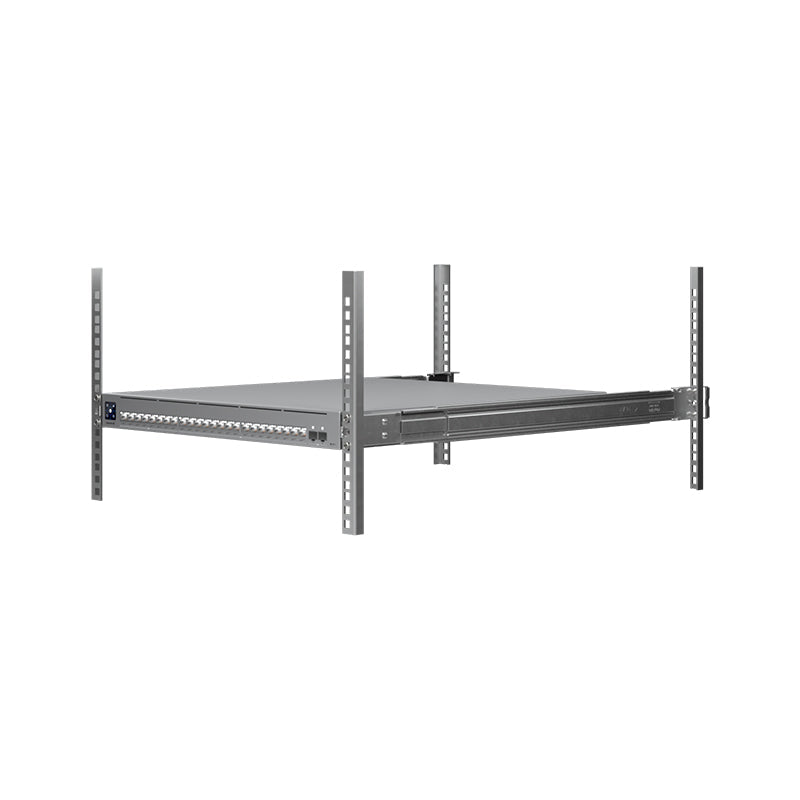

| Supported Rack Depth | 482.6 mm (19") four-post racks / Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) hot-swappable fan modules |
| ESD Protection | Air: ± 30kV, contact: ± 30kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06181-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 9.0.114 and later |
