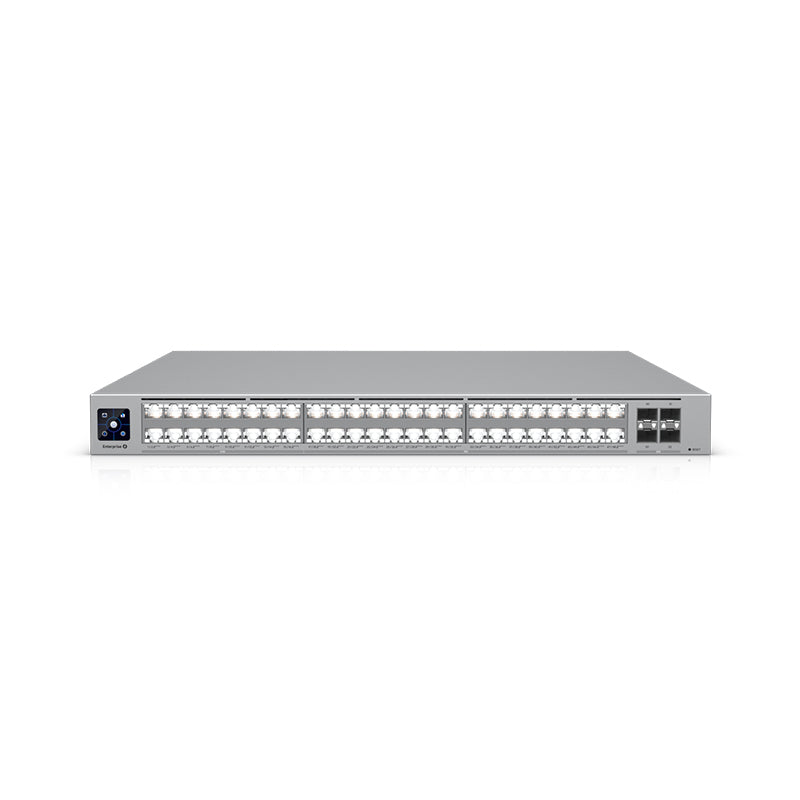

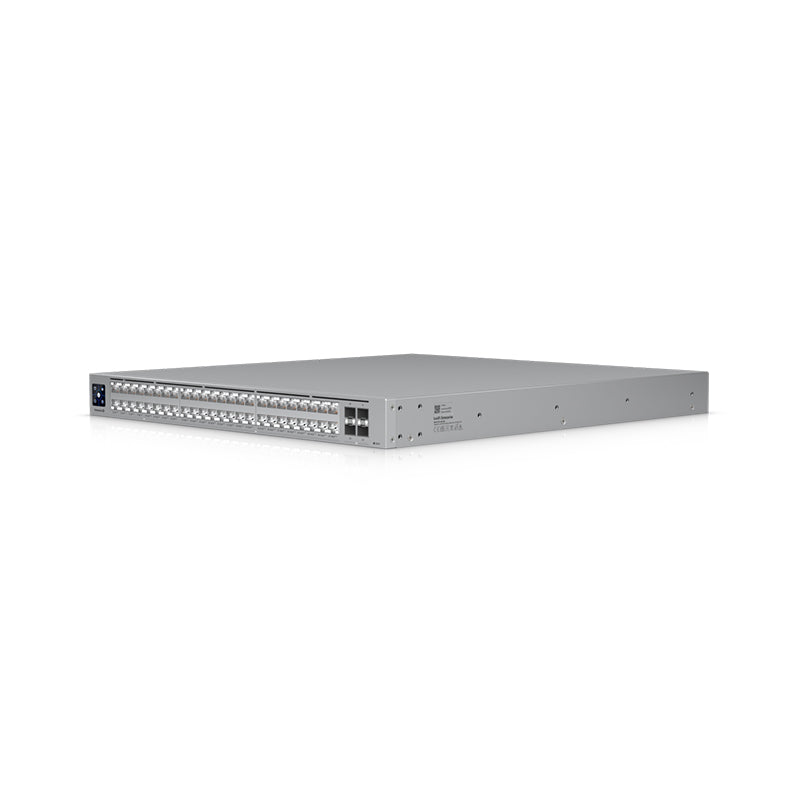

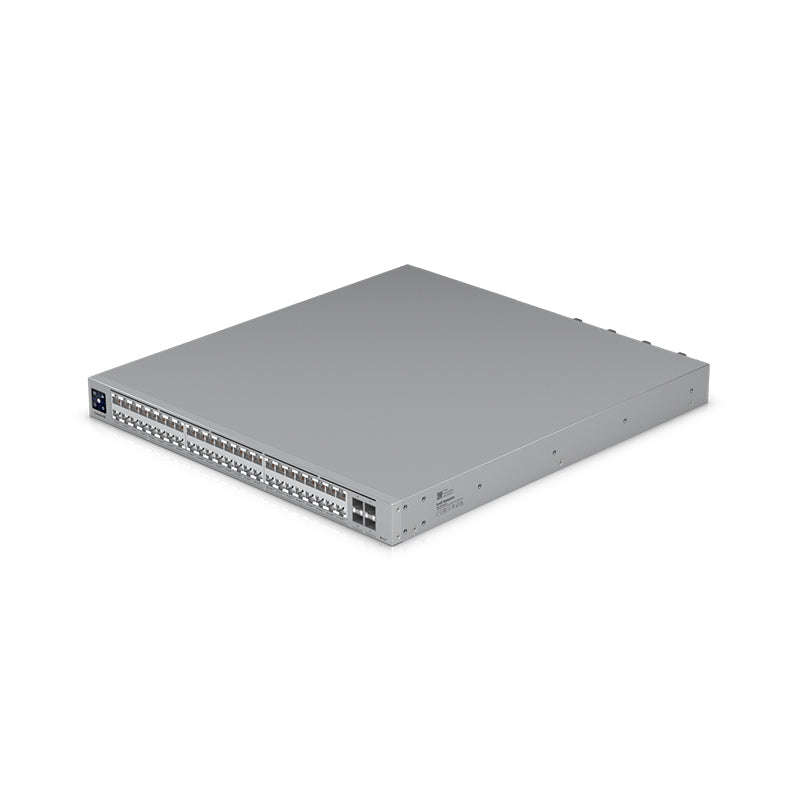

ECS-48-PoE (2150W) Ubiquiti Enterprise Campus 48 PoE Switch
We do not hold this locally right now, but it is in stock in Australia and the UK. Contact us and we will tell you what is possible.
Description
Description

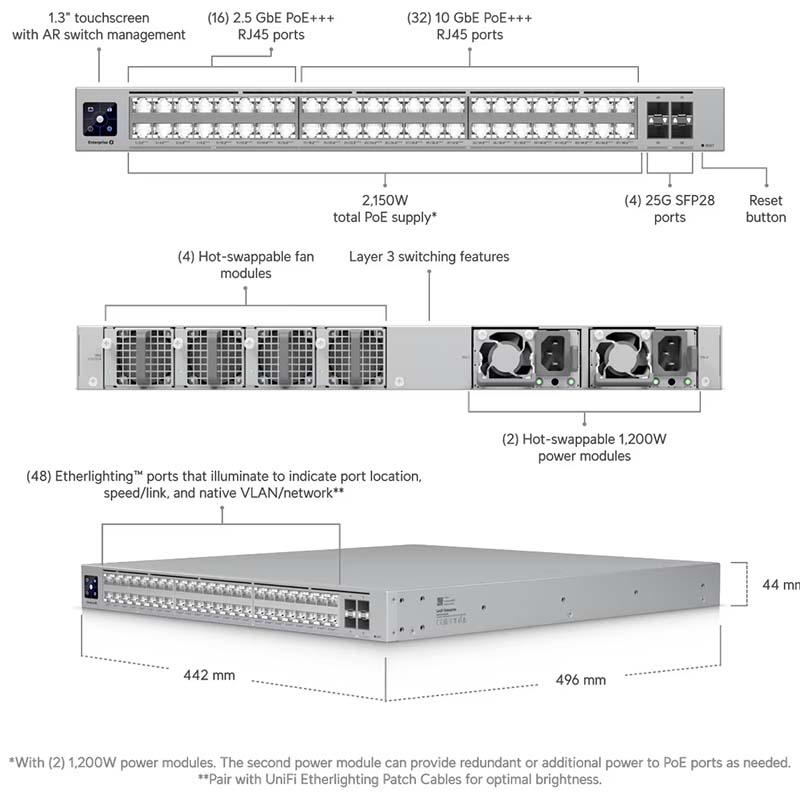

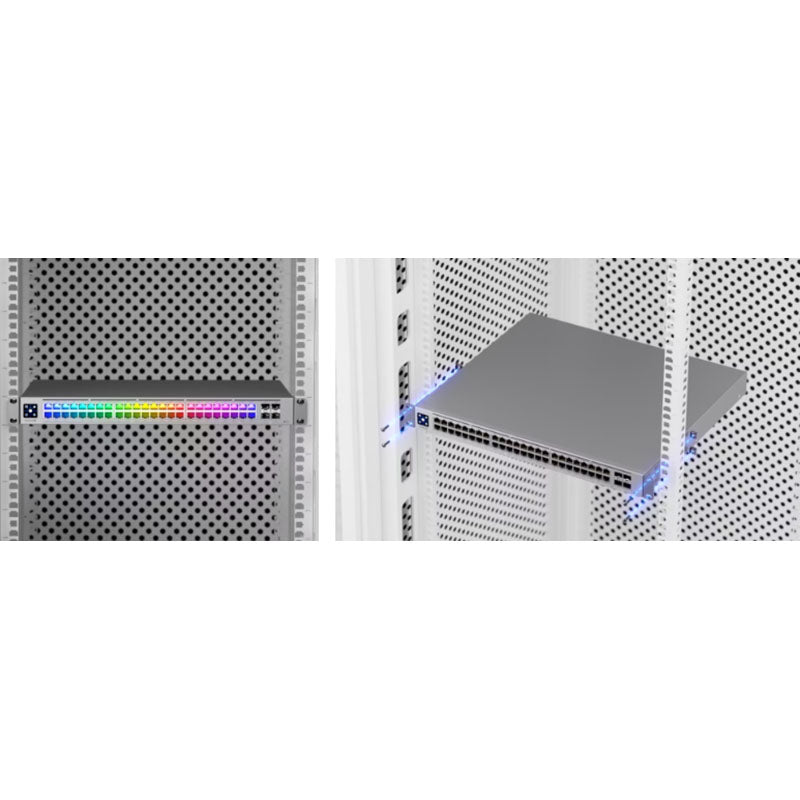

Enterprise-grade, Layer 3 Etherlighting™ PoE switch with (16) 2.5 GbE PoE+++, (32) 10 GbE PoE+++, and (4) 25G SFP28 ports for high availability system design.
Features:

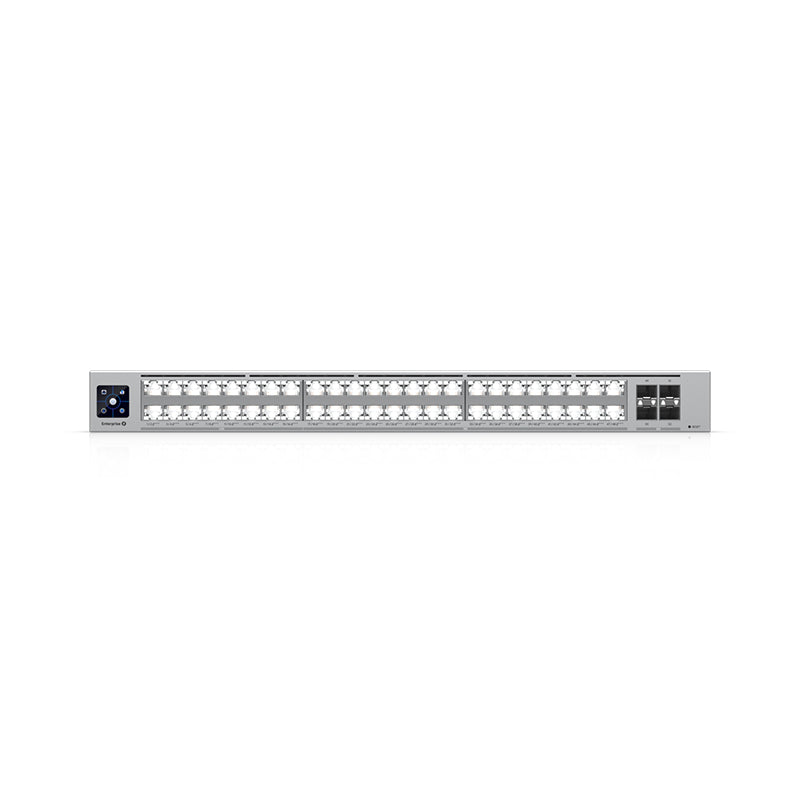

(16) 2.5 GbE PoE+++, (32) 10 GbE PoE+++ ports
(4) 25G SFP28 ports

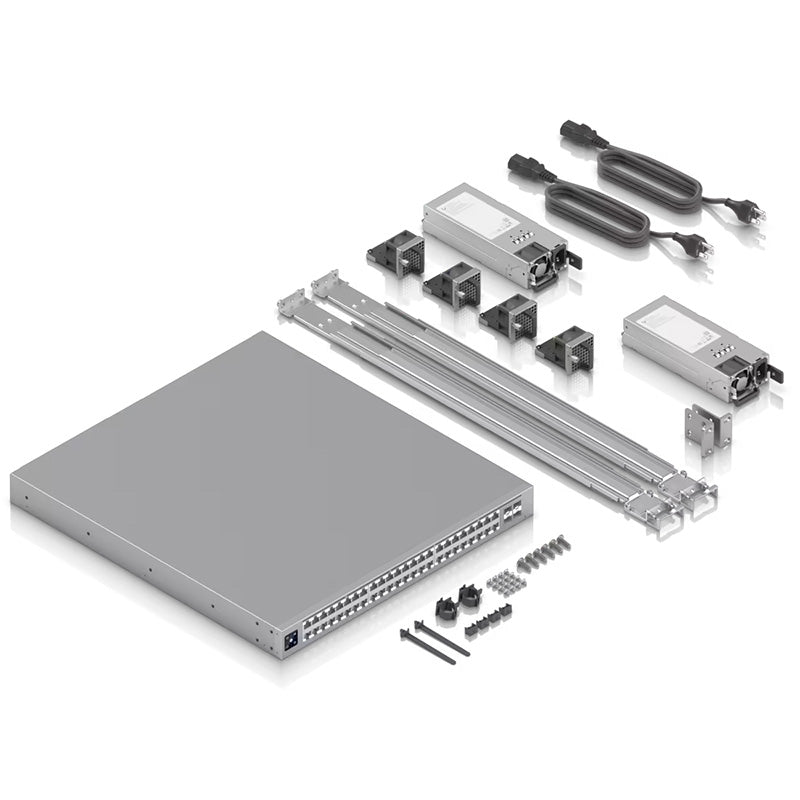

(2) included hot-swappable power modules, with power sharing to expand total PoE availability, or 1+1 redundancy
(4) included hot-swappable fan modules, with 3+1 redundancy

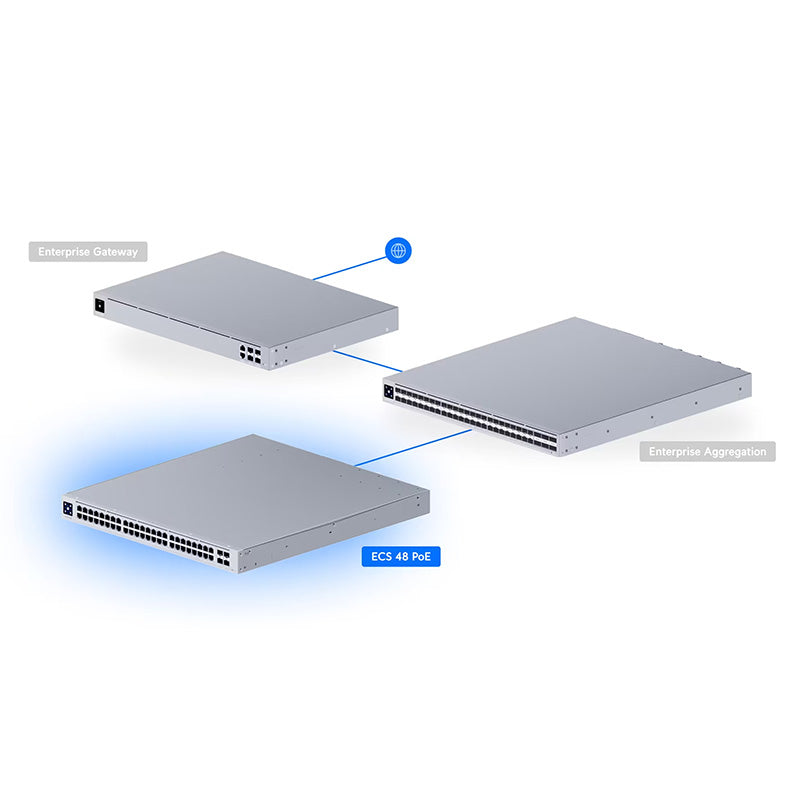

*Recommend being paired with Enterprise Campus Aggregation.
Specifications40 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 43.7 x 496 mm / (17.4 x 1.7 x 19.5") |
| Port Layout · 2.5 GbE RJ45 | 16 (All PoE+++) / (2.5G/1G/100M/10M) |
| Port Layout · 10 GbE RJ45 | 32 (All PoE+++) / (10G/5G/2.5G/1G/100M/10M) |
| Port Layout · 25G SFP28 | 4 / (25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 200-240V AC Shared Mode: 2,150W / 100-120V AC Shared Mode: 1,750W / 200-240V AC Redundant Mode: 950W / 100-120V AC Redundant Mode: 750W |

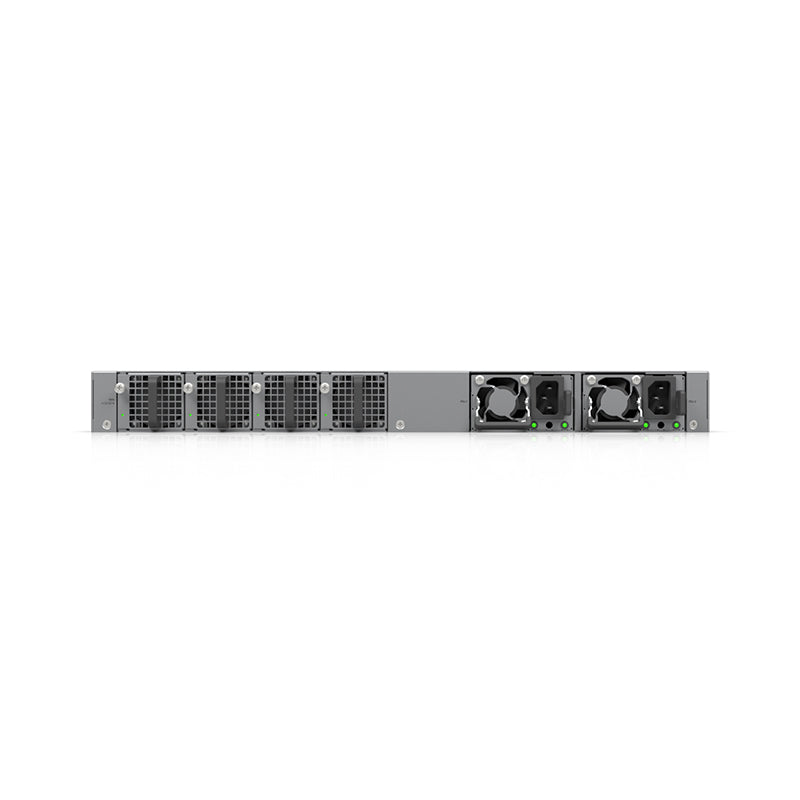

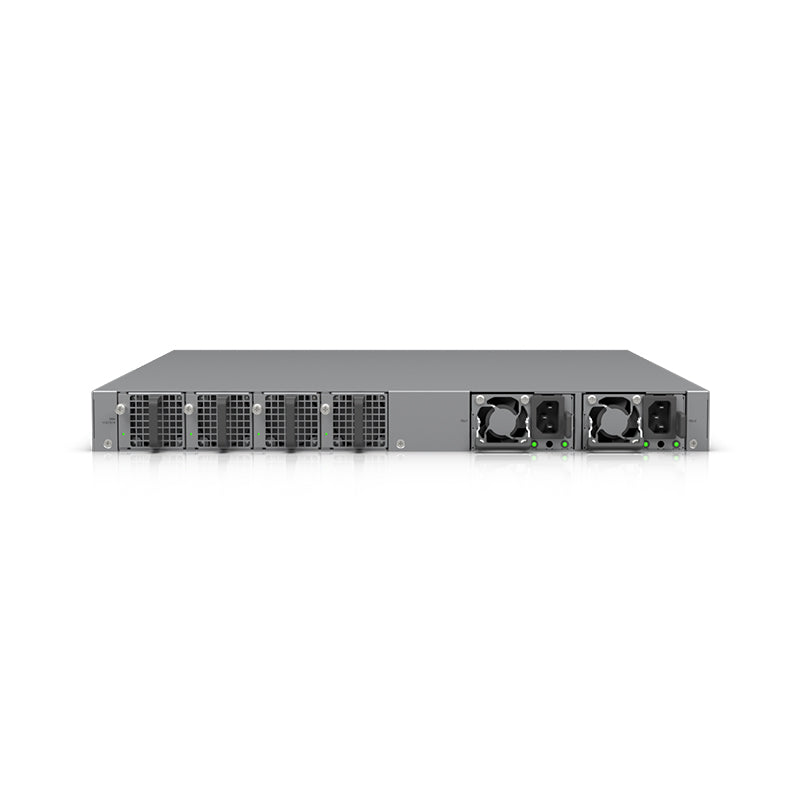

| Redundancy | (2) Hot-Swappable PSUs / (4) Hot-Swappable Fans |
| Form Factor | Rack Mount (1U, Full-Depth) |
| Performance | |
| Switching Capacity | 920 Gbps |
| Total Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| Access Lists · IPv4 | 256 |
| Access Lists · MAC | 256 |
| Hardware | |
| PoE Ports · PoE+++ | 48 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Max. PoE Wattage per Port by PSE · PoE++ | 60W |
| Max. PoE Wattage per Port by PSE · PoE+++ | 90W |
| Max. Power Consumption | 250W (Excluding PoE Output) / 2,400W (Including PoE Output) |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 1,200W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 785 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 9.46 kg (20.9 lb) / With mounting brackets: 9.56 kg (21.1 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

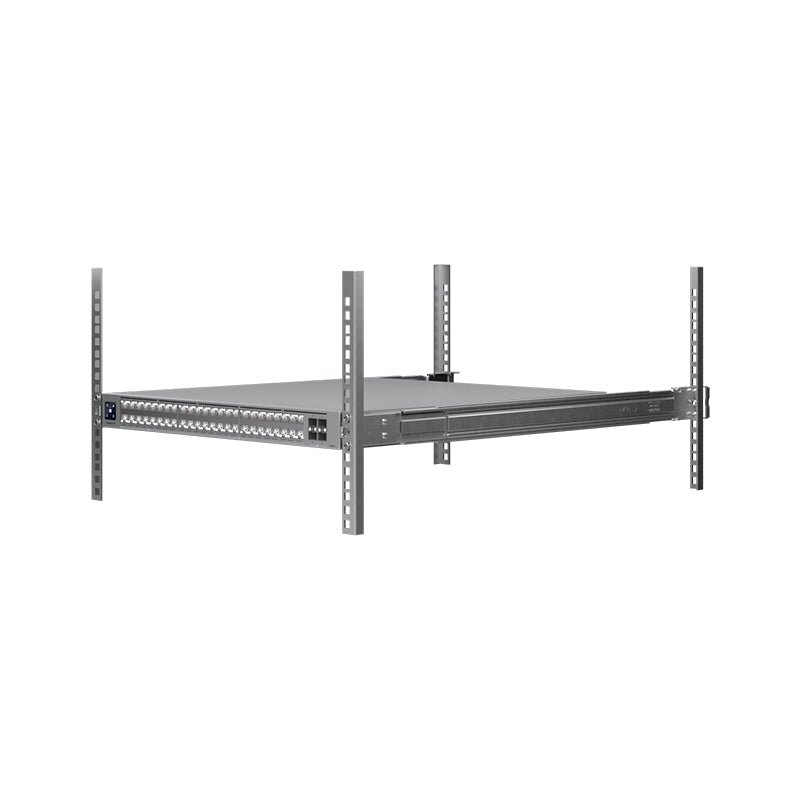

| Supported Rack Depth | 482.6 mm (19") four-post racks / Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) hot-swappable fan modules |
| ESD Protection | Air: ± 30kV, contact: ± 19kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06181-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 9.0.114 and later |
