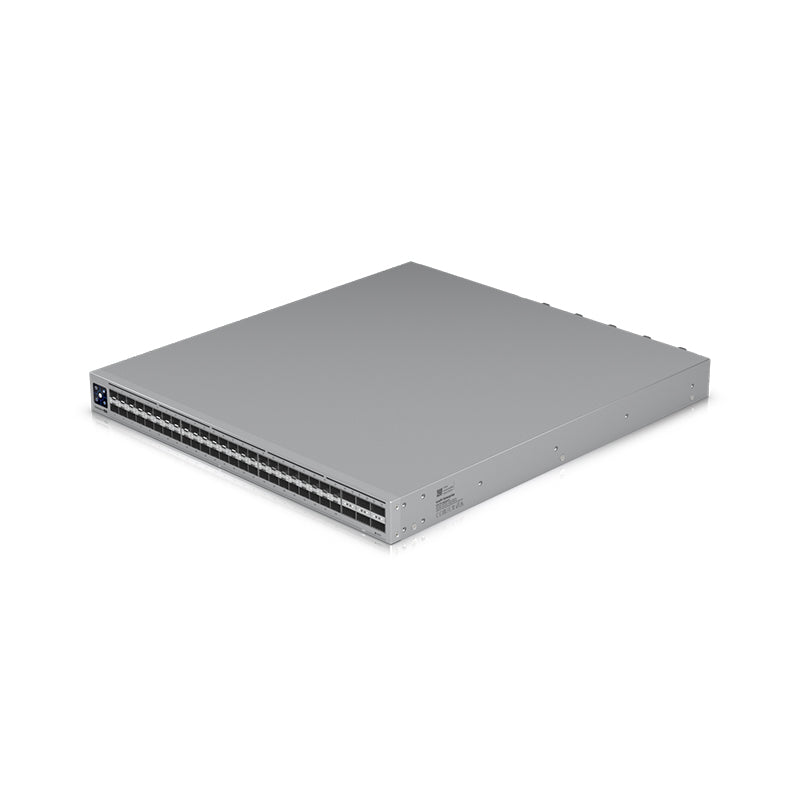

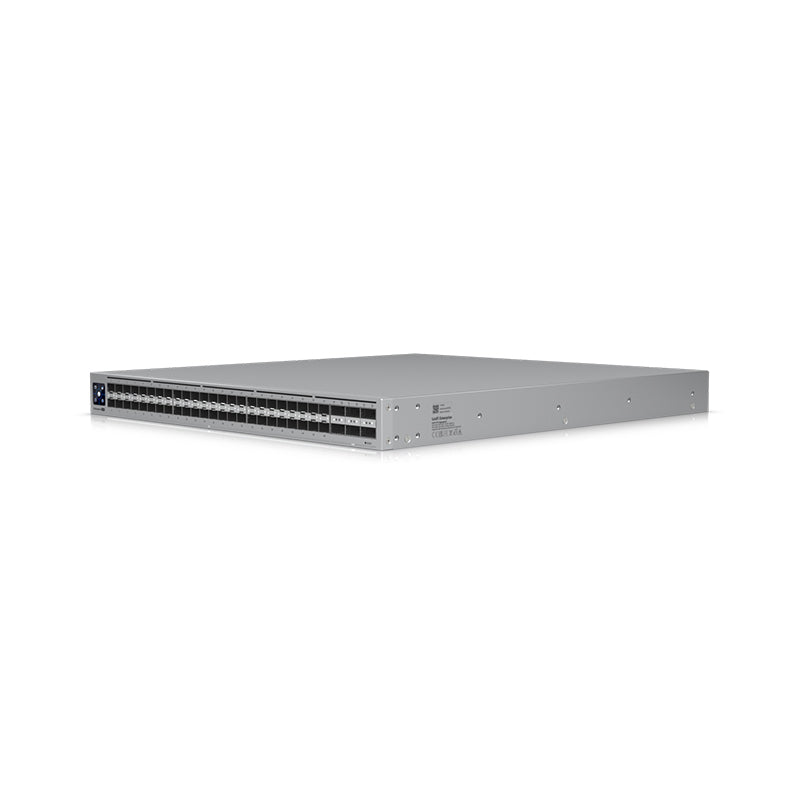

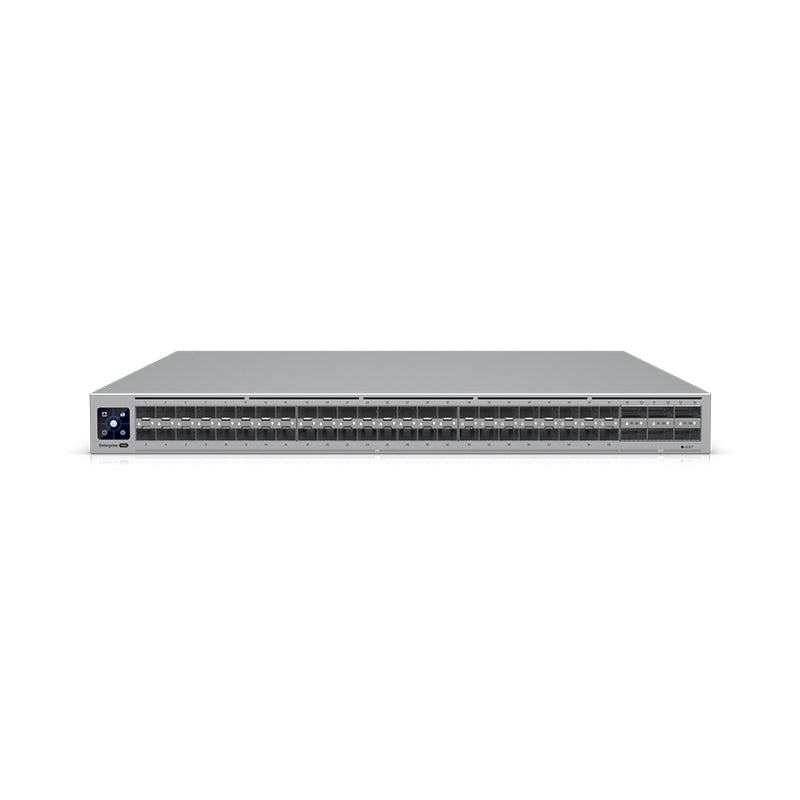

ECS-Aggregation Ubiquiti Enterprise Campus Aggregation Switch
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
Description
Description
1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design.
Features:

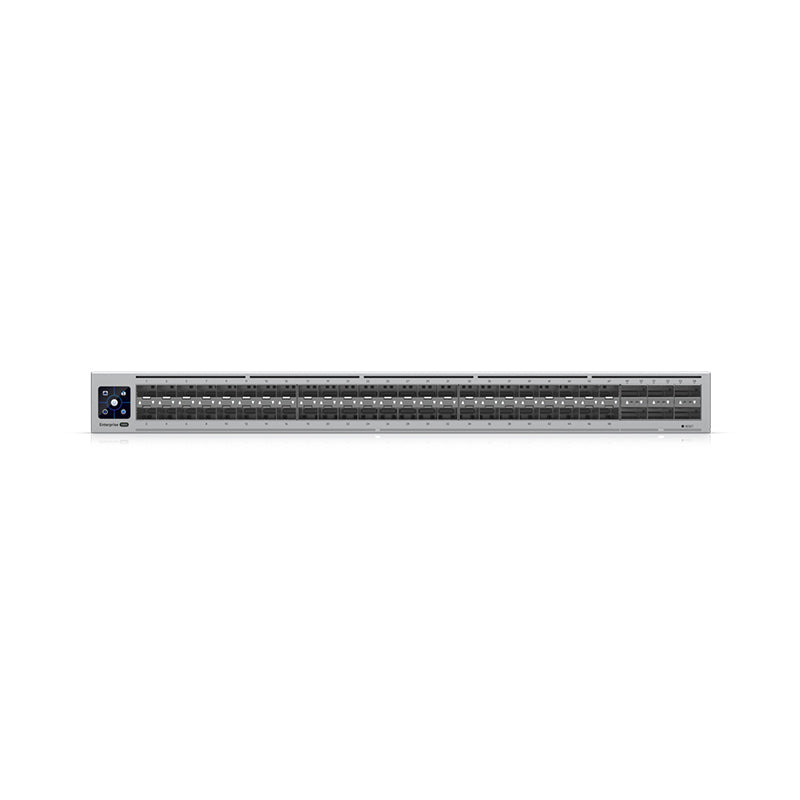

(48) 25G SFP28 and (6) 100G QSFP28 ports

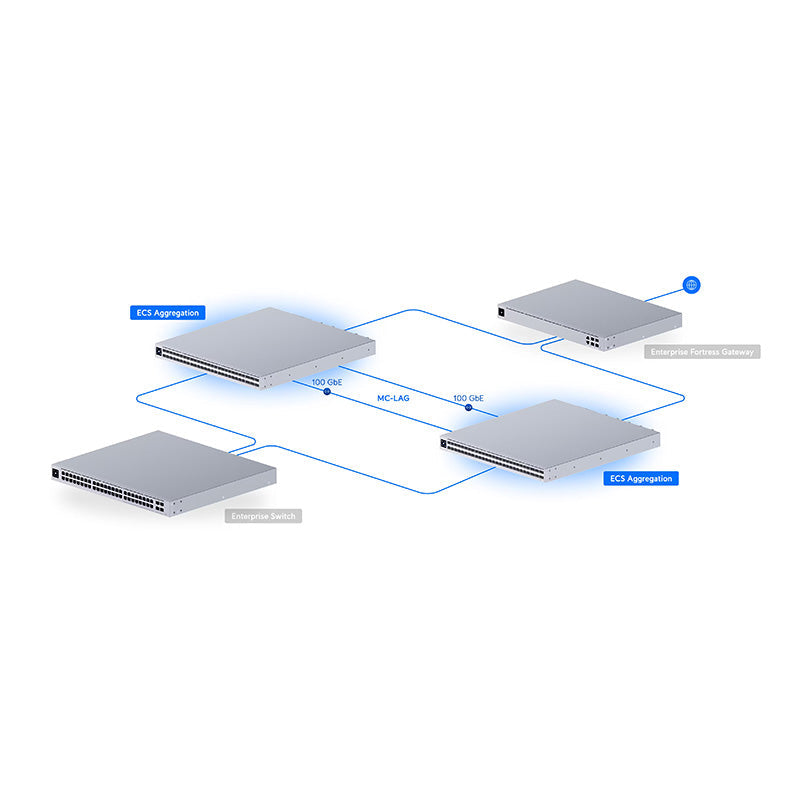

Multi-Chassis Link Aggregation (MC-LAG) support*
Layer 3 automatic failover (VRRP) support**
BGP Dynamic Routing***

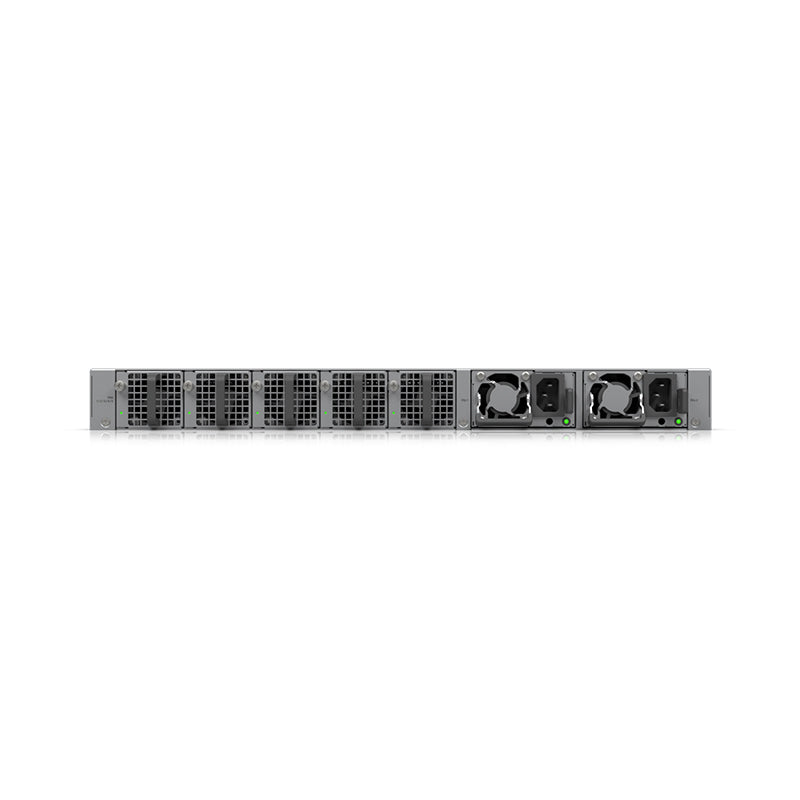

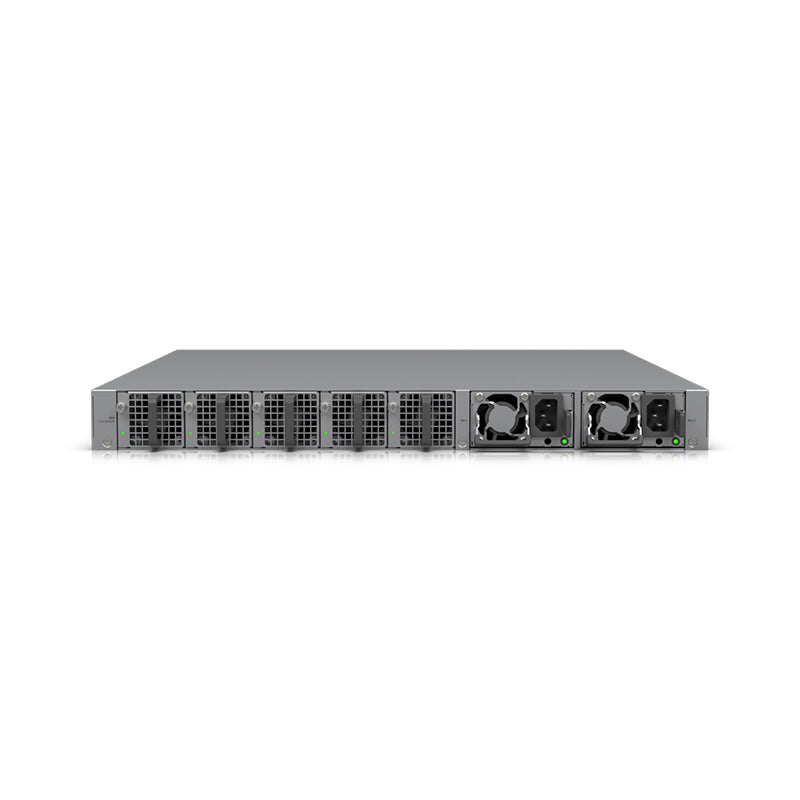

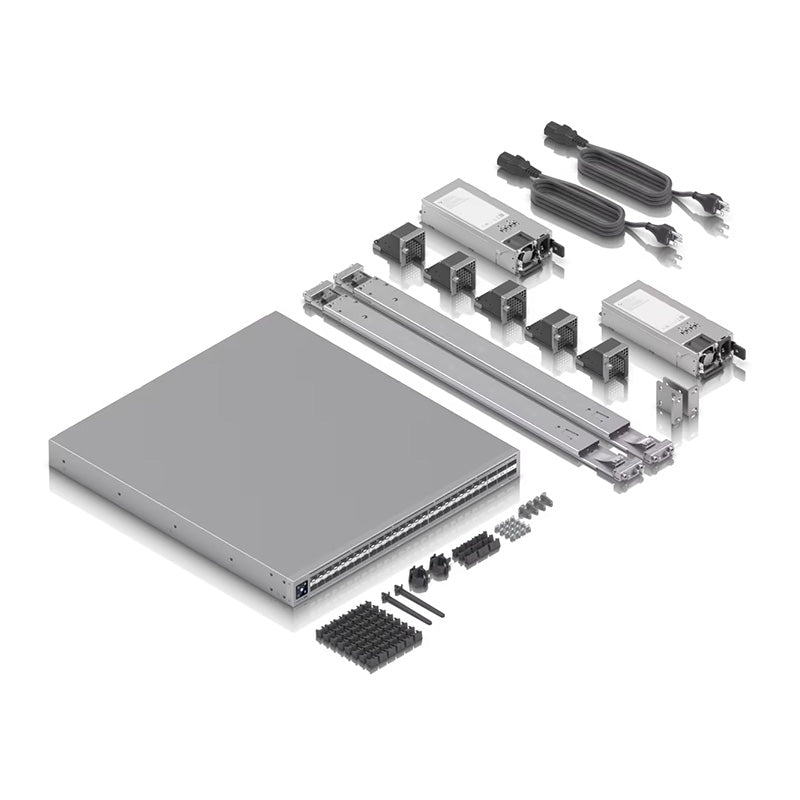

(2) included hot-swappable power modules, with 1+1 redundancy
(5) included hot-swappable fan modules, with 4+1 redundancy
*Must be paired with another Enterprise Campus Aggregation.
**Scheduled for the next UniFi Network Application release.
***OSPF support is scheduled for an upcoming UniFi Network Application release.
Specifications31 specifications · 4 sections
| Overview | |
|---|---|

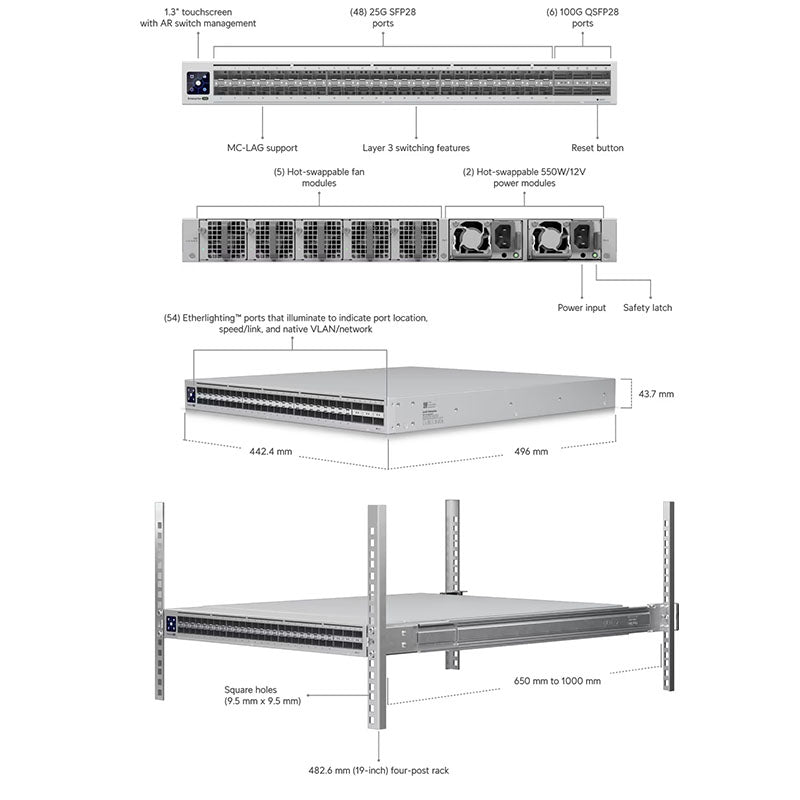

| Dimensions | 442.4 x 43.7 x 496 mm / (17.4 x 1.7 x 19.5") |
| Port Layout · 25G SFP28 | 48 / (25G/10G) |
| Port Layout · 100G QSFP28 | 6 / (100G/40G) |
| Redundancy | Multi-Chassis Link Aggregation (MC-LAG) / (2) Hot-Swappable PSUs / (5) Hot-Swappable Fans |

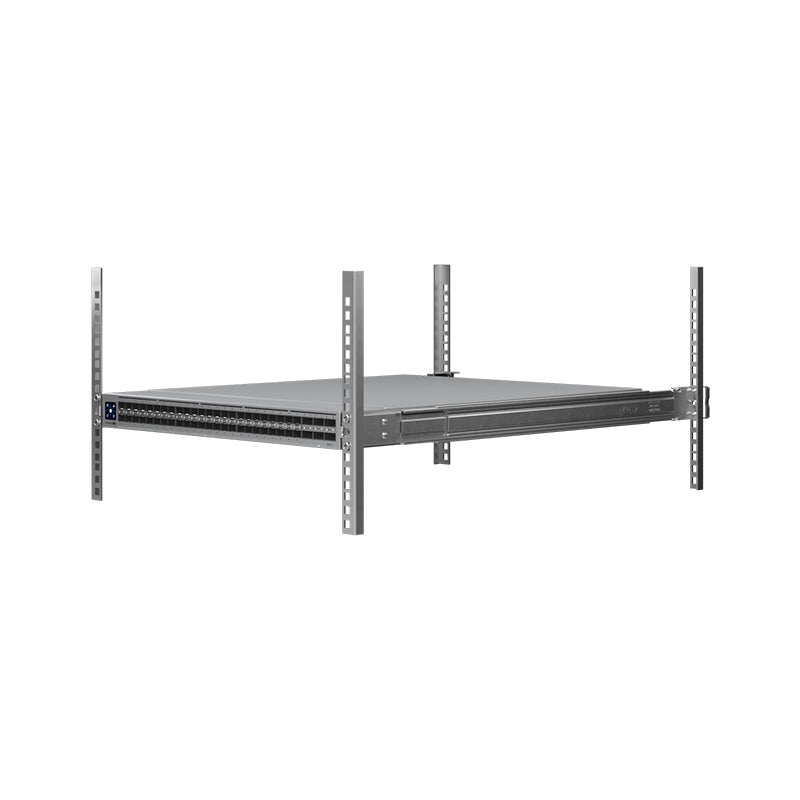

| Form Factor | Rack mount (1U, Full-Depth) |
| Performance | |
| Switching Capacity | 3.6 Tbps |
| Total Non-Blocking Throughput | 1.8 Tbps |
| Forwarding Rate | 2.4 Bpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 24 MB |
| Access Lists · IPv4 | 512 |
| Access Lists · MAC | 512 |
| Hardware | |
| Max. Power Consumption | 340W |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 550W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 1160 BTU/hr |
| Weight | Without mounting brackets: 9.9 kg (21.8 lb) / With mounting brackets: 10 kg (22 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

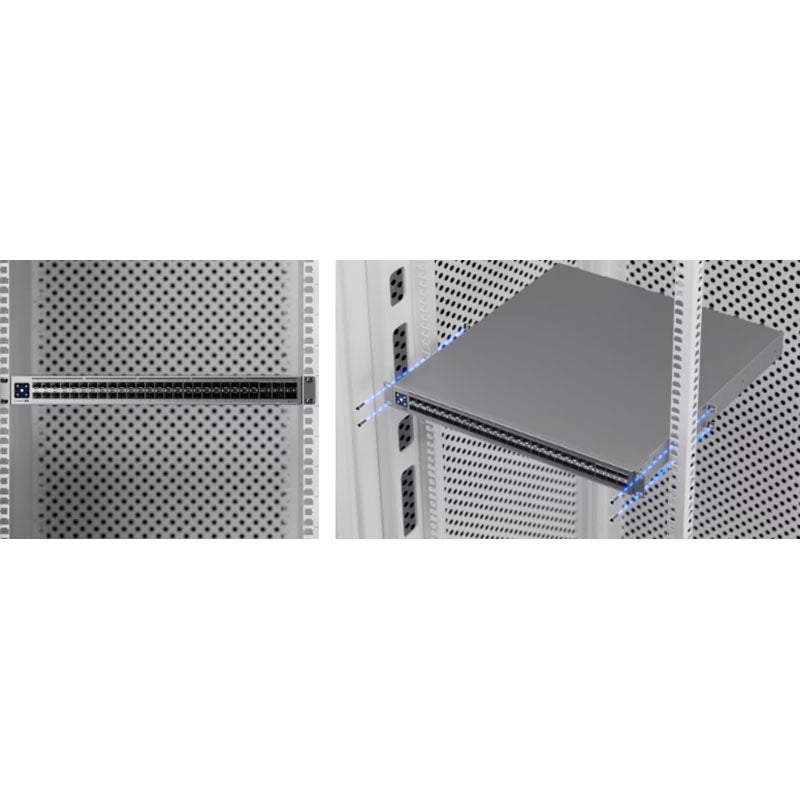

| Supported Rack Depth | 482.6 mm (19") four-post racks / Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 12kV, contact: ± 8kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 01327-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.5.6 and later |
