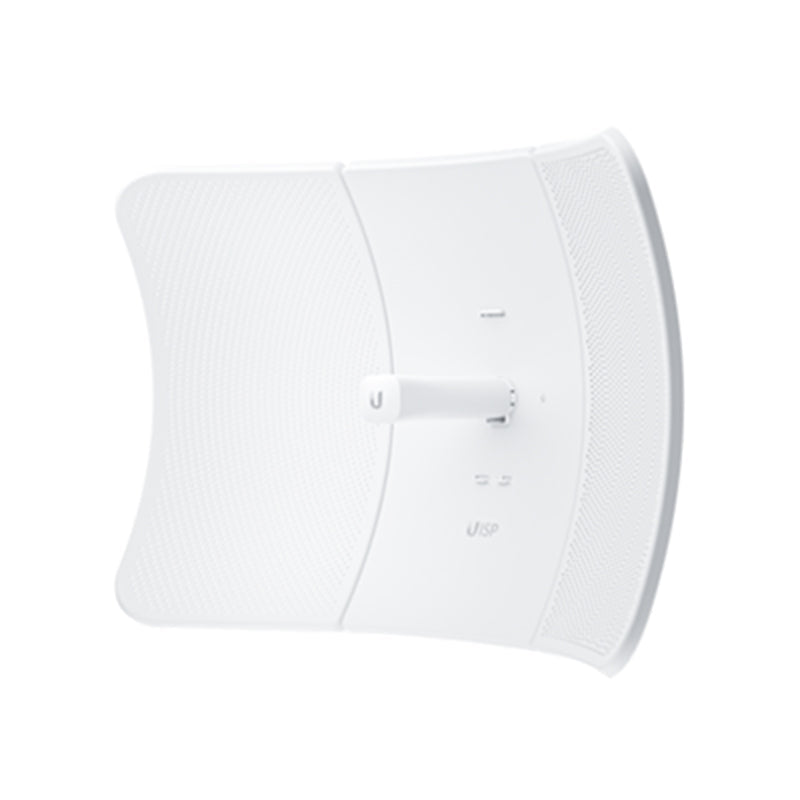

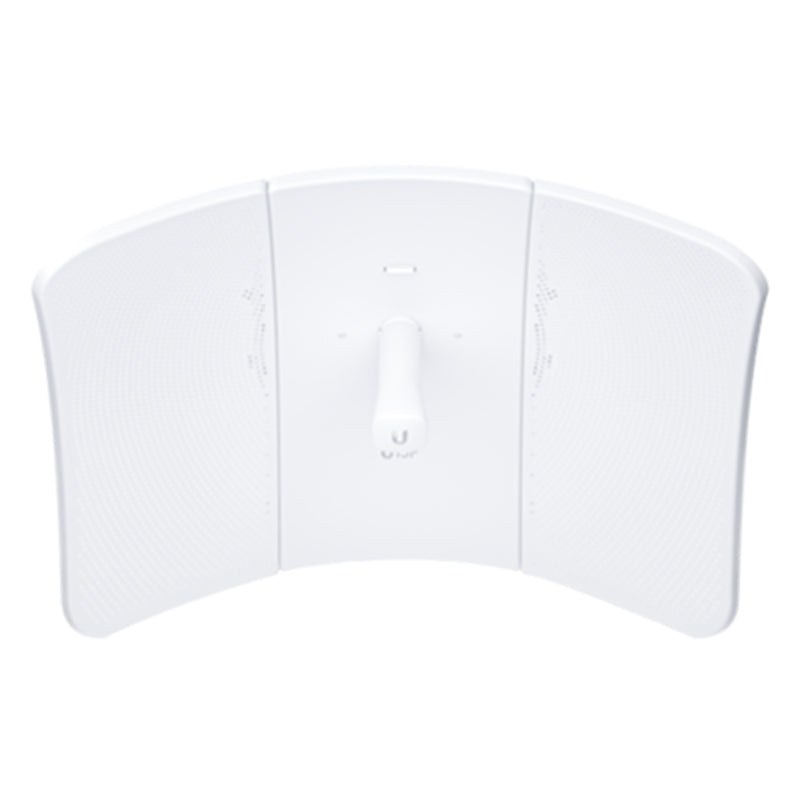

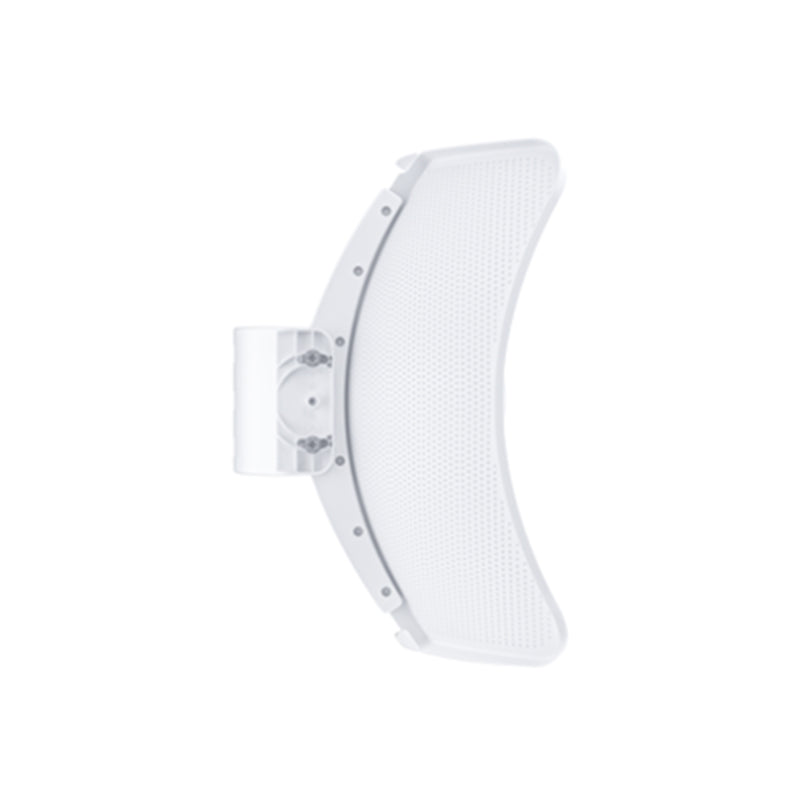

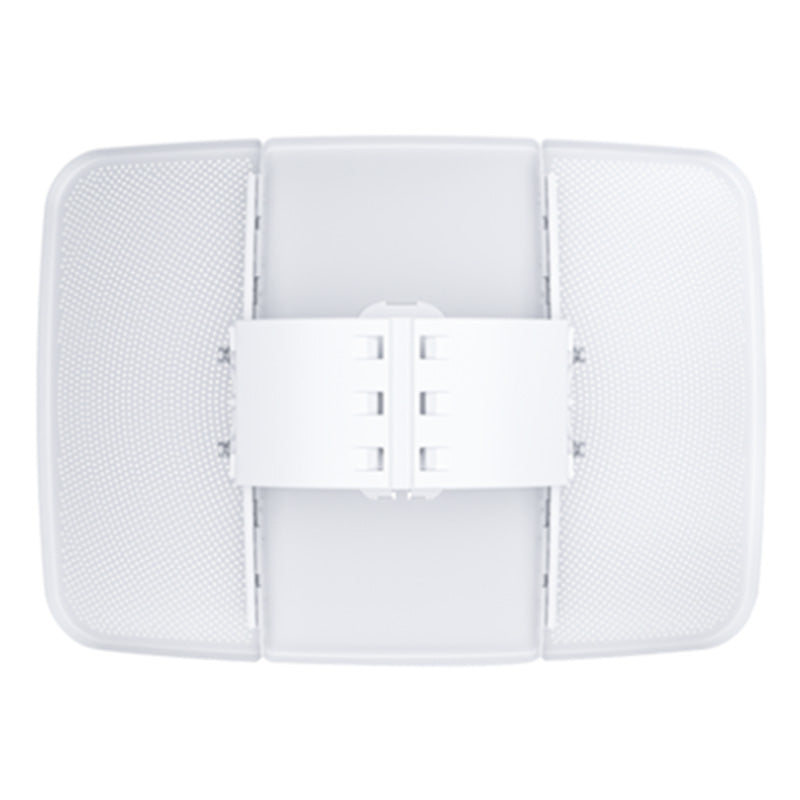

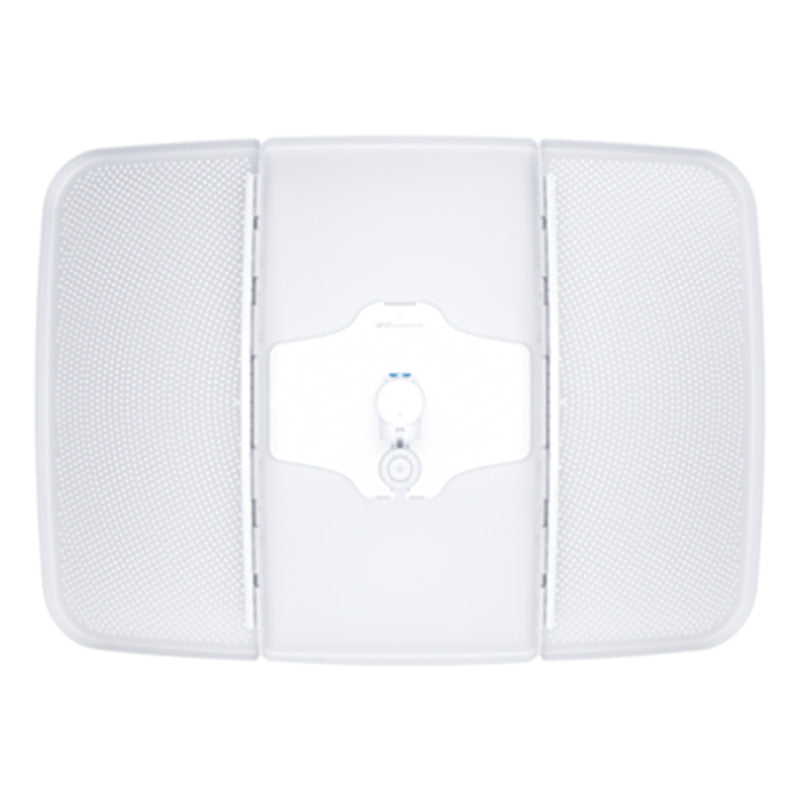

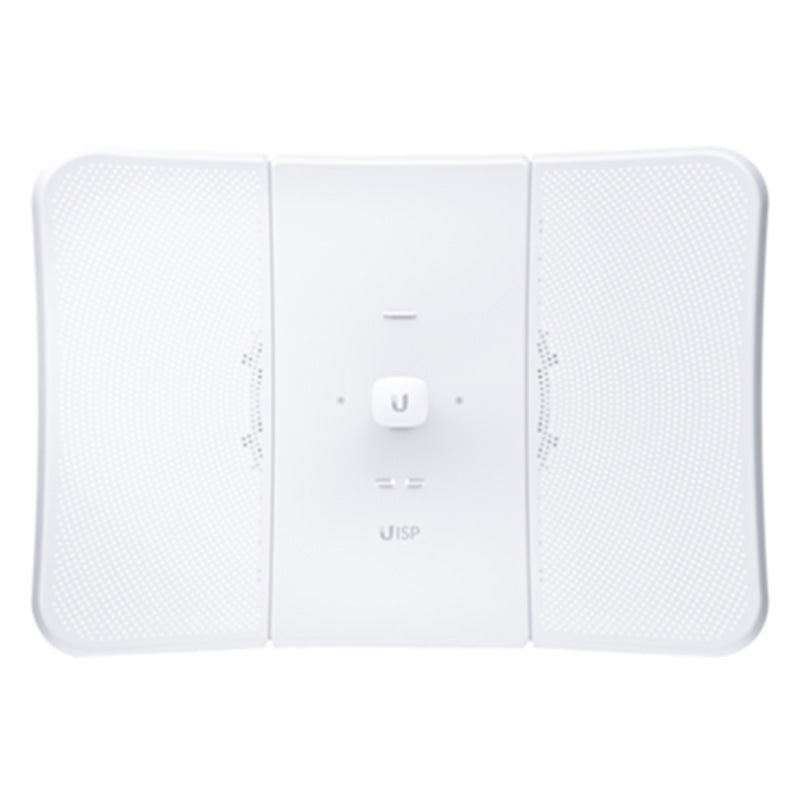

LBE-5AC-XR Ubiquiti UISP airMAX LiteBeam AC 5 GHz XR
Description
Description
The Ubiquiti LBE-5AC-XR airMAX LiteBeam Outdoor 5GHz 29dBi CPE Link is an outdoor, wireless station designed to establish high-speed connections over extremely long distances, allowing you to serve more subscribers with just a single device.
The LBE 5AC XR also features a proprietary, high-gain antenna capable of delivering 450+ Mbps throughput over the 5 GHz frequency range.
Features:
Proprietary airMAX ac chipset.
Ultra-lightweight aluminium alloy and UV-stabilised polycarbonate.
High-gain antenna with InnerFeed technology.
Establishes high-speed, extremely-long-distance links.
Integrated GPS.
Link planning support via ISP Design Centre.
Dedicated management radio for quick device setup via the UISP Mobile app.
Frequently asked questions5 questions
What is the LBE-5AC-XR designed for?
How is the LBE-5AC-XR powered, and is a PoE adapter included?
What throughput and frequency range does it offer?
Is the LBE-5AC-XR suitable for outdoor mounting?
How do I set up and manage the LBE-5AC-XR?
Specifications29 specifications · 5 sections
| Mechanical | |
|---|---|
| Dimensions | 747 x 525 x 347 mm / (29.4 x 20.7 x 13.7") |
| Weight | 3.2 kg (7.1 lb) |
| Enclosure Materials | Aluminum alloy, UV stabilized polycarbonate |
| Mounting Material | UV stabilized polycarbonate |
| Mounting | Pole Mount (Integrated) |
| Pole Mount Diameter | ⌀35 to 60 mm (⌀1.38 to 2.36") |
| Wind Loading | 1100 N at 200 km/h (247.29 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8- return) |
| Power Supply | 24V DC, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 22—27V DC |
| Max. Power Consumption | 7W |
| RF Connections | Internal |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% non-condensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating Modes | PtP / PtMP |
| Management | Radio / WEB UI |
| System | |
| Total Throughput | 450+ Mbps |
| Encryption | WPA2-PSK (AES) |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5.15 - 5.85 GHz |
| Max. Conducted TX Power | 25 dBm |
| Management Radio | 2400 - 2483.5 MHz |
| Channel Bandwidth | 10/20/30/40/50/60/80 MHz |
| Antenna Gain | 29 dBi |
| Isolation | 20 dB |
| Electrical Downtilt | 0° |
