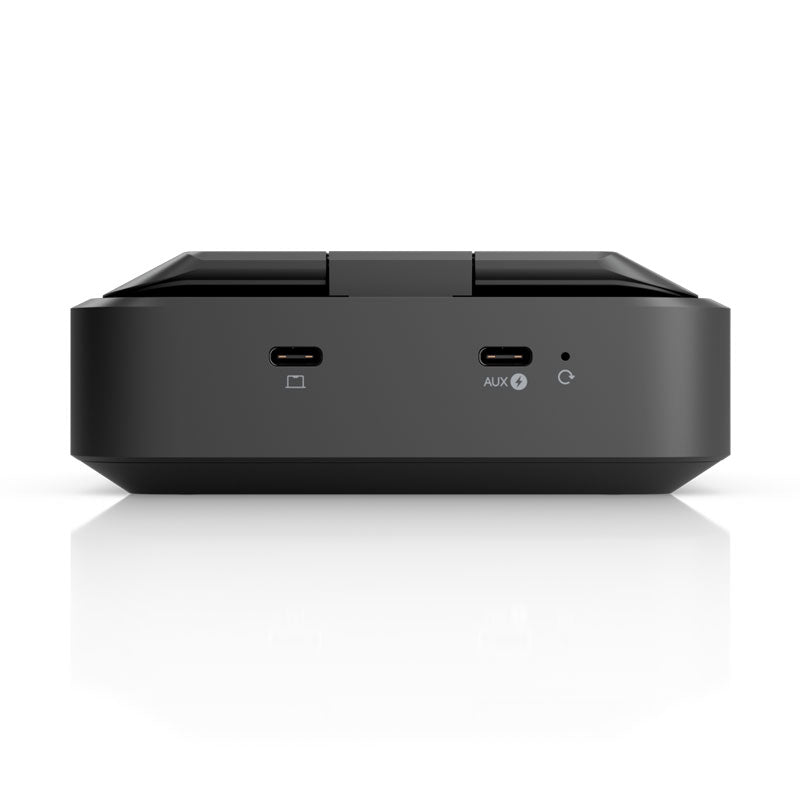

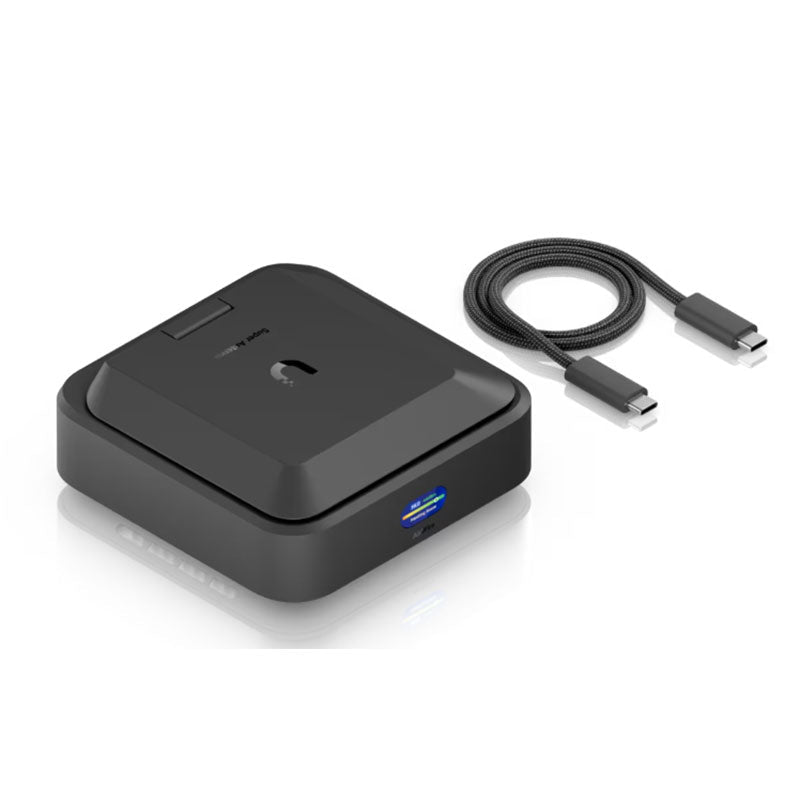

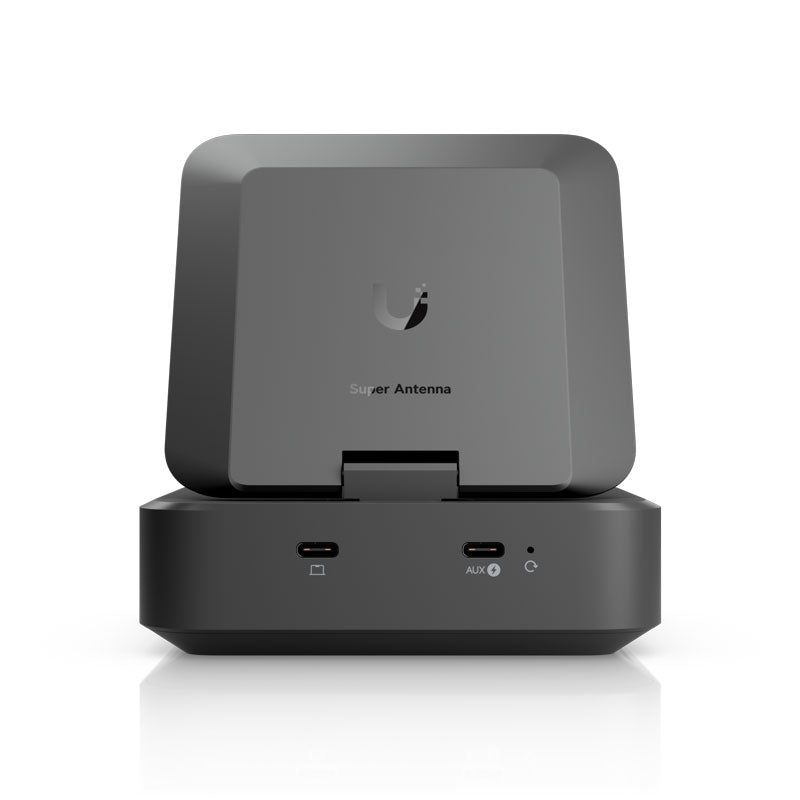

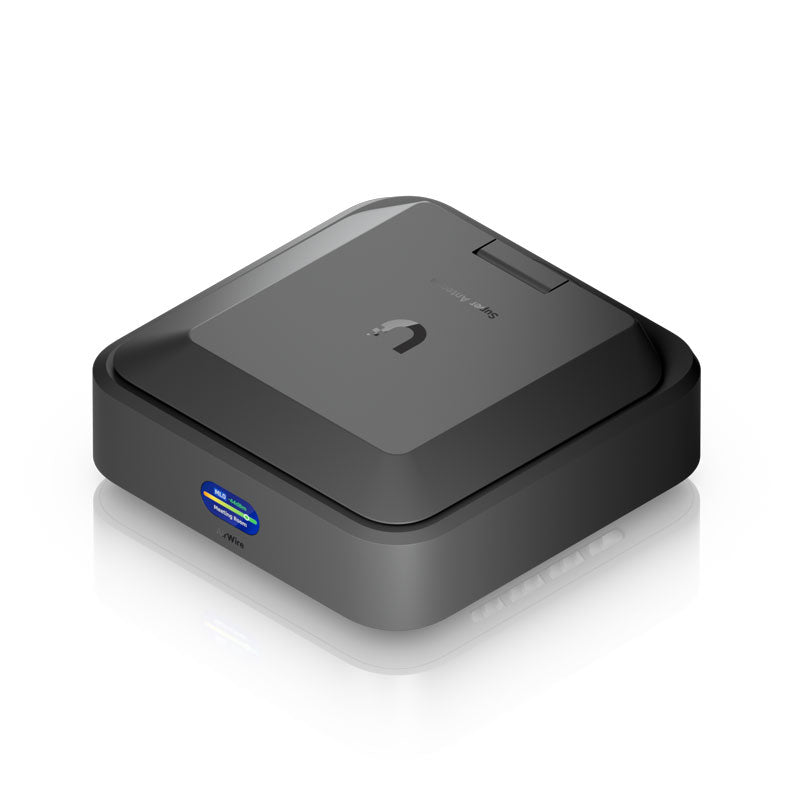

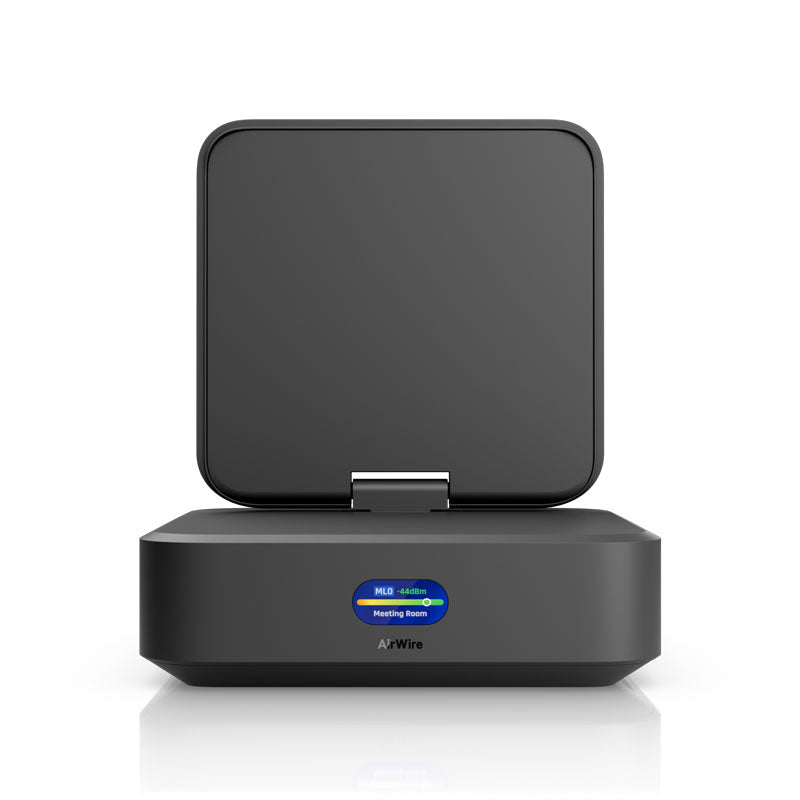

U‑AirWire Ubiquiti AirWire High‑Performance WiFi 7 USB‑C Client Adapter
Description
Description
The Ubiquiti U‑AirWire is a next‑generation WiFi 7 USB‑C client adapter designed to unlock the true performance of modern UniFi wireless networks. Unlike traditional WiFi clients, the U‑AirWire supports Simultaneous Transmit and Receive Multi‑Link Operation (STR MLO), allowing it to operate concurrently on the 5 GHz and 6 GHz bands for genuine multi‑gigabit throughput, ultra‑low latency, and enhanced reliability.
Engineered for demanding professional environments, the U‑AirWire features an advanced directional antenna system that delivers extended range and stable high‑speed connectivity, even in challenging RF conditions. With plug‑and‑play USB‑C connectivity and seamless integration into the UniFi Network platform, it is ideal for users who require maximum wireless performance without complexity.
Key Features
- WiFi 7 (802.11be) support with true STR MLO
- Simultaneous 5 GHz and 6 GHz operation for real spectrum aggregation
- Up to multi‑gigabit real‑world speeds with ultra‑low latency
- Directional high‑gain antenna system for extended range and stability
- USB‑C interface with up to 5 GbE equivalent performance
- UniFi Network managed (UniFi Network v10.2 or later)
Ideal For
- High‑performance workstations and laptops
- Media production, CAD, and data‑intensive workflows
- Low‑latency applications such as conferencing and real‑time collaboration
- Enterprise and advanced home UniFi deployments
Compatible Products
UniFi WiFi 7 Access Points including U7‑series models
UniFi Network Controller (version 10.2 or later)
FAQs
Does the U‑AirWire require drivers?
No. The U‑AirWire is plug‑and‑play on most modern operating systems using standard USB‑C networking support.
Can it use both 5 GHz and 6 GHz at the same time?
Yes. The U‑AirWire supports true STR MLO, allowing simultaneous multi‑band operation rather than band switching.
Is the U‑AirWire managed through UniFi?
Yes. When connected, it is visible and managed within the UniFi Network application.
Specifications28 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 117 x 117 x 42.5 mm / (4.6 x 4.6 x 1.7") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Uplink | WiFi |
| Performance | |
| MIMO · 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 6 GHz | 5.8 Gbps (BW320) |
| Max. Data Rate · 5 GHz | 4.3 Gbps (BW240) |
| Antenna Gain · 6 GHz | 11 dBi |
| Antenna Gain · 5 GHz | 11 dBi |
| Max. TX Power · 6 GHz | 20 dBm |
| Max. TX Power · 5 GHz | 25 dBm |
| Supported Data Rates · 802.11be (WiFi 7) | 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 18W |
| Power Supply | USB PD 5/9/12V, 15W (Standard mode) / USB PD 5/9/12V, 20W (Enhanced mode) |
| Networking Interface | (1) 5 GbE port (USB3.2 Gen2) |
| Weight | 544 g (1.2 lb) |
| Management | USB-C |
| Enclosure Material | Polycarbonate |

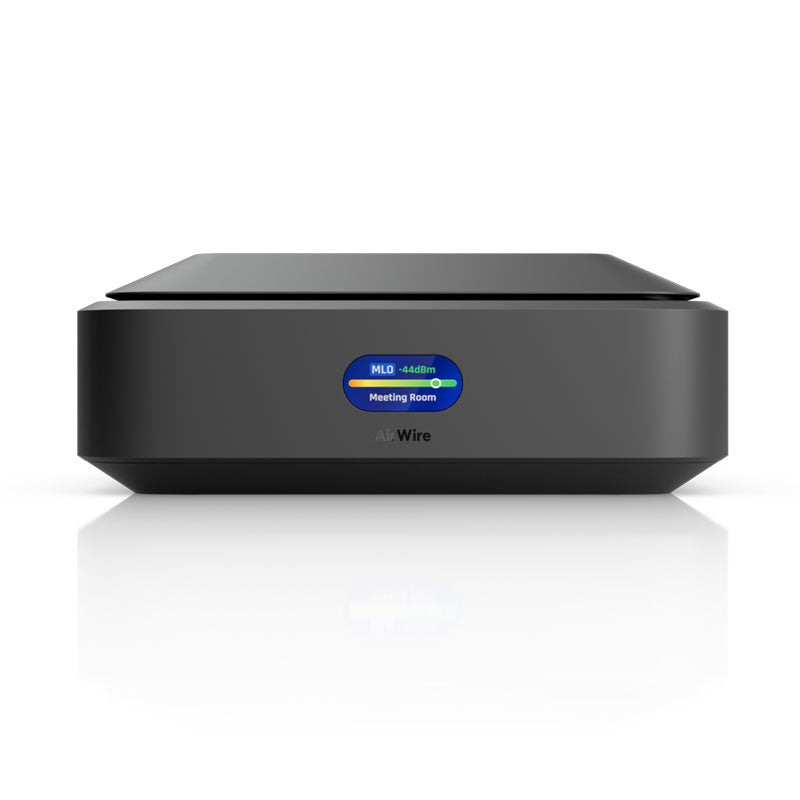

| Display | 0.96" status display |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements · UniFi Network | Version 10.2 and later |
