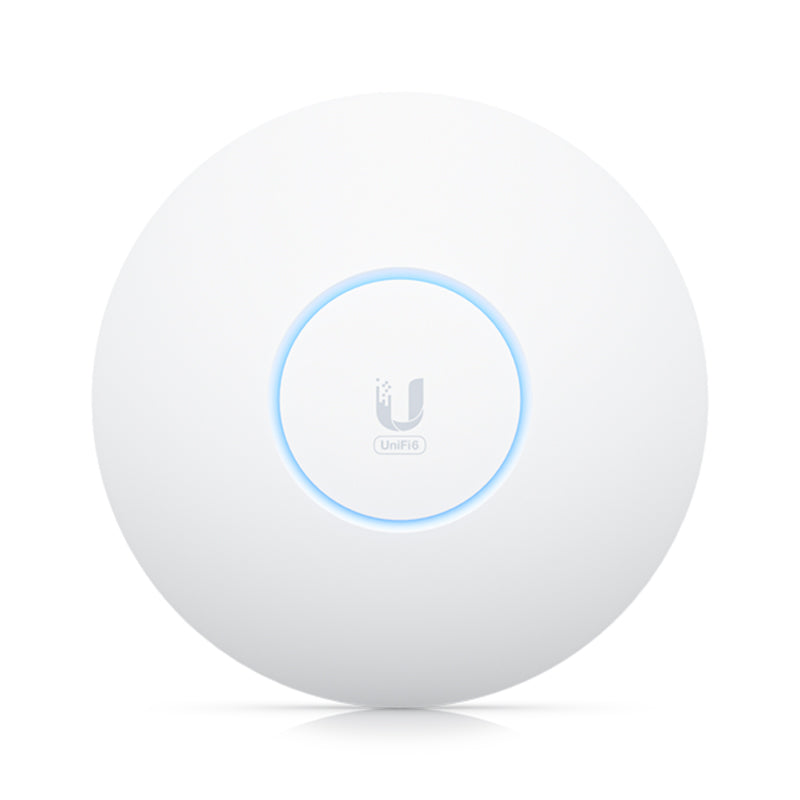

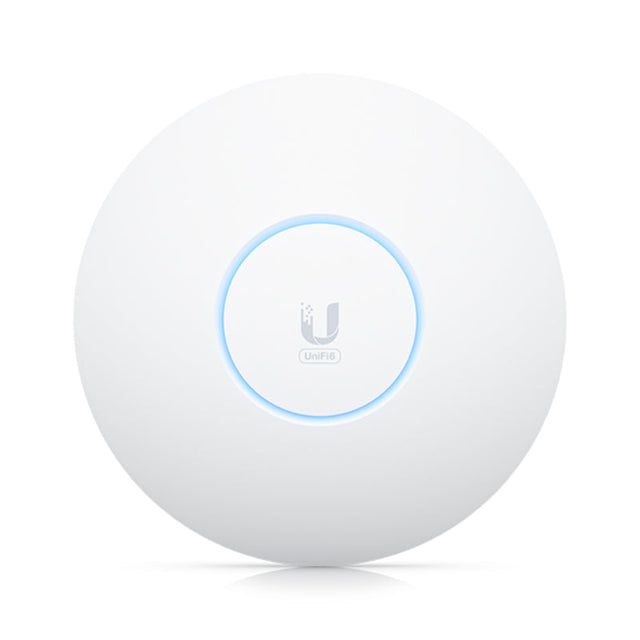

U6-Enterprise Ubiquiti UniFi6 Enterprise AP
We do not hold this locally right now, but it is in stock in Australia and the UK. Contact us and we will tell you what is possible.
Description
Description
Powerful, ceiling-mounted WiFi6E access point designed for seamless multi-band coverage in high-density networks.
Features:
WiFi 6 support (2.4/5/6 GHz bands)
10.2 Gbps aggregate throughput rate
(1) 2.5GbE RJ45 port (PoE In)
Powered with PoE+
Please note:
No PoE Injector Included
Managed with the UniFi Network application
Specifications38 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | ⌀220 x 48 mm / (⌀8.7 x 1.9") |
| WiFi Standard | WiFi 6E |
| Spatial Streams | 10 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 600+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall / (Pro Mount Included) |
| Power Method | PoE+ |
| Performance | |
| MIMO · 6 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO · 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 6 GHz | 4.8 Gbps (BW160) |
| Max. Data Rate · 5 GHz | 4.8 Gbps (BW160) |
| Max. Data Rate · 2.4 GHz | 573.5 Mbps (BW40) |
| Antenna Gain · 6 GHz | 6 dBi |
| Antenna Gain · 5 GHz | 5.3 dBi |
| Antenna Gain · 2.4 GHz | 3.2 dBi |
| Max. TX Power · 6 GHz | 26 dBm |
| Max. TX Power · 5 GHz | 26 dBm |
| Max. TX Power · 2.4 GHz | 22 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 22W |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | Device: 960 g (2.1 lb) / With mount: 1.1 kg (2.4 lb) |
| Management | Ethernet / Bluetooth |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Stainless steel (SUS304) |
| LEDs · System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / U-NII-5 to U-NII-8: 6100 - 7125 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz / 5925 - 7125 MHz / (Depends on the regulatory region) |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 11933-22-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 6.0.45 and later |
