U7-Lite – Ubiquiti UniFi U7 Lite WiFi 7 Access Point (No PoE Injector)
Description
Description

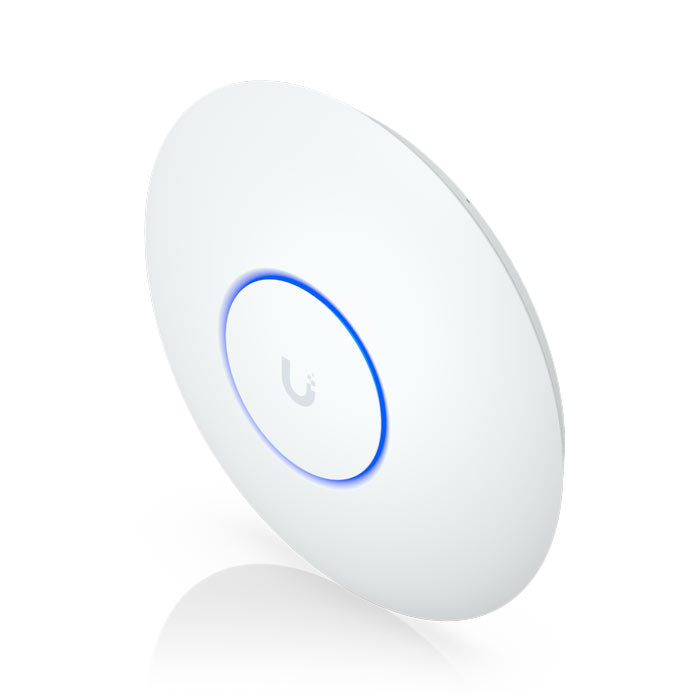

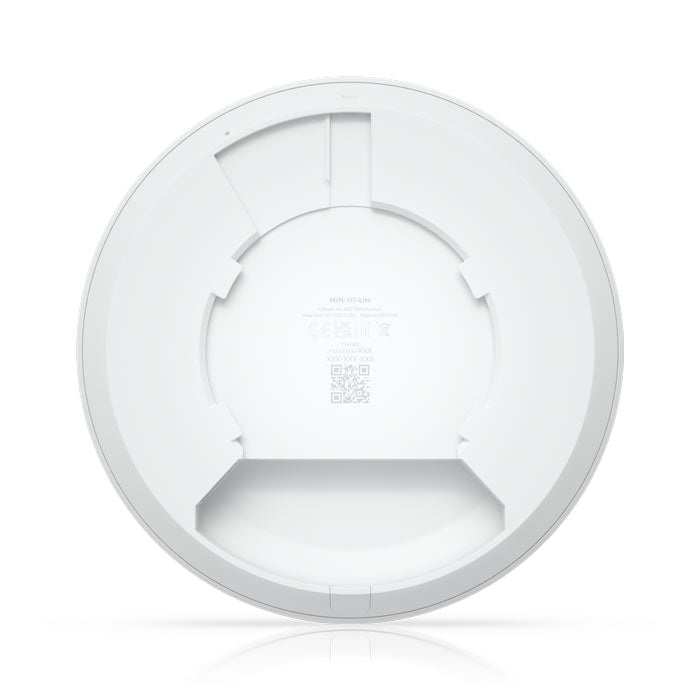

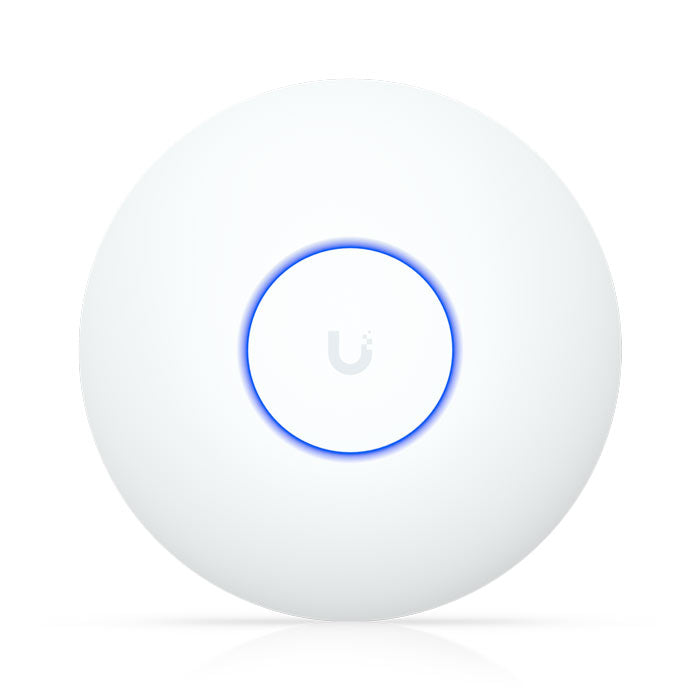

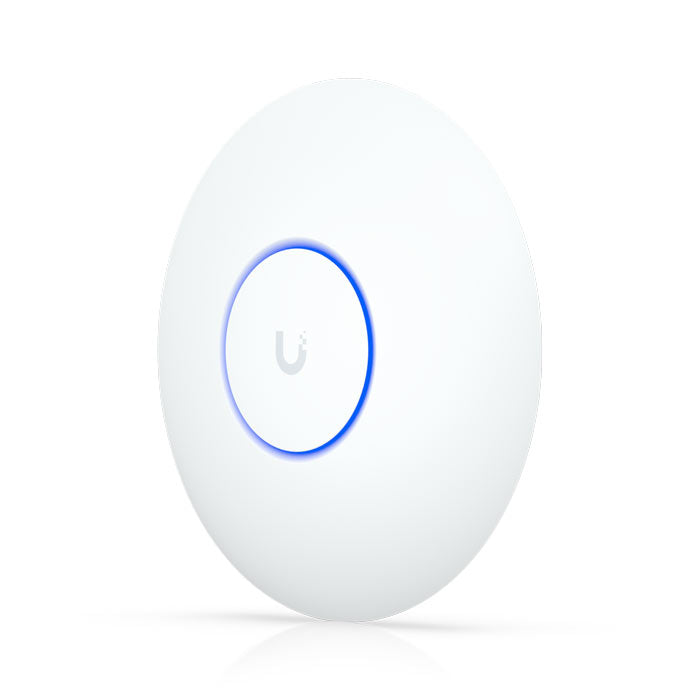

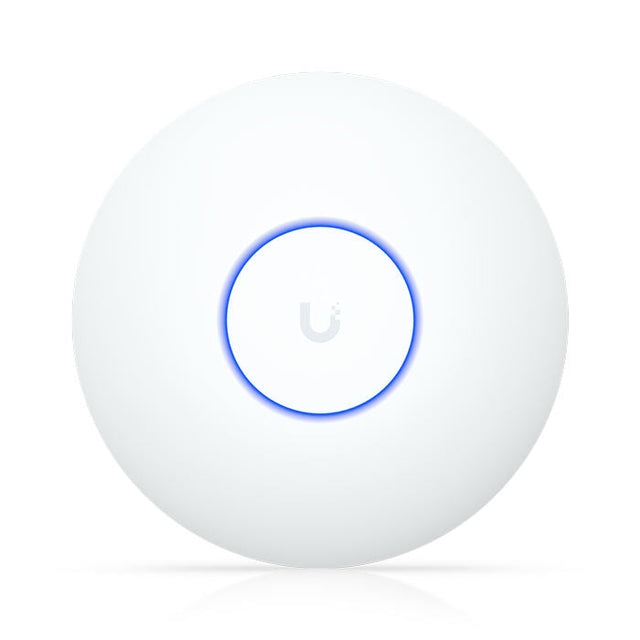

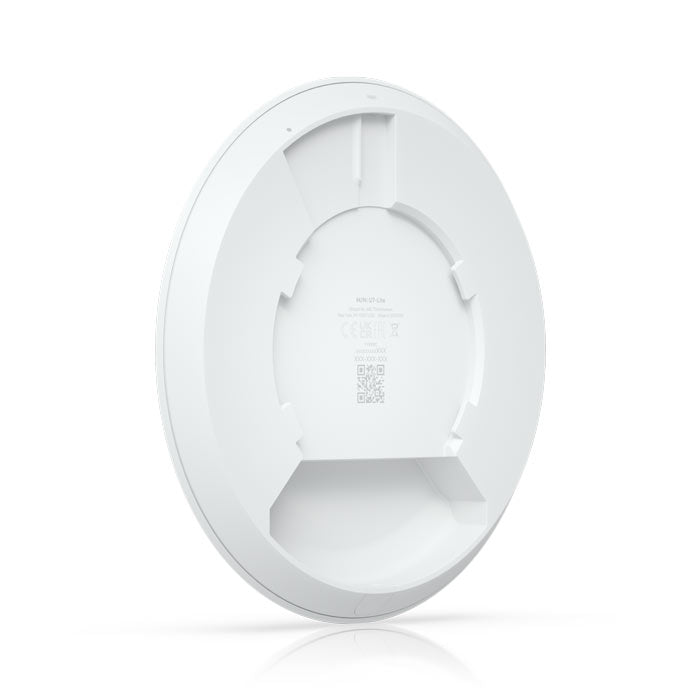

The U7-Lite is a compact, ceiling‑mounted WiFi 7 access point from Ubiquiti’s UniFi range, designed to deliver next‑generation wireless performance in homes and small to medium business environments. Supporting the latest 802.11be WiFi 7 standard, the U7‑Lite provides faster speeds, lower latency and improved efficiency for modern, high‑density networks.
Featuring 4 spatial streams across 2.4 GHz and 5 GHz bands, the U7‑Lite delivers combined wireless speeds of up to 4.3 Gbps and supports over 200 connected clients. A 2.5 GbE uplink ensures the access point is not bottlenecked when paired with high‑performance UniFi switches and gateways. The U7‑Lite is powered via PoE (injector not included), allowing for clean, professional installations.
Key Features:
- WiFi 7 (802.11be) dual‑band access point
- 4 spatial streams with MU‑MIMO support
- 2.5 GbE uplink for high‑throughput networking
- Coverage up to 115 m²
- Fast roaming, band steering and meshing
- PoE powered (no PoE injector included)
- Managed via the UniFi Network Controller
Ideal for:
Residential deployments, retail spaces, offices, cafés and education environments requiring reliable high‑speed wireless with centralised management.
Compatible Products:
UniFi Cloud Gateways
UniFi PoE Switches
UniFi Network Controller (UniFi OS)
FAQs:
Does the U7‑Lite include a PoE injector?
No, this model does not include a PoE injector. A compatible PoE switch or injector is required.
Can the U7‑Lite be wall mounted?

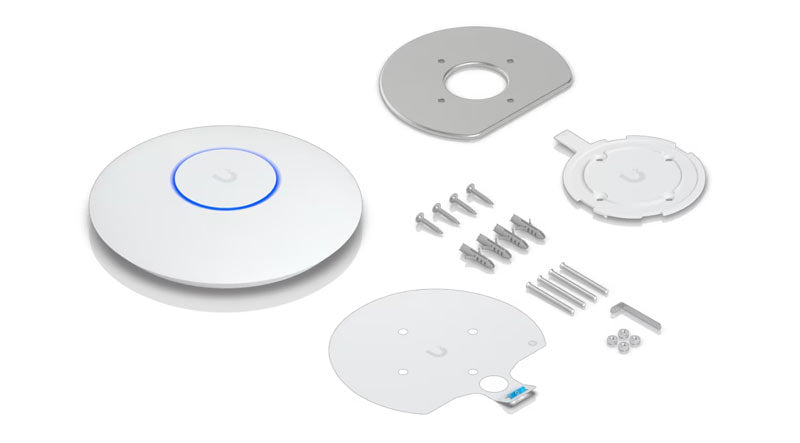

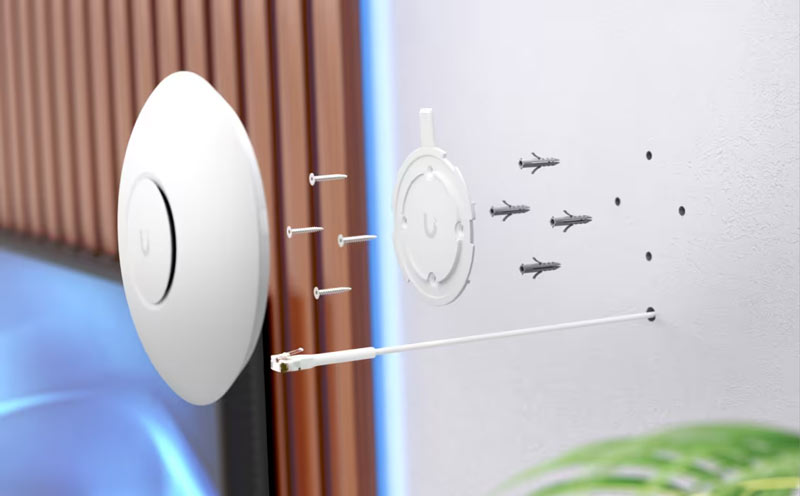

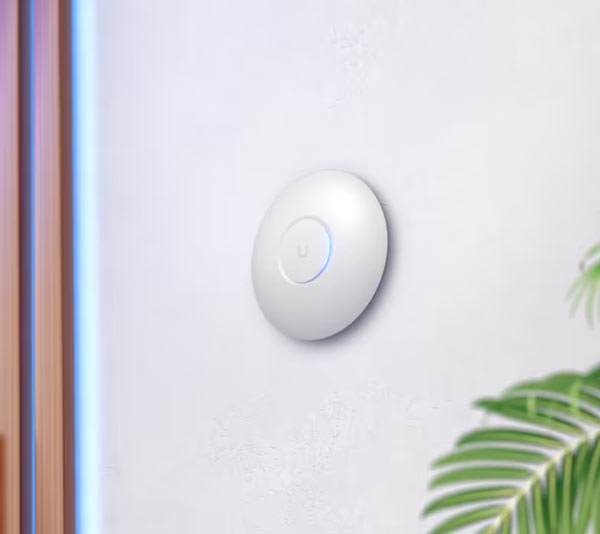

Yes, the U7‑Lite supports both ceiling and wall mounting, with the mounting hardware included.
Is the U7‑Lite backward compatible?
Yes, it supports WiFi 6, WiFi 5 and older client devices.
``
Specifications35 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | ⌀171.5 x 33 mm / (⌀6.8 x 1.3") |
| WiFi Standard | WIFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall / (Lite Mount Included) |
| Power Method | PoE |
| Performance | |
| MIMO · 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 5 GHz | 4.3 Gbps (BW240) |
| Max. Data Rate · 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain · 5 GHz | 5 dBi |
| Antenna Gain · 2.4 GHz | 4 dBi |
| Max. TX Power · 5 GHz | 24 dBm |
| Max. TX Power · 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 42.5–57V DC |

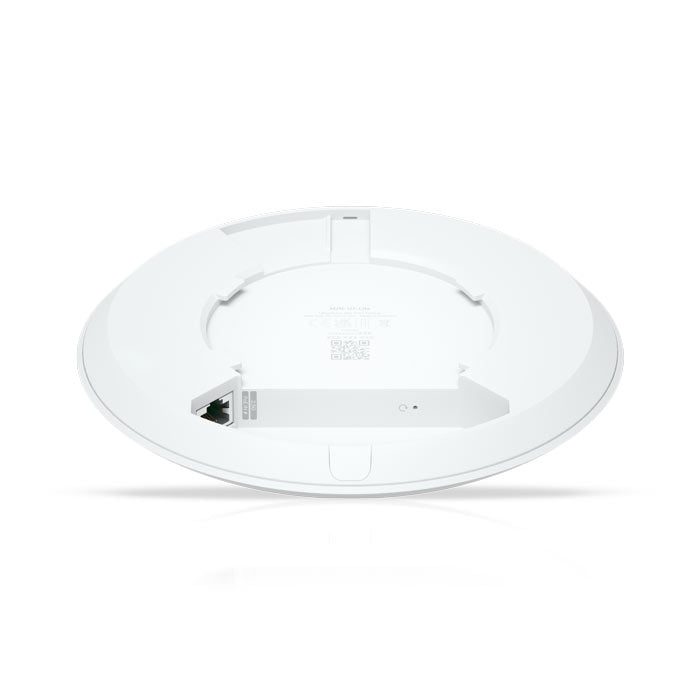

| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 313 g (11 oz) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, galvanized steel (SGCC) |
| LEDs · System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, SRRC, Anatel: 02143-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 9.0.114 and later |
| Application Requirements · Mobile App | iOS™ version 10.20.2 and later / Android™ version 10.21.7 and later |
