UA-Hub-Door-Mini - Ubiquiti UniFi Access Door Hub Mini
We do not hold this locally right now, but it is in stock in Australia and the UK. Contact us and we will tell you what is possible.
Description
Description

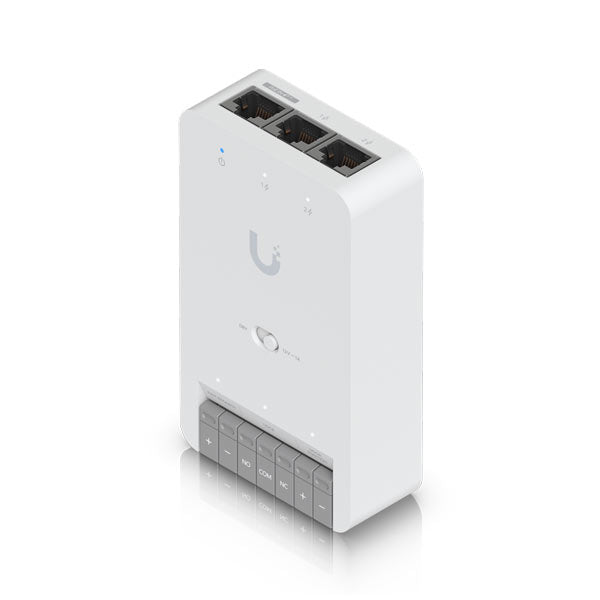

The Ubiquiti UniFi Access Door Hub Mini (SKU: UA-Hub-Door-Mini) is a compact access control hub for a single door. It provides dedicated control and monitoring for one door, with 12V and dry switchable lock terminals to support a wide range of locking hardware. It is a neat, space-saving choice for PoE-powered door access control installations that need basic I/O such as request-to-exit and a door position sensor.
Managed through the UniFi Access application, the Door Hub Mini supports up to 3,000 users. Its small form factor (113 x 66 x 27.6 mm) and included DIN-rail mounting make it easy to fit near the door, in a comms cabinet or inside an enclosure.
Key Features
- Single door control with dedicated monitoring for one door
- 12V and dry switchable lock terminals (wet output 12V DC, 1A; dry output 30V DC, 1A) with a Dry/Wet switch
- PoE++ powered: one PoE++ input (50V DC, 1A)
- Two PoE+ outputs (30W per port, 45W aggregated maximum) to power connected devices such as UniFi Access readers

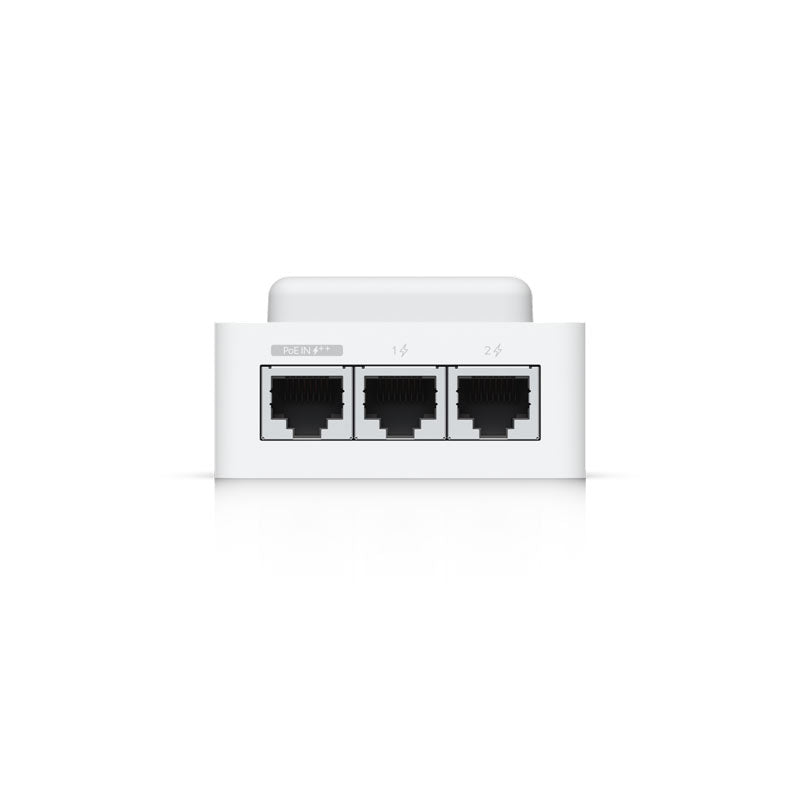

- Three GbE RJ45 ports for networking
- Input terminals for door exit request and door position sensing
- Supports up to 3,000 users
- Compact and lightweight: 113 x 66 x 27.6 mm, 190 g, polycarbonate and metal enclosure
- DIN-rail mounting included
- NDAA compliant, with UL 294 Level I ratings and CAN/ULC-60839-11-1 Grade I; certified CE, FCC and IC
- Indoor use only, operating at 0 to 40°C and 5 to 90% noncondensing humidity
- Maximum power consumption of 19W without PoE output and 50W with PoE output
Ideal for: Installers, IT managers and businesses deploying single-door access control in offices, retail units and commercial premises, particularly where a compact hub with basic I/O is all that is needed.
Compatible Products
Locks: Ubiquiti UA-Lock-Electric and UA-Lock-Magnetic (270 kg and 540 kg) locks are listed in the official recommended cable length specifications for this hub.
Accessories: The official Ubiquiti store lists the Door Lock Relay Cable (UACC-Cable-DoorLockRelay), Access Pocket Keyfob and Access Rescue KeySwitch as accessories for this hub. The Access Button, a push-to-exit button designed for UniFi Access Hubs, is also part of the UniFi Access installation essentials.
Starter kits: The Door Hub Mini is included in the UniFi Access G3 Starter Kit Pro.
Software: Managed with the UniFi Access application.
Specifications30 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 113 x 66 x 27.6 mm / (4.4 x 2.6 x 1.1") |
| Supported Doors | 1 |
| Maximum User Count | 3,000 |
| Input Terminals | (1) Door exit request / (1) Door position |
| Power Method | PoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| Mechanical | |
| Weight | 190 g (6.7 oz) |
| Enclosure Material | Polycarbonate, metal |
| Mounting | DIN-rail (Included) |
| Hardware | |
| Dry Output Relay | 30V DC, 1A |
| Wet Output Relay | 12V DC, 1A |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | 0 to 40° C / (32 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (3) GbE RJ45 ports |
| PoE Interface | (1) PoE++ input, 50V DC, 1A / (2) PoE+ outputs, 50V DC, 30W per port / (Max 45W aggregated) |
| Max. Power Consumption | 19W (Without PoE output) / 50W (With PoE output) |
| LEDs | W/B <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Buttons | (1) Factory reset / (1) Dry/Wet switch |
| Recommend Max. Cable Length · UA-Lock-Electric (400mA) | 24 AWG length: 25 m (82 ft) / 22 AWG length: 42 m (138 ft) / 20 AWG length: 66 m (217 ft) / 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) |
| Recommend Max. Cable Length · UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
| Recommend Max. Cable Length · UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
| Recommend Max. Cable Length · Other locks (1A) | 24 AWG length: 9 m (30 ft) / 22 AWG length: 15 m (49 ft) / 20 AWG length: 24 m (79 ft) / 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Hub-Door-Mini, V01 |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
