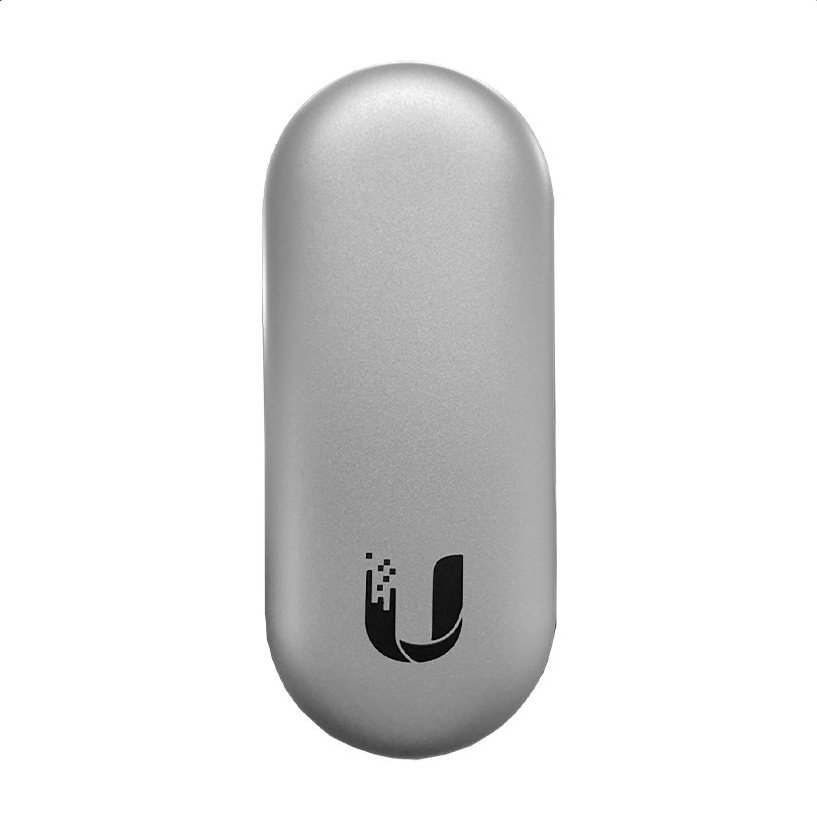

UA-Reader Lite Ubiquiti UniFi Access Reader Lite (Silver)
Description
Description
The UniFi Access Reader Lite has been designed for convenient use and secure access.
The PoE powered reader is easy to install and supports the latest NFC security standards including AES-128 encrypted MIFARE DESFire. Unlocking the door is quick and secure with NFC card or with mobile app.
Features:
Elegantly designed NFC and Bluetooth reader
802.3af PoE powered by UniFi Access Hub
Advanced NFC credentials, including MIFARE DESFire
Built-in security element chip
For the best NFC security, use with our UA-Card
Mobile access with app (future software release)
Note:
UniFi Dream OS Console or Cloud Key Plus is required to run UniFi Access
Specifications27 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 94.9 x 40 x 31.1 mm / (3.7 x 1.6 x 1.2") |
| UniFi Application Suite | Access |
| Weatherproofing | IP54 |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| Mechanical | |
| Weight | 67 g (2.4 oz) |
| Enclosure Material | Polycarbonate |
| Mounting | Wall-mount, gang box mount (Included) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Networking Interface | (1) 10/100 MbE port |
| Connectivity | BLE 4.1 / Ethernet |
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 44–57V DC |
| LEDs | B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO 14443A, 14443B, 15693 / NFC Tag 1, 2, 3, 4, 5 / MIFARE Classic / MIFARE Plus / MIFARE Ultralight / MIFARE DESFire |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, Anatel, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Reader Lite, V02 |
| Ambient Operating Temperature | -20 to 40° C / (-4 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
