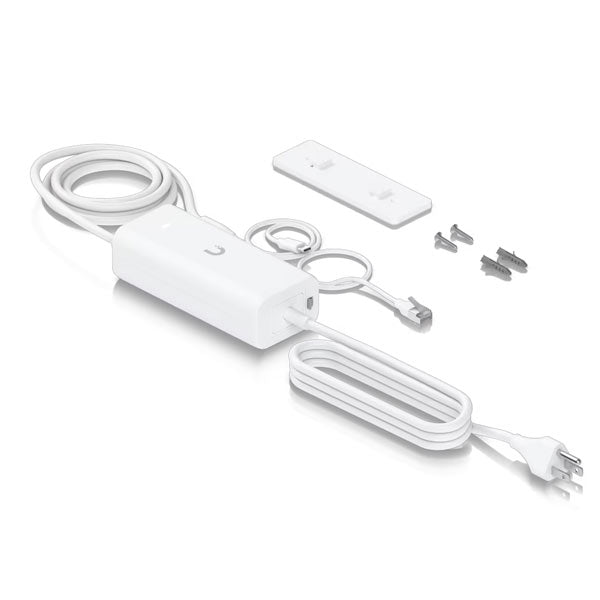

UACC-PoE+-USBC Ubiquiti PoE Integrated AC Adapter
We do not hold this locally right now, but it is in stock in Australia and the UK. Contact us and we will tell you what is possible.
Description
Description
An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.
Features:
Delivers up to 30W of PoE+
Supports wall mount, DIN rail and floating mount*
Lockable latch designed for power cord security
*DIN rail and floating mount sold separately
Specifications24 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | 146 x 62 x 42 mm (5.7 x 2.4 x 1.7") |
| Weight | 358 g (12.6 oz) |
| Length | Cable: 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends / Power cord: 180 cm (5.9 ft) |
| Output Voltage | Type-C: 5V@ 5A / PoE+: 48V@ 0.65A |
| Rated Voltage | 100–240V AC at 50/60Hz |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Clamping Protection | 11V data, 60V power |
| Data In / PoE | RJ45 shielded socket |
| Input Current | 1.5A max. |
| Inrush Current | 120A |
| Efficiency | 82% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% max. |
| Line Regulation | ≤ 5% |
| Load Regulation | ≤ 5% |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, CCC, RoHS |
