UACC‑Rack‑12U‑Wall‑600‑P – Ubiquiti 12U Wall‑Mount Rack Cabinet (Perforated Door)
Description
Description

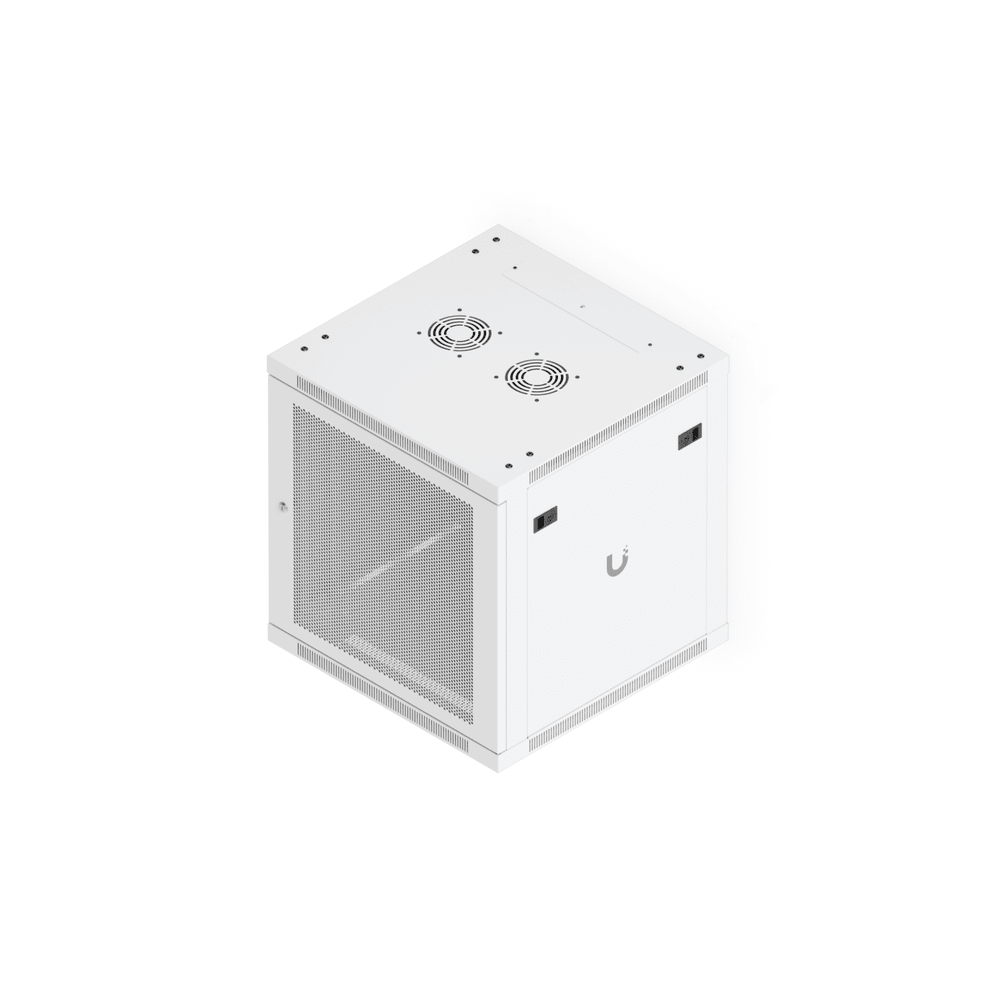

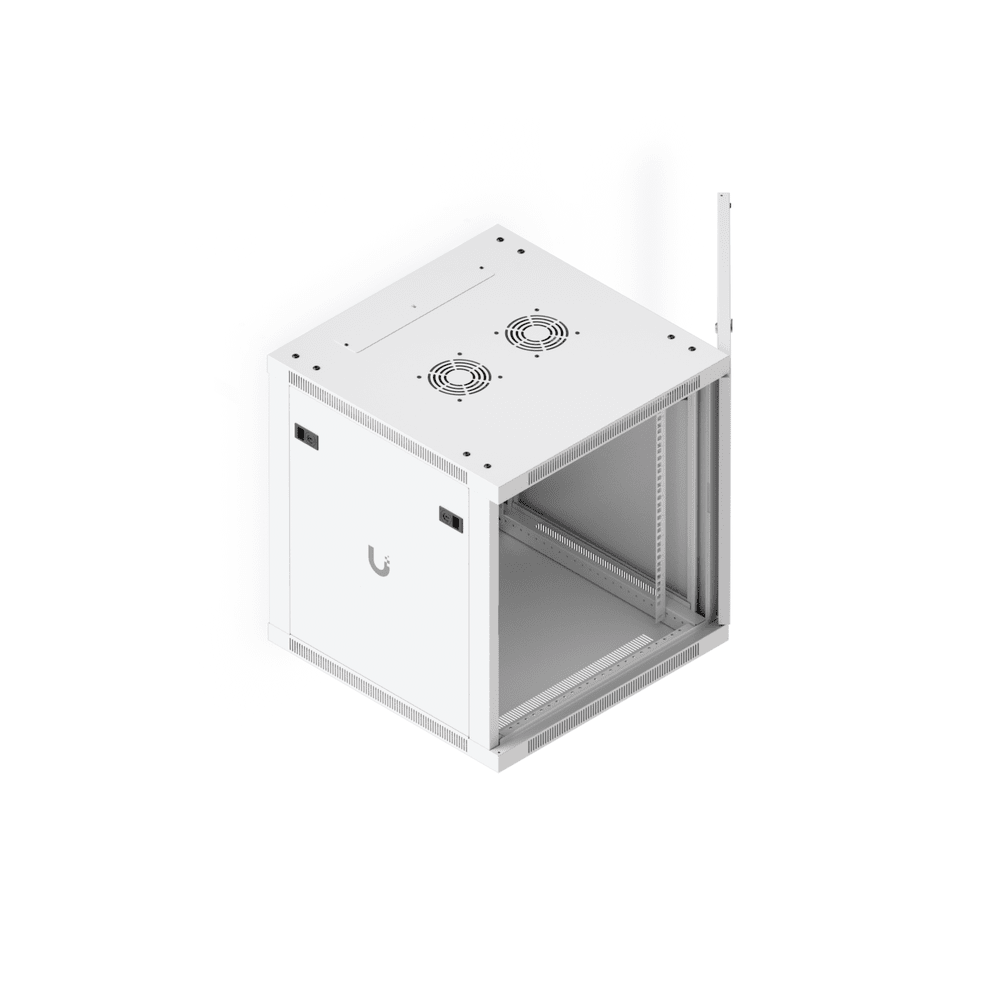

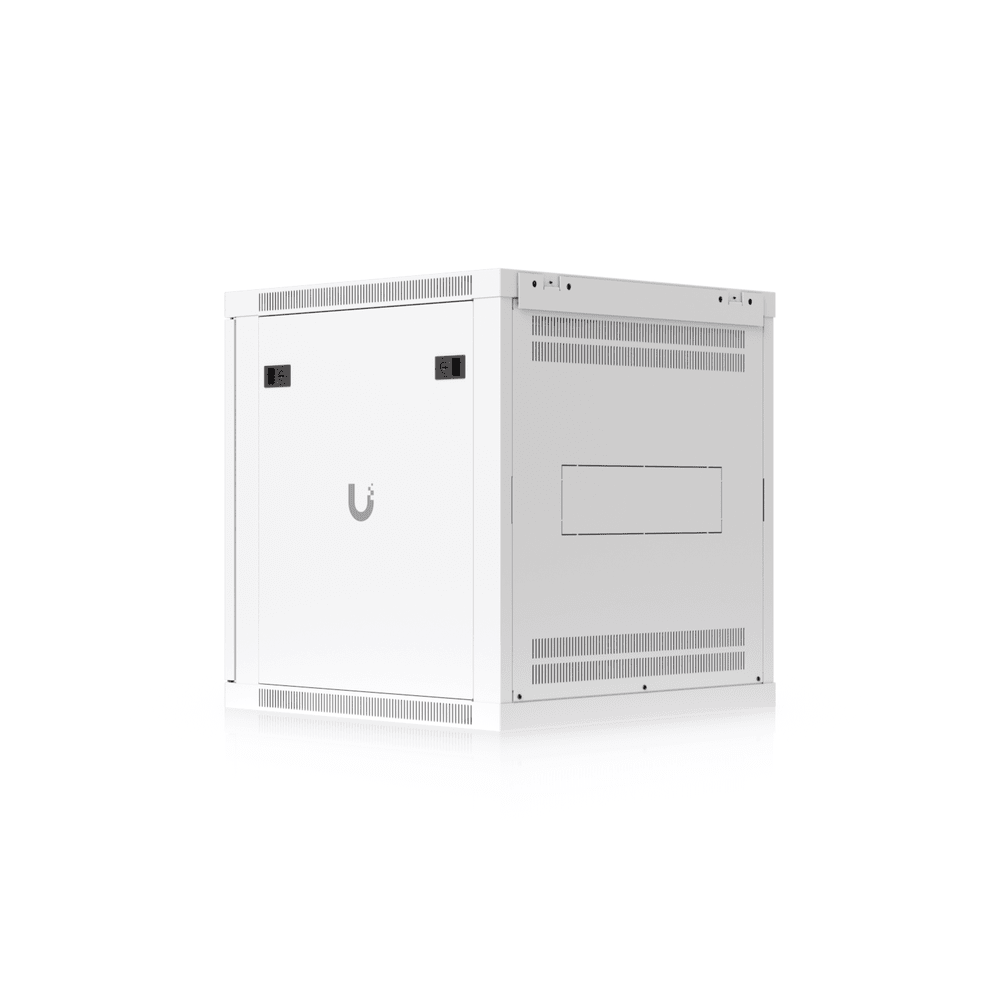

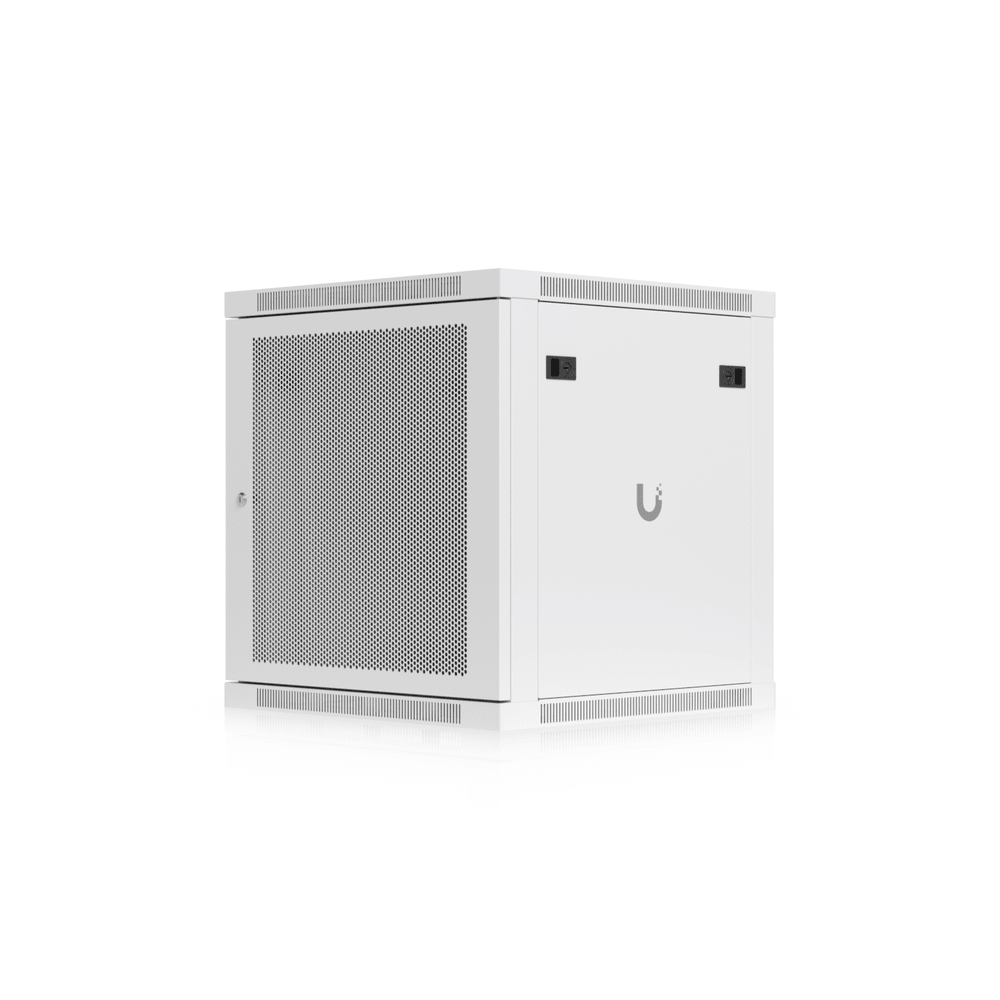

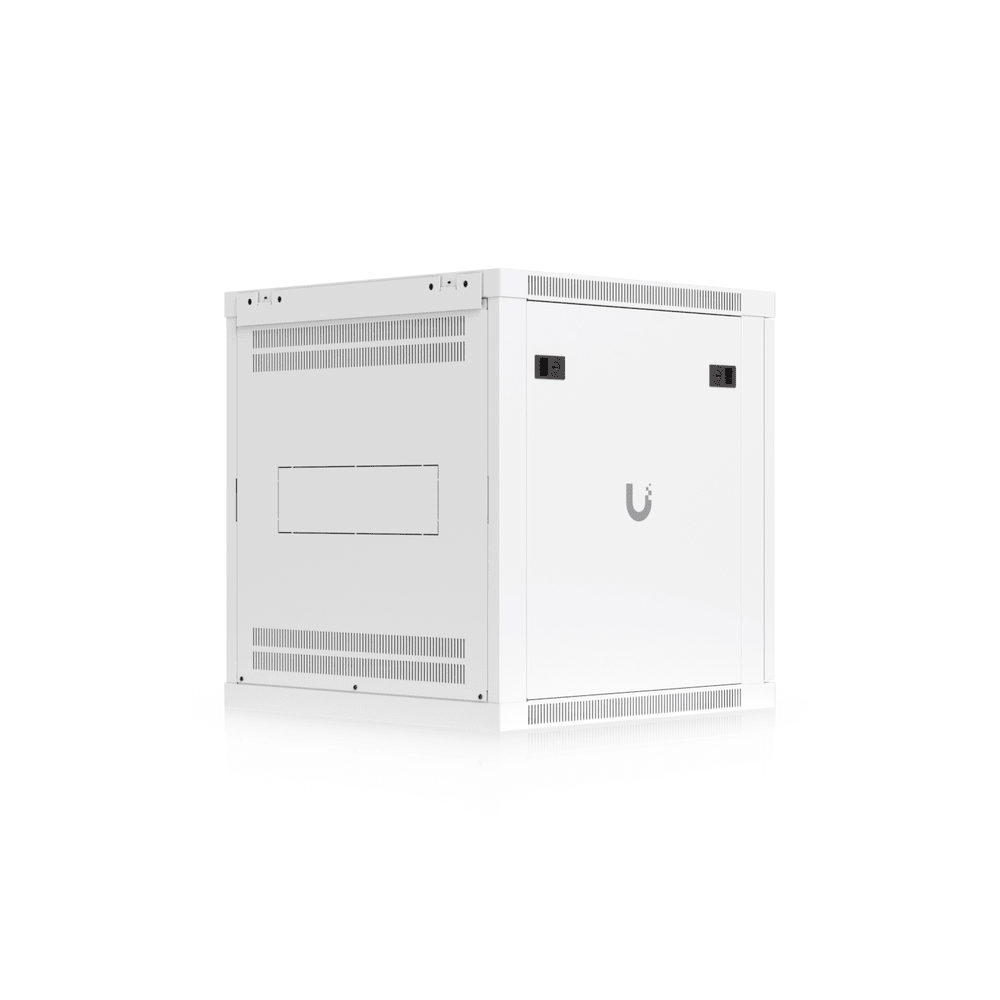

The Ubiquiti UACC‑Rack‑12U‑Wall‑600‑P is a professional 12U wall‑mount rack cabinet designed for secure, space‑efficient network installations that require enhanced airflow and additional depth. Constructed from durable SPCC steel with a white powder‑coated finish, this cabinet offers long‑term reliability and a clean, modern appearance.

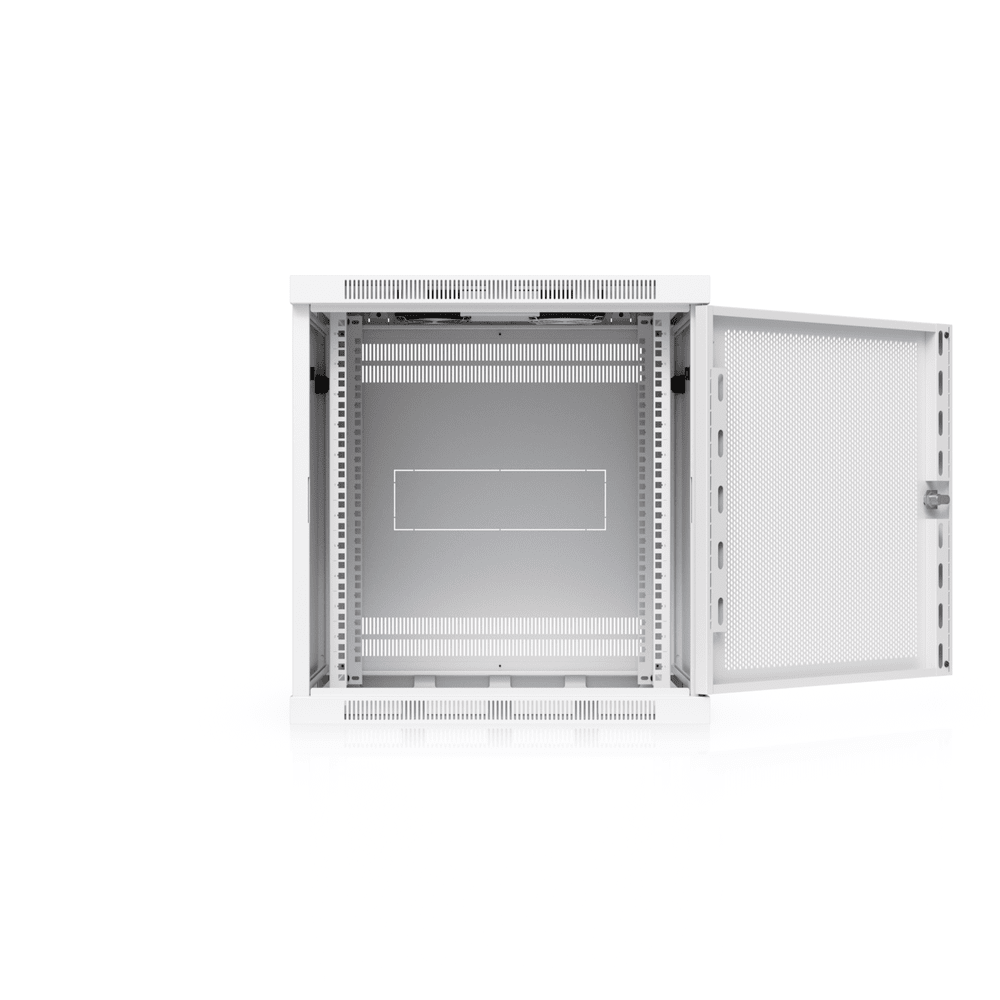

Supplied fully assembled, the UACC‑Rack‑12U‑Wall‑600‑P features a lockable perforated front door to maximise ventilation for active networking equipment. Integrated cooling fans, removable lockable side panels and adjustable mounting rails make installation, maintenance and cable management straightforward.
Key Features:
- 12U wall‑mount rack cabinet with up to 80 kg load capacity
- 600 mm depth to support deeper rack‑mount equipment

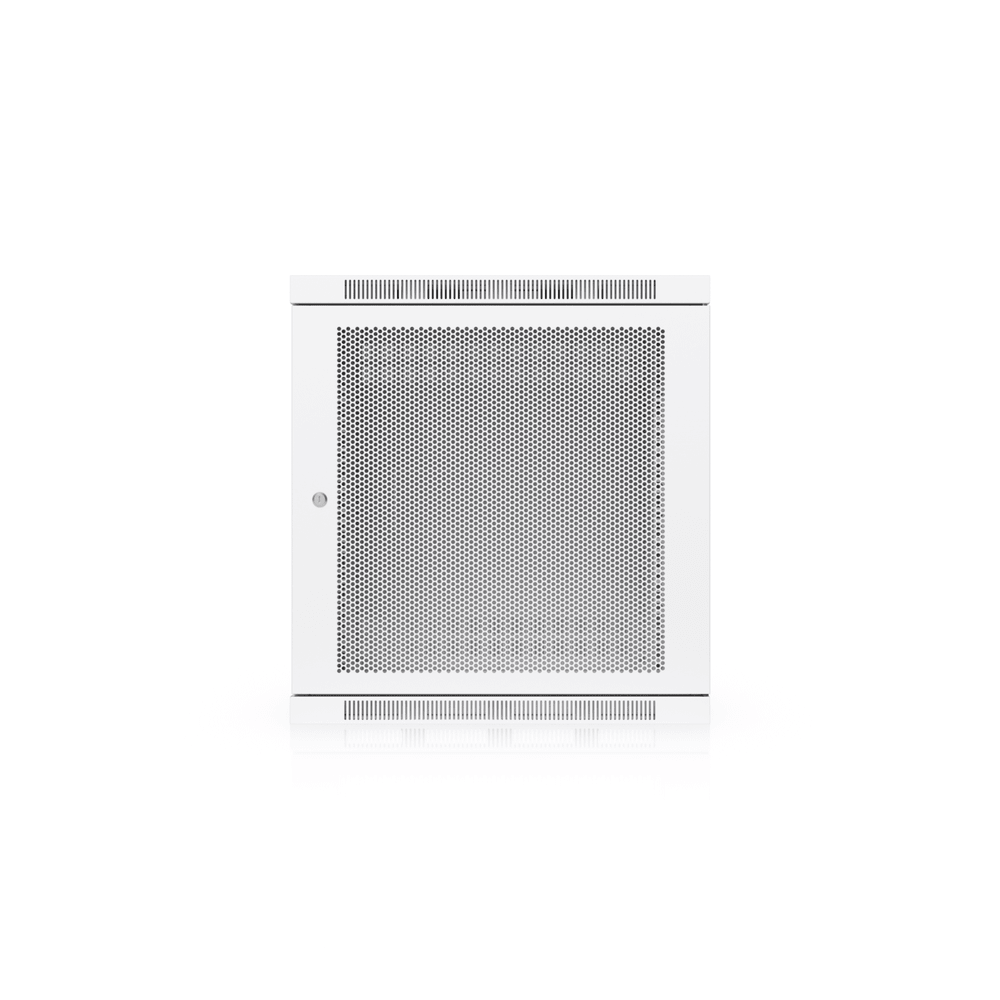

- Perforated, lockable front door for improved airflow
- Integrated fan module with ≤50 dB acoustic noise
- Adjustable mounting depth from 448–508 mm
- Removable and lockable side panels
Ideal for:
Small and medium businesses, network rooms, retail back‑offices, schools and advanced home labs requiring improved ventilation and additional rack depth.
Compatible Products:
Ubiquiti UniFi rack‑mount switches
Ubiquiti Cloud Gateways
Ubiquiti NVR and security appliances
Ubiquiti rack shelves and mounting accessories
FAQs:
Is the rack supplied assembled? Yes, it ships fully assembled.
Does it include active cooling? Yes, integrated fans are included.
What device depth is supported? Rack‑mount devices up to 508 mm deep are supported.
Specifications18 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | Packaging: 740 x 730 x 735 mm (29.1 x 28.7 x 28.9") / Rack: 598 x 600 x 639 mm (23.5 x 23.6 x 25.2") |
| Weight | Packaging: 31.8 kg (70.1 lb) / Rack: 26.4 kg (58.2 lb) |
| Enclosure Material | SPCC steel / Door/side panels: 1.2 mm (0.05") / Main body: 1.2 mm (0.05") / Posts: 2 mm (0.08") |
| Color | White |
| Treatment | Powder coating |
| Rack Features · U Height | 12U |
| Rack Features · Rack Type | 4 post, enclosed cabinet |
| Rack Features · Mounting Hole Type | Square |
| Rack Features · Adjustable Mounting Depth | Default 448 mm (17.6") / Max. 508 mm (20") / Adjustable pitch 20 mm (0.8") |
| Rack Features · Max. Weight Capacity | 80 kg (176 lb) |
| Rack Features · Front Door | Perforated / Default left-hand outswing, reversible |
| Rack Features · Side Panels | (2) Solid, removable and lockable |
| Rack Features · Mounting | Wall mount |
| Rack Features · Fan Module | (2) Pre-installed 120 x 120 x 38 mm AC fan units |
| Rack Features · Acoustic Noise | ≤ 50 dB(A) sound pressure level |
| Rack Features · Cable Entry Opening | (1) Rear wall: 350 x 100 mm (13.8 x 3.9") / (1) Top: 336.5 x 52.5 mm (13.2 x 2.1") / (1) Bottom: 336.5 x 52.5 mm (13.2 x 2.1") |
| Rack Features · Security | (1) Front door lock / (4) Side panel locks / (2) Keys |
| Rack Features · Standard | CE; EIA/ECA-310-E; RoHS |
