Manufacturer's photos. Where a power lead is pictured, an NZ one is provided.

SKU: AF-2X

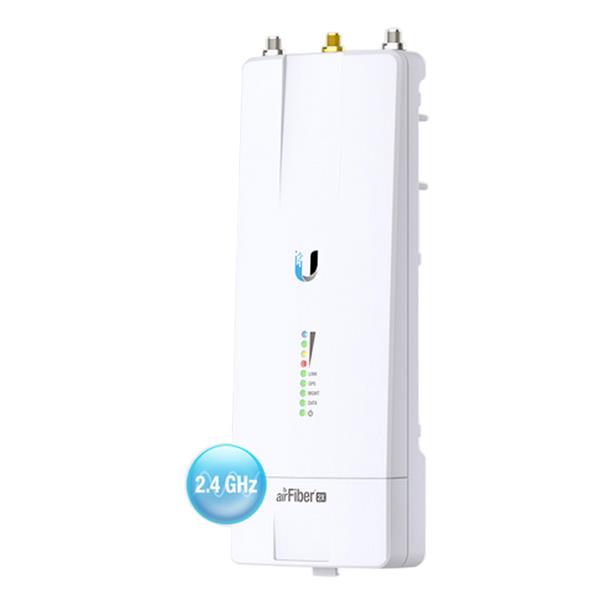

AF-2X Ubiquiti airFiber X 2.4GHz Radio

Regular price $609.22 NZD
Out of stock
Auckland (none in stock)

Description

Ubiquiti airFiber X, is a 2 GHz carrier backhaul radio. It is a modular Ubiquiti airFiber radio system that will serve a wide range of frequencies and is designed to be compatible with a variety of Ubiquiti antennas.



Building upon the proven design of the airMAX Rocket system, airFiber X allows you to customize Ubiquiti airFiber backhaul links or upgrade existing Rocket Point to Point (PtP) links. The first airFiber X model is the AF-2X model for use in the 5 GHz frequency band.



The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 5 GHz Rocket link that uses a RocketDish antenna.



Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.



Features:


Engineered for Performance
Ultra-Low Latency with HDD Technology
Co-Location
GPS Synchronization
Clean Power Output
2x2 dual-polarity performance
Compatible with the airFiber® X antenna
Powered with the included 24V, 1A PoE Gigabit adapter
(1) 10/100 Ethernet port
(1) 10/100/1000 Ethernet port
687 Mbps maximum throughput
17W maximum power consumption

Frequently asked questions5 questions
What is the AF-2X airFiber X radio used for?
It is a modular airFiber backhaul radio for building point-to-point links. It can be used to customise new airFiber links or to upgrade existing Rocket Point to Point (PtP) links.
What is the maximum throughput of the AF-2X?
The AF-2X delivers up to 687 Mbps maximum throughput. It uses 2x2 dual-polarity performance.
How is the AF-2X powered?
It is powered by the included 24V, 1A PoE Gigabit adapter. Maximum power consumption is 17W.

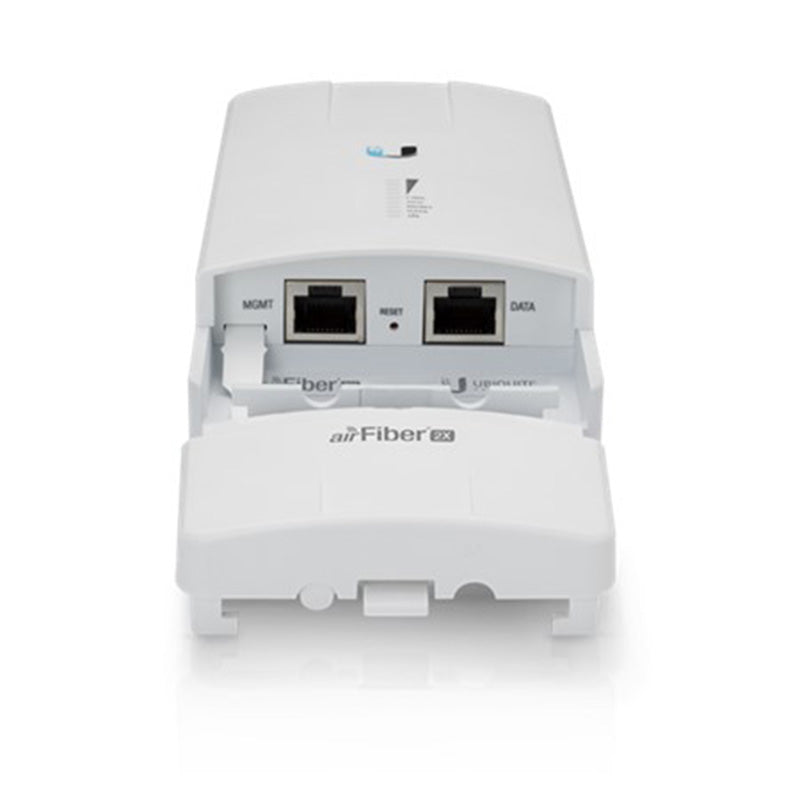

What Ethernet ports does the AF-2X have?
It has one 10/100 Ethernet port and one 10/100/1000 Ethernet port.
Which antennas can I use with the AF-2X?
It is designed to work with a variety of Ubiquiti antennas, including airFiber Slant 45 antennas. It can also upgrade a 5 GHz Rocket link that uses a RocketDish antenna.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide
