Manufacturer's photos. Where a power lead is pictured, an NZ one is provided.

SKU: PBE-2AC-400

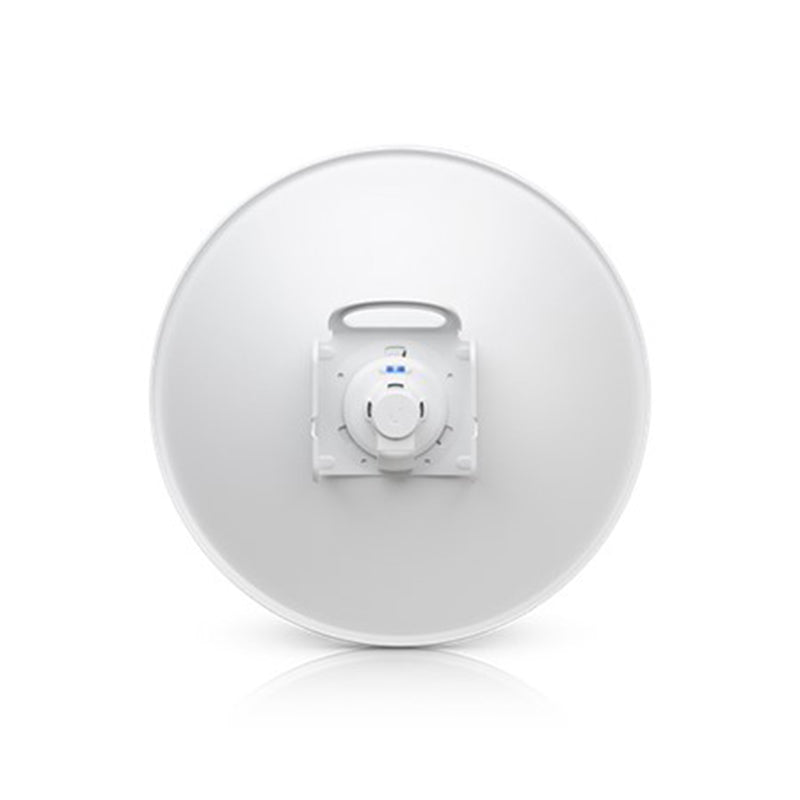

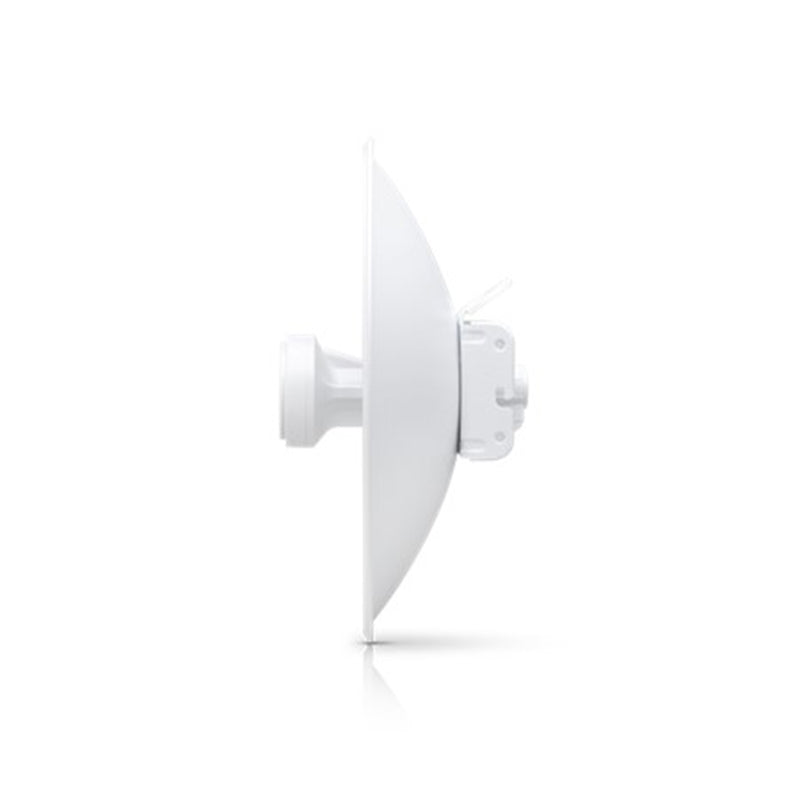

PBE-2AC-400 Ubiquiti airMAX PowerBeam AC 400mm Bridge

Regular price $304.72 NZD
20+ in stockShips from the warehouse closest to you
In stock in
Auckland

Description

2.4 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.



Ubiquiti launches the latest generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam® 2AC, with dedicated Wi-Fi management. The PowerBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.



Features:


High-performance airMAX ac CPE
airMAX ac Protocol Support
Long-Range Point-to-Point (PtP) Link Mode
Selectable Channel Width
PtP: 10/20/40 MHz
PtMP: 10/20/40 MHz
Automatic Channel Selection
Transmit Power Control: Automatic/Manual
Automatic Distance Selection (ACK Timing)
Strongest WPA2 Security
Usability Enhancements
airMagic® Channel Selection Tool
Redesigned User Interface
Dynamic Configuration Changes
Instant Input Validation
HTML5 Technology
Optimization for Mobile Devices
Detailed Device Statistics
Comprehensive Array of Diagnostic Tools, Including RF Diagnostics and airView® Spectrum Analyzer
Innovative Snap and Lock Assembly




Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications26 specifications · 5 sections
Mechanical
Dimensions⌀420 x 289 mm / (⌀16.5 x 11.4")
Weight1.8 kg (4 lb)
Enclosure MaterialsUV-stabilized plastic, powder-coated SPCC
MountingPole mount kit (Included)
Wind Loading342.5 N at 200 km/h (77 lbf at125 mph)
Wind Survivability200 km/h (125 mph)
Hardware
Networking Interface(1) GbE RJ45 port
Power MethodPassive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range20–27V DC
Max. Power Consumption7.5W
ESD ProtectionAir/contact: ± 24 kV
Buttons(1) Factory reset
CertificationsCE, FCC, IC, RoHS
Qualifications
Salt Fog TestIEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G method 509.5
Temperature shock testIEC 68-2-14
UV testIEC 68-2-5 at 40° C (104° F) / Equivalent: ETS 300 019-1-4
Vibration testIEC 68-2-6
Wind-Driven Rain TestETS 300 019-1-4 / Equivalent: MIL-STD-810 G method 506.5
System
Total Throughput450+ Mbps
Channel Bandwidth10/20/40 MHz
Antenna Gain18 dBi
Operating Frequency · Worldwide2412-2472 MHz
Operating Frequency · US/CA2412-2462 MHz
Management Radio (MHz)
Supported Frequency Range · Worldwide5150-5250 MHz
Supported Frequency Range · US/CAU-NII-3: 5725-5850 MHz
Source: Ubiquiti technical specifications, checked 14 Nov 2026.Model PBE-2AC-400 · Ubiquiti's spec sheet
