PBE-M5-300 Ubiquiti airMAX PowerBeam M5 300mm Bridge
Description
Description
Starting with the first-generation NanoBridge®, Ubiquiti Networks pioneered the all-in-one design for an airMAX® product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the PowerBeam™.
Features:
5 GHz
22 dBi
300 mm
The PBE-M5-300 supports up to 150+ Mbps real TCP/IP throughput.
Frequently asked questions5 questions
What is the PBE-M5-300 PowerBeam used for?
How is the PBE-M5-300 powered, and is a power supply included?
What network port does the PBE-M5-300 have?
What frequency range does it operate on?
Can the PBE-M5-300 be used outdoors, and how is it mounted?
Specifications23 specifications · 5 sections
| Mechanical | |
|---|---|
| Dimensions | 325 x 325 x 256 mm / (12.8 x 12.8 x 10.1") |
| Weight | 1.2 kg (2.65 lb) |
| Enclosure Materials | UV-stabilized polycarbonate |
| Mounting | Pole Mount (Included) |
| Wind Loading | 200.2 N @ 200 km/h (45 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |

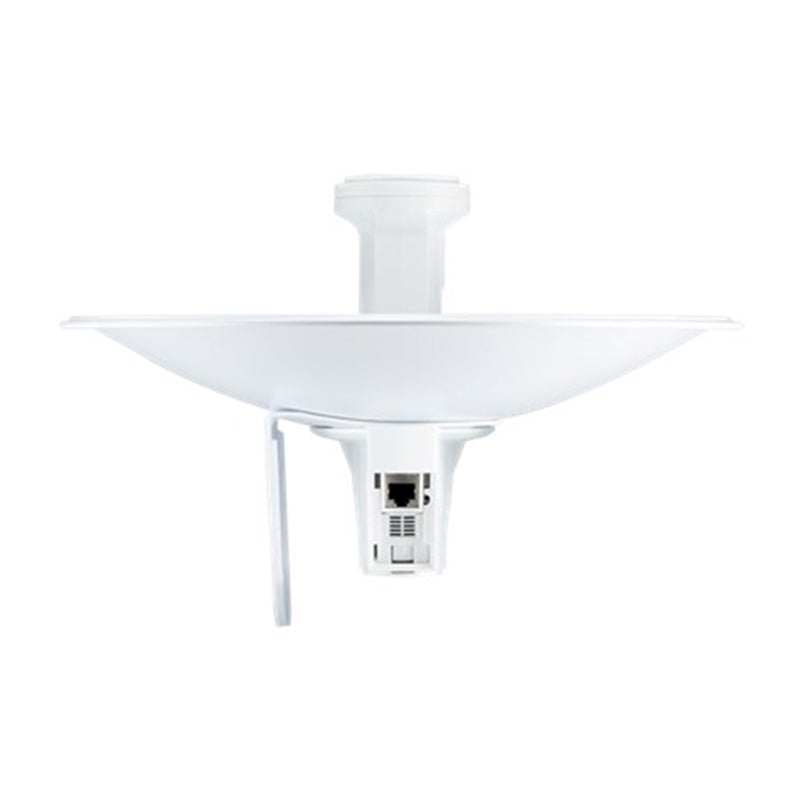

| Networking Interface | (1) 10/100 MbE port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A PoE adapter (Included) |
| Supported Voltage Range | 20–27V DC |
| Max. Power Consumption | 6W |
| Ambient Operating Temperature | -40 to 70° C(-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC,RoHS, Anatel: 01107-15-08356 |
| Qualifications | |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G method 509.5 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) / Equivalent: ETS 300 019-1-4 |
| Vibration test | IEC 68-2-6 |
| Wind-Driven Rain Test | ETS 300 019-1-4 / Equivalent: MIL-STD-810 G method 506.5 |
| System | |
| Max. VSWR | 1.5:1 |
| Polarization | Dual-linear |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150 - 5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz |
