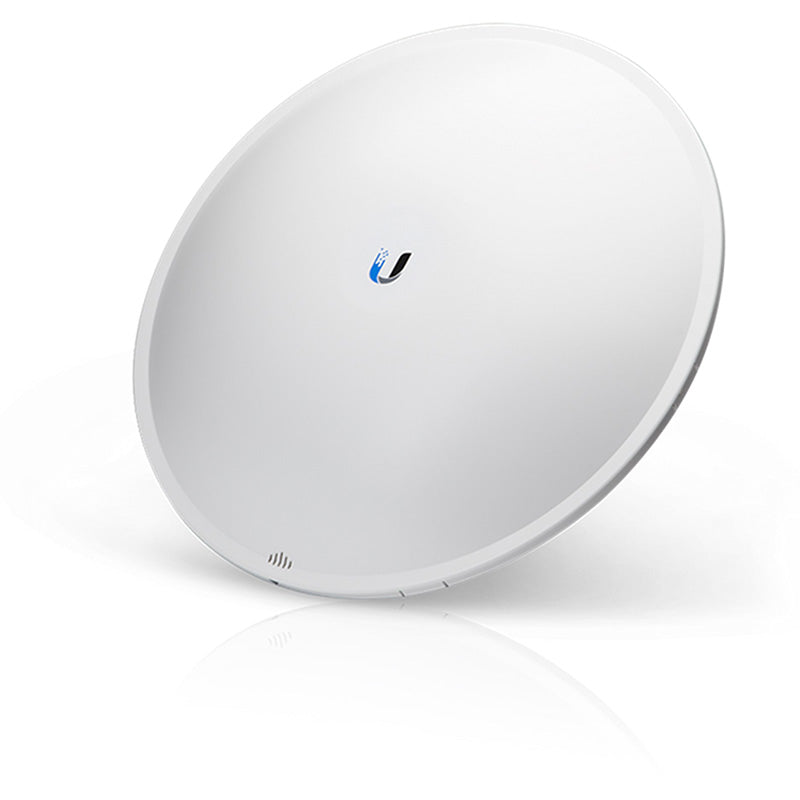

PBE-5AC-500 Ubiquiti airMAX PowerBeam AC 5GHz Bridge
Description
Description

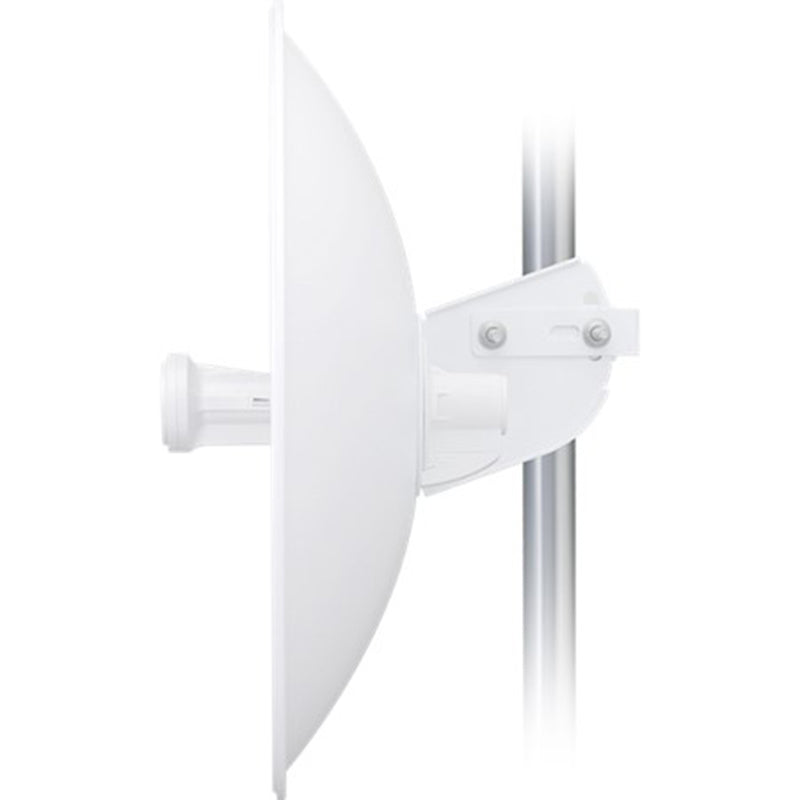

High-Performance airMAX® ac Bridge Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.
The PowerBeam ac directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam ac blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Featuring high performance and innovative mechanical design, the PowerBeam ac is versatile and cost-effective to deploy.
It launches with PtP functionality, and a client mode feature will be added with a future firmware upgrade.

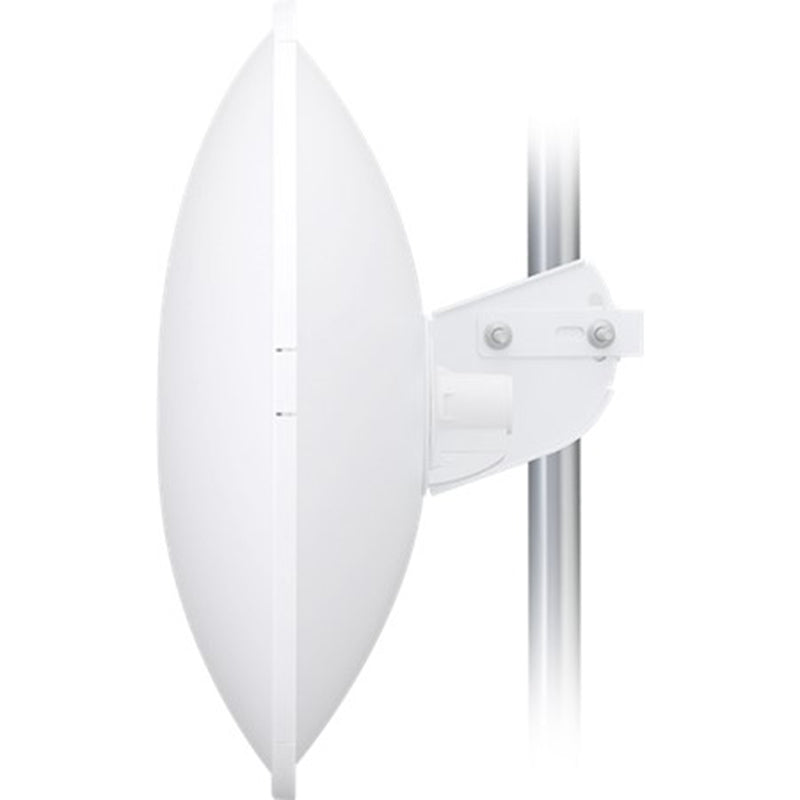

The Ubiquiti PBE-5AC-500 also includes a 500mm radome to shield the radio from harsh environments. POE and Australian power cable included.
Features:
Highly Efficient Antenna Beam Performance
Custom Ubiquiti® airMAX® ac Processor
Up to 450+ Mbps Real TCP/IP Throughput
Innovative Snap and Lock Assembly

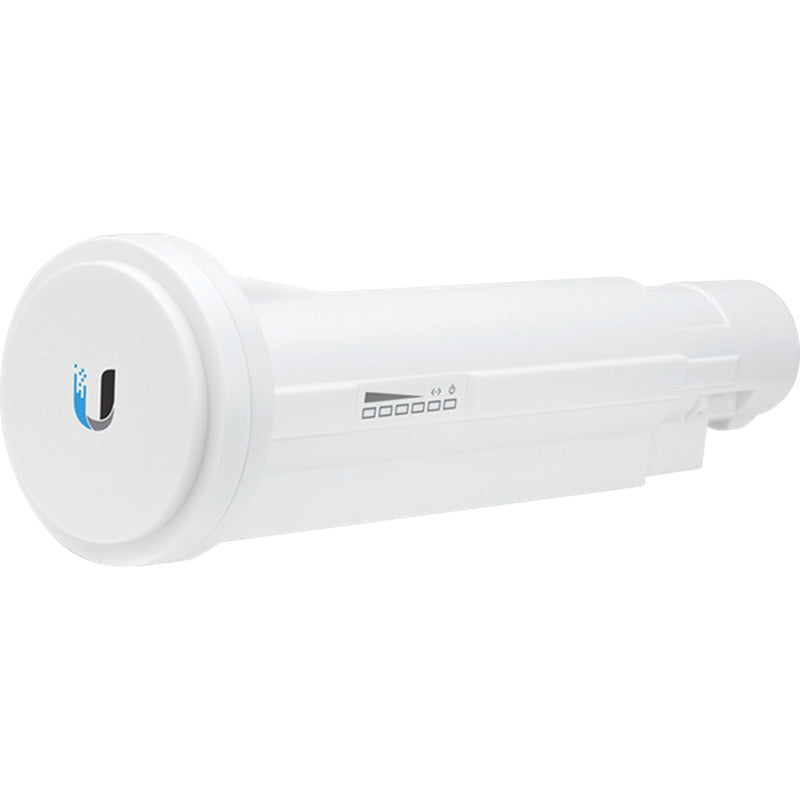

Proprietary InnerFeed™ Technology
Specifications27 specifications · 6 sections
| Mechanical | |
|---|---|
| Dimensions | Without radome: / 520 x 520 x 308 mm (20.5 x 20.5 x 12.1") / With radome: / 525 x 525 x 315 mm (20.7 x 20.7 x 12.4" |
| Weight | Without radome: 2.35 kg (5.2 lb) / With radome: 3.2 kg (7 lb) |
| Enclosure Materials | UV-stabilized polycarbonate |

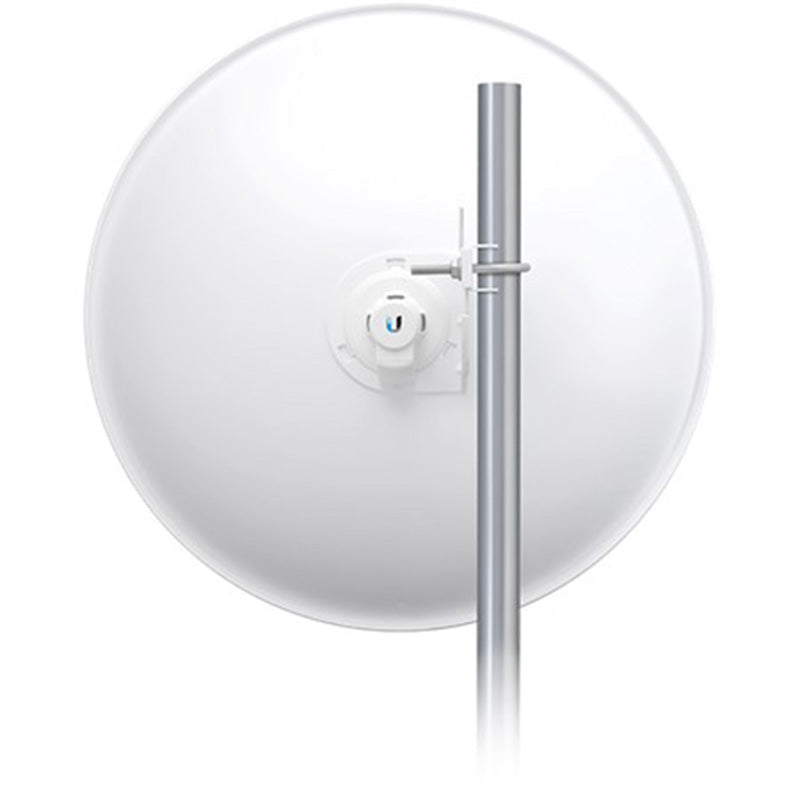

| Mounting | Pole Mount (Included) |
| Wind Loading | 264.6 N at 96 km/h (60 lbf at 60 mph) |
| Wind Survivability | 96 km/h (60 mph) |
| Hardware | |

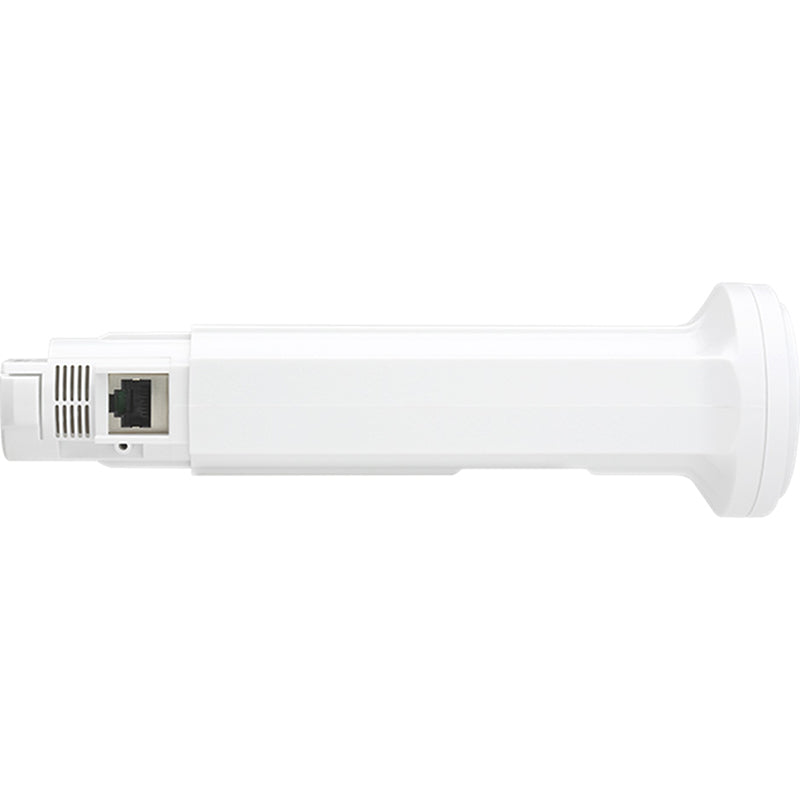

| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20-27V DC |
| Max. Power Consumption | 8.5W |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, RoHS |
| Qualifications | |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G method 509.5 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) / Equivalent: ETS 300 019-1-4 |
| Vibration test | IEC 68-2-6 |
| Wind-Driven Rain Test | ETS 300 019-1-4 / Equivalent: MIL-STD-810 G method 506.5 |
| Software | |
| Operating Modes | Access Point / Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Channel Bandwidth | PtP Mode: 10/20/30/40/50/60/80 MHz / PtMP Mode: 10/20/30/40 MHz |
| Antenna Gain | 27 dBi |
| Max. VSWR | 1.5:1 |
| Polarization | Dual-Linear |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150 - 5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz |
