SKU: PBE-M5-400

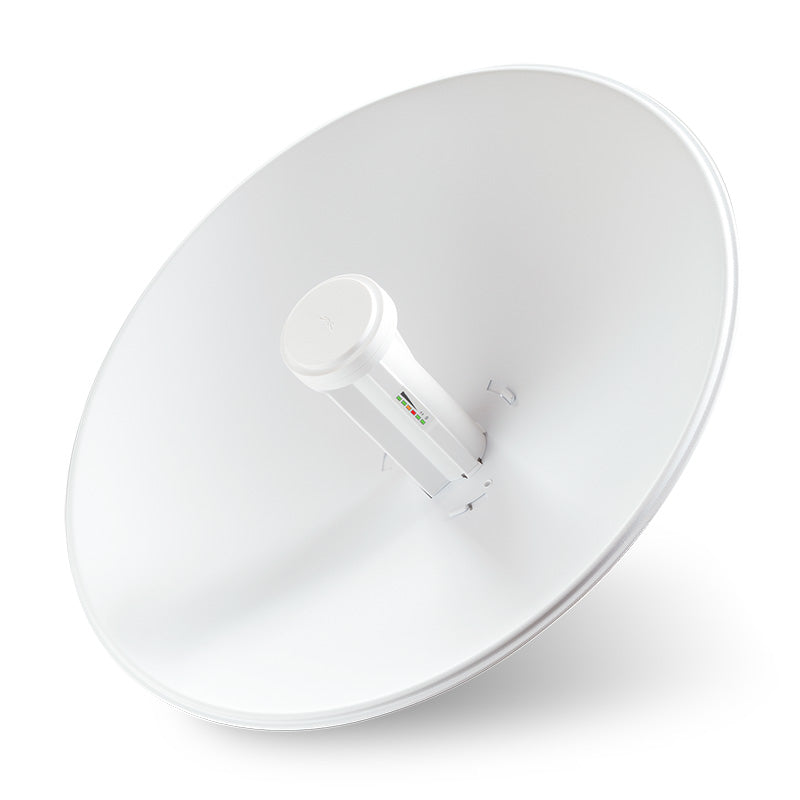

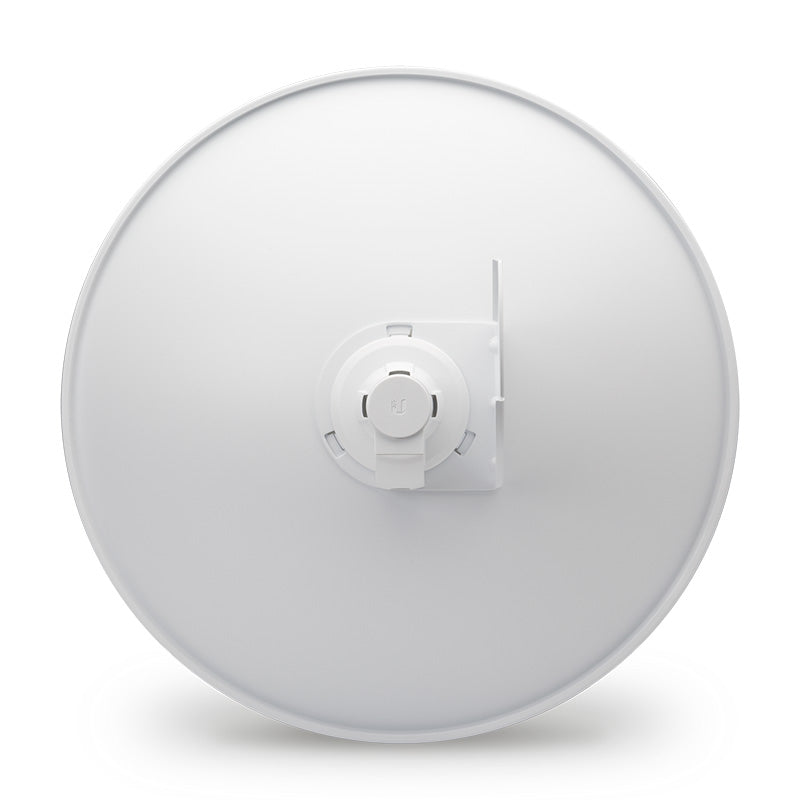

Ubiquiti PowerBeam M5 25dBi 5GHz 802.11n MIMO Antenna, 150+ Mbps Throughput, 25+ km Link Range

Regular price $214.13 NZD
20+ in stockShips from the warehouse closest to you
In stock in
Auckland

Description

Ubiquiti airMAX PowerBeam M5 400 SKU: PBE-M5-400 Description: 5 GHz, 25 dBi bridge with 150+ Mbps throughput. The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. Tech Specs: Click Here Features: •
Frequently asked questions5 questions
What is the Ubiquiti PowerBeam M5 400 designed for?
It is a 5 GHz, 25 dBi bridge with 150+ Mbps throughput. Its tight beamwidth focuses RF energy in one direction and filters out noise, which helps in areas crowded with other signals on the same or similar frequency.
How is the PowerBeam M5 400 powered?
It uses passive PoE (2-pair) and accepts 20-27V DC. A 24V, 0.5A gigabit PoE adapter is included, and maximum power consumption is 8W.
What network port does it have?

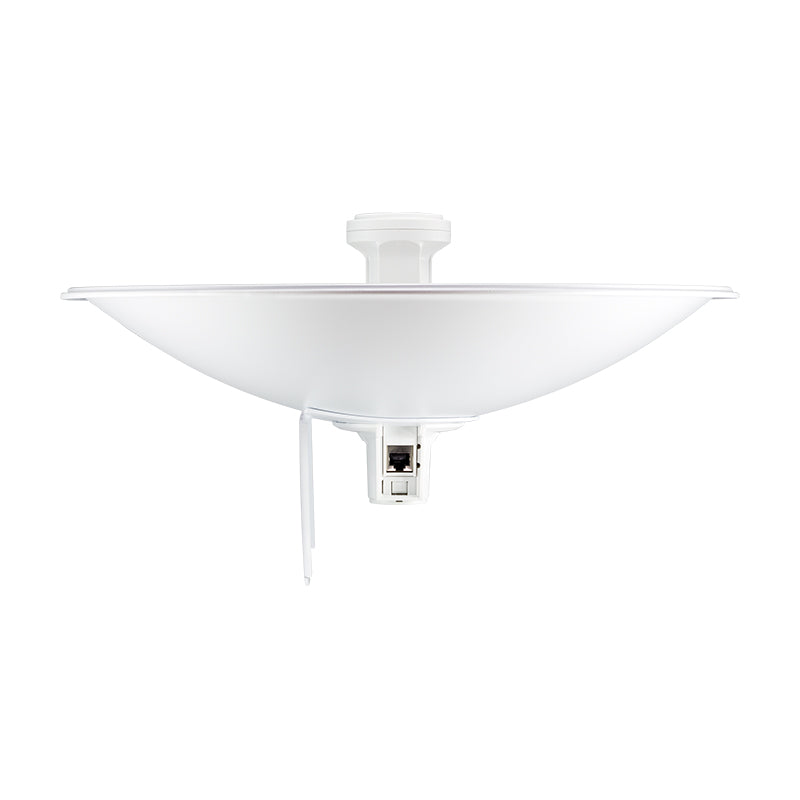

It has a single GbE RJ45 port, which carries both data and PoE power.
How is it mounted and is it suited to outdoor use?
A pole mount is included. The UV-stabilised polycarbonate enclosure survives winds up to 200 km/h and operates from -40 to 70°C at 5 to 95% noncondensing humidity.
What frequency range and transmit power does it support?
The worldwide frequency range is 5170-5875 MHz, with 5725-5850 MHz for US/CA. Maximum TX power is 26 dBm and antenna gain is 25 dBi.
Specifications23 specifications · 5 sections
Mechanical
Dimensions420 x 420 x 275 mm / (16.5 x 16.5 x 10.8")
Weight1.8 kg (4 lb)
Enclosure MaterialsUV-stabilized polycarbonate

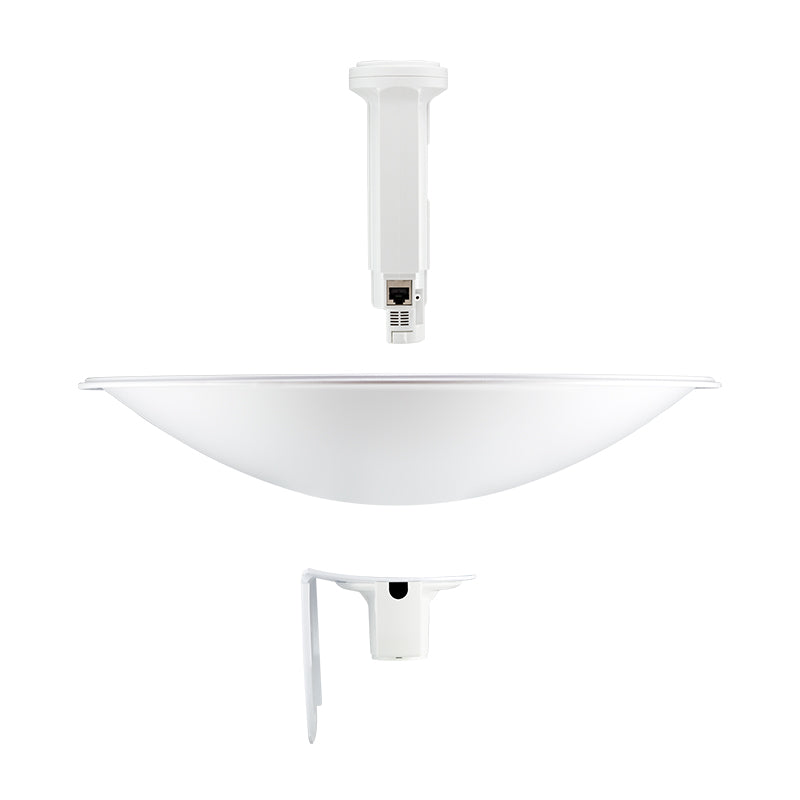

MountingPole Mount (Included)
Wind Loading342.5 N @ 200 km/h (77 lbf @ 125 mph)
Wind Survivability200 km/h (125 mph)
Hardware
Networking Interface(1) GbE RJ45 port
Power MethodPassive PoE 2-pair (Pairs 4, 5+; 7, 8 return)
Power Supply24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range20–27V DC
Max. Power Consumption8W
Max. TX Power26 dBm
Ambient Operating Temperature-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, RoHS, Anatel: 01692-15-08356
Qualifications
Salt Fog TestIEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G method 509.5
Temperature shock testIEC 68-2-14
UV testIEC 68-2-5 at 40° C (104° F) / Equivalent: ETS 300 019-1-4
Vibration testIEC 68-2-6
Wind-Driven Rain TestETS 300 019-1-4 / Equivalent: MIL-STD-810 G method 506.5
System
Antenna Gain25 dBi
Radio Frequency
Supported Frequency Range · Worldwide5170 - 5875 MHz
Supported Frequency Range · US/CA5725 - 5850 MHz
Source: Ubiquiti technical specifications, checked 14 Nov 2026.Model PBE-M5-400 · Ubiquiti's spec sheet
