R2AC-PRISM Ubiquiti airMAX Rocket 2AC Prism
Description
Description
The Rocket 2AC features revolutionary airPrism RF filtering technology and proprietary airMAX ac chipset. Deploy the Rocket 2AC for PtP or PtMP links using the 2.4 GHz radio band.
Ubiquiti Networks has designed airMAX ac radios with high performance and ease of installation in mind. The Rocket®2AC Prism features both airMAX ac and airPrism technologies for maximum wireless performance in high density areas.
Pair the Rocket 2AC Prism with airMAX antennas for optimal performance:
Point-to-Point (PtP) backhaul RocketDish Antenna
Point-to-MultiPoint (PtMP) links airMAX Sector Antenna
Deploy the Rocket 2AC Prism anywhere in the world. It delivers complete coverage of the 2.4 GHz spectrum with a single radio. The Rocket 2AC Prism allows for flexibility in configuring channel bandwidths (subject to local country regulations).
Frequently asked questions5 questions
What is the Rocket 2AC Prism used for?
How is the Rocket 2AC Prism powered?
Which antennas should I pair with it?
What frequency range and throughput does it support?
Is the Rocket 2AC Prism built for outdoor conditions?
Specifications20 specifications · 4 sections
| Mechanical | |
|---|---|
| Dimensions | 88 x 40 x 230 mm / (3.5 x 1.6 x 9.1") |
| Weight | 400 g (14.1 oz) |
| Enclosure Materials | Die-cast aluminum |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20–27V DC |
| Max. Power Consumption | 9.5W |
| ESD Protection | Air/contact ± 24kVt |

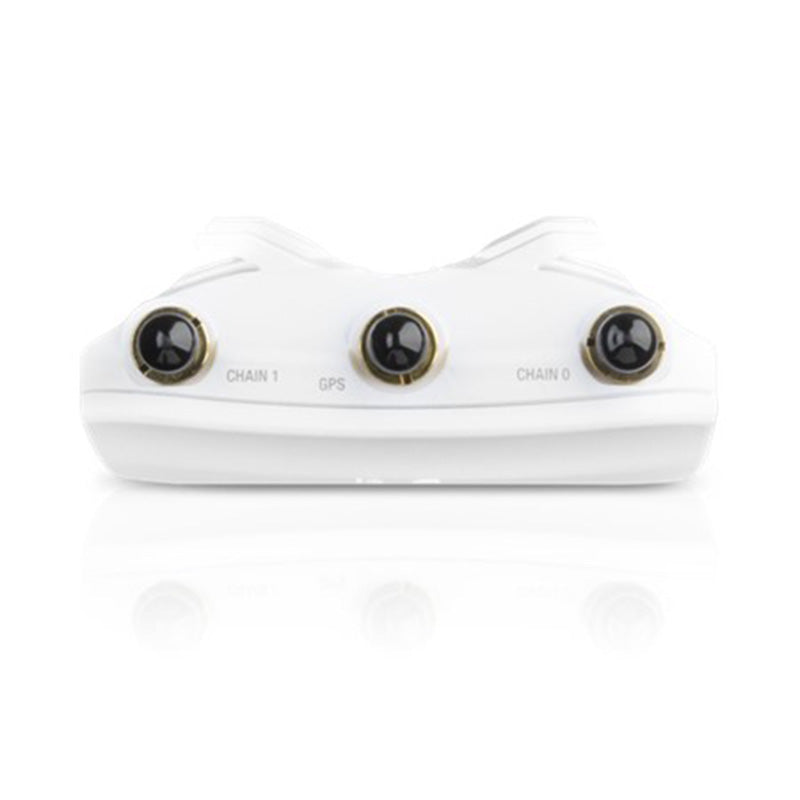

| RF Connections | (2) RP-SMA (waterproof) / (1) GPS (waterproof) |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC |
| System | |
| Total Throughput | +150 Mbps |
| Operating Frequency · Worldwide | 2412 - 2472 MHz |
| Operating Frequency · US/CA | 2412 - 2462 MHz |
| Management Radio (MHz) | |
| Supported Frequency Range · Worldwide | 5150 - 5250 MHz |
| Supported Frequency Range · US/CA | U-NII-3: 5725 - 5850 MHz |
