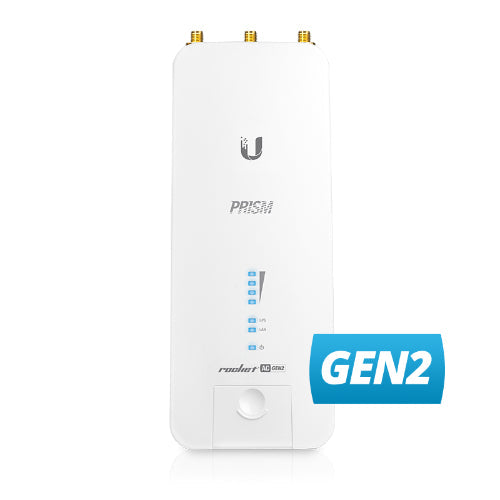

RP-5AC-Gen2 Ubiquiti airMAX Rocket Prism AC 5GHz Radio
Description
Description
The Rocket5 ac Prism covers the full 5 GHz radio band and incorporates both airMAX ac and airPrism technologies for maximum performance of wireless links in high-density areas.
Ubiquiti's patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.
The Rocket5ac Prism features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.
The Rocket 5AC Prism features revolutionary airPrism RF filtering technology, proprietary airMAX ac chipset, and dedicated management WiFi for easy UISP® mobile app support and fast setup. Deploy the Rocket 5AC Prism for PtP or PtMP links in high-noise environments.
Features:
Custom Ubiquiti® airMAX AC Processor
Proprietary airPrism® Active RF Filtering Technology
GPS for Superior Co-Location Performance
5 GHz Wide Band Operating Frequency
Point-to-MultiPoint Links to airMAX ac Clients
Robust Die Cast Aluminum Casing
Dedicated Management Radio
Specifications21 specifications · 6 sections
| Mechanical | |
|---|---|
| Dimensions | 88 x 40 x 230 mm / (3.5 x 1.6 x 9.1") |
| Weight | 400 g (14.1 oz) |
| Enclosure Materials | Die-cast aluminum |
| Wind Loading | 342.5 N at 200 km/h (77 lbf at 125 mph) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 1A gigabit PoE adapter (Included) |
| Supported Voltage Range | 18–27V DC |
| Max. Power Consumption | 9.5W |

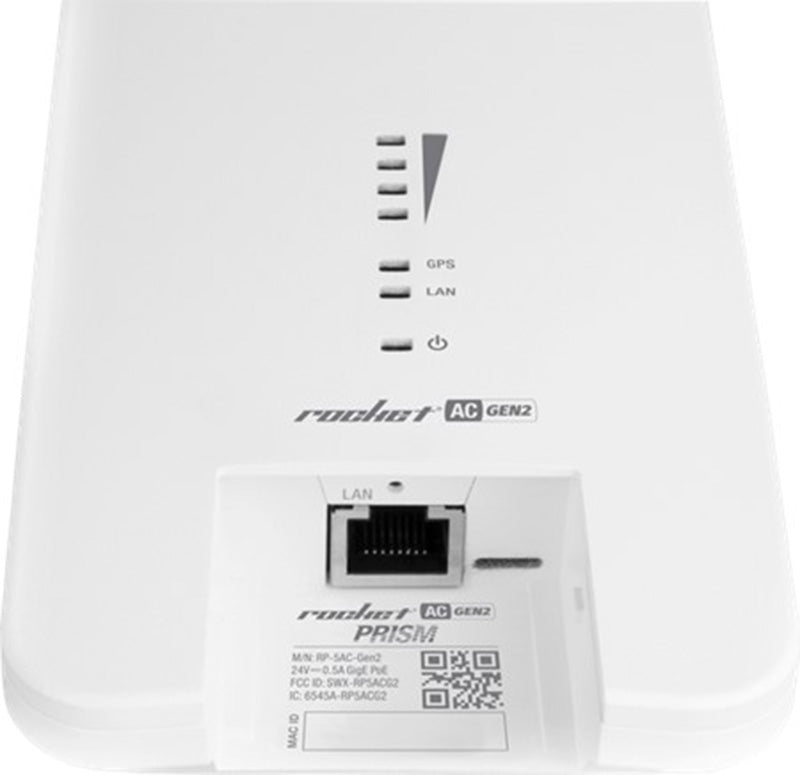

| RF Connections | (2) RP-SMA (Waterproof) / (1) GPS (Waterproof) |
| Ambient Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC, RoHS, Anatel: 02137-18-08356 |
| Software | |
| Operating Modes | Access Point / Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Channel Bandwidth | PtP mode: 10/20/30/40/50/60/80 MHz / PtMP mode: 10/20/30/40 MHz |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150–5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150–5250 MHz / U-NII-2A: 5250–5350 MHz / U-NII-2C: 5470–5725 MHz / U-NII-3: 5725–5850 MHz |
| Management Radio (MHz) | |
| Supported Frequency Range · Worldwide | 2412–2472 MHz |
| Supported Frequency Range · US/CA | 2412–2462 MHz |
