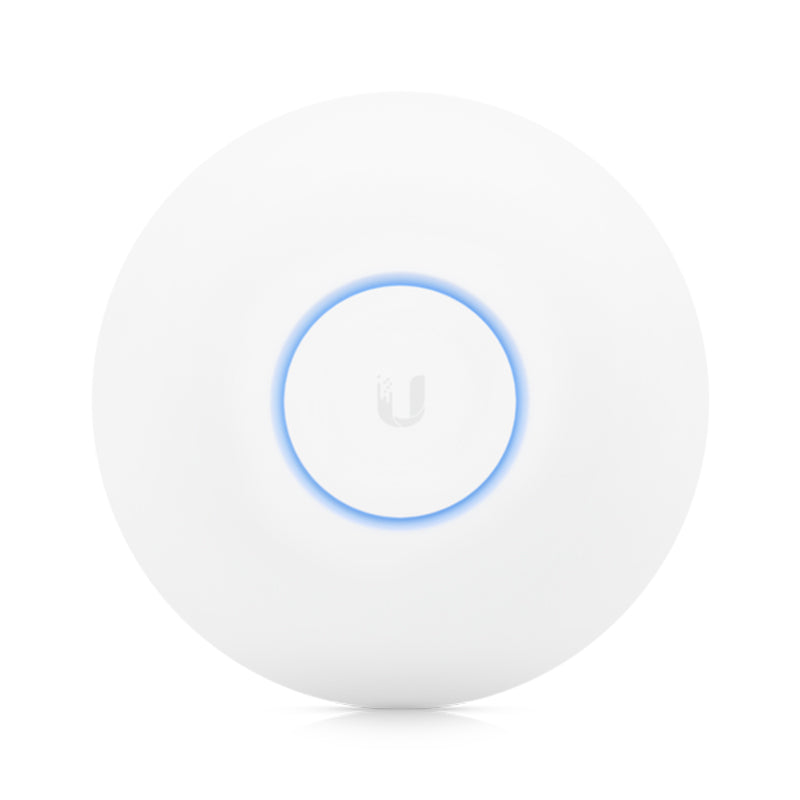

UAP-AC-LR Ubiquiti UniFi AC Long Range AP
Description
Description
The Access Point AC Long-Range (UAP AC LR) is a high-performance, indoor 802.11ac WiFi access point that utilizes Wave 1 technology to reach a 1.2+ Gbps aggregate throughput rate with its 5 and 2.4 GHz bands.
The UAP AC LR also has an impressively long transmission range of up to 183 meters (600 feet), allowing you to establish and sustain quality connectivity over greater distances. This access point is powered by either 802.3af PoE or 24 V passive PoE, and is equipped with (1) GbE RJ45 port for high-speed LAN connectivity.
The UAP AC LR can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
802.3ac Wave 1 WiFi technology
5 GHz band with 867 Mbps throughput rate
2.4 GHz band with a 450 Mbps throughput rate
Signal transmission up to 183 meters (600 feet)
(1) GbE RJ45 port
Powered by 802.3at PoE* or 24V passive PoE
Frequently asked questions5 questions
What Wi-Fi speeds does the UAP-AC-LR support?
How are the access point's range and coverage described?
How is the UAP-AC-LR powered?
What network port does it have?
How is it mounted and managed?
Specifications31 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | ⌀175.7 x 43.2 mm / (⌀6.9 x 1.7") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 5 |
| Coverage Area | 185 m² (2,000 ft²) |
| Max. Client Count | 250+ |
| Uplink | GbE |

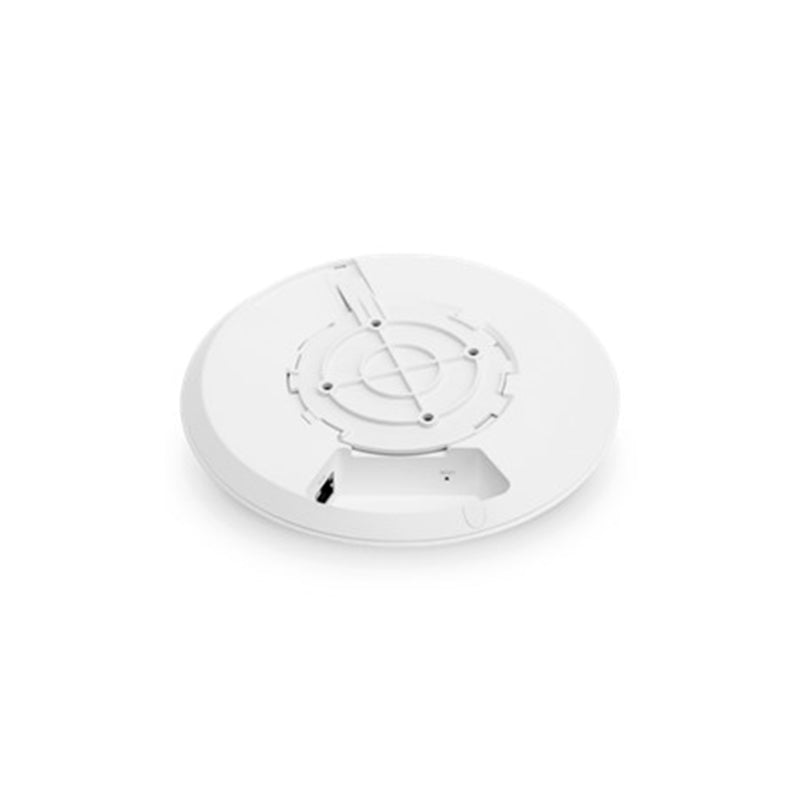

| Mounting | Ceiling, Wall Mount |
| Power Method | PoE |
| Performance | |
| MIMO · 5 GHz | 2 x 2 (DL MU-MIMO) |
| MIMO · 2.4 GHz | 3 x 3 (DL MU-MIMO) |
| Max. Data Rate · 5 GHz | 867 Mbps (BW80) |
| Max. Data Rate · 2.4 GHz | 450 Mbps (BW40) |
| Antenna Gain · 5 GHz | 3 dBi |
| Antenna Gain · 2.4 GHz | 3 dBi |
| Max. TX Power · 5 GHz | 22 dBm |
| Max. TX Power · 2.4 GHz | 24 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 6.5W |
| Networking Interface | (1) GbE RJ45 port |
| Weight | Device: 240 g (8.5 oz) / With mount: 315 g (11.1 oz) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate |
| LEDs · System | Status |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz |
| Ambient Operating Temperature | -10 to 70° C (14 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 01409-16-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 6.0.45 and later |
