Manufacturer's photos. Where a power lead is pictured, an NZ one is provided.

SKU: UBB

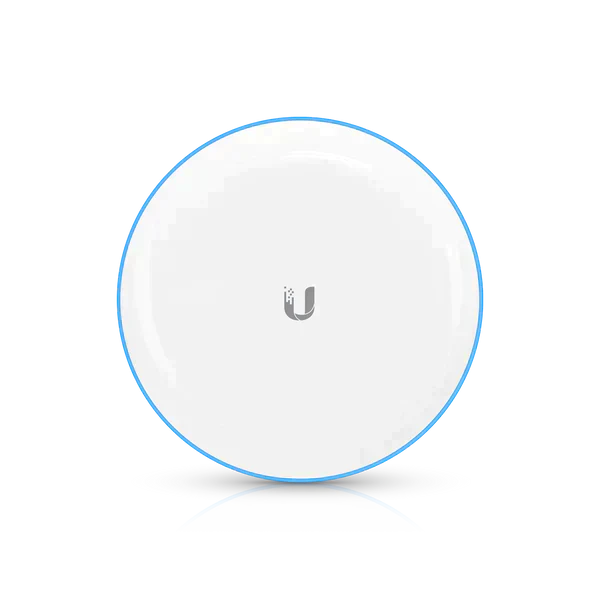

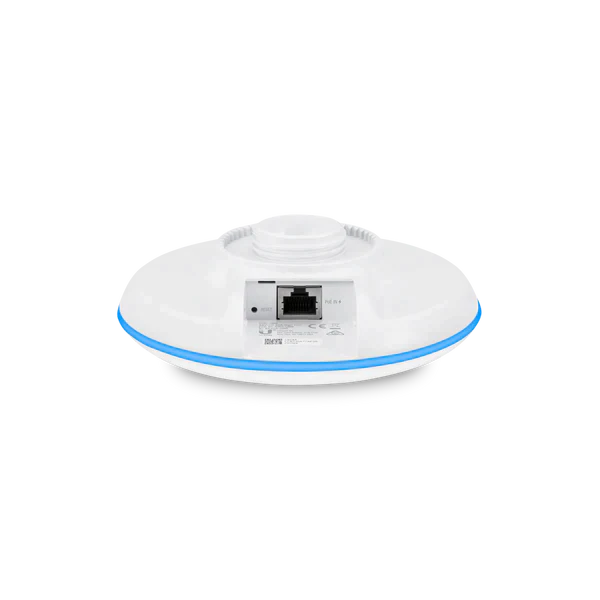

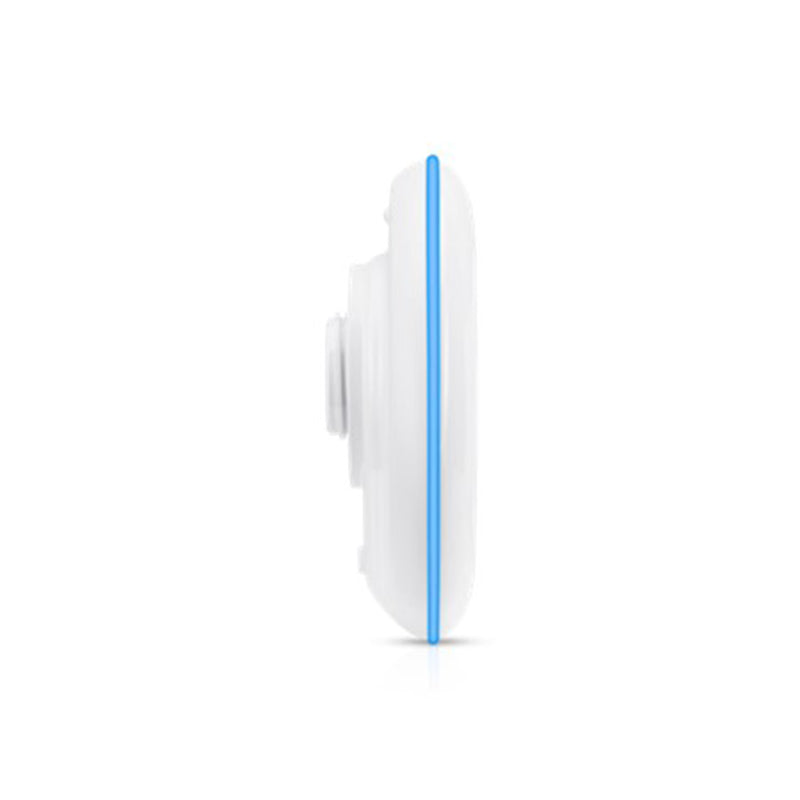

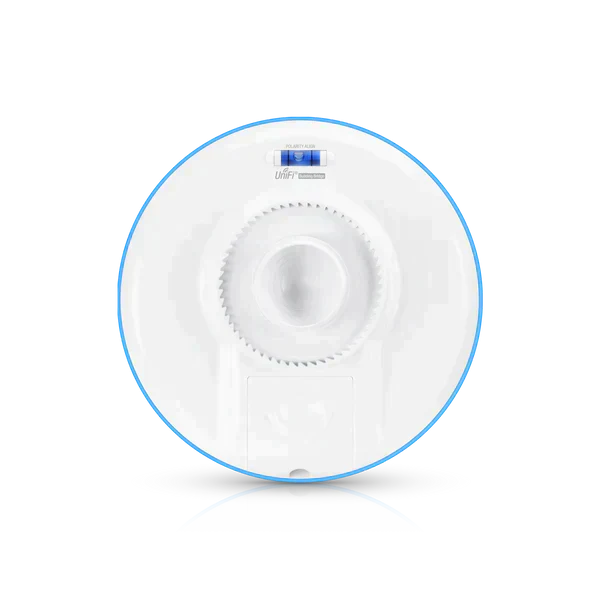

UBB Ubiquiti UniFi Building-to-Building Bridge

Regular price $1,312.98 NZD
Not in stock locally
In stock inAustraliaUnited Kingdom
Contact us for options

We do not hold this locally right now, but it is in stock in Australia and the UK. Contact us and we will tell you what is possible.

Description

1.7+ Gbps bi-directional Plug and Play 60 GHz Bridge with 5 GHz Radio Redundancy, UniFi Application Management, and range of up to 500 m UBB - 1 x RJ45 1 Gb/s Port



UniFi® Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi application makes bridging two networks seamless.



As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.



Features:


A 60 GHz wireless point-to-point bridge.

500 m (1,640 ft) maximum range

60 GHz & 5 GHz dual-radio redundancy

Includes PoE power adapters

Built-in LED alignment indicators

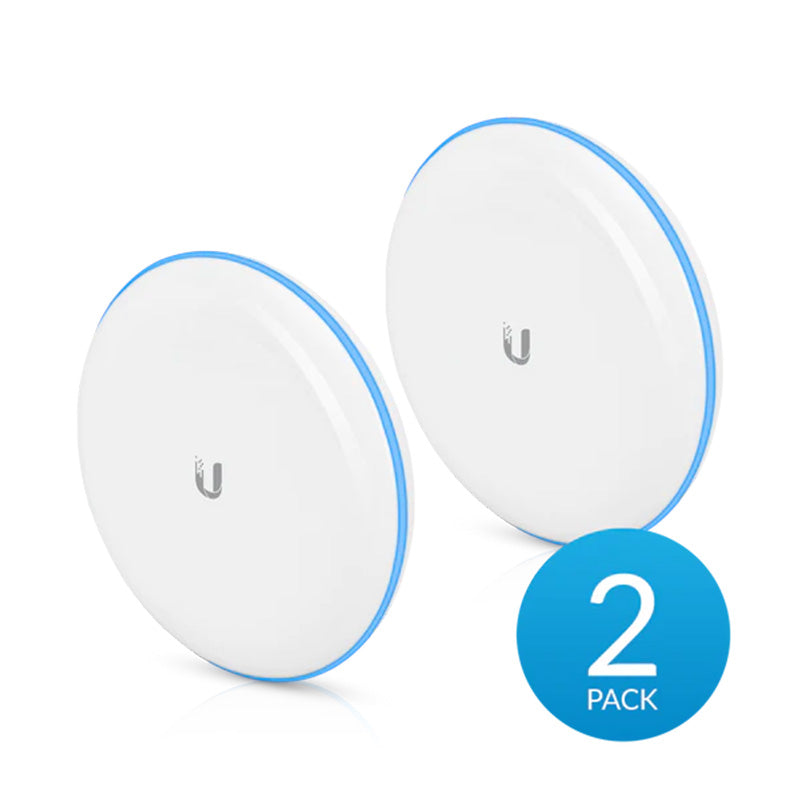

Sold as 2-pack

Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide



Specifications36 specifications · 3 sections
Overview
Dimensions⌀140 x 90 mm / (⌀5.5 x 3.5")
WiFi StandardWiFi 5
Spatial Streams2
Coverage Area500 m (1,640 ft)
UplinkGbE
Mounting LocationsWall, pole
WeatherproofingIPX6
Power MethodPoE
Performance
MIMO · 5 GHz2 x 2 (DL MU-MIMO)
Max. Data Rate · 60 GHz1.7 Gbps
Max. Data Rate · 5 GHz866.6 Mbps (BW80)
Antenna Gain · 60 GHz17.2 dBi
Antenna Gain · 5 GHz10 dBi
Antenna Gain · 2.4 GHz2 dBi (BLE)
Max. TX Power · 60 GHz19 dBm
Max. TX Power · 5 GHz25 dBm
Supported Data Rates · 802.11ac (WiFi 5)6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
Supported Data Rates · 802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Supported Data Rates · 802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless SecurityWPA2 AES
Hardware
Max. Power Consumption11W
Supported Voltage Range44–57V DC
Networking Interface(1) GbE RJ45 port
Weight376 g (13.3 oz)
Operating ModesPtP
Wind Loading56 N at 200 km/h (12.6 lbf at 125 mph)
ManagementEthernet / Bluetooth
Channel BandwidthMain radio (60 GHz): 1,080/2,160 MHz / Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz
Enclosure MaterialUV-resistant polycarbonate
Button(1) Factory reset
LEDs · SystemR/G/B
Operating FrequencyMain radio (60 GHz): 57 - 66 GHz / Backup radio (5 GHz): / US/CA / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide / 5150 - 5850 MHz
Bluetooth (MHz)Worldwide: 2400 - 2483.5 MHz
Ambient Operating Temperature-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
Source: Ubiquiti technical specifications, checked 14 Nov 2026.Model UBB · Ubiquiti's spec sheet
