USW-Flex-Utility Ubiquiti UniFi Switch Flex Utility
Description
Description

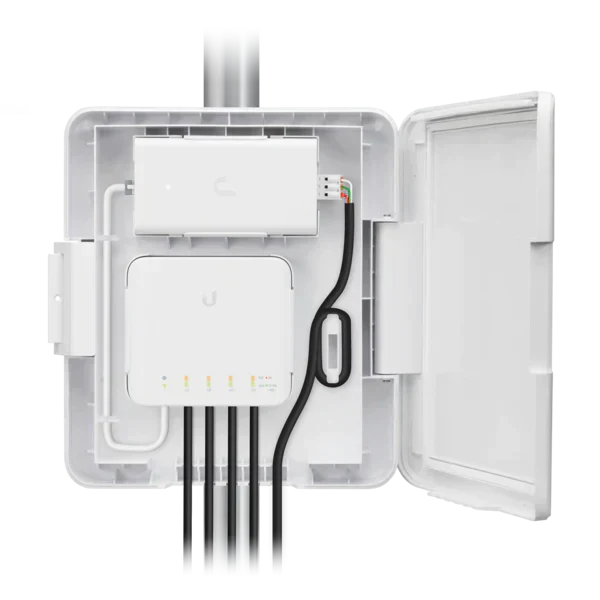

The USW Flex Utility is an outdoor weatherproof enclosure designed for use with the UniFi Switch Flex, USW-Flex.

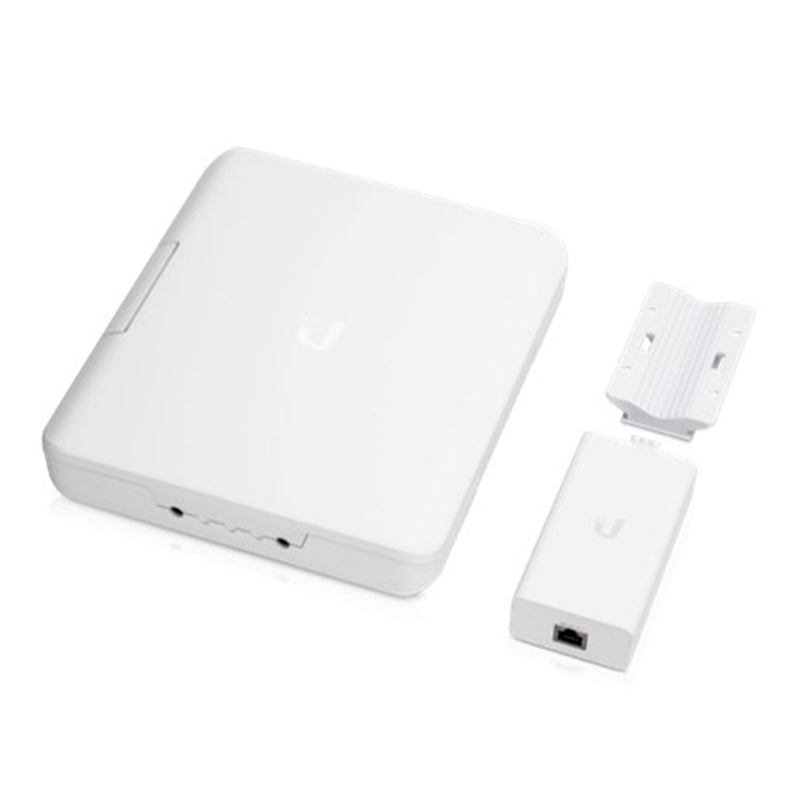

It includes an Ethernet patch cable and a 60W PoE adapter, which provides a maximum PoE budget of 46W.

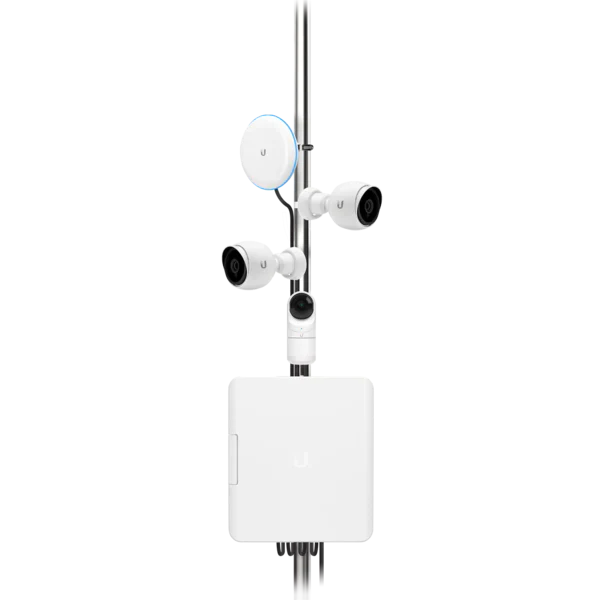

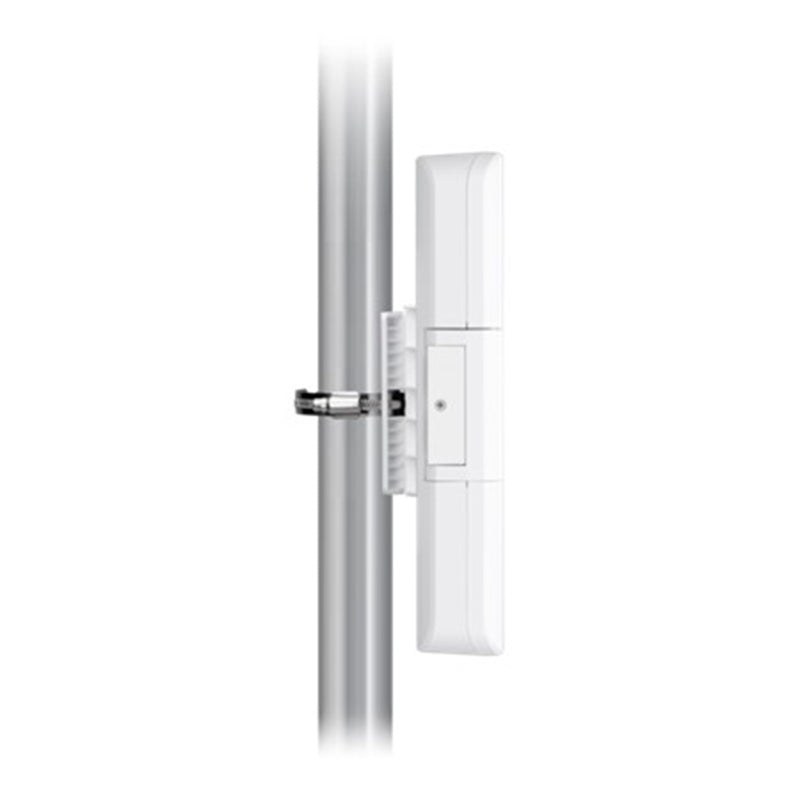

The USW Flex Utility can be easily mounted on a pole, provides clean cable management and screw lock for security.
Specifications16 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | Enclosure: 249 x 218 x 60 mm (9.8 x 8.6 x 2.4") / Adapter: 118.5 x 63 x 34.7 mm (4.7 x 2.5 x 1.4") |
| Weight | Enclosure: 740 g (1.6 lb) / Adapter: 206 g (7.3 oz) |
| Output Voltage | 54V, 1.11A |
| Rated Voltage | 100–240V AC |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Input Current | 1.5A Max. |
| Efficiency | 86+% |
| Output Ripple | 200mVpp |
| Line Regulation | ≤1% |
| Load Regulation | ≤3% |
| Power Supply | AC/DC |
| Surge Protection | 4kV difference and Common mode |
| Ambient Storage Temperature | -30 to 70° C (-22 to 158° F) |
| Ambient Operating Temperature | -20 to 60° C (-4 to 140° F) |
| Ambient Operating Humidity | 5 to 90%, noncondensing |
| Certifications | CE, FCC, IC |
