Manufacturer's photos. Where a power lead is pictured, an NZ one is provided.

SKU: US-24

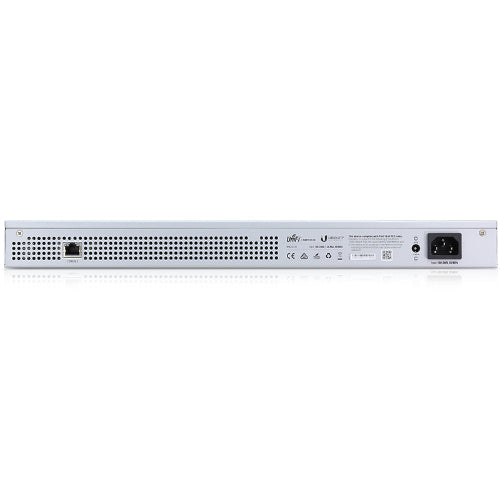

US-24 Ubiquiti UniFi Switch 24

Regular price $520.55 NZD
Out of stock
In stock in
Auckland (none in stock)

Description

The UniFi® Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non‐blocking throughput, the 24‐port model supports up to 26 Gbps.



Build and expand your network with Ubiquiti Networks® UniFi® Switch, part of the UniFi line of products. Available with 24 or 48 RJ45 Gigabit ports, the UniFi Switch is a fully managed Gigabit switch, delivering robust performance and intelligent switching for your growing networks.



Each model includes two SFP ports for uplinks of up to 1 Gbps.



A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.



Features:


(24) Gigabit RJ45 Ports
(2) SFP Ports
(1) Serial Console Port (Reserved for Future Use)
Non-Blocking Throughput: 26 Gbps
Switching Capacity: 52 Gbps
Forwarding Rate: 38.69 Mpps
(24) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Maximum Power Consumption: 25W
Quiet, Fanless Operation
Rack-Mountable

Frequently asked questions5 questions
What ports does the US-24 have?
It has 24 Gigabit RJ45 ports that run at 10/100/1000 Mbps, plus two 1 Gbps SFP ports intended for uplinks. There is also a serial console port, which is reserved for future use.
Is the US-24 a managed switch, and what does it need to be managed?
Yes, it is a fully managed Gigabit switch that is part of the UniFi range. It works with UniFi Network version 6.3.51 and later, and a single cloud-hosted UniFi Controller can manage multiple logically separated sites.
What is the throughput and switching capacity of the US-24?
It offers 26 Gbps of non-blocking throughput, 52 Gbps of switching capacity and a forwarding rate of 38.69 Mpps. This allows all ports to be processed at line rate without packet loss.
How is the US-24 powered, and how much power does it use?
It takes AC input with a universal 100–240V, 50/60 Hz supply. Maximum power consumption is 25W.
Can the US-24 be rack-mounted, and is it noisy?
Yes, it is rack-mountable, with a steel build and support for rack depths of 400–1200 mm. It is 443 x 221 x 43.7 mm and runs fanless, so operation is quiet.

Click HERE to access the Datasheet

Specifications11 specifications · 4 sections
Overview
Dimensions443 x 221 x 43.7 mm / (17.4 x 8.7 x 1.7")
Port Layout · 1 GbE RJ4524 / (1G/100M/10M)
Port Layout · 1G SFP2 / (1G)
Performance
Access Lists · IPv4128
Access Lists · MAC128
Hardware
Power MethodUniversal input, 100–240V AC, 50/60 Hz
Power Input MethodAC input
Supported Voltage Range100–240V AC
Mount MaterialSGCC steel
Supported Rack Depth400~1200 mm / (15.7-47.2")
Software
Application Requirements · UniFi NetworkVersion 6.3.51 and later
Source: Ubiquiti technical specifications, checked 14 Nov 2026.Model US-24 · Ubiquiti's spec sheet
