US-8-60W Ubiquiti UniFi Switch 8 PoE (60W)
Description
Description
Layer 2, PoE switch with (8) GbE RJ45 ports including (4) GbE, PoE ports.

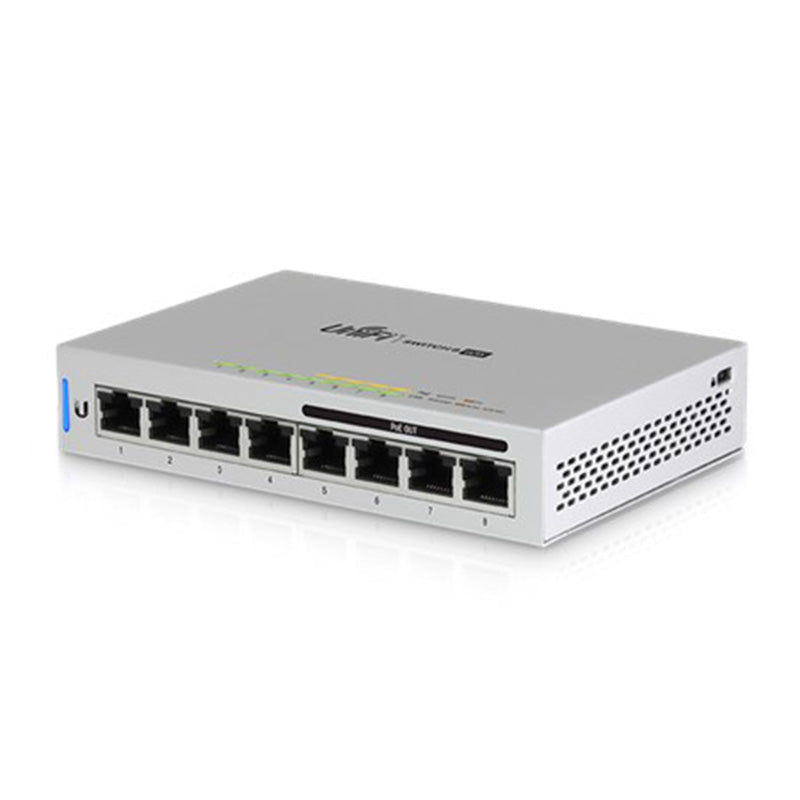

The Switch 8 60W (US 8 60W) is a fully managed switch with (8) GbE RJ45 ports including (4) GbE, PoE ports. The US 8 60W is powered with the included 60W, AC/DC power adapter, and offers a 8 Gbps total, non-blocking line rate.
This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:

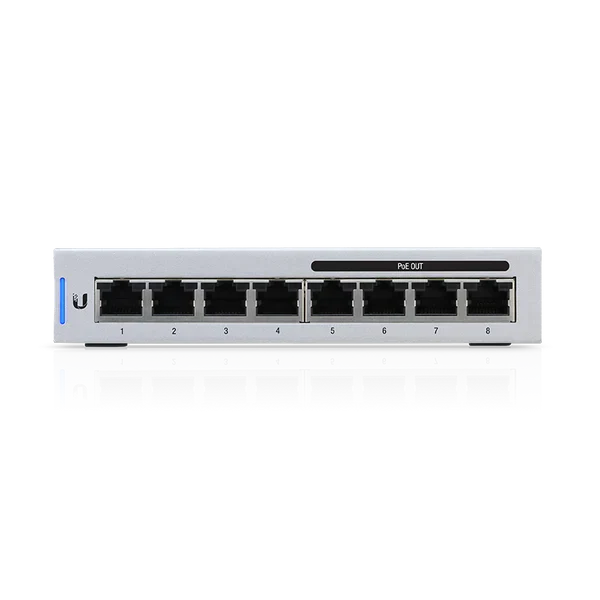

(4) GbE RJ45 ports
(4) GbE, PoE RJ45 ports
48W total PoE supply
Powered with the included 60W, AC/DC power adapter
Compact housing
Managed with the UniFi Network application
Frequently asked questions5 questions
How many ports does the UniFi Switch 8 PoE (60W) have and which support PoE?
How much PoE power does this switch supply?
How is the switch powered and managed?
What is the switching performance of the US-8-60W?
What size is the switch and how can it be mounted?
Specifications27 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 148 x 100 x 31 mm / (5.8 x 3.9 x 1.2") |
| Port Layout · 1 GbE RJ45 | 8 (4 PoE) / (1G/100M/10M) |
| Max. PoE Output | Up to PoE |
| Total PoE Availability | 48W |
| Form Factor | Compact desktop, wall |
| Performance | |
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 16,000 |
| Packet Buffer Size | 1.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE | 4 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. Power Consumption | 12W (Excluding PoE output) |

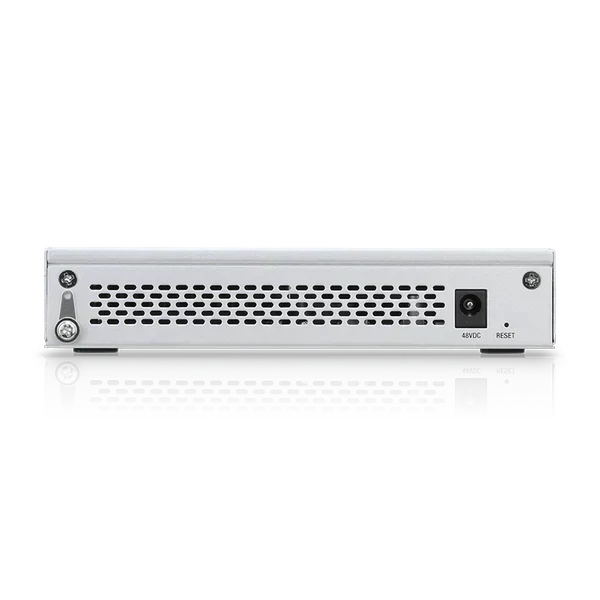

| Power Method | (1) AC/DC adapter (Included) |
| Power Input Method | AC input |
| Supported Voltage Range | 44–57V DC/PoE |
| Management | Ethernet |
| Weight | 432 g (15.2 oz) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04915-19-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 6.3.51 and later |
