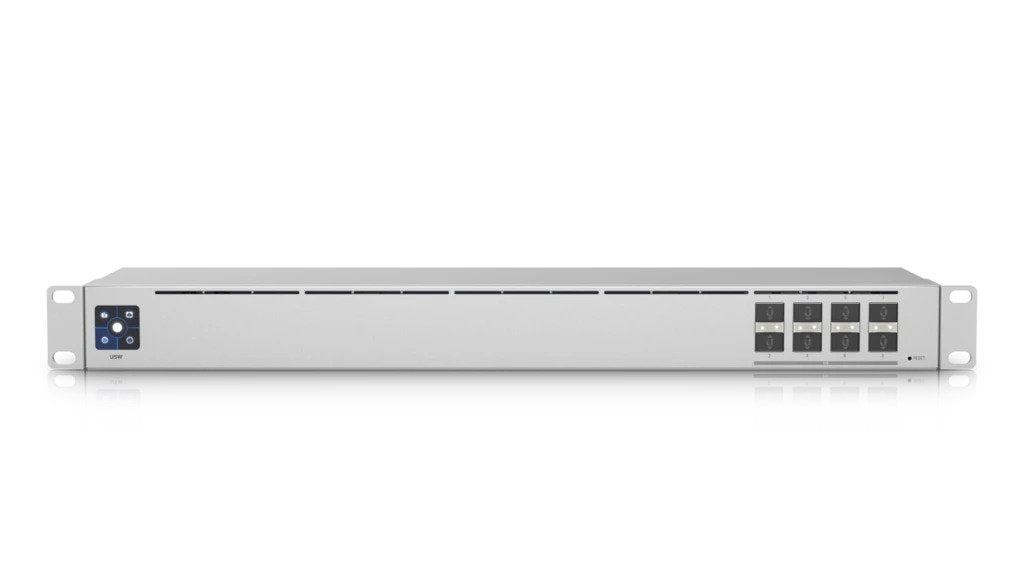

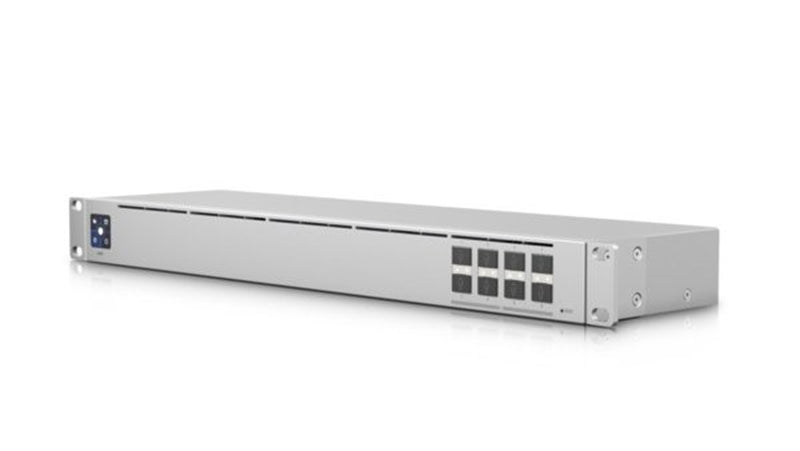

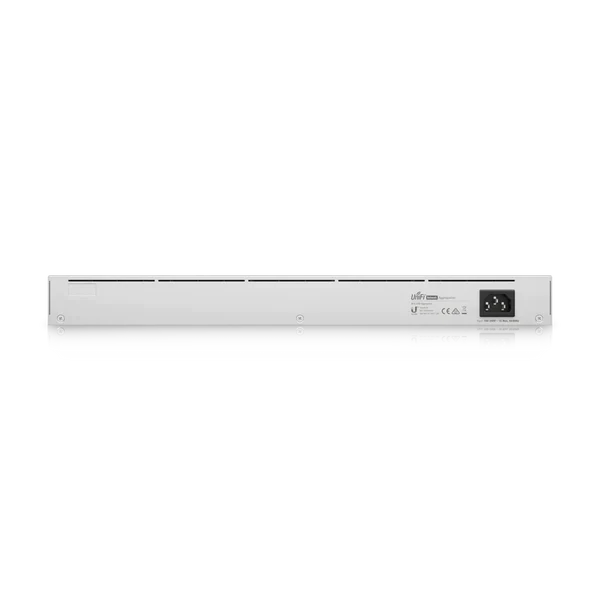

USW-Aggregation Ubiquiti UniFi Switch Aggregation
Description
Description
Layer 2 switch with (8) 10G SFP+ ports.
The Switch Aggregation is a fully managed, Layer 2 switch with (8) 10G SFP+ ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links.
This rack-mountable switch also offers 160 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. Additionally, with its 4.7" depth, it's easy to mount this compact, fanless switch in a SOHO rack cabinet.
This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(1) 1.3" LCM color touchscreen with AR switch management
(8) 10G SFP+ ports
160 Gbps switching capacity
Fanless, near-silent cooling
Managed with the UniFi Network application: Version 5.14.12 and later
Specifications28 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 120 x 43.7 mm / (17.4 x 4.7 x 1.7") |
| Port Layout · 10G SFP+ | 8 / (10G/1G) |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 160 Gbps |
| Total Non-Blocking Throughput | 80 Gbps |
| Forwarding Rate | 119 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| Packet Buffer Size | 1.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| Max. Power Consumption | 36W (Including SFP modules) |
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 36W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 102 BTU/hr |
| Weight | Without mounting brackets: 2.6 kg (5.8 lb) / With mounting brackets: 2.7 kg (6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04456-21-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 5.14.12 and later |
