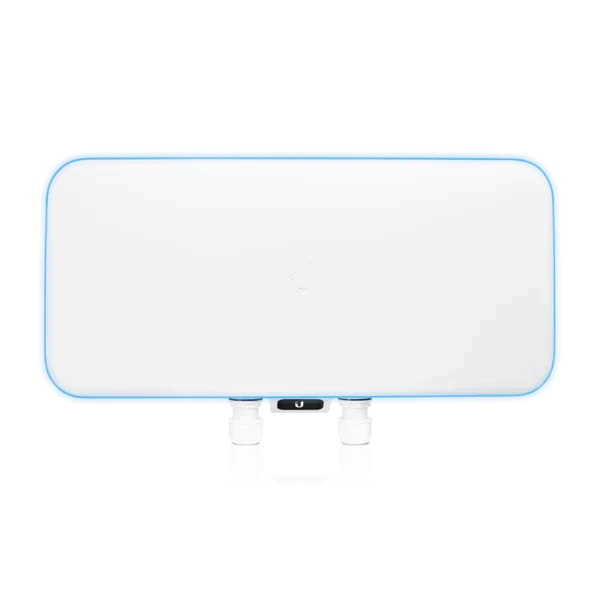

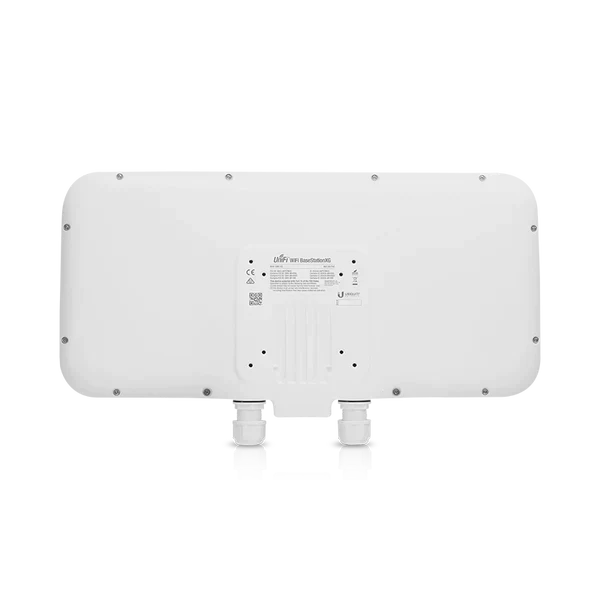

UWB-XG Ubiquiti WiFi BaseStation XG
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
Description
Description
Quad-radio, 802.11ac Wave 2 access point with a powerful beamforming antenna designed to support large venues and high-density networks.
The WiFi BaseStation XG (UWB XG) is a high-capacity, 802.11ac Wave 2 access point with (4) 5 GHz (4x4 MU-MIMO) radios, including (3) client-dedicated ones and (1) for persistent internet threat management.
The powerful UWB XG can reach a 5.2 Gbps aggregate throughput rate and supports up to 1,500 clients. This access point is powered by PoE++ and features (1) GbE RJ45 port and (1) 10GbE ICM Ethernet port to facilitate a range of connections.
The UWB XG can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
(4) 5 GHz (4x4 MU-MIMO) radios [(3) 802.11ac Wave 2 radios for clients, (1) for network security]
5.2 Gbps aggregate throughput rate over the 5 GHz band
1,500-client limit
Beamforming antenna
Powered by PoE++ (PoE injector included)
(1) GbE RJ45 port
(1) 10GbE ICM Ethernet port
Frequently asked questions5 questions
What is the UWB-XG designed for?
How is the UWB-XG powered, and is a PoE injector included?
What network ports does it have?
How is the UWB-XG managed and mounted?
What are the radio and throughput specifications?
Specifications31 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 471.1 x 257.5 x 94.3 mm / (18.6 x 10.1 x 3.7") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 12 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 1500+ |
| Uplink | 10 GbE |

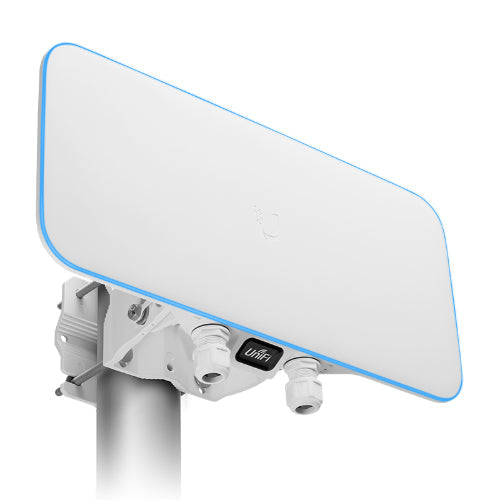

| Mounting | Wall, Pole (Mounts Included), VESA (Optional) |
| Weatherproofing | IP67 |
| Power Method | PoE++ |
| Performance | |
| MIMO · 5 GHz | Low Band: 4 x 4 (DL MU-MIMO) / Vertical Band: 4 x 4 (DL MU-MIMO) / High Band: 4 x 4 (DL MU-MIMO) |
| Max. Data Rate · 5 GHz | Low Band: 1.7 Gbps (BW80) / Vertical Band: 1.7 Gbps (BW80) / High Band: 1.7 Gbps (BW80) |
| Antenna Gain · 5 GHz | Directional internal: 15 dBi, 50° x 50° / Directional internal: 10 dBi, 90° x 90° |
| Max. TX Power · 5 GHz | 25 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS23, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 31W |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) GbE RJ45 port / (1) 1/10 GbE ICM Ethernet port |
| Weight | 3.2 kg (7.1 lb) |

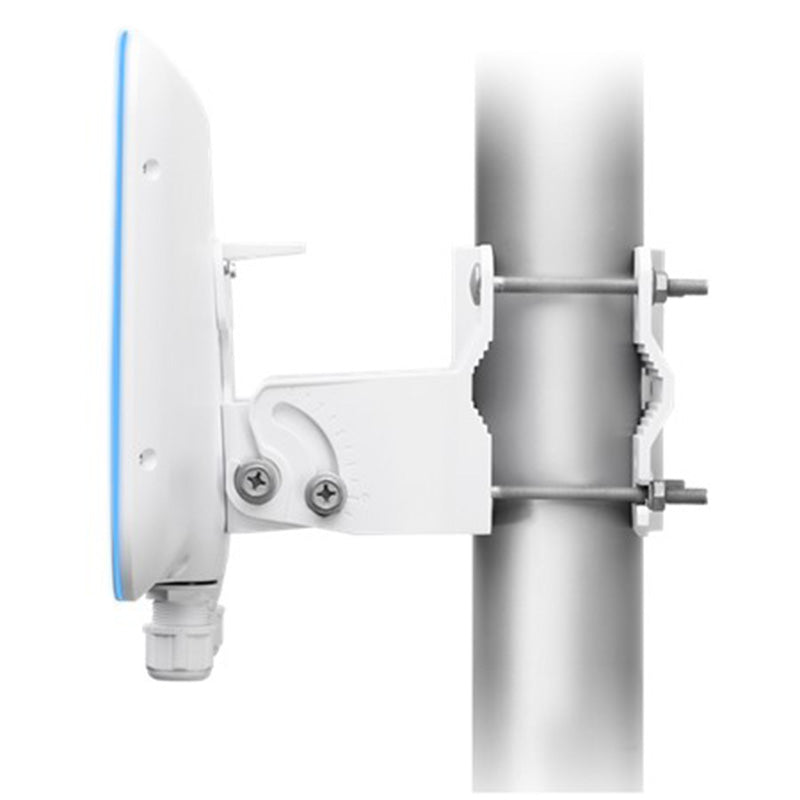

| Pole Mount Diameter | 1~3" (25~76 mm) |
| Antennas | (1) Integrated dual-mode antenna array |
| Management | Ethernet / Bluetooth |
| Enclosure Material | Polycarbonate, aluminum alloy |
| LEDs · System | R/G/B |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 (MHz) |
| Operating Frequency | US/CA: / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5670 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide: / 5150 - 5250 MHz / 5250 - 5350 MHz / 5470 - 5670 MHz |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 08960-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 6.0.45 and later |
