Manufacturer's photos. Where a power lead is pictured, an NZ one is provided.

SKU: UC-Cast-Lite

UC-Cast-Lite Ubiquiti UniFi Connect Display Cast Lite

Regular price $510.72 NZD
Not in stock locally
In stock inAustraliaUnited Kingdom
Contact us for options

We do not hold this locally right now, but it is in stock in Australia and the UK. Contact us and we will tell you what is possible.

Description

Instantly transform any TV display into a powerful managed digital signage device.



The Connect Cast Lite (UC-Cast-Lite) is a digital signage player designed for media playback on HDMI displays. It is fully managed with UniFi Connect.



Note. HDMI cable not included. Protect camera streaming not supported. Use Protect ViewPort to view Protect camera feeds on an HDMI display.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications18 specifications · 4 sections
Overview

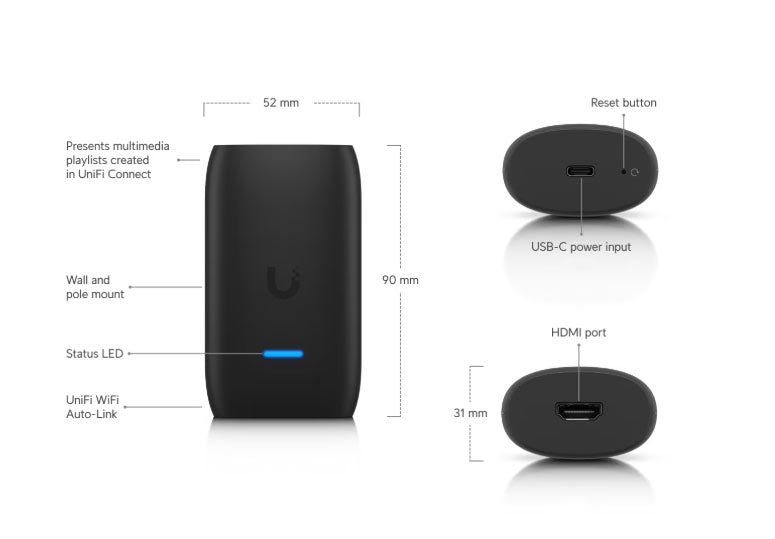

DimensionsWithout mount: 90 x 52 x 31 mm / (3.5 x 2.1 x 1.2") / With mount: 92.1 x 56.3 x 40.8 mm / (3.6 x 2.2 x 1.6")
Display Output(1) HDMI port
Video Content Support480p / 720p / 1080p
Mechanical
WeightWithout mount: 160 g (5.6 oz) / With mount: 180 g (6.3 oz)
Pole Mount Diameter1~2" (25–50 mm)
Hardware
ProcessorQuad-Core Arm® Cortex®-A55, 1.9 GHz
MemoryStorage: 16 GB / RAM: 2 GB
Power Method(1) USB Type-C 5V DC, 1A
Max. Power Consumption5W
ConnectivityWiFi 2.4G, BW 20/40 MHz / WiFi 5G, BW 20/40/80 MHz
WiFi Standards802.11 a/b/g/n/ac/ax
LEDs · SystemWhite/blue (<a href="https://help.ui.com/hc/en-us/articles/204910134-Understanding-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> )
Buttons(1) Factory reset
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity20 to 90% noncondensing
CertificationsCE, FCC, IC, Wi-Fi CERTIFIED / UL 62368-1, CSA C22.2 No. 62368-1
Software
Management Application · UniFi Connect WebVersion 3.17.0 and later
Management Application · UniFi Connect iOS™ and Android™Version 2.26.0 and later
Source: Ubiquiti technical specifications, checked 14 Nov 2026.Model UC-Cast-Lite · Ubiquiti's spec sheet
