SKU: UCG-Max-2TB

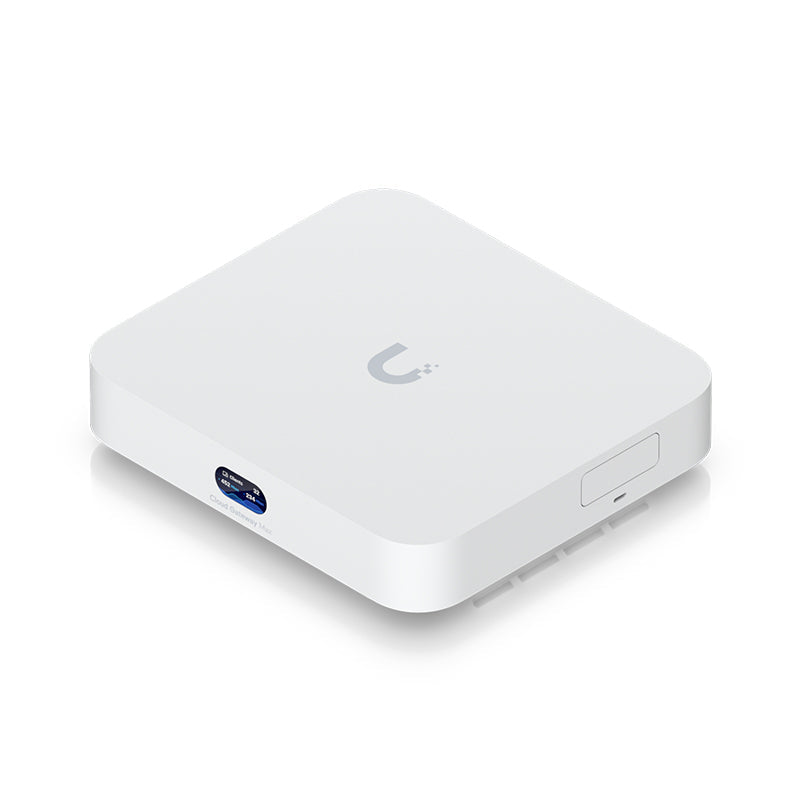

UCG-Max-2TB Ubiquiti Cloud Gateway Max (2TB Storage)

Regular price $1,270.50 NZD
Out of stock
In stock in
Auckland (none in stock)

Description

Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.

Features:

Includes full UniFi application suite for device management

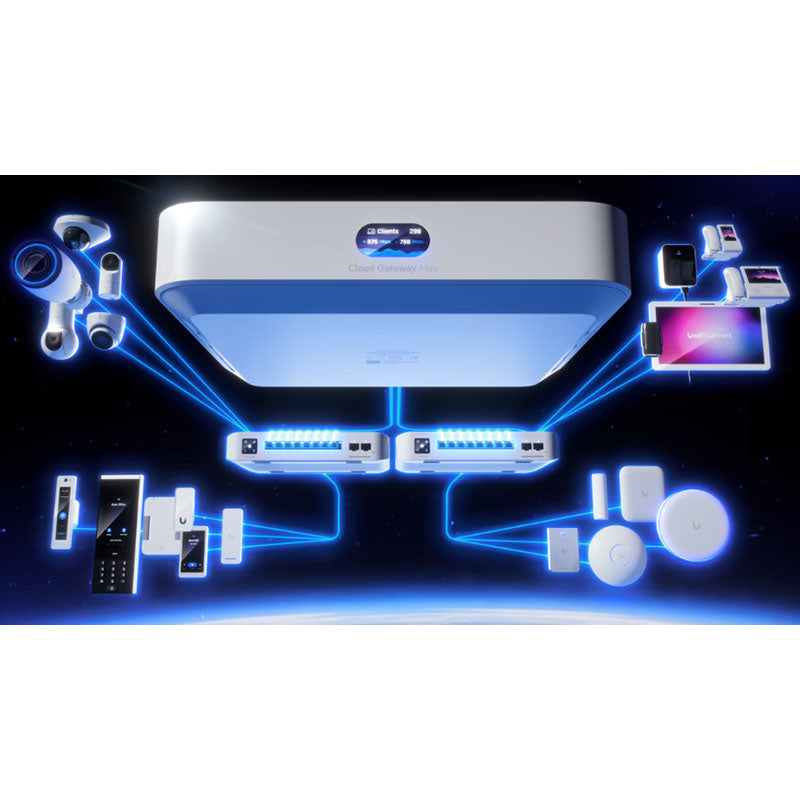

Manages 30+ UniFi devices and 300+ clients

1.5 Gbps routing with IDS/IPS

Multi-WAN load balancing

2TB NVMe SSD Installed as standard

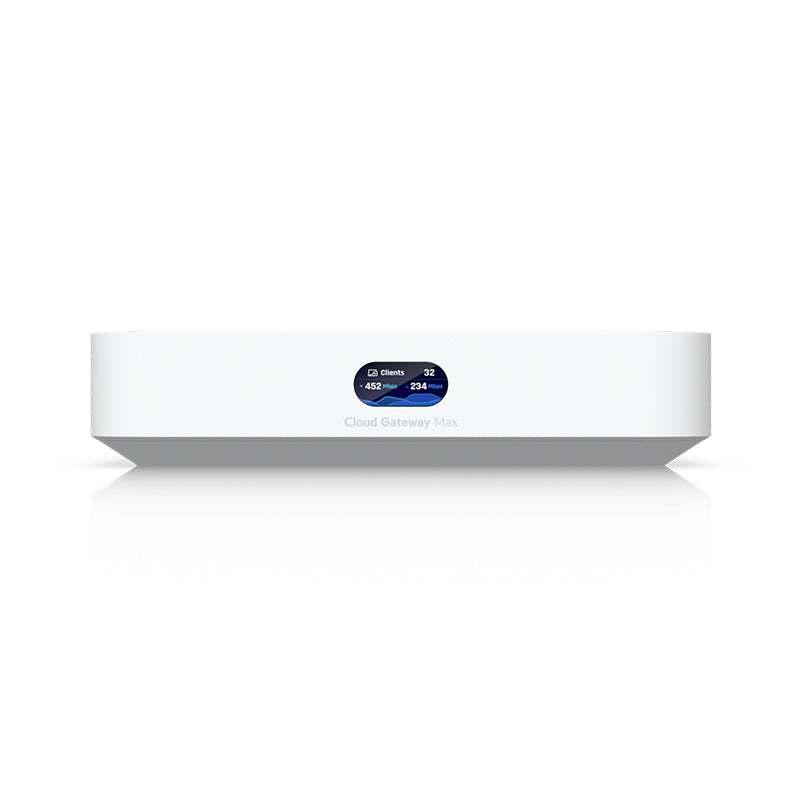

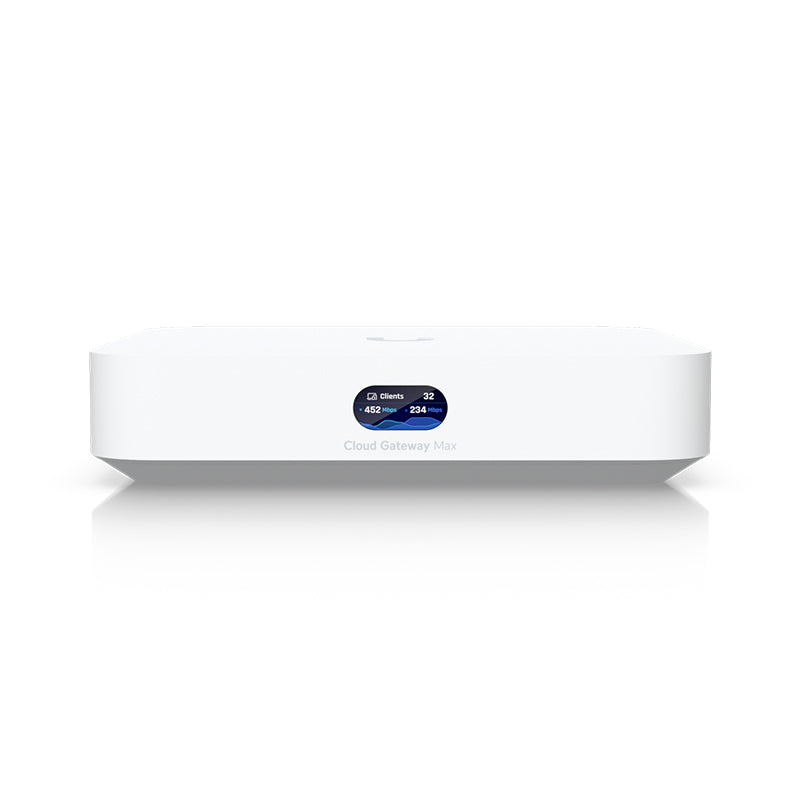

0.96" LCM status display

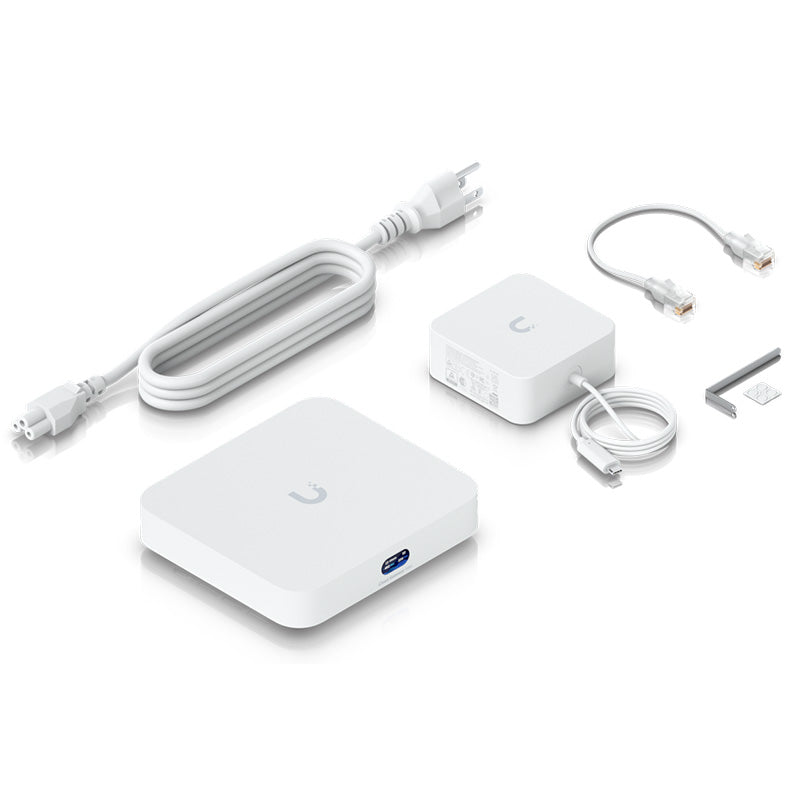

USB-C powered (adapter included)

Frequently asked questions5 questions
What is the UCG-Max-2TB used for?
It is a compact 2.5G Cloud Gateway that runs the full UniFi application suite for managing your UniFi devices. It also provides routing with IDS/IPS and multi-WAN load balancing.
How many devices and clients can it manage?
It supports 30+ UniFi devices and 300+ clients.
How fast is its routing?
It delivers 1.5 Gbps routing with IDS/IPS enabled.
How much storage does it have?
It comes with a 2TB NVMe SSD installed as standard. The gateway offers selectable NVR storage.
How is the UCG-Max-2TB powered?
It is USB-C powered, and a power adapter is included. A 0.96" LCM status display is built in.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications30 specifications · 5 sections
Overview

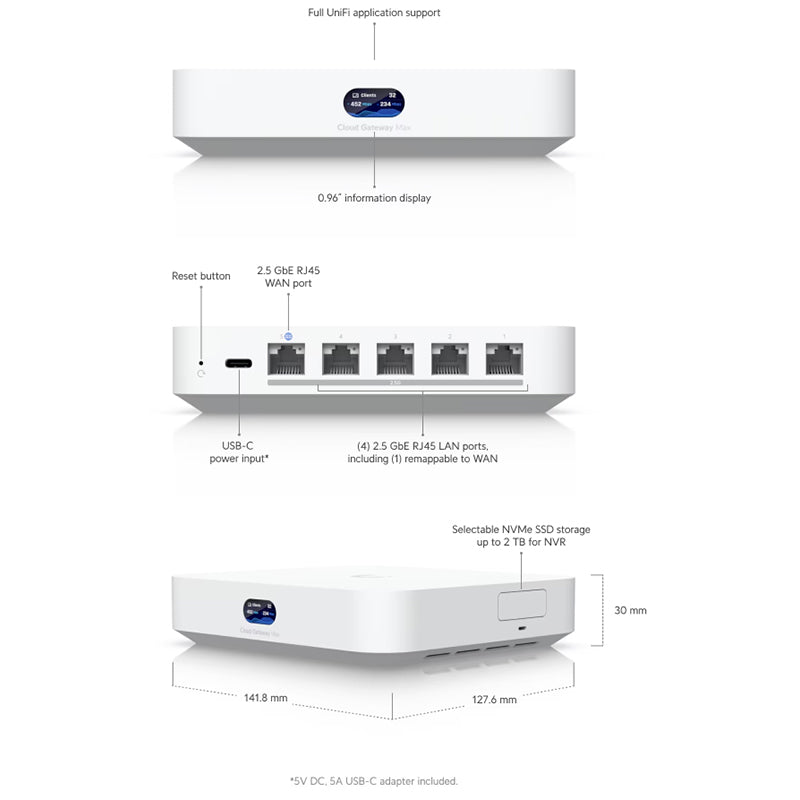

Dimensions141.8 x 127.6 x 30 mm / (5.6 x 5 x 1.2")
Managed UniFi Devices30+
Managed Cameras(15) HD / (8) 2K / (5) 4K
Managed Access Hubs50
Simultaneous Users Connected300+
Max. WAN Port Count4
Default WAN Ports(1) 2.5 GbE RJ45

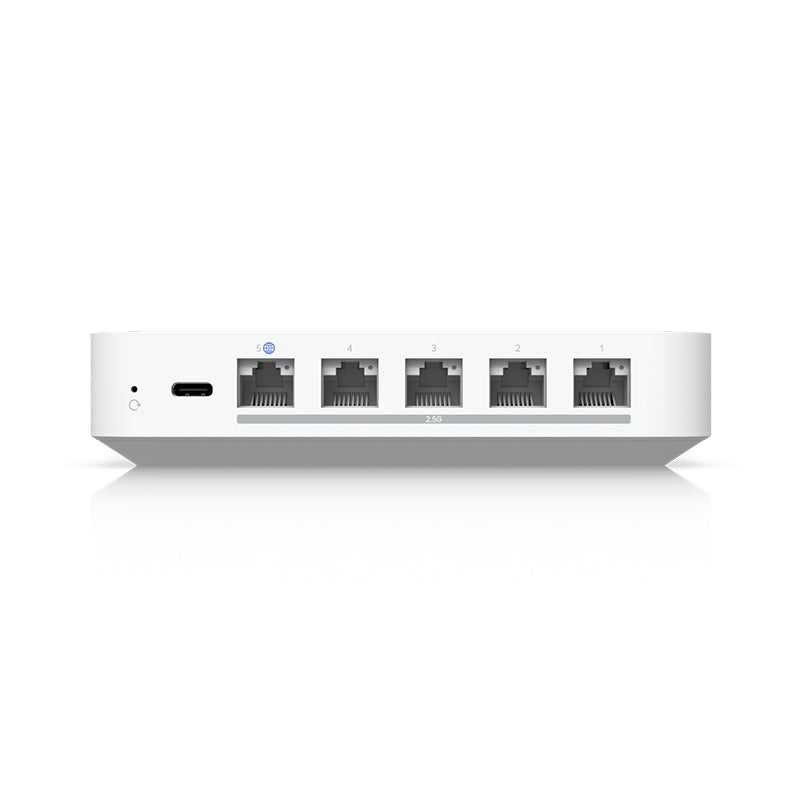

Port Layout · 2.5 GbE RJ455 / (2.5G/1G/100M/10M)
IDS/IPS Throughput2.3 Gbps
Form FactorCompact desktop
Security
IDS/IPS Signatures55,000+ / with CyberSecure
Networking
MAC Address Table Size2,000
Hardware
NVR StorageSelectable NVMe SSD up to 2 TB
Max. Power Consumption16.1W
Power MethodUSB type C (5V DC/5A)
Power SupplyUSB type C (5V DC/5A) (Adapter included)
Supported Voltage Range100–240V AC
Heat Dissipation55 BTU/hr
ProcessorQuad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory3 GB
WeightWithout SSD: 460 g (1 lb) / With SSD: 519 g (1.1 lb)
Enclosure MaterialPolycarbonate
LCM Display0.96" status display
ManagementEthernet / Bluetooth
Button(1) Factory reset
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Ambient Operating Temperature-10 to 40° C (14 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, Anatel: 09004-24-08356, SRRC
Software
Application Requirements · Mobile AppUniFi iOS™ and Android™: Version 10.17.2 and later
Source: Ubiquiti technical specifications, checked 14 Nov 2026.Model UCG-Max-2TB · Ubiquiti's spec sheet
