Manufacturer's photos. Where a power lead is pictured, an NZ one is provided.

SKU: UCG-Max-NS

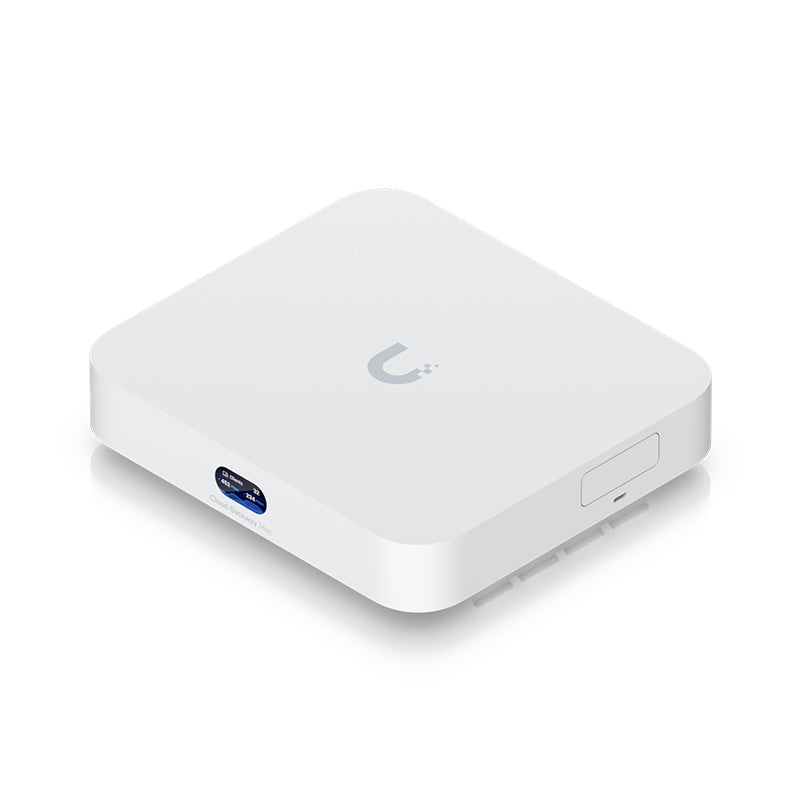

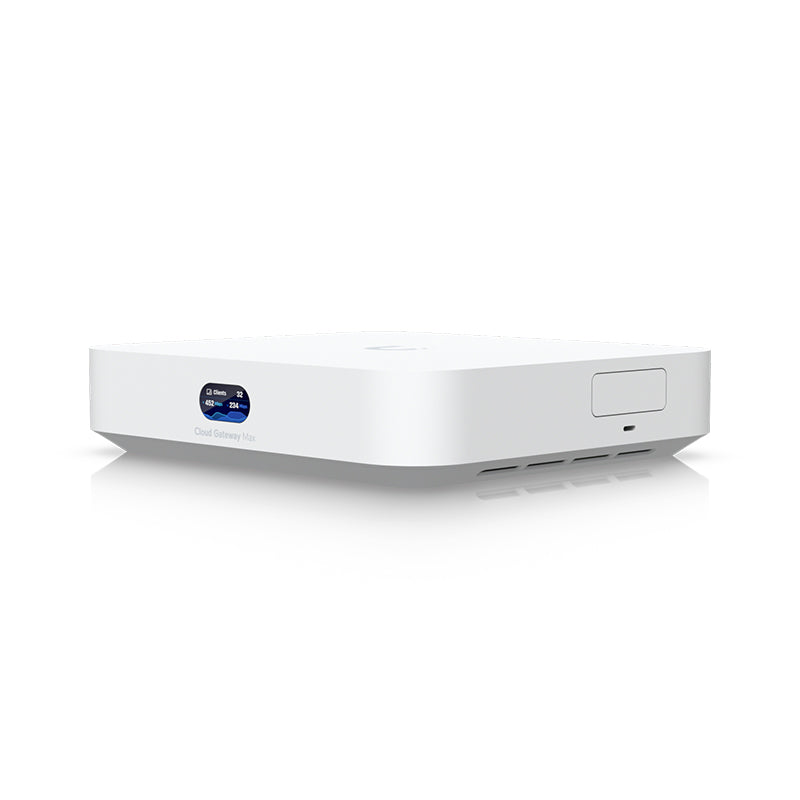

UCG-Max-NS Ubiquiti Cloud Gateway Max (No Storage)

Regular price $621.00 NZD
Not in stock locally
In stock inAustralia
Contact us for options

We do not hold this locally right now, but it is in stock in Australia. Contact us and we will tell you what is possible.

Description

Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.

Please note this model does not come with the SSD Tray, this is available as an extra.

Features:

Includes full UniFi application suite for device management

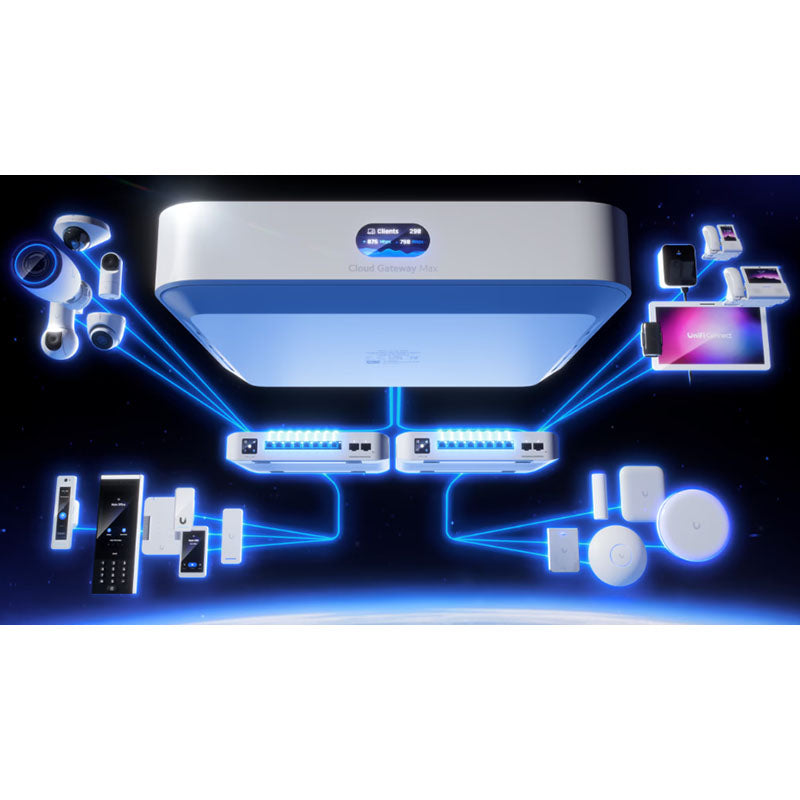

Manages 30+ UniFi devices and 300+ clients

1.5 Gbps routing with IDS/IPS

Multi-WAN load balancing

No Storage - Third-party NVMe SSD installation requires add-on M.2 SSD Tray accessory

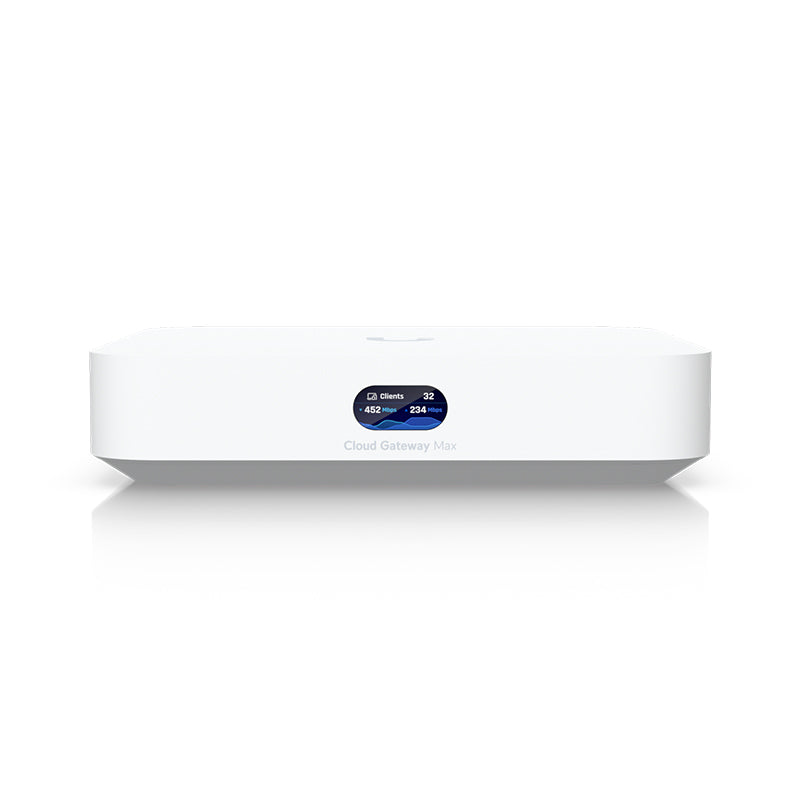

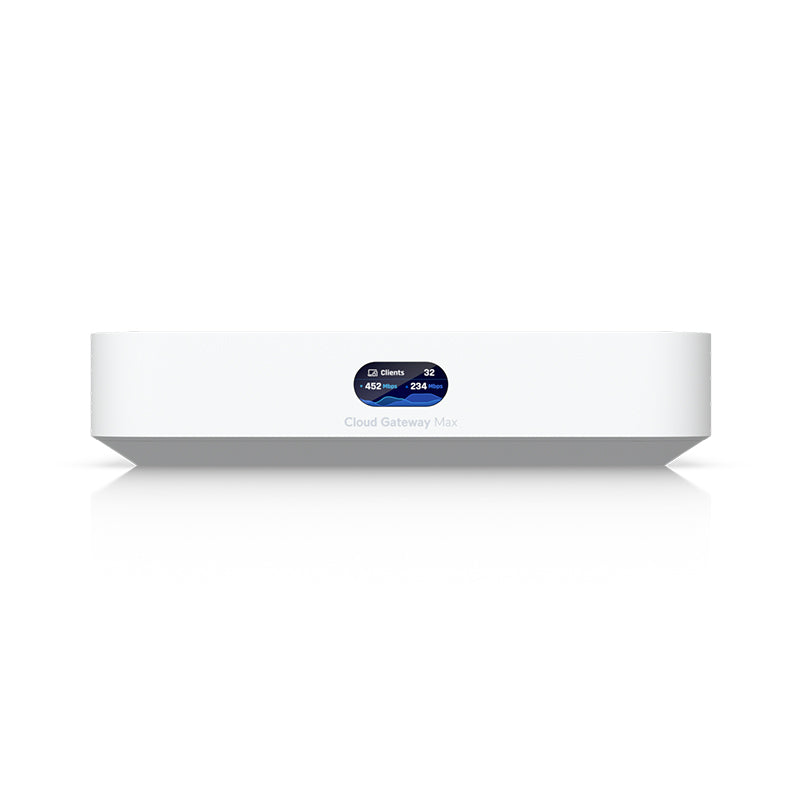

0.96" LCM status display

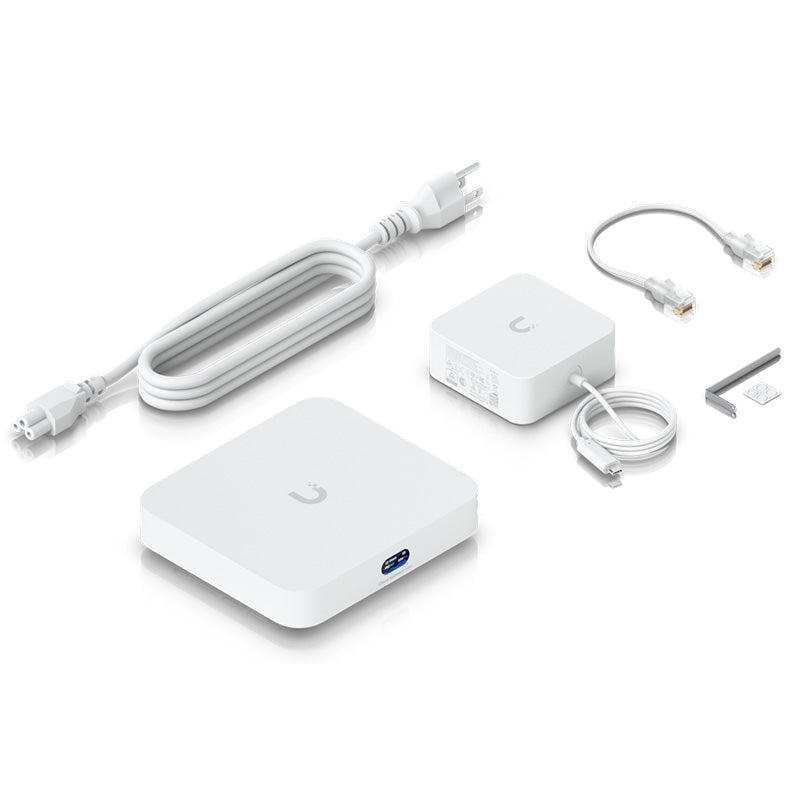

USB-C powered (adapter included)

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications30 specifications · 5 sections
Overview

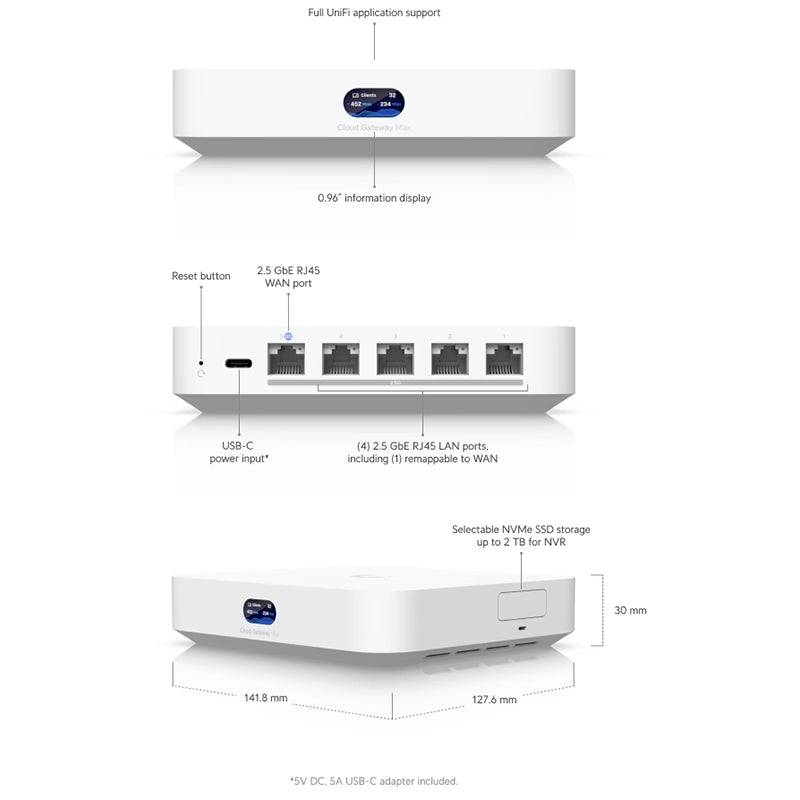

Dimensions141.8 x 127.6 x 30 mm / (5.6 x 5 x 1.2")
Managed UniFi Devices30+
Managed Cameras(15) HD / (8) 2K / (5) 4K
Managed Access Hubs50
Simultaneous Users Connected300+
Max. WAN Port Count4
Default WAN Ports(1) 2.5 GbE RJ45

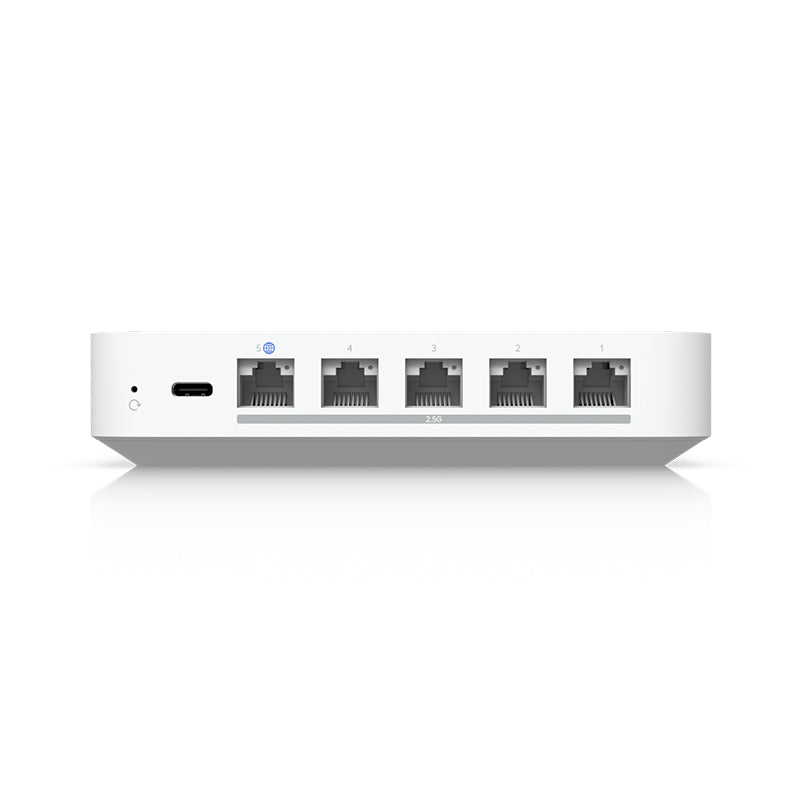

Port Layout · 2.5 GbE RJ455 / (2.5G/1G/100M/10M)
IDS/IPS Throughput2.3 Gbps
Form FactorCompact desktop
Security
IDS/IPS Signatures55,000+ / with CyberSecure
Networking
MAC Address Table Size2,000
Hardware
NVR StorageSelectable NVMe SSD up to 2 TB
Max. Power Consumption16.1W
Power MethodUSB type C (5V DC/5A)
Power SupplyUSB type C (5V DC/5A) (Adapter included)
Supported Voltage Range100–240V AC
Heat Dissipation55 BTU/hr
ProcessorQuad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory3 GB
WeightWithout SSD: 460 g (1 lb) / With SSD: 519 g (1.1 lb)
Enclosure MaterialPolycarbonate
LCM Display0.96" status display
ManagementEthernet / Bluetooth
Button(1) Factory reset
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Ambient Operating Temperature-10 to 40° C (14 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, Anatel: 09004-24-08356, SRRC
Software
Application Requirements · Mobile AppUniFi iOS™ and Android™: Version 10.17.2 and later
Source: Ubiquiti technical specifications, checked 14 Nov 2026.Model UCG-Max-NS · Ubiquiti's spec sheet
