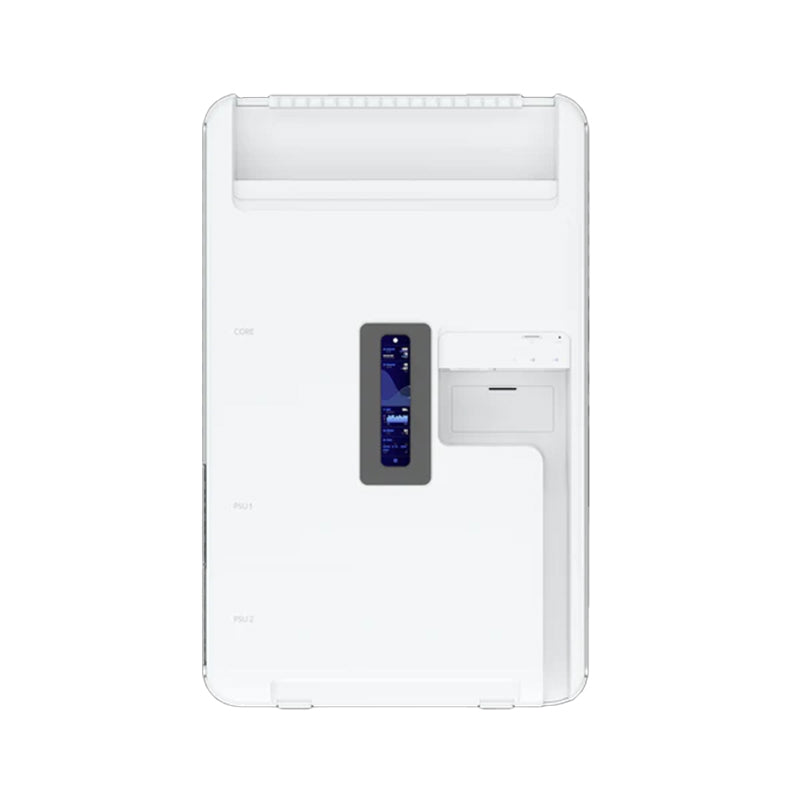

UDW Ubiquiti UniFi Dream Wall
Description
Description

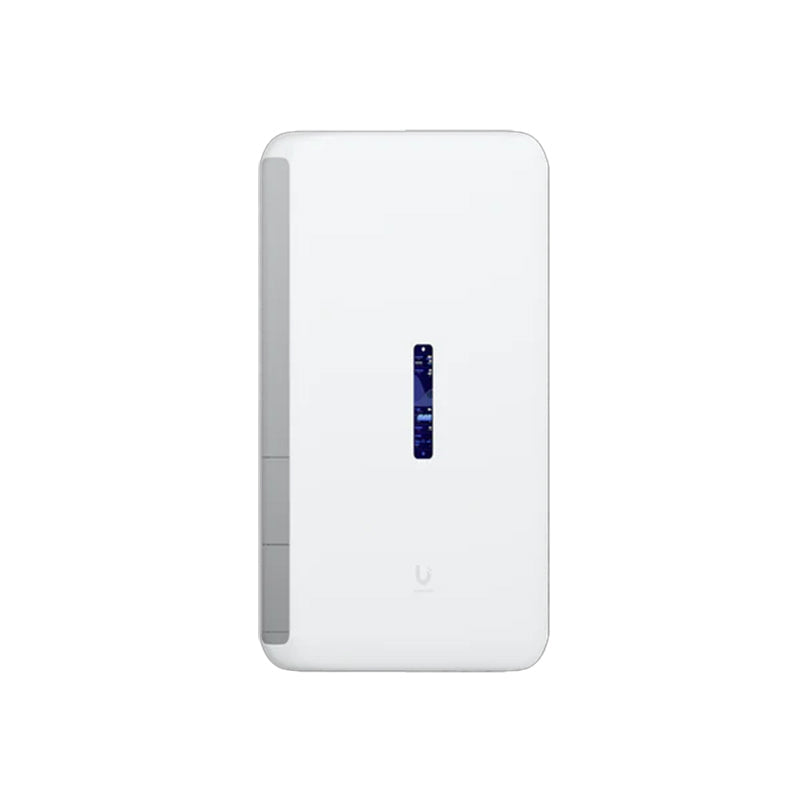

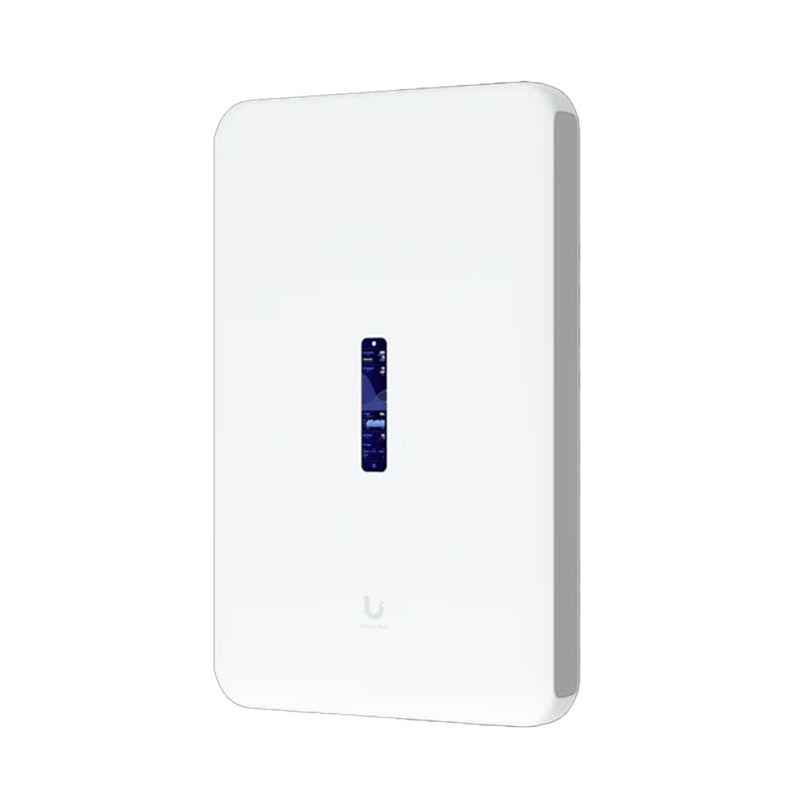

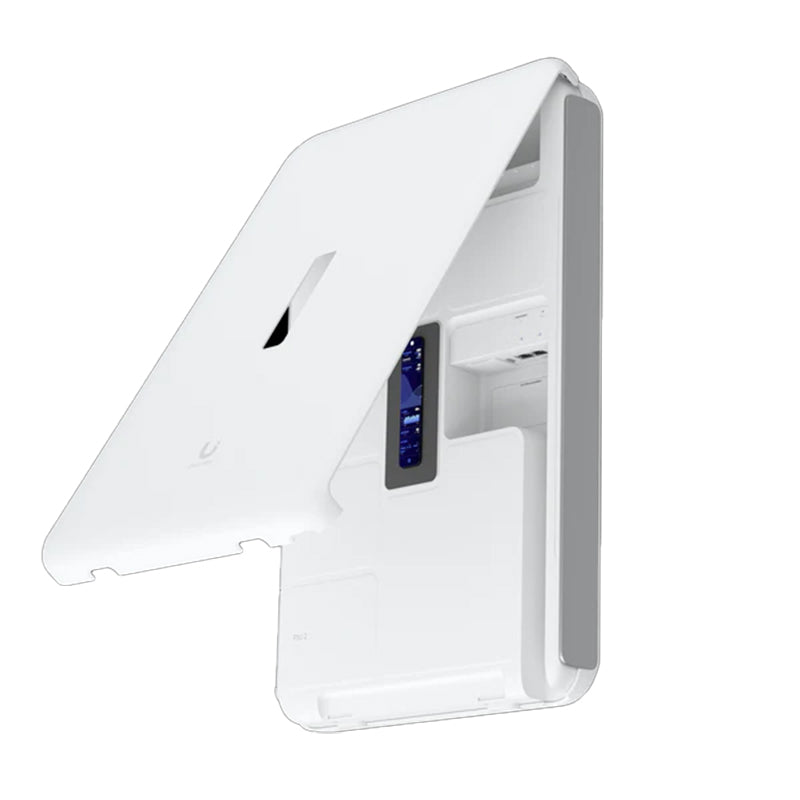

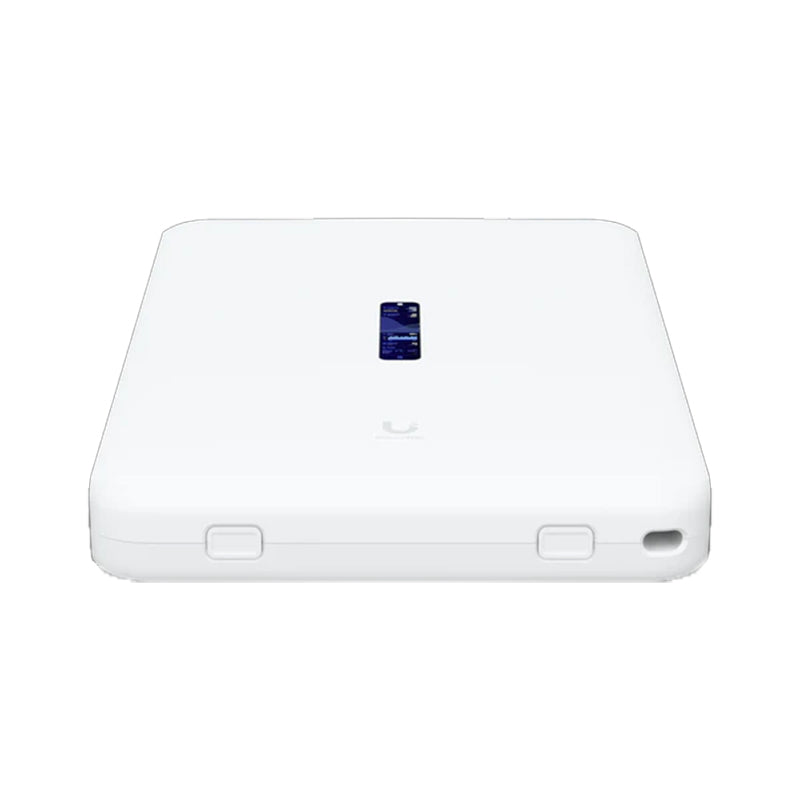

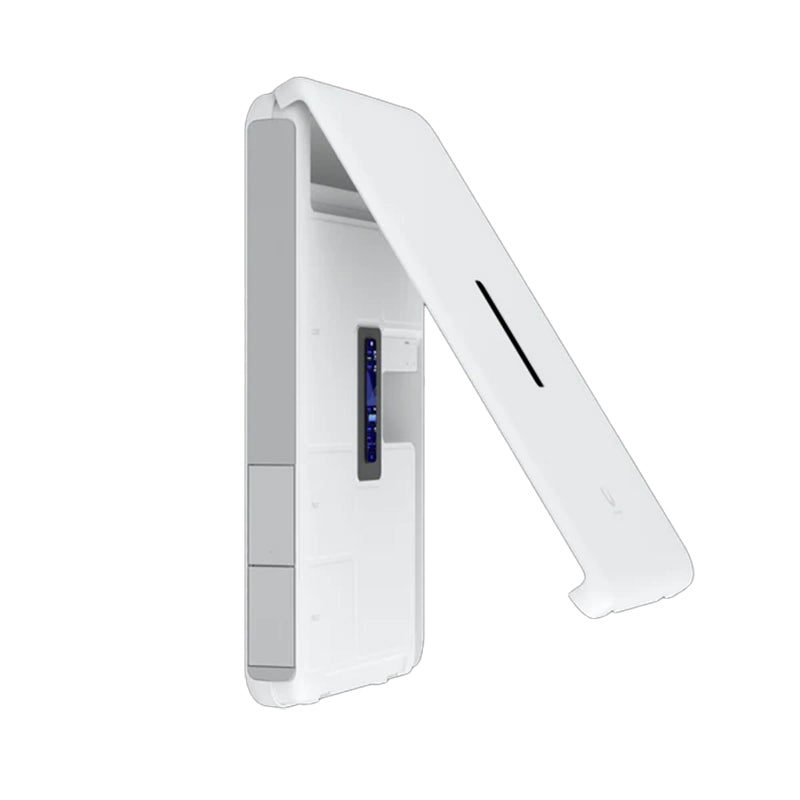

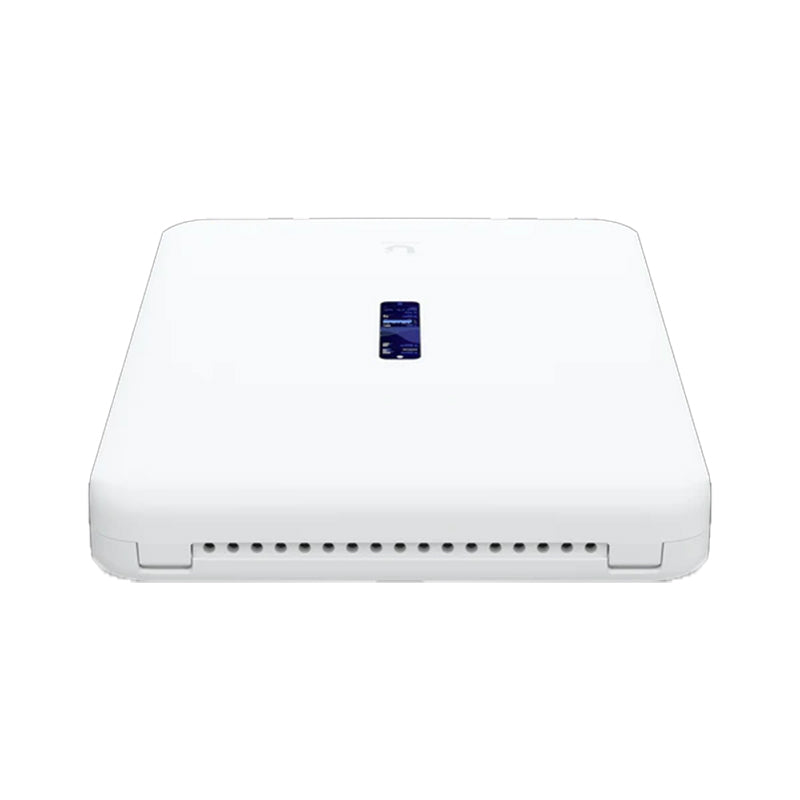

The Ubiquiti UDW UniFi Dream Wall WiFi 6 Network Appliance is a wall-mountable UniFi OS Console with a built-in security gateway, high-speed access point, network video recorder, and PoE switch.
Features:
Integrated Enterprise WiFi 6 (4x4 MIMO).
Full UniFi OS and UniFi application support.

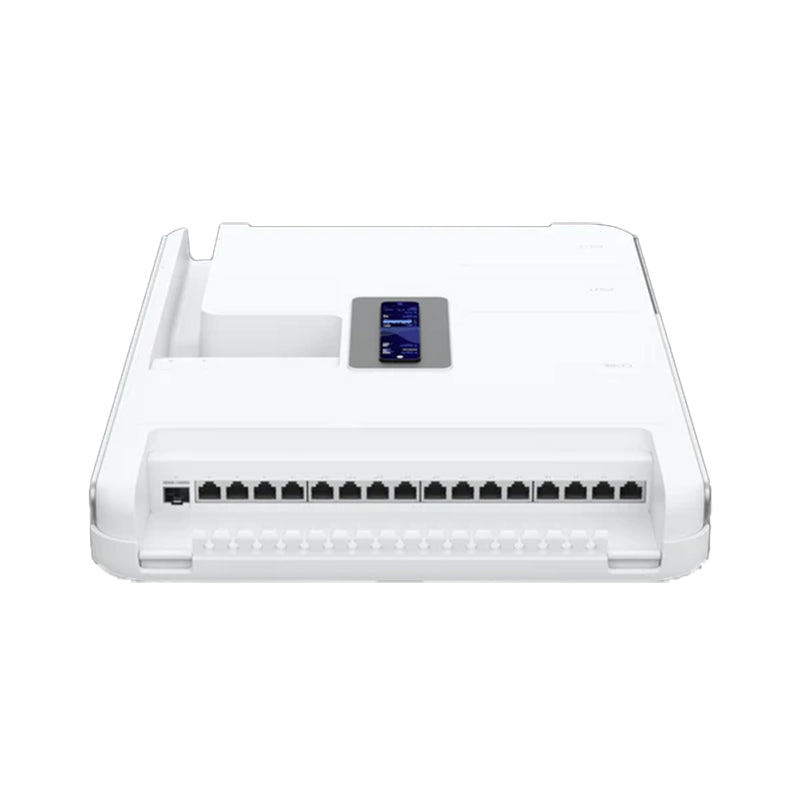

Eighteen (18) LAN Ports: Seventeen (17) 1GbE RJ45 LAN ports, including four (4) PoE++ ports, four (4) PoE+ ports, and four (4) PoE ports; and One (1) 10G SFP+ LAN port.
Two (2) WAN Ports: One (1) 10G SFP+ WAN port; and One (1) 2.5GbE RJ45 WAN port
4.7-inch touchscreen for management.
Integrated 128GB SSD & pre-installed 512GB microSD card.
Run current and future UniFi OS applications from a single, intuitive interface.
Remotely access your network from anywhere with the UniFi OS Portal.
Tailor user, role, and group-level network use with a robust slate of management features.
*Please note: Ubiquiti have updated the specifications since the video review was done*
Specifications58 specifications · 6 sections
| Overview | |
|---|---|
| Dimensions | 549 x 342 x 62 mm / (21.6 x 13.5 x 2.4") |
| Managed UniFi Devices | 100+ |
| Managed Cameras | (12) HD / (7) 2K / (4) 4K |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 8 |
| Default WAN Ports | (1) 2.5 GbE RJ45 / (1) 10G SFP+ |
| Port Layout · 1 GbE RJ45 | 17 (4 PoE++; 4 PoE+; 4 PoE / (1G/100M/10M) |
| Port Layout · 2.5 GbE RJ45 | 1 / (2.5G/1G/100M) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| IDS/IPS Throughput | 3.5 Gbps |

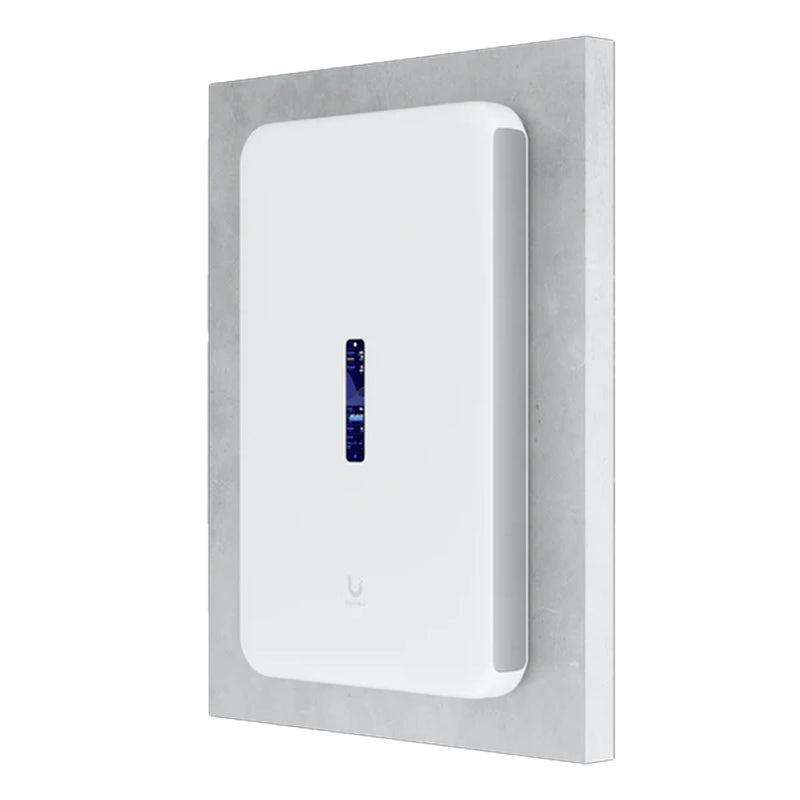

| Form Factor | Wall-mounted |
| Redundancy | (2) Hot-Swappable PSUs |
| Coverage Area | 140 m² (1,500 ft²) |
| Security | |
| IDS/IPS Signatures | 55,000+ / with CyberSecure |
| Networking | |
| MAC Address Table Size | 8,000 |
| Integrated WiFi | |
| WiFi Standard | 802.11a/b/g/n/ac/ax (WiFi 6) |
| Throughput · 5 GHz | 2.4 Gbps |
| Throughput · 2.4 GHz | 300 Mbps |
| MIMO · 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain · 5 GHz | 6 dBi |
| Antenna Gain · 2.4 GHz | 5.9 dBi |
| Max. TX Power · 5 GHz | 26 dBm |
| Max. TX Power · 2.4 GHz | 23 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Supported Data Rates · 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Supported Data Rates · 802.11b | 1, 2, 5.5, 11 Mbps |
| Supported Data Rates · 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Hardware | |
| NVR Storage | Pre-installed 512 GB microSD for NVR / Built-in 128 GB SSD for detection recordings |
| Expansion Slot | MicroSD Card |
| PoE Budget | 420W |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Max. PoE Wattage per Port by PSE · PoE++ | 60W |
| Voltage Range PoE Mode | PoE: 44-57V / PoE+/PoE++: 50-57V |
| Max. Power Consumption | 112W (Excluding PoE output) |
| Power Method | Universal AC input 100–240V AC, 7A Max., 50/60Hz |
| Power Supply | (2) Hot-Swappable AC/DC 550W PSU / (1) Pre-installed PSU |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 382 BTU/hr (Excluding PoE Output) |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System Memory | 4 GB |
| On-board Storage | 16 GB eMMC / Integrated 128 GB SSD / Pre-installed 512 GB microSD card |
| Weight | 8.6 kg (19 lb) |
| Enclosure Material | Polycarbonate, galvanized steel, aluminum alloy |
| Mount Material | Stainless steel |
| LCM Display | 4.7" touchscreen |
| Management | Ethernet / Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 18314-23-08356 |
| Software | |
| VLAN | 802.1Q |
