UP-AlarmHub-Kit Ubiquiti Alarm Hub Kit
Description
Description

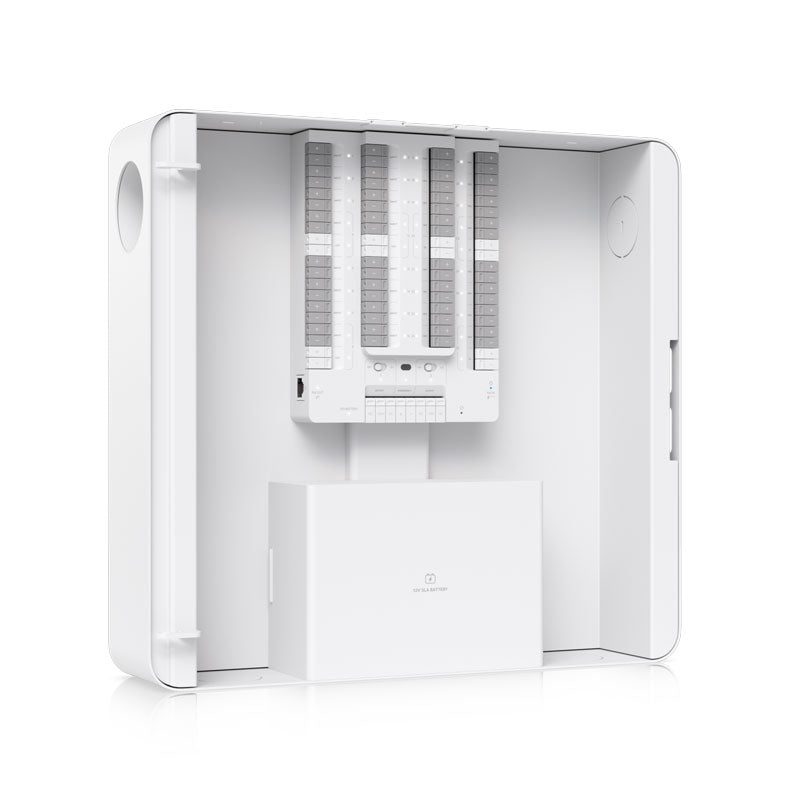

The Alarm Hub Kit is a 32‑zone alarm control hub designed for hard‑wired intrusion sensors, offering reliable protection for advanced security installations.
Powered via PoE++ with optional battery backup, it delivers stable operation and seamless integration within the UniFi Protect ecosystem. Ideal for larger or more complex deployments, it provides a centralised, high‑capacity solution for managing multiple wired security inputs with ease.
Frequently asked questions5 questions
What is the Ubiquiti Alarm Hub Kit used for?
How is the Alarm Hub powered, and can it run on battery backup?
How many sensors and outputs does the Alarm Hub support?
What software does the Alarm Hub need?
Can the Alarm Hub be installed outdoors?
How many alarm sensors can be connected to the Alarm Hub?
You can connect up to 32 supervised EOLR inputs to the Alarm Hub, including door contacts, motion sensors, smoke detectors, and other alarm devices.
Can the Alarm Hub be removed from the Alarm Hub Kit enclosure?
No. The Alarm Hub cannot be removed from the enclosure.
Does the Alarm Hub support tamper detection?

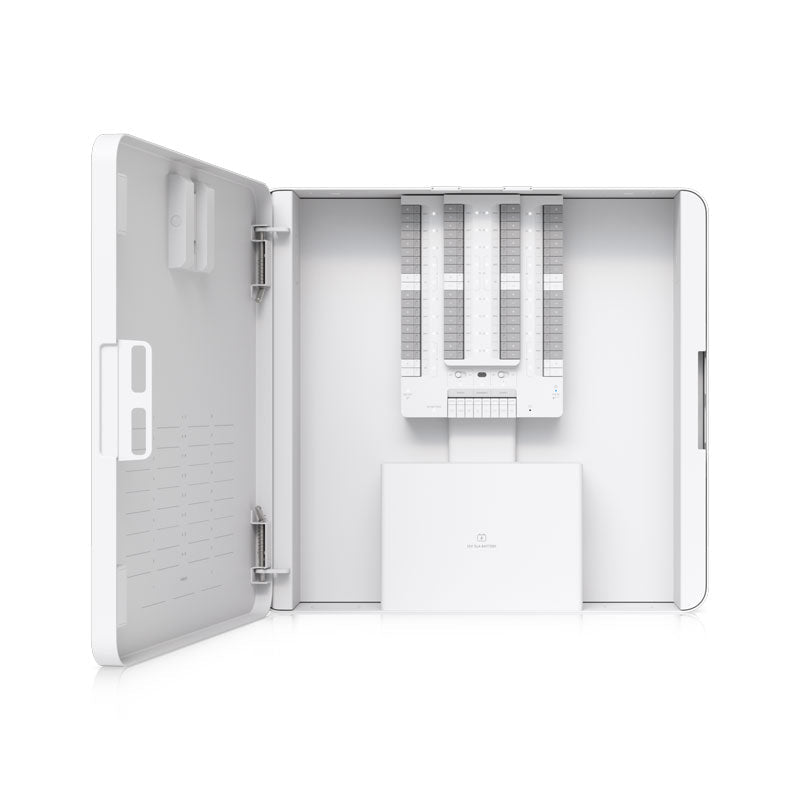

Yes. The Alarm Hub includes a built-in Time-of-Flight (ToF) sensor that detects when the enclosure door is opened. This provides real-time tamper alerts and adds an extra layer of protection to your system.
Can the Alarm Hub connect to wireless sensors?

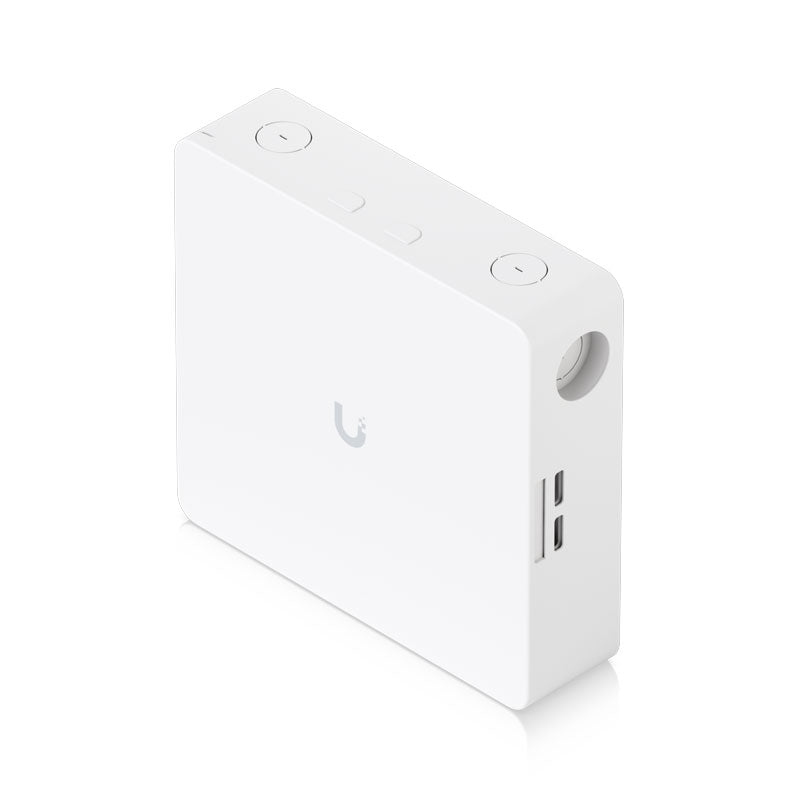

Yes. Although the Alarm Hub is designed for wired sensors, it has a PoE+ output designed to power a SuperLink Gateway which connects to wireless alarm devices. The SuperLink Gateway can also be conveniently mounted on the Alarm Hub Kit enclosure door.
How is the Alarm Hub powered?
The Alarm Hub is powered via PoE++ or PoE+++ (802.3bt). When powered via PoE++, the max combined power output for auxiliary devices is reduced.
How does the SLA backup battery interface work?
When PoE+++ input is available, it powers the Alarm Hub and charges the SLA battery. If PoE+++ input is lost, the SLA battery automatically takes over to keep the Alarm Hub running.
How long can the Alarm Hub last on battery power?
A 12 V 9 Ah SLA battery can provide up to 6 hours in standby mode and up to 4 hours in active mode during power outages. The exact runtime using battery power will depend on the number of sensors and devices powered by Alarm Hub.
Does the Alarm Hub support EOL resistors?
Yes. The Alarm Hub supports EOL (End of Line) resistors to supervise the wiring between the Alarm Hub and sensors. Without an EOL resistor, the system can only detect if a circuit is open or closed. With an EOL resistor, the Alarm Hub can detect if a wire has been cut or short-circuited by an intruder.
The Alarm Hub supports multiple resistor values (1 kΩ, 2.2 kΩ, 3.3 kΩ, 3.9 kΩ, 4.7 kΩ, 5.6 kΩ), and 1kΩ resistors are included in the Alarm Hub package.
Can I use DEOL on the Alarm Hub to detect both wire cuts and short circuits?
Yes. Use the Protect Application to easily toggle between SEOL and DEOL modes for any of the 32 zones.
- SEOL (Single): Monitors for wire cuts.
- DEOL (Double): Provides maximum security. It uses two resistors to distinguish between a "Real Alarm" and a "Wiring Tamper" (short circuit) on the same zone.
Specifications23 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 379 x 355 x 105 mm (15 x 14 x 4.1") |
| Input Terminals | (32) Alarm sensor / (1) Emergency |
| Power Method | PoE++/PoE+++ / 12V SLA battery |
| Power Output Availability | PoE+++ input: 68W / PoE++ input: 42W |
| Mechanical | |
| Weight | Device: 8.3 kg (18.3 lb) / Mount: 624 g (1.4 lb) |
| Enclosure Material | SGCC steel housing with polycarbonate cover |
| Mount Material | SGCC steel |
| Mounting | Wall |
| Hardware | |
| Digital Input | (32) Inputs for alarm sensor (Compatible with EOL resistors: 1–5.6kΩ, 1kΩ included) / (1) Emergency |
| Output Relay | (2) Wet/Dry / Wet: 12V DC, 1A / Dry: 30V DC, 1A |
| Aux Power Output | For sensor: (3) 12V DC, 1A right side total, / (3) 12V DC, 1A left side total |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| PoE Interface | (1) PoE++/PoE+++ input, 54V DC, 60W/90W / (1) PoE+ output, 54V DC, 30W |
| Max. Power Consumption | 90W |
| Battery Charge | SLA backup battery, 12V, 0.3A |
| LEDs | W/B / <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Buttons | (1) Factory reset / (2) Dry/Wet switch |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements · UniFi Protect | Version 7.0.88 and later |
| Application Requirements · Mobile App | UniFi Protect iOS™ version 3.3.0 and later / UniFi Protect Android™ version 3.2.0 and later |
