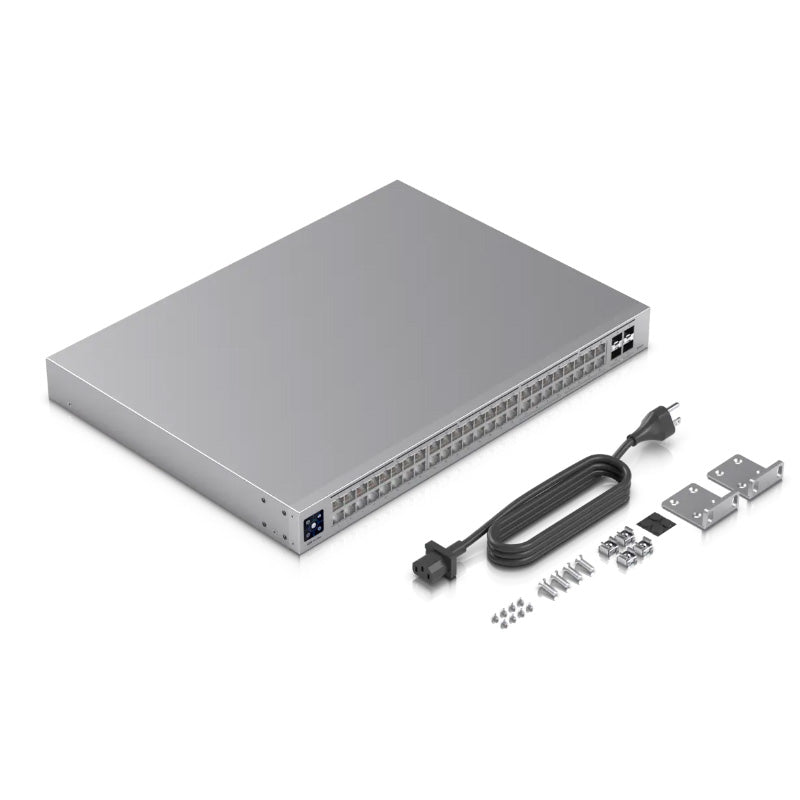

Manufacturer's photos. Where a power lead is pictured, an NZ one is provided.

SKU: USW-Pro-Max-48

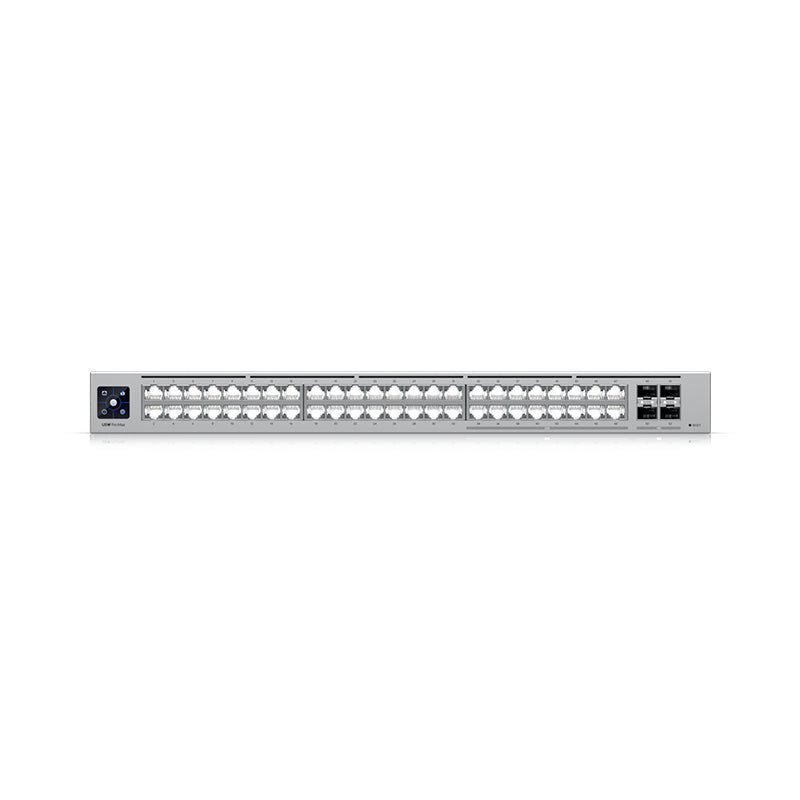

USW-Pro-Max-48 Ubiquiti UniFi Switch Pro Max 48 Port Non PoE

Regular price $1,700.03 NZD
Not in stock locally
In stock inAustraliaUnited Kingdom
Contact us for options

We do not hold this locally right now, but it is in stock in Australia and the UK. Contact us and we will tell you what is possible.

Description

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.



Features:

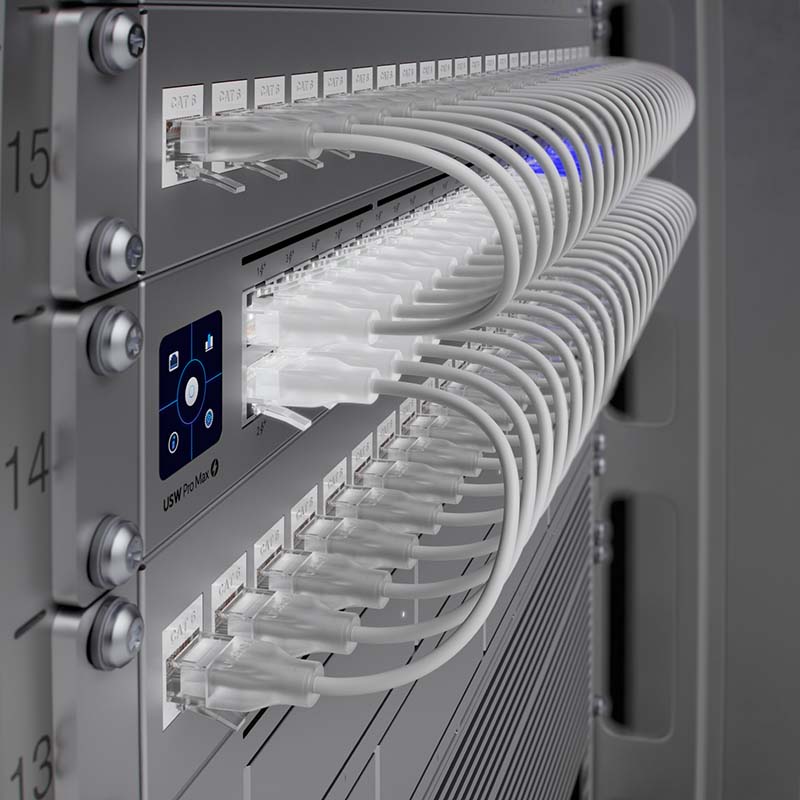

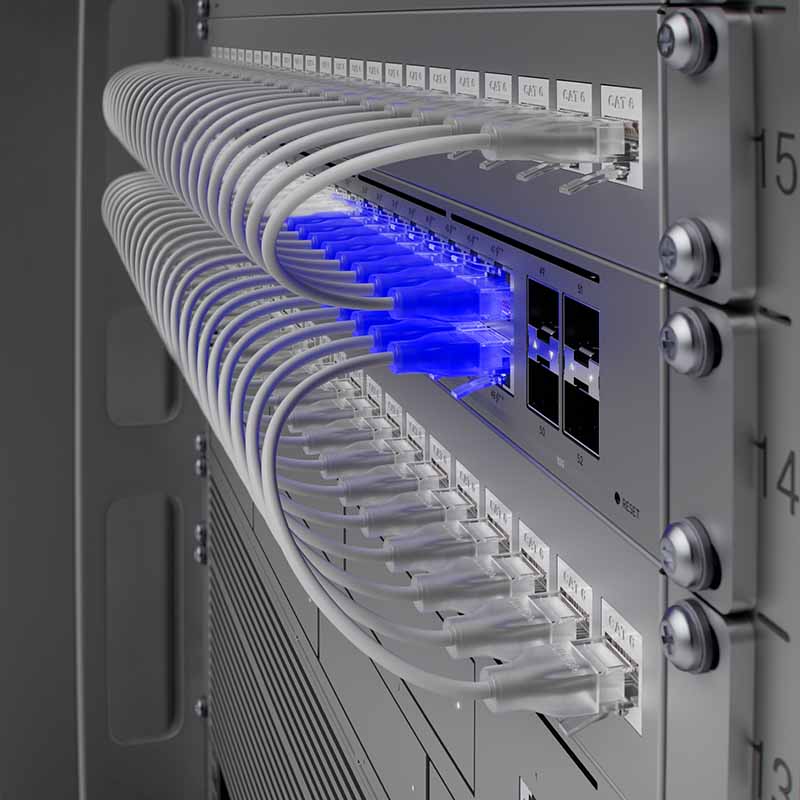

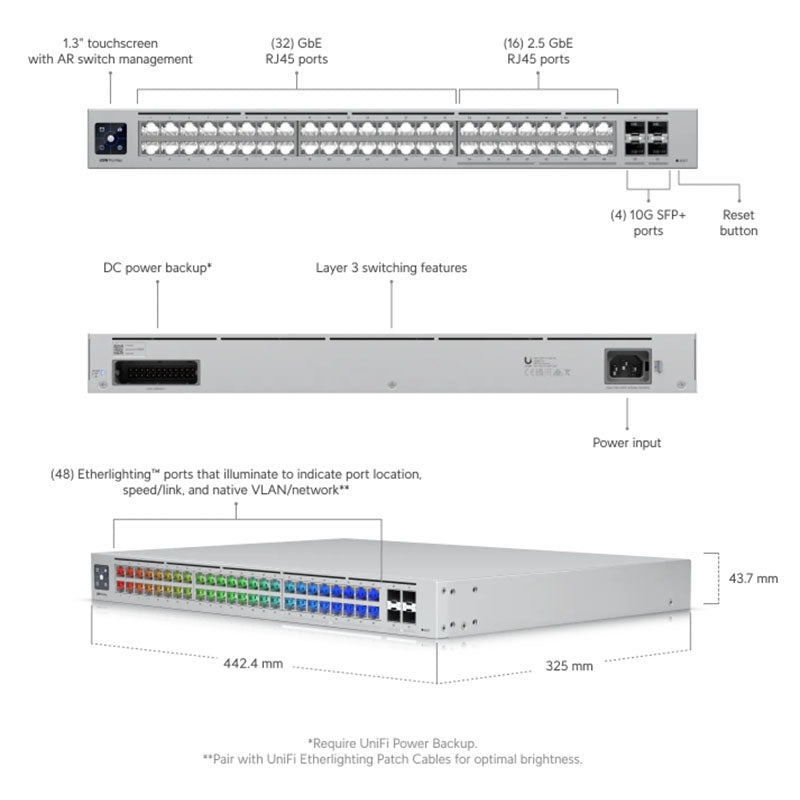

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

(16) 2.5 GbE RJ45 ports

(32) GbE RJ45 ports

(4) 10G SFP+ ports

DC power backup ready

Managed with UniFi Network 8.0.24 and later

*Pair with UniFi Etherlighting Patch Cables for optimal brightness.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications32 specifications · 4 sections
Overview
Dimensions442 x 325 x 44 mm / (17.4 x 12.8 x 1.7")
Port Layout · 1 GbE RJ4532 / (1G/100M/10M)
Port Layout · 2.5 GbE RJ4516 / (2.5G/1G/100M/10M)
Port Layout · 10G SFP+4 / (10G/1G)
RedundancyDC Power Backup
Form FactorRack mount (1U)
Performance
Switching Capacity224 Gbps
Total Non-Blocking Throughput112 Gbps
Forwarding Rate167 Mpps
Supported VLANs1,000
MAC Address Table Size32,000
IPv4 Static Routes256
Packet Buffer Size2 MB
Access Lists · IPv4128
Access Lists · MAC128
Hardware
Max. Power Consumption100W
Power Method(1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input
Power Input MethodAC input
Power SupplyAC/DC, internal, 100W
Supported Voltage Range100–240V AC
ManagementEthernet / AR
Heat Dissipation341.2 BTU/hr
WeightWithout mounting brackets: 4.8 kg (10.6 lb) / With mounting brackets: 4.9 kg (10.8 lb)
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth400~1200 mm / (15.7-47.2")
LCM Display1.3" touchscreen
ESD ProtectionAir: ± 16kV, contact: ± 12kV
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10 to 90% noncondensing
CertificationsCE, FCC, IC, Anatel: 06373-24-08356
Software
Application Requirements · UniFi NetworkVersion 8.0.24 and later
Source: Ubiquiti technical specifications, checked 14 Nov 2026.Model USW-Pro-Max-48 · Ubiquiti's spec sheet
