SKU: USW-Ultra

USW-Ultra Ubiquiti Unifi Ultra 8 Port PoE Switch (No Power Pack)

Regular price $350.70 NZD
20+ in stockShips from the warehouse closest to you
In stock in
Auckland

Description

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.

Please note no power supply is included with this model.  It is designed to be powered by a PoE++ Switch

Features:

USW-Ultra(42W)

(7) GbE PoE+ output ports

(1) GbE PoE++ input port*

— 42W PoE availability with PoE++ input
— 16W PoE availability with PoE+ input


‎
*PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.




Click HERE to access the Datasheet

Click HERE to access the Datasheet - 60W

Click HERE to access the Datasheet - 210W

Click HERE to access the Installation Guide

Click HERE to access the Installation Guide - 60W

Click HERE to access the Installation Guide - 210W

Specifications26 specifications · 4 sections
Overview

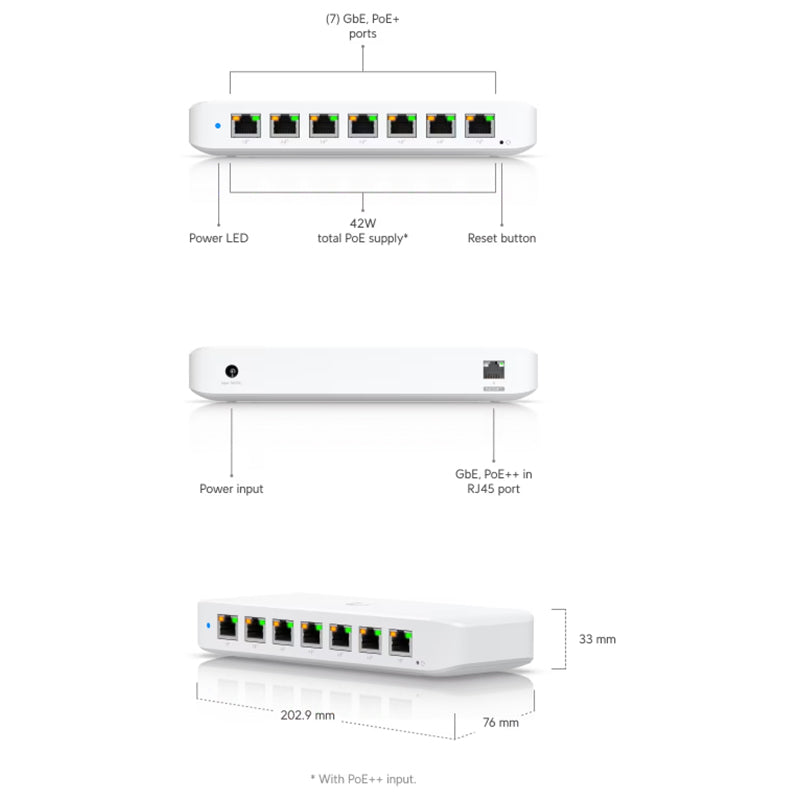

Dimensions203 x 76 x 33 mm / (8 x 3 x 1.3")
Port Layout · 1 GbE RJ458 (7 PoE+; 1 PoE++ input) / (1G/100M/10M)
Max. PoE OutputUp to PoE+
Total PoE AvailabilityPoE++ input: 42W / PoE+ input: 16W / 60W PoE adapter input: 42W / 60W AC adapter input: 52W / 210W AC adapter input: 202W

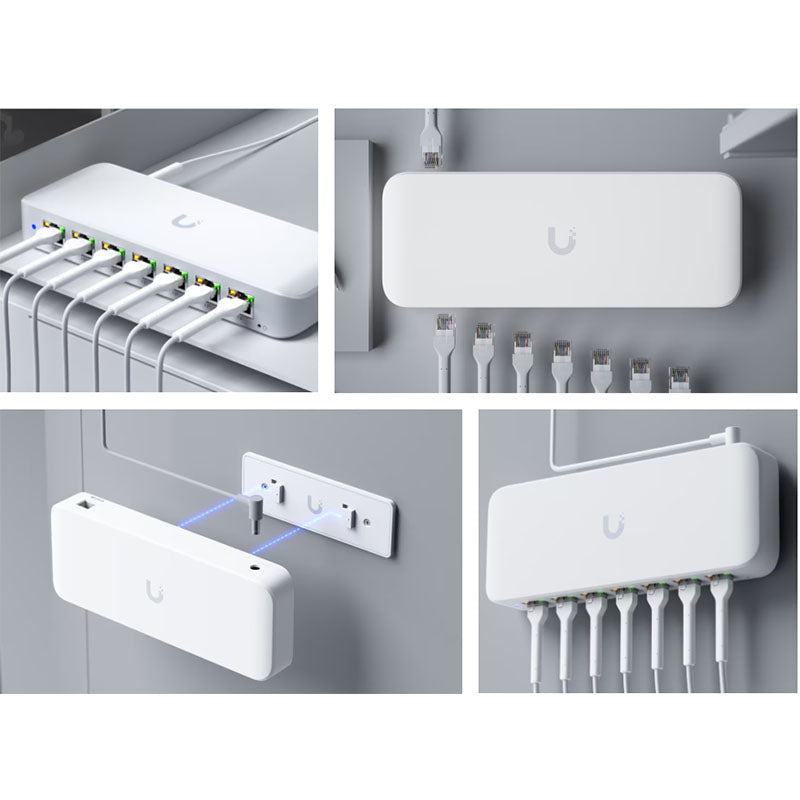

Form FactorCompact desktop, wall, magnetic
Performance
Switching Capacity16 Gbps
Total Non-Blocking Throughput8 Gbps
Forwarding Rate12 Mpps
Supported VLANs256
MAC Address Table Size4,000
Hardware
PoE Ports · PoE+7
PoE Ports · PoE++1
Max. PoE Wattage per Port by PSE · PoE+30W
Max. Power Consumption9W (Excluding PoE Output) with PoE input / 8W (Excluding PoE Output) with adapter input / 210W (Including PoE Output) with 210W AC adapter input
Power Method(1) AC/DC adapter (Excluded) / (1) PoE++
Power Input MethodDC Input / PoE
Supported Voltage Range50–57V DC/PoE
ManagementEthernet
Heat Dissipation31 BTU/hr (Excluding PoE Output)
WeightDevice: 320 g (11.3 oz) / Wall mount: 45 g (1.6 oz)
Enclosure MaterialPolycarbonate
Mount MaterialPolycarbonate
Ambient Operating TemperaturePoE++ input: -30 to 60° C (-22 to 140° F) / 60W AC adapter input: -20 to 45° C (-4 to 113° F) / 210W AC adapter input: -20 to 60° C (-4 to 140° F)
Ambient Operating Humidity10 to 90% noncondensing
CertificationsCE, FCC, IC, Anatel: 06367-24-08356
Software
Application Requirements · UniFi NetworkVersion 8.0.28 and later
Source: Ubiquiti technical specifications, checked 14 Nov 2026.Model USW-Ultra · Ubiquiti's spec sheet
