UVC-AI-Theta-Hub Ubiquiti UniFi AI Theta Hub
Description
Description

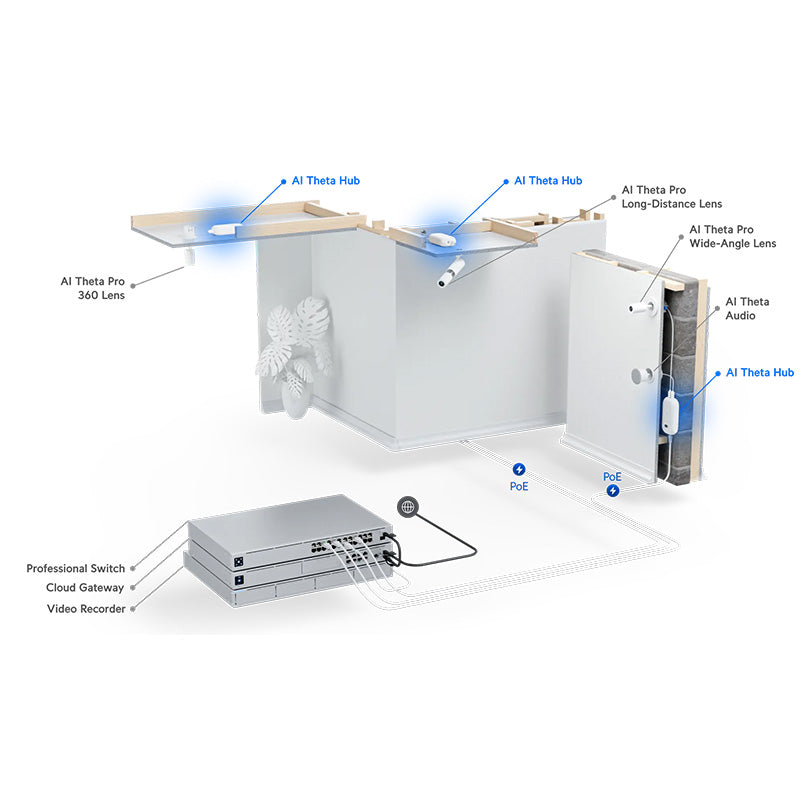

Remote processing hub for any AI Theta deployment, compatible with any AI Theta Lens and AI Theta Audio.
Features:
(1) video and (1) audio port for connecting a lens and audio module
Supports AI Theta Standard and Professional Lenses, with (1) included cable for connecting a lens
Advanced AI: Detect people, read license plates, and more*
0.96" colour display for device status and configuration
Connect and power using PoE
Supports optional AI Theta Audio module for two-way audio
*License plate recognition supported with Long-Distance and Wide-Angle lenses.
Click HERE to access the Installation Guide
Specifications17 specifications · 3 sections
| Overview | |
|---|---|

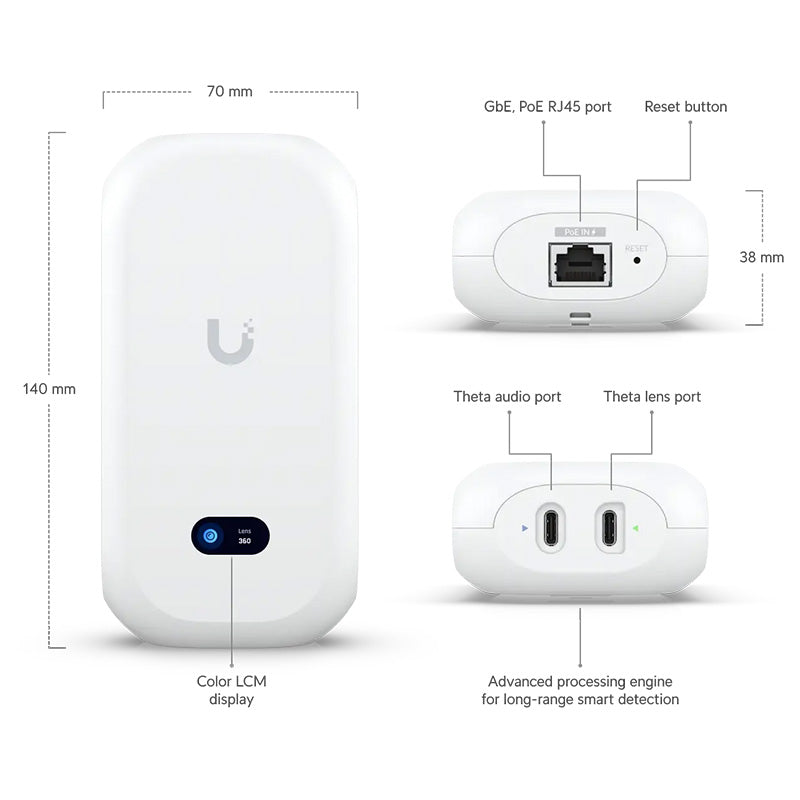

| Dimensions | 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”) |

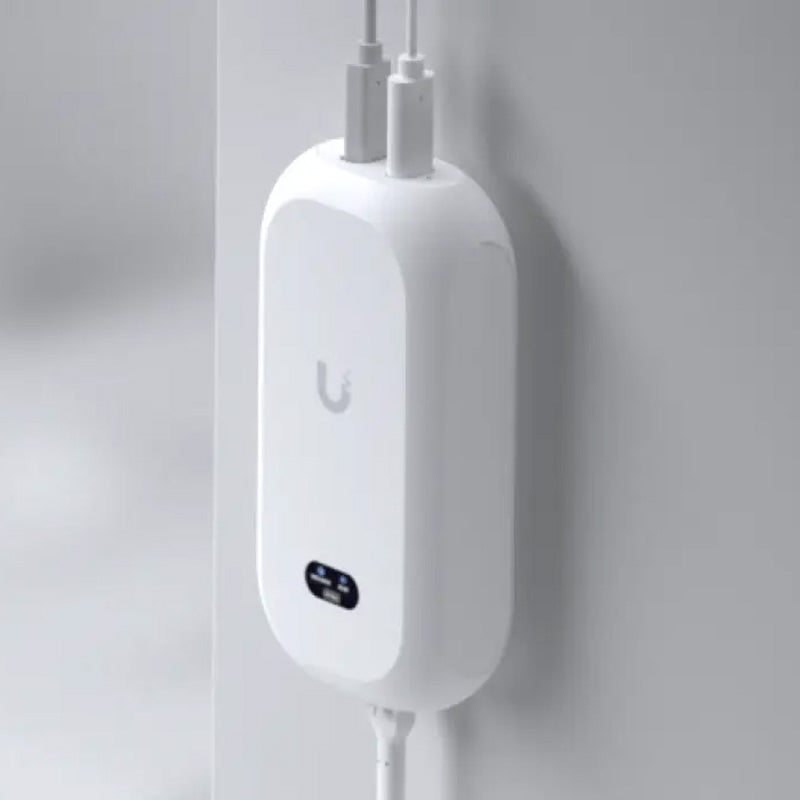

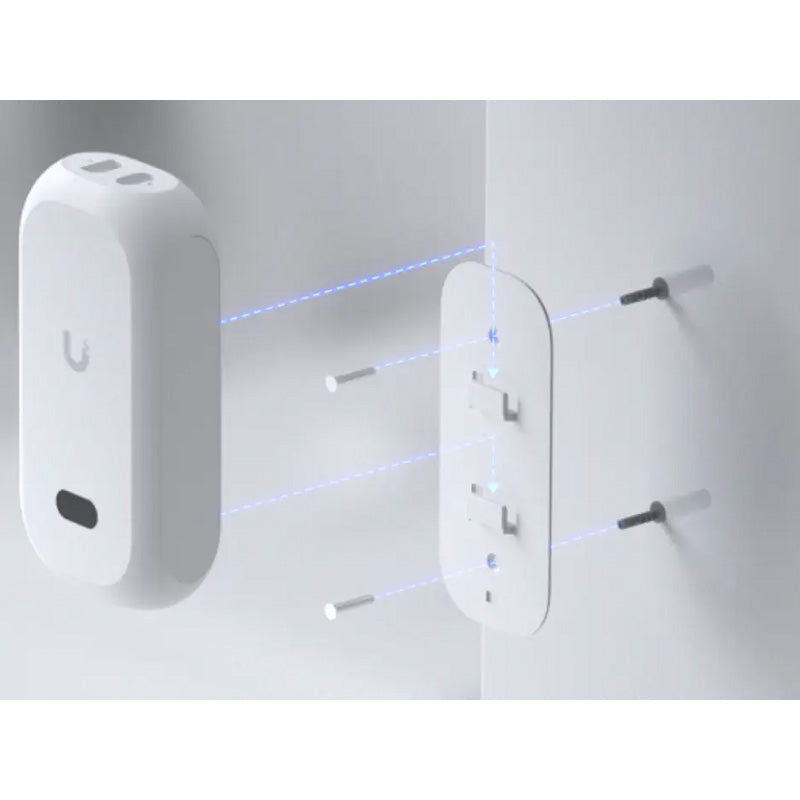

| Mounting | Wall, ceiling mount (Included) |
| Performance | |
| Networking Interface | GbE RJ45 port / Theta audio port / Theta lens port |
| Video · Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Hardware | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Enclosure Material | Aluminum alloy |
| Mounting Material | Aluminum alloy |
| Weight | UVC-AI-Theta-Hub: 330 g (11.6 oz) / UVC-AI-Theta-Hub Mount: 35 g (1.2 oz) |
| Power Method | PoE |
| Supported Voltage Range | 37—57V DC |
| Max. Power Consumption | 12.5W |
| Power Output | 5V DC, 1A per port |
| LCM Display | 0.96" display |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
