UVC-AI-Theta-Pro Ubiquiti AI Theta Professional
Description
Description
A complete ceiling 360° AI Theta system designed to discreetly provide a panoramic view of large, busy spaces.
Features:

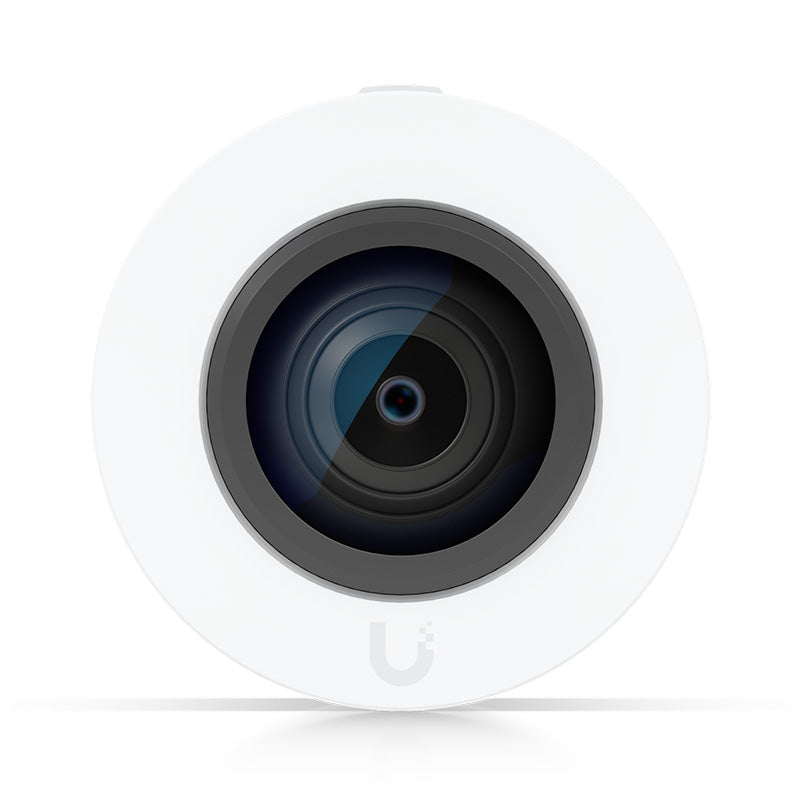

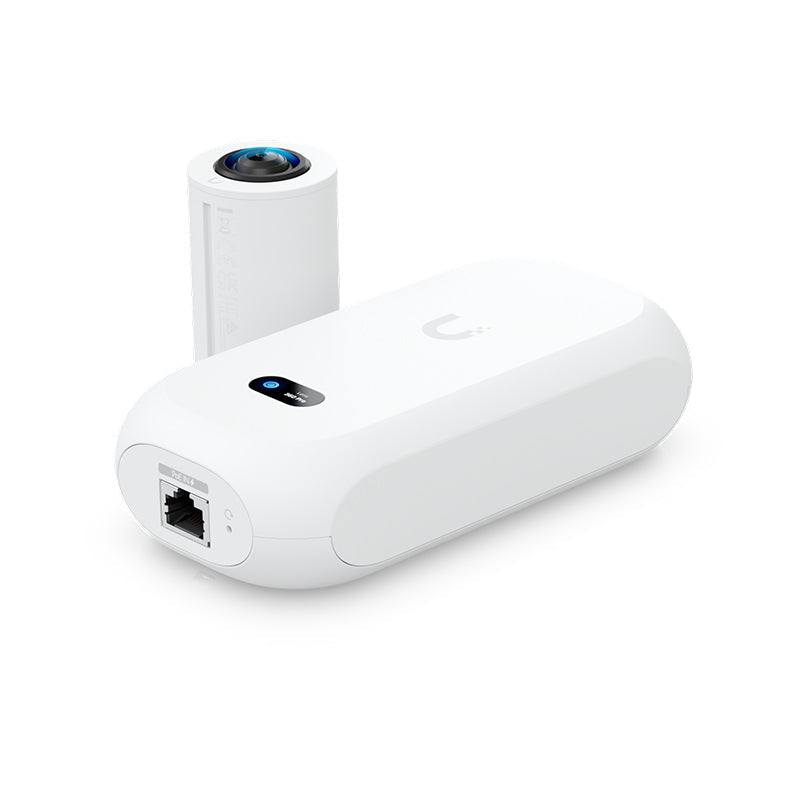

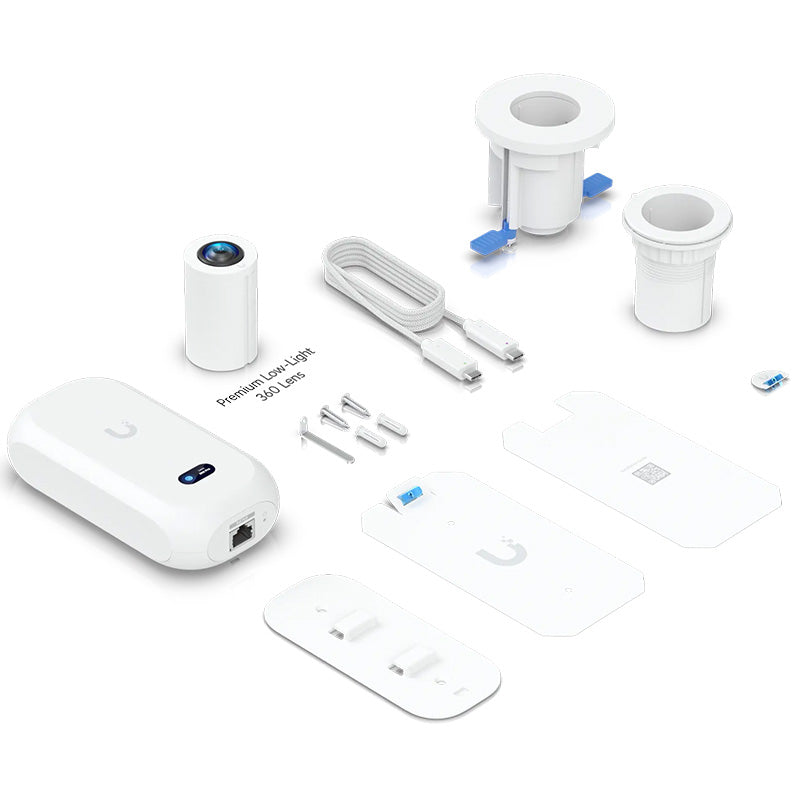

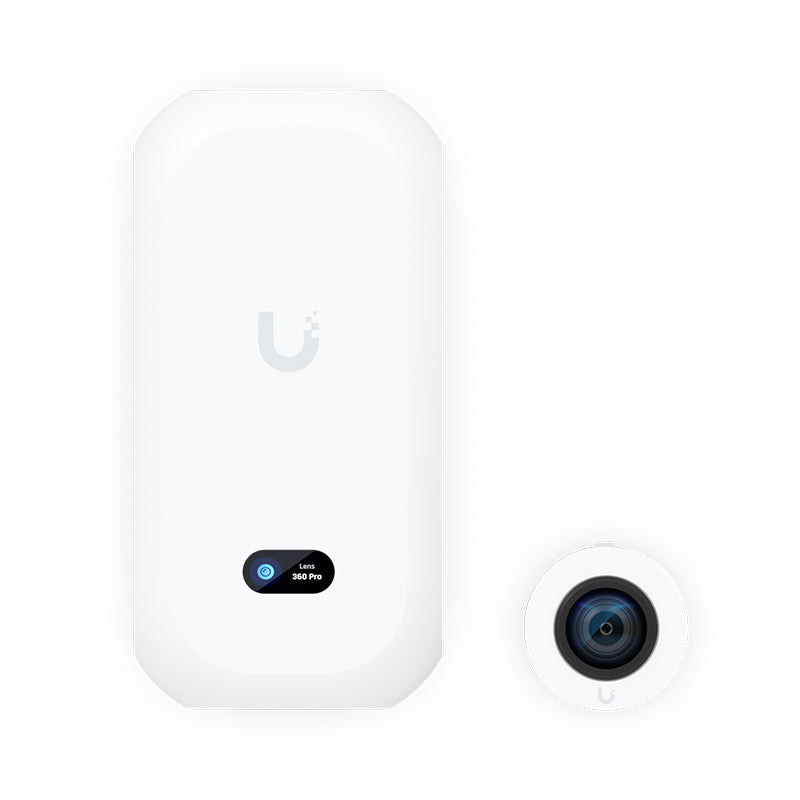

Kit includes (1) AI Theta Hub, (1) Professional 360 Lens, (1) Standard Flush Mount, and (1) Professional Flush Mount
4K (8MP) resolution with ultra-wide 360° view
Exceptional image quality with superb low-light performance and enhanced dynamic range
Advanced AI: Detect people, read license plates, and more*
Minimal footprint with lens separated from the camera body

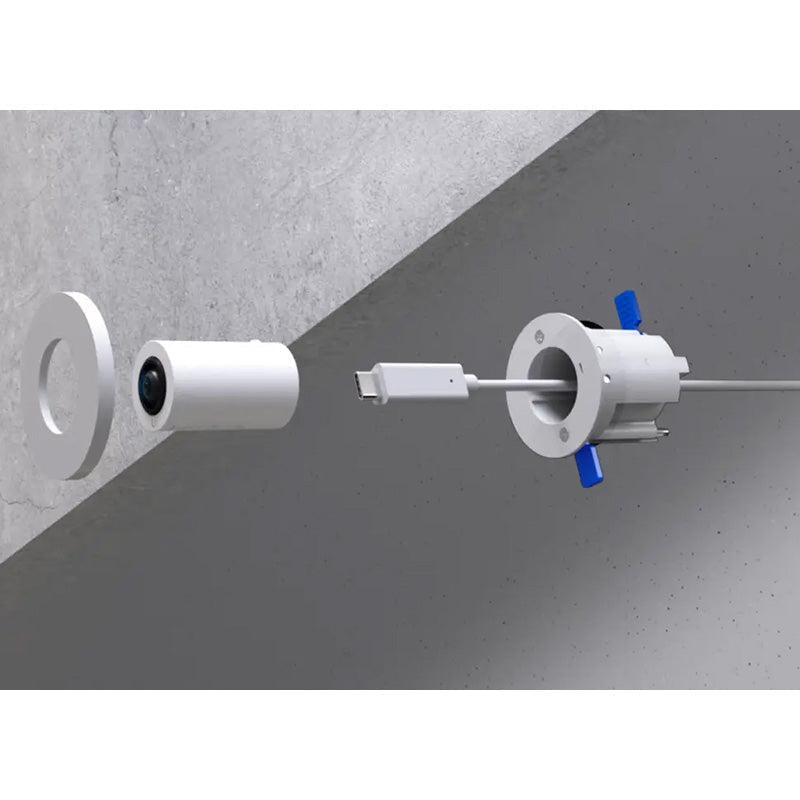

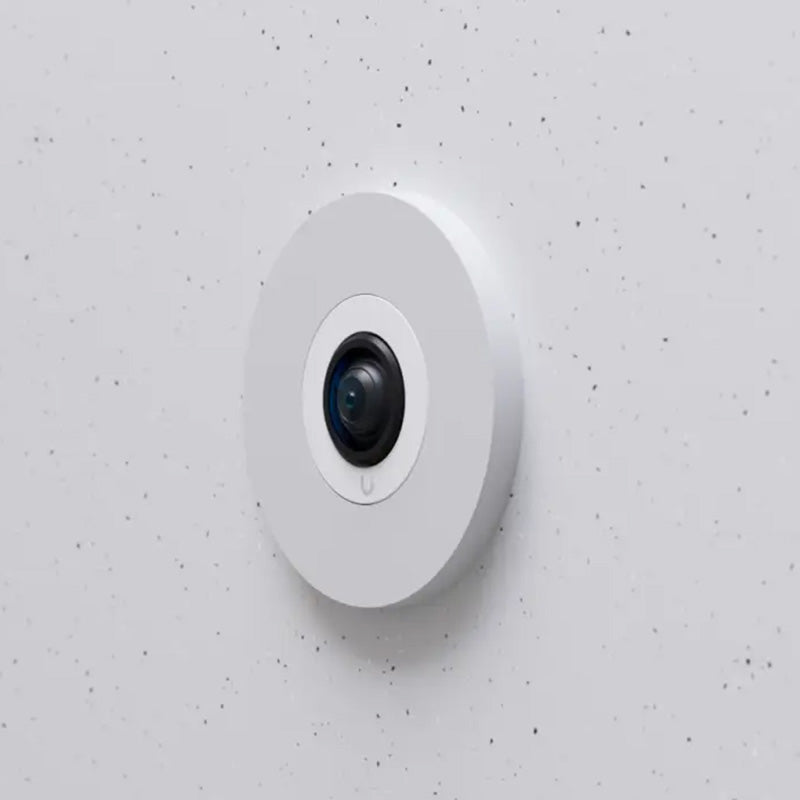

Professional Flush Mount allows for mounting lens without access to the rear of a ceiling or wall

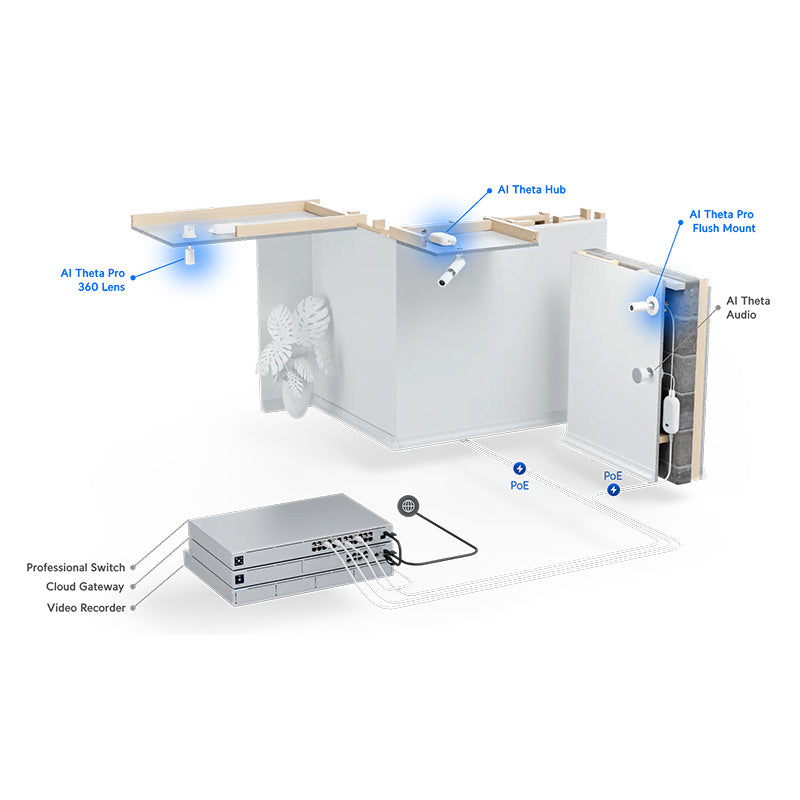

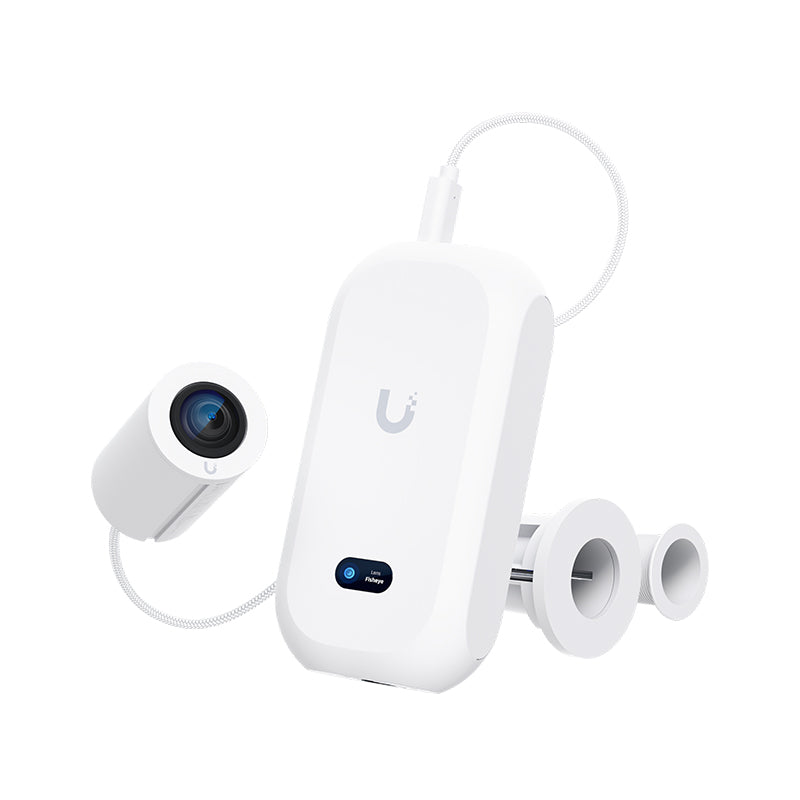

PoE-powered hub that connects to lens with included cable
Supports optional AI Theta Audio module for two-way audio
*License plate recognition supported with Long-Distance and Wide-Angle lenses.
Click HERE to access the Installation Guide
Specifications22 specifications · 3 sections
| Overview | |
|---|---|

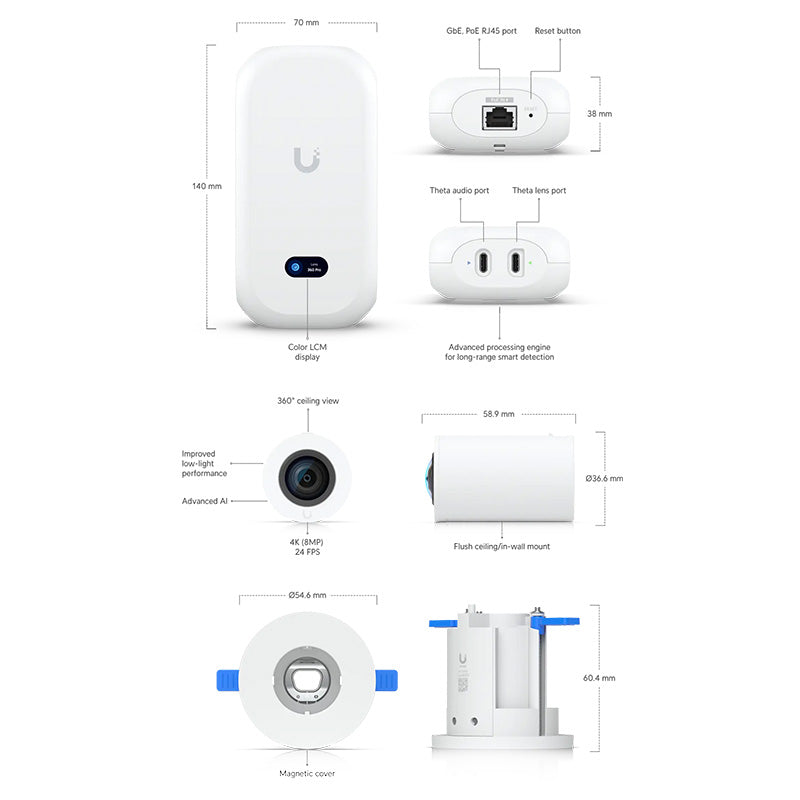

| Dimensions | UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”) / UVC-AI-Theta-ProLens360: ⌀36.6 x 58.9 mm (⌀1.4 x 2.3”) / UVC-AI-Theta-ProLens360 Flush mount: ⌀54.6 x 60.4 mm (⌀2.2 x 2.4”) |
| Resolution | 4k |
| Field of View | H: 180°, V: 180°, D: 180° |
| Audio | Two-way audio with optional AI Theta Audio |
| Mounting | Wall, ceiling, flush mount (Included) / Angle mount (Optional) |
| Performance | |
| Networking Interface | GbE RJ45 port |
| Video · Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Video · Max. Frame Rate | 24 FPS |
| Video · Resolution | 4MP 2160 x 2160 (1:1) |
| Optics · Sensor | 8MP 1/1.8" CMOS |
| Optics · Lens | Fixed focal length |
| Hardware | |
| Max. Power Consumption | 12.5W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | UVC-AI-Theta-Hub: 330 g (11.6 oz) / UVC-AI-Theta-Hub mount: 35 g (1.2 oz) / UVC-AI-Theta-ProLens360: 58 g (2 oz) / UVC-AI-Theta-ProLens360 Flush mount: 24 g (0.8 oz) |
| Enclosure Material | UVC-AI-Theta-Hub: aluminum alloy / UVC-AI-Theta-ProLens360: aluminum alloy, polycarbonate |
| Mount Material | UVC-AI-Theta-Hub: aluminum alloy / UVC-AI-Theta-ProLens360 Flush mount: polycarbonate |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
