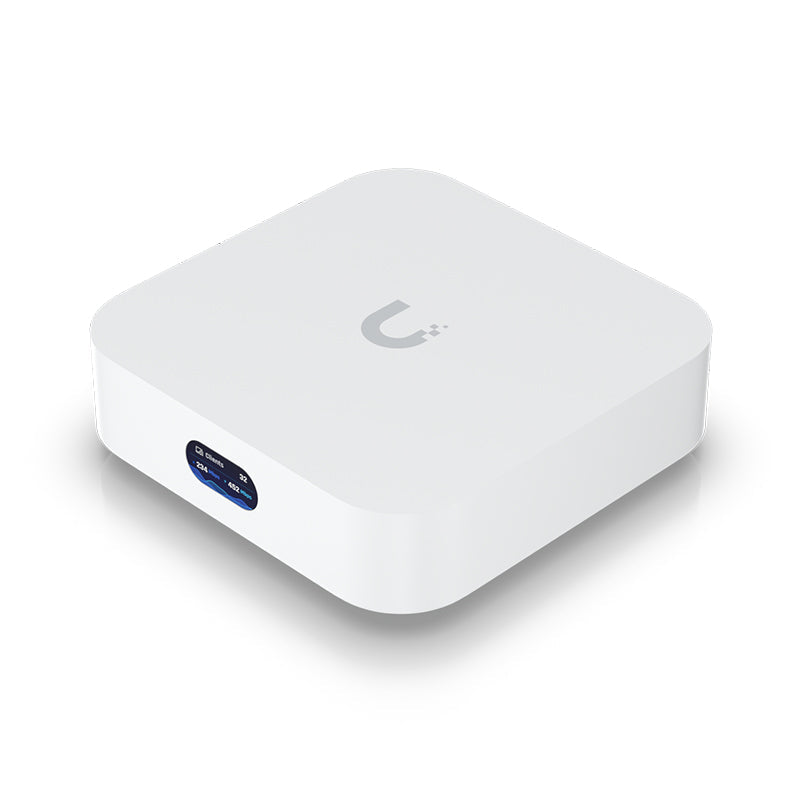

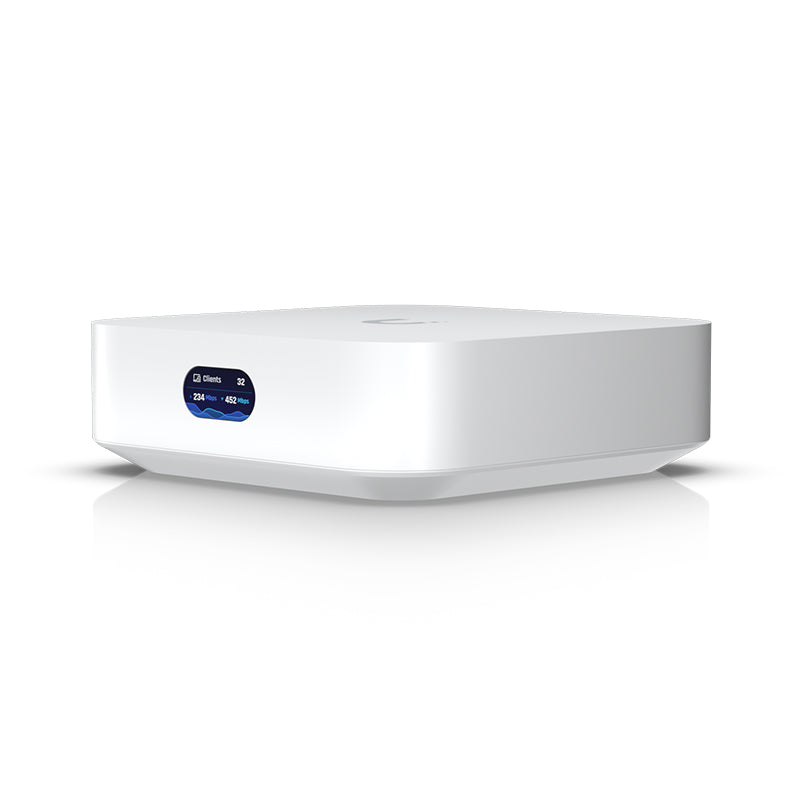

UX Ubiquiti UniFi Express
Description
Description
Please Note these will only support up to 5 Unifi devices across switches, access points and other Unifi Express devices.

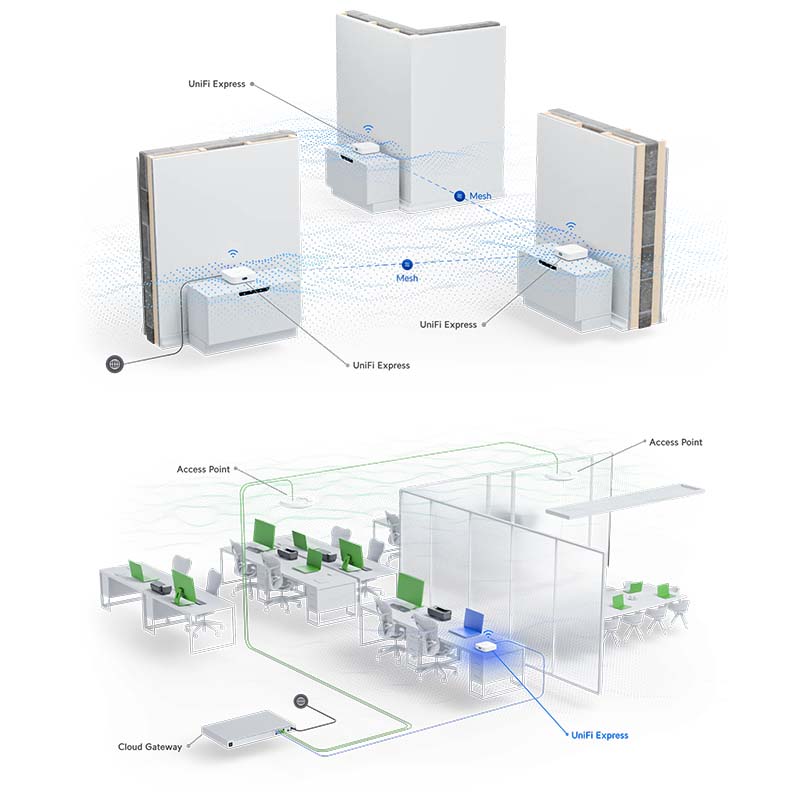

Powerfully compact UniFi Cloud Gateway and WiFi 6 access point that runs UniFi Network. Powers an entire network or simply meshes as an access point.

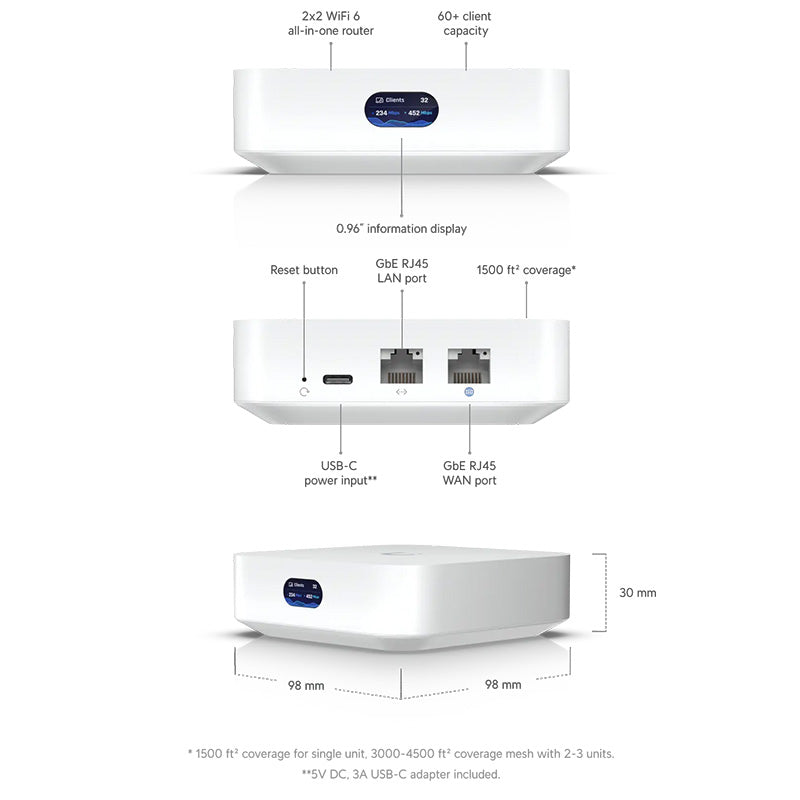

Features:
Built-in WiF6 (2x2 MIMO)
140 m² (1,500 ft²) single-unit coverage
60+ connected WiFi devices

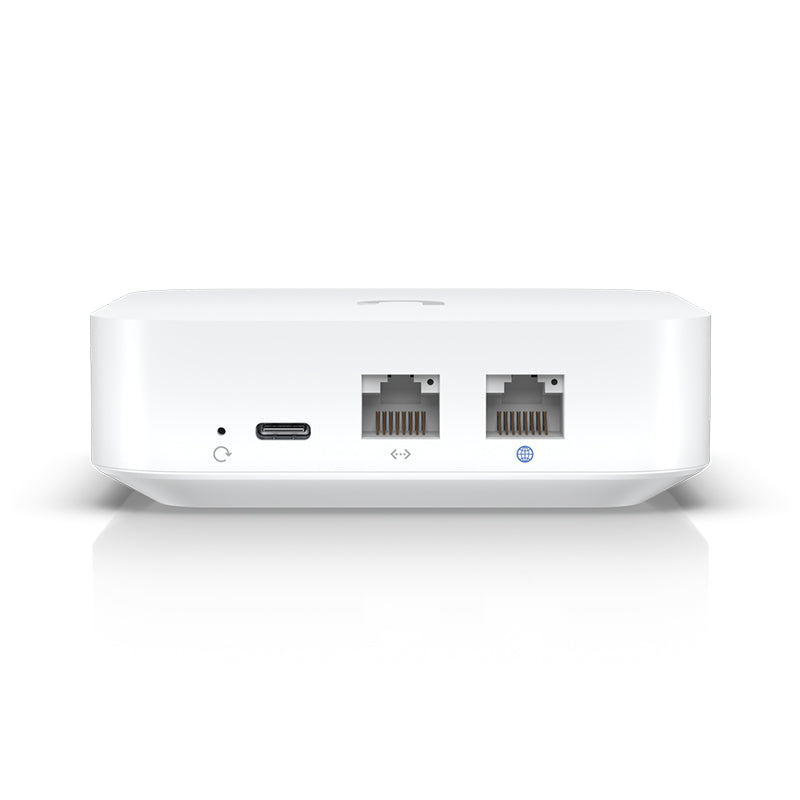

(1) GbE RJ45 WAN port
(1) GbE RJ45 LAN port to extend network

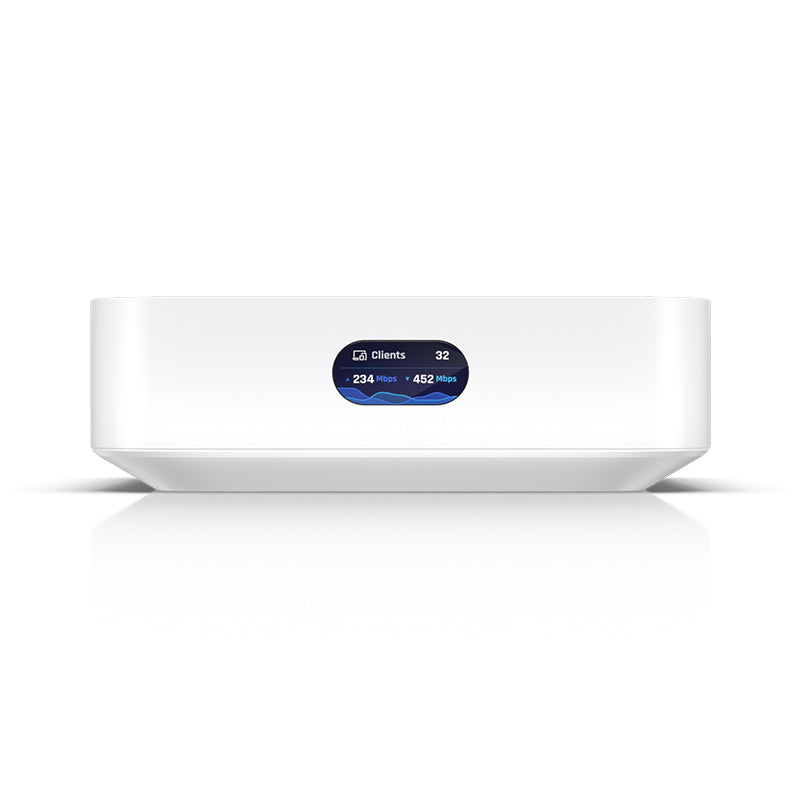

0.96" LCM status display
Frequently asked questions5 questions
What is the UniFi Express designed for?
How many UniFi devices can it manage?
What WiFi speeds and coverage does it offer?
What ports does the UniFi Express have?
How is the UniFi Express powered?
Specifications43 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 98 x 98 x 30 mm / (3.6 x 3.6 x 1.2") |
| Managed UniFi Devices | 4 |
| Simultaneous Users Connected | 50+ |
| Max. WAN Port Count | 1 |
| Default WAN Ports | (1) GbE RJ45 |
| Port Layout · 1 GbE RJ45 | 2 / (1G/100M/10M) |
| Form Factor | Compact desktop |
| Coverage Area | 140 m² (1,500 ft²) |
| Integrated WiFi | |
| WiFi Standard | 802.11a/b/g/n/ac/ax (WiFi 6) |
| Throughput · 5 GHz | 2.4 Gbps |
| Throughput · 2.4 GHz | 573.5 Mbps |
| MIMO · 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain · 5 GHz | 5.15 dBi |
| Antenna Gain · 2.4 GHz | 4 dBi |
| Max. TX Power · 5 GHz | 25 dBm |
| Max. TX Power · 2.4 GHz | 22 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 3 per Radio (Gateway Mode) / 4 per Radio (AP Mode) |
| Antennas | (2) Internal 2.4G/5G WiFi dual-band antenna / (1) Internal 2.4G single-band BT antenna |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Supported Data Rates · 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Supported Data Rates · 802.11b | 1, 2, 5.5, 11 Mbps |
| Supported Data Rates · 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Hardware | |
| Max. Power Consumption | 10W |
| Power Method | USB type C (5V DC/3A) |

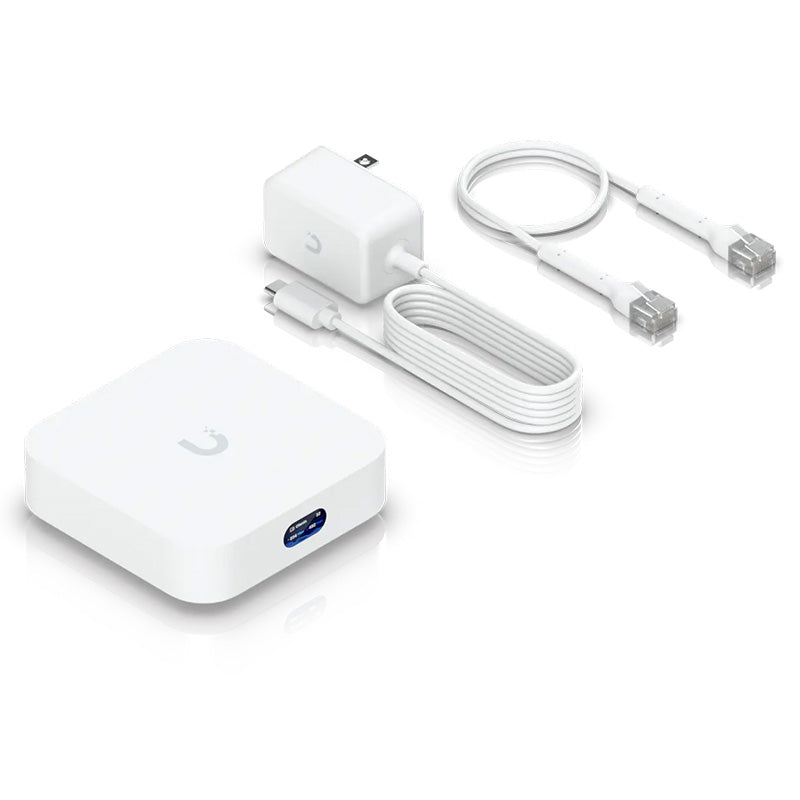

| Power Supply | USB type C (5V DC/3A) (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 34 BTU/hr |
| Processor | Dual-core ARM® Cortex®-A53 at 1 GHz |
| System Memory | 1 GB |
| Weight | 302 g (10.7 oz) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet / Bluetooth |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -10 to 45° C (14 to 113° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 21391-23-08356 |
| Software | |
| VLAN | 802.1Q |
| Application Requirements · UniFi Network | Version 8.0 and newer. / / Note. UniFi Express will continue to receive updates on UniFi Network 9.0 including critical security updates and select feature enhancements. / / For UniFi Network 9.1 and higher, please see UniFi Express 7. |
