Manufacturer's photos. Where a power lead is pictured, an NZ one is provided.

SKU: UF-OLT-4

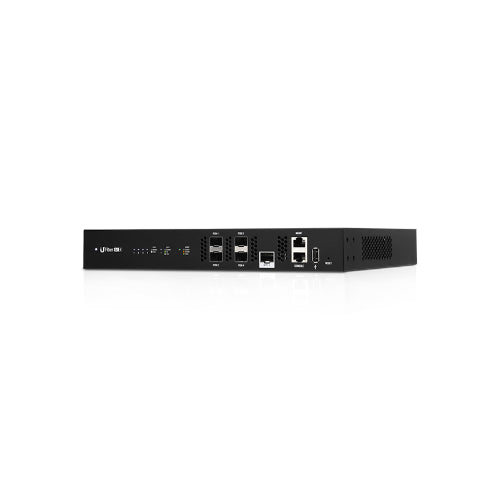

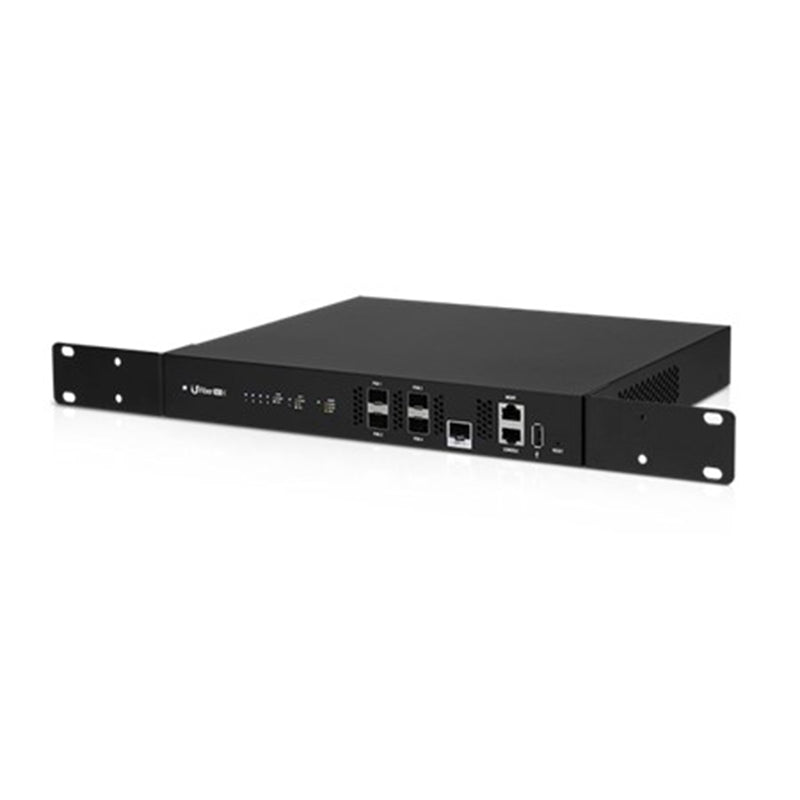

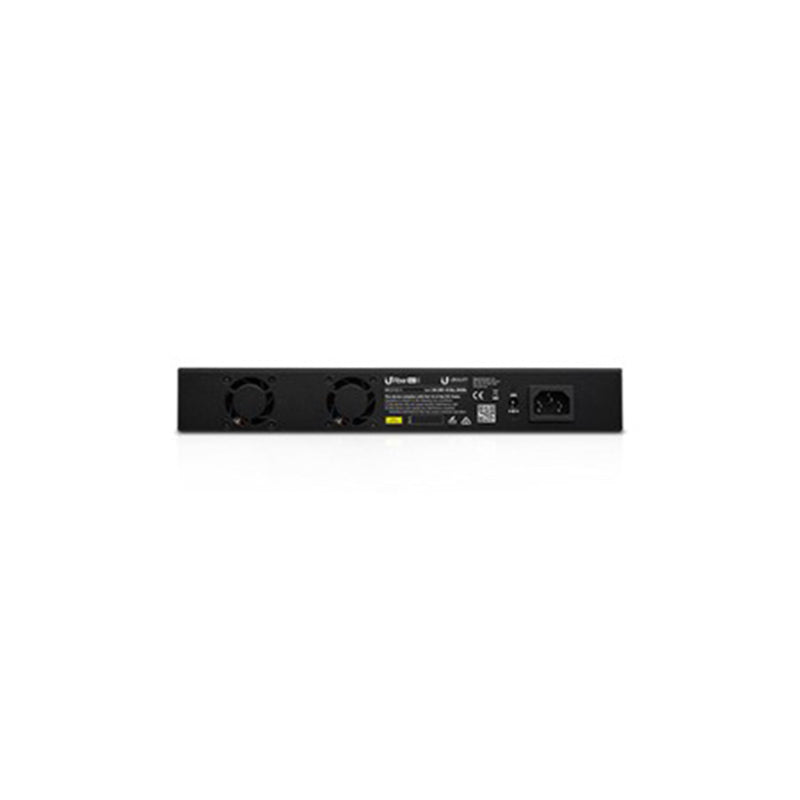

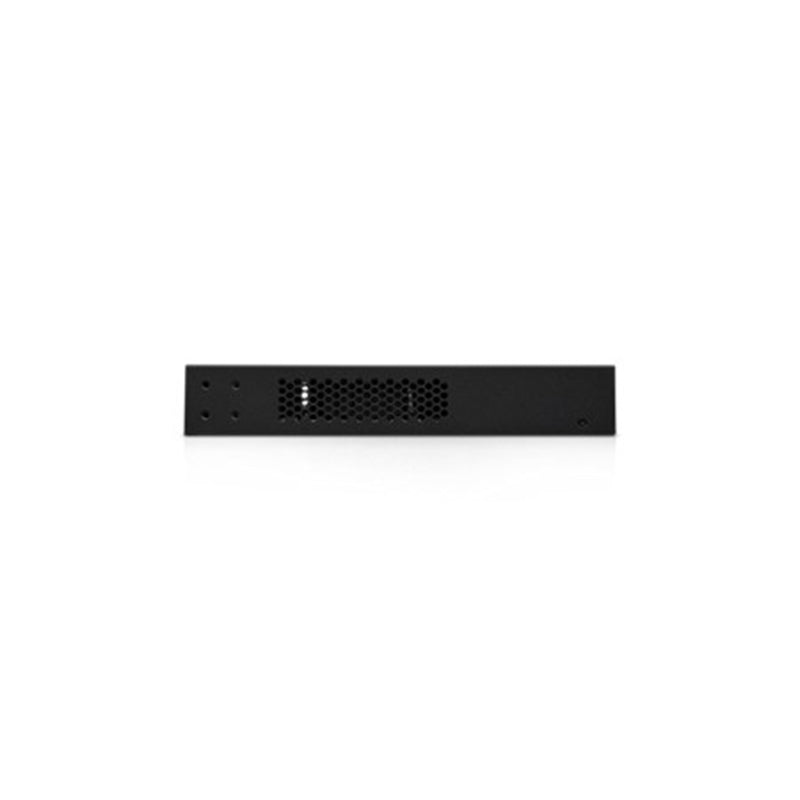

UF-OLT-4 Ubiquiti UFiber 4-port OLT Terminal

Regular price $3,098.54 NZD
In stock · Last fewShips from the warehouse closest to you
In stock in
Auckland

Description

UISP-ready optical line terminal with (4) Gigabit optical network ports, (1) fiber uplink, and Layer 2/3 switching capability.



Introducing UFiber OLT – a fiber solution that anyone can deploy. UFiber offers internet and telecom service providers a cost‑effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488 Gbps downstream and 1.244 Gbps upstream. The UFiber network is intelligently managed using the included UISP application.



UFiber devices consist of the UFiber OLT or OLT-4 (deployed at the provider premises) and the UFiber Nano™ G, loco, or UF-WiFi clients, which function as ONU CPEs (Customer Premises Equipment).



Features:


4-Port GPON Optical Line Terminal
4 Gigabit Passive Optical Network Ports
Supports up to 512 Clients (128 per PON Port)
Up to 2.488 Gbps TX and 1.244 Gbps RX
One 1G/10G SFP+ Ethernet Ports
Flexible Layer 2/3 Management Features
Ethernet port for management
Console serial port for management
24V DC Input Option (Redundant or Stand-Alone)

Frequently asked questions5 questions
What is the UF-OLT-4 used for?
It is an optical line terminal installed at the service provider's premises to deliver fibre internet and Triple Play Services (data, voice, IPTV/VoD). It is managed using the included UISP application.
How many clients can the UF-OLT-4 support?
It supports up to 512 clients in total, with up to 128 clients per PON port across its four Gigabit Passive Optical Network ports.
What speeds does the UF-OLT-4 offer?
It delivers up to 2.488 Gbps downstream and 1.244 Gbps upstream.
What ports and management options does the UF-OLT-4 have?
It has four GPON optical ports and one 1G/10G SFP+ Ethernet port. For management there is an Ethernet port and a console serial port, with Layer 2/3 management features.
What client devices work with the UF-OLT-4?
UFiber clients act as ONU CPEs at the customer end, namely the UFiber Nano G, loco or UF-WiFi devices. The OLT sits at the provider premises.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide
