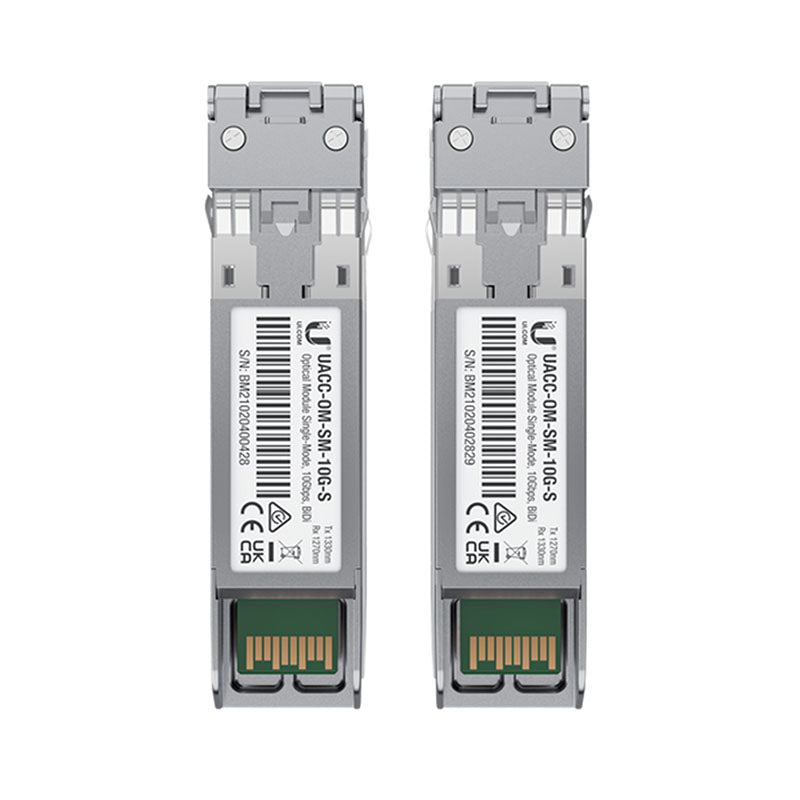

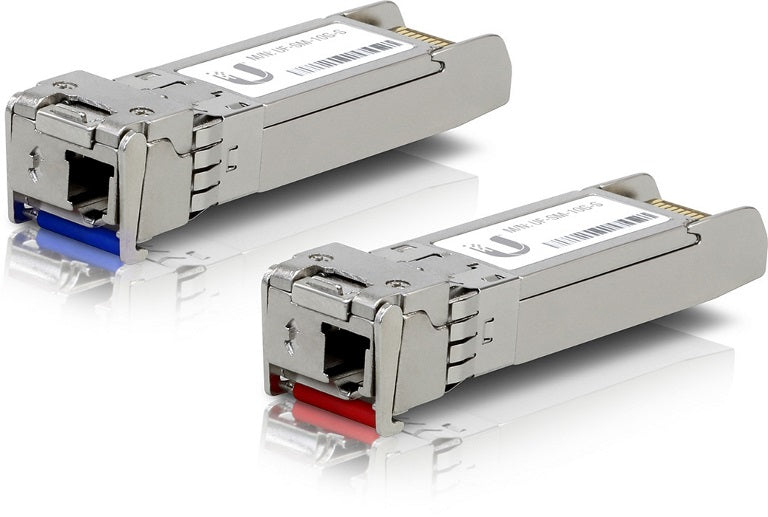

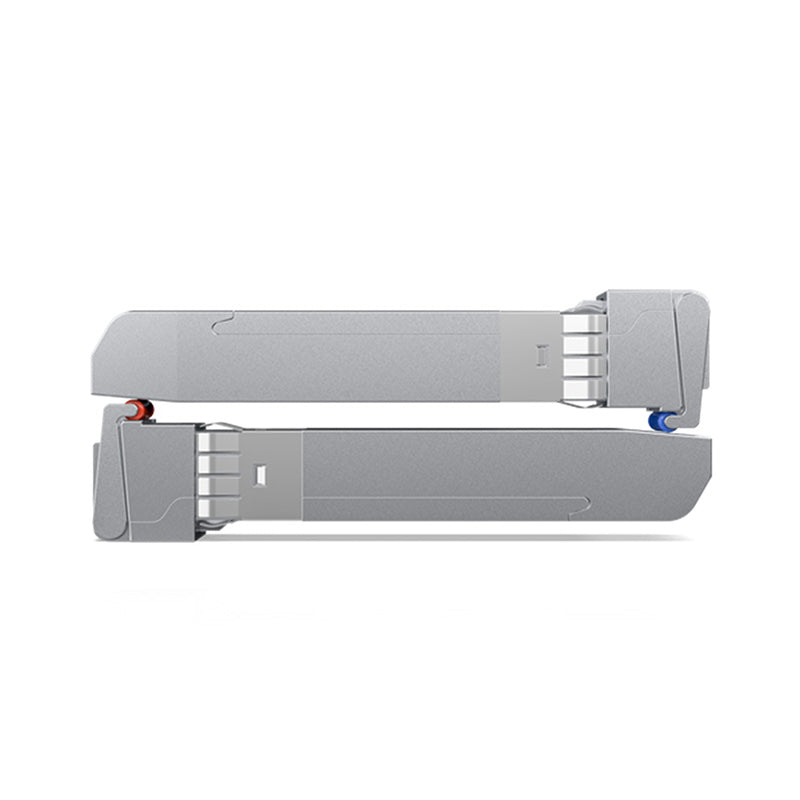

UACC-OM-SM-10G-S-2 Ubiquiti UFiber BiDi Single-Mode 10G Module 2-Pack
Description
Description
Ubiquiti UFiber Single-Mode Module 10G BiDirectional 2-pack - Same 10Gbps speed, Less Cable Required. Only requires a single strand of fiber cable to operate, but still provides a full 10Gbps speed.
The 10 Gbps Bidirectional Single-mode Optical Module is a simplex transceiver that delivers up to 10 Gbps speed over distances up to 10 kilometers.
1x Fiber Patch Lead can now be used for 2x separate links thanks to BiDi
Features:
Supported Media: Single-Mode Fiber
Connector Type: 1x LC
BiDi: Yes
TX Wavelength: 1270 nm Blue 1330 nm Red
RX Wavelength: 1330 nm Blue 1270 nm Red
Data Rate: 10 Gbps SFP+
Cable Distance: 10 km
Click HERE to access the Datasheet
Specifications11 specifications · 1 sections
| Overview | |
|---|---|
| Form Factor | SFP+ |
| Connector | Simplex LC UPC |
| Supported Media | Single-Mode Fiber |
| TX Wavelength | 1270 / 1330 nm |
| RX Wavelength | 1330 / 1270 nm |
| Supported Data Rate | 1 / 10 Gbps |
| Supported Cable Distance | 10 km (6.2 mi) |
| Max. Power Consumption | 1 W |
| Pack Options | 2-Pack / 20-Pack |
| Ambient Operating Temperature | 0 to 70° C (32 to 158° F) |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 / Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
