UPL-Port Ubiquiti UniFi PoE Audio Port
Description
Description
A digital audio streamer with an ultra-compact, versatile design and an intuitive control system, supporting multiple music streaming services and scalable multi-zone installations.
The PoE Audio Port is a streaming audio interface designed to connect traditional amplifiers, active speakers, or audio systems to a modern wireless streaming setup. It allows users to stream music over Wi-Fi and integrate legacy equipment into a smart audio ecosystem
PoE Audio Port allows up to 32 devices in each zone for a seamless multi-room audio experience. Connect a CD player or turntable to the PoE Audio Port using its RCA or optical input, then stream that audio to other rooms via multi-zone grouping. It can also output audio via USB-C, optical, or RCA out to active speakers or external amplifiers.
UniFi PoE Audio Port operates independently with management through the UniFi Play mobile app. No UniFi Console is required. The port is plug-and-play network and designed to work with existing amplifiers or active speakers. It supports analog input and network streaming via Apple AirPlay and Spotify Connect. Need to expand audio coverage? No problem – simply add more UniFi PoE Audio Port and create groups for multi-zone audio control.
Available in either Black or White.
Specifications21 specifications · 4 sections
| Mechanical | |
|---|---|

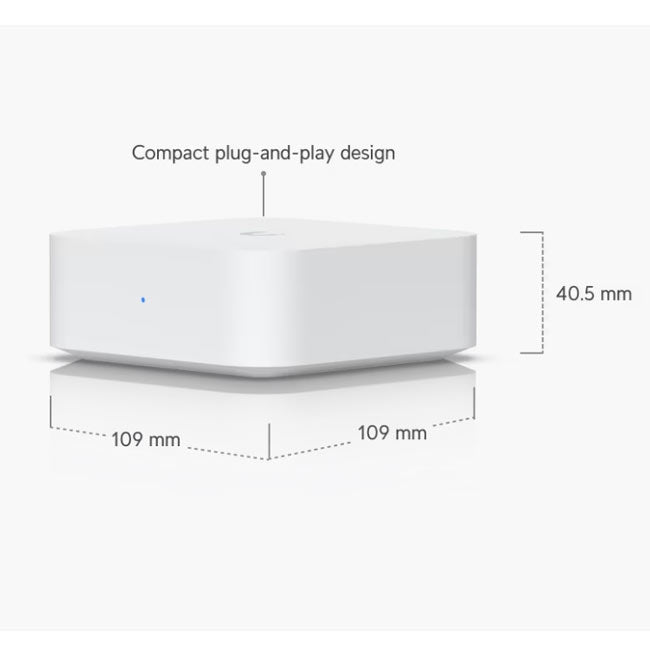

| Dimensions | 109 x 109 x 40.5 mm / (4.3 x 4.3 x 1.6") |
| Weight | 250 g (8.5 oz) |
| Enclosure Material | Polycarbonate |
| Mounting | Compact Desktop |
| Available Colors | Black / White |
| Audio | |
| Output | Mono / Stereo sound |
| Surround Format | PCM |
| Zone | Up to 32 PowerAmps and PoE Audio Ports |

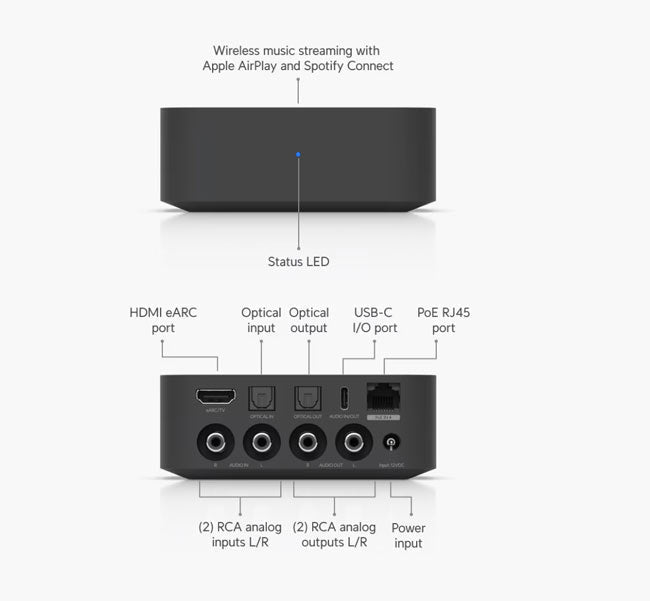

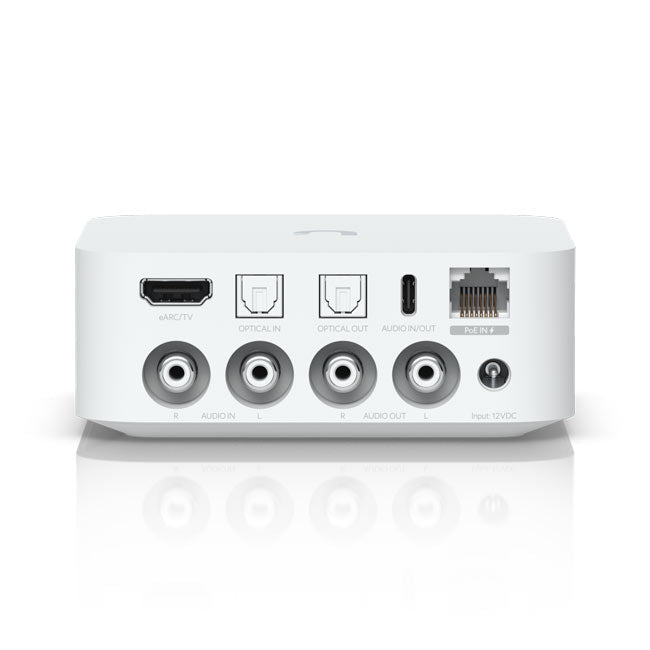

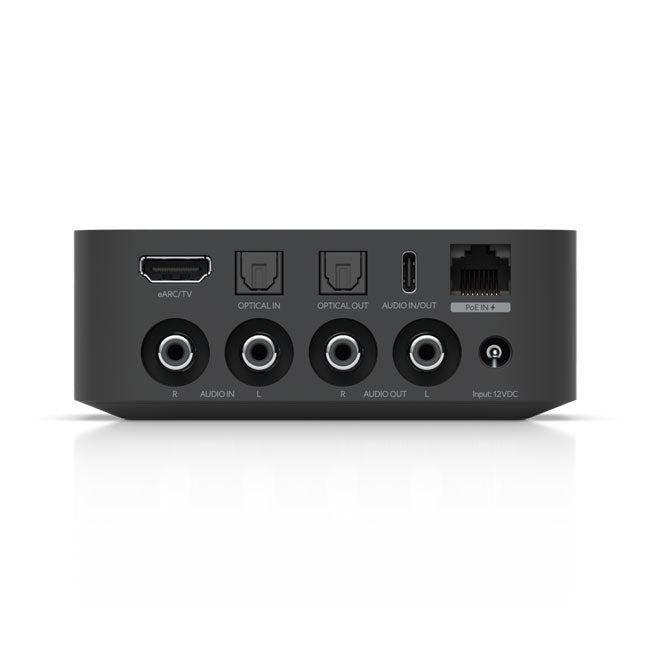

| Audio Input | (2) RCA analog inputs L/R / (1) HDMI eARC input / (1) Optical In / (1) USB-C versatile port |
| Audio Output | (2) RCA analog outputs L/R / (1) Optical Out / (1) USB-C versatile port |
| Streaming | AirPlay, Google Cast, Spotify Connect, Soundtrack Your Brand |
| Hardware | |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| WiFi Standards | 802.11 a/b/g/n/ac/ax |
| Connectivity | WiFi 2.4G, BW 20/40 MHz / WiFi 5G, BW 20/40/80 MHz |
| Power Method | (1) AC/DC adapter, 12V DC (Included) / (1) PoE |
| Max. Power Consumption | 10W |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE, Anatel: 07624-25-08356 |
| Software | |
| Application Requirements | UniFi Play iOS™ and Android™: Version 2.0.0 and later |
