WatchGuard AP430CR

NZD Price inc GST:

$2,444.52

SKU: WGA43000000

If you can't find the item you are after in stock, please chat to us.  Supply chain issues mean these are often ordered directly from WatchGuard for each customer with a lead time of around 14 days.

Please note that WatchGuard Access points are designed to be managed from WatchGuard Cloud.   To enable you to do this you will also need a subscription (listed below) unless you only want to manage this from your WatchGuard firewall.

Chat 9am to 11pm - 7 days

We love what we do!

Shipping Costs From

Standard - $12 or Express - $15

Want The Best Prices?

Request a quote

Wi-Fi 6 and WPA3 encryption delivers optimized connectivity with the AP430CR.

We enhance wireless experiences across rugged, high-density environments with deep integration into our portfolio of security solutions. Explore simplified end-to-end management in WatchGuard Cloud that unlocks endless possibilities across captive portals, device health, remote VPN, user management, and more.

Designed for indoor or rugged outdoor deployment conditions built with an industrial-rated IP67 enclosure.

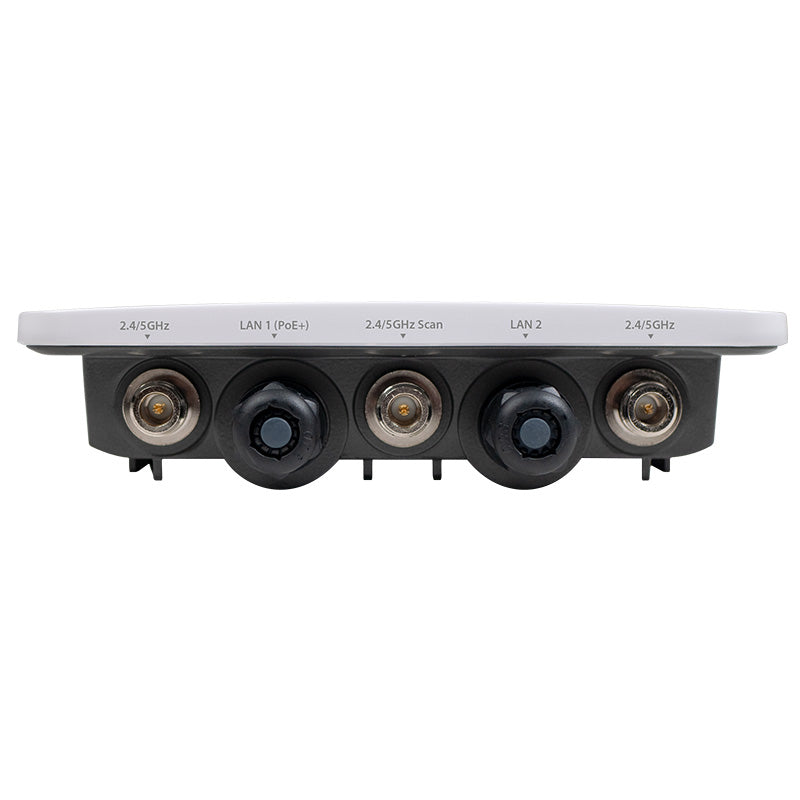

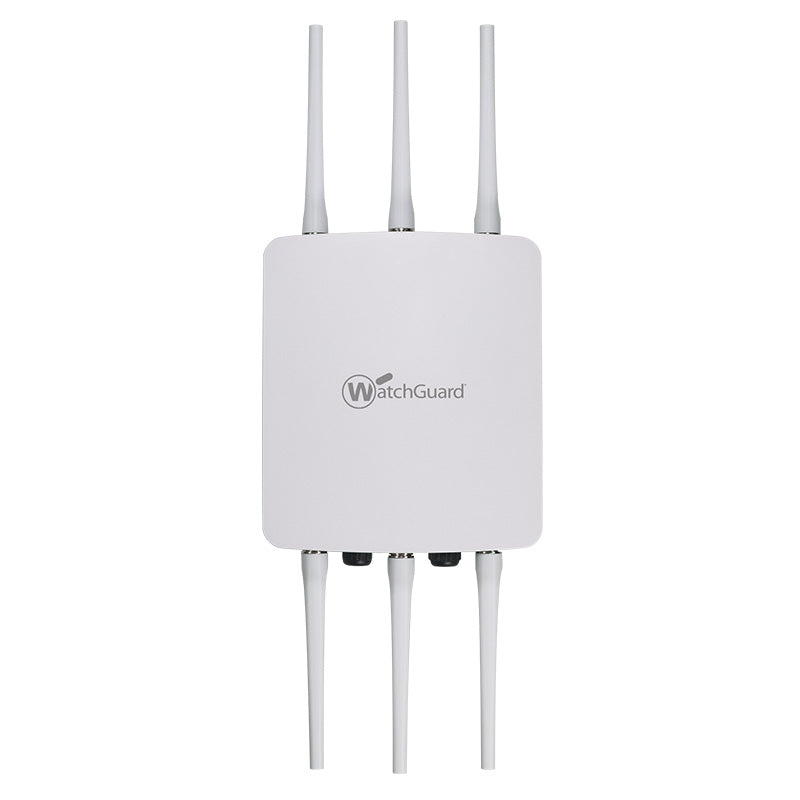

The AP430CR delivers superior Wi-Fi 6 performance and WPA3 encrypted security. Includes six external antennas to deliver a maximum TX power of 23 dBm. Hardware includes one Ethernet port that supports up to 5 Gbps and a gigabit PoE+ port.

Features:

Wi-Fi 6 and WPA3 encryption

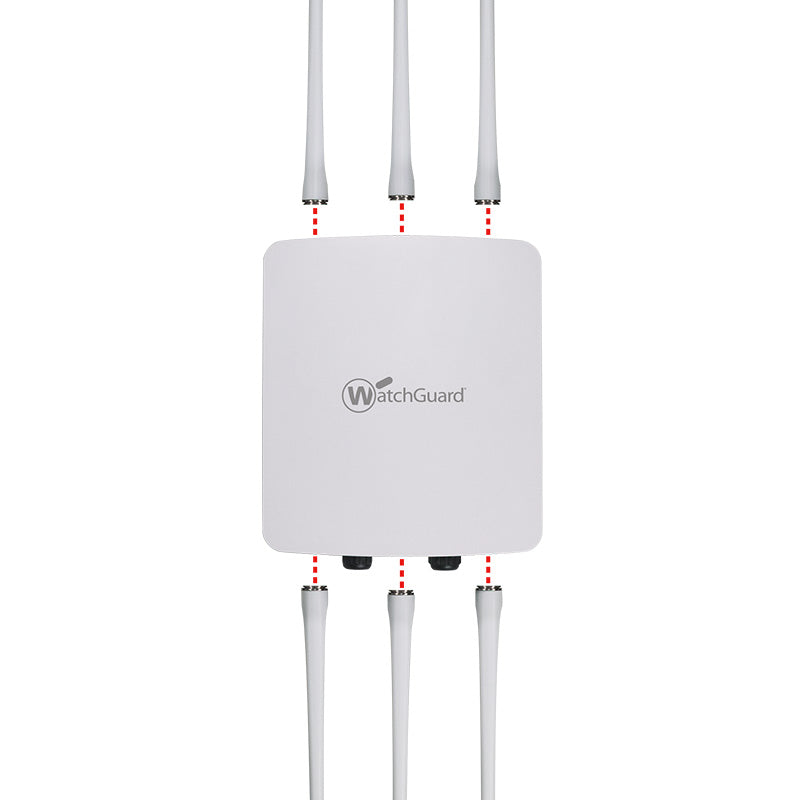

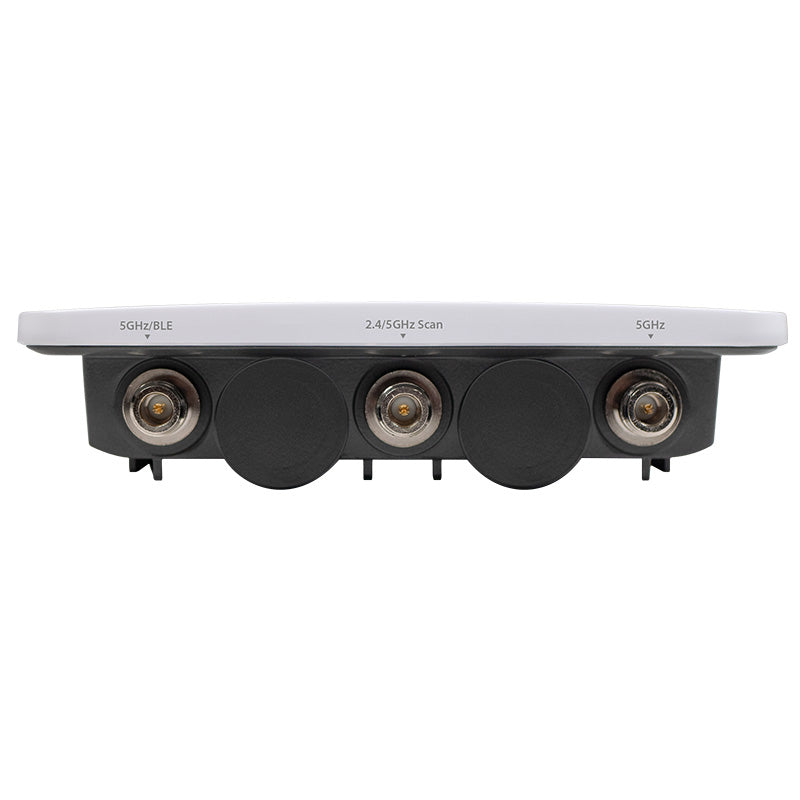

Six N-Type external connectors offer a variety of external antenna choices for flexible pattern coverage capabilities (antennas sold separately)
The IP67 sealed enclosure provides protection in harsh weather conditions or rugged environments and can be mounted with direct exposure to the elements – no overhang or shelter required
Support for up to eight individual SSIDs per radio allows for maximum flexibility in network design
Lightning-fast speed crafts an unwavering connectivity experience executed by 2402 Mbps on the 5 GHz band and 574 Mbps delivered on the 2.4 GHz band
  • WatchGuard AP430CR
  • Datasheets and Guides

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Click HERE to access the Hardware Guide

subscriptions & accessories

WatchGuard Parts & Accessories

AP 130

AP 330

AP 430CR

AP 432

WatchGuard Secure Wireless AP130
WatchGuard Secure Wireless AP330
WatchGuard Secure Wireless AP430CR
WatchGuard Secure Wireless AP432
  • Which Model?
  • Which Subscription?
  • More protection?
  • Thinking  firewall?

Wi-Fi in WatchGuard Cloud delivers greatly simplified management tools to easily deploy, configure, and report on Wi-Fi 6 access points, while offering a rich integration across WatchGuard’s portfolio of solutions, including Endpoint Security, AuthPoint, and Firebox appliances to keep end users secure and maximize IT resources.

AP 130

AP330

AP 430CR

AP432

Radios & Streams

Wi-Fi 6 2x2

Wi-Fi 6 2x2

2x2 Dedicated Scanning Security Radio

Wi-Fi 6 4x4
2x2 Dedicated Scanning Security Radio

Wi-Fi 6 4x4

Number Of Antennas

4 Internal Omnidirectional

6 Internal Omnidirectional

6 External N-Type Connectors

(antennas required, sold separately)

8 Internal Omnidirectional

Maximum Data Rate

1201 Mbps (5 Ghz)
574 Mbps (2.4 Ghz)

1201 Mbps (5 Ghz)
574 Mbps (2.4 Ghz)

2402 Mbps (4x4) (5 Ghz)
574 Mbps (2x2) (2.4 Ghz)

2402 Mbps (5 Ghz)

574 Mbps (2.4 Ghz)

Ports

1 x 1Gbps (PoE+)

1 x 2.5Gbps (PoE+)

1 x 5Gbps (PoE+)
1 x 1Gbps

1 x 2.5Gbps (PoE+)

Power Consumption

Peak: 10.9W

Average: 10.5W

Peak: 15.9W

Average: 15.5W

Peak: 21.3W

Average: 16W

Peak: 19.5W

Average: 11.65W

Mounting Option (Included)

T-Bar Ceiling

Flat Surface Mount

T-Bar Ceiling

Flat Surface Mount

T-Bar Ceiling

Flat Surface Mount

T-Bar Ceiling

Flat Surface Mount

Mounting Options (Sold Separately)

Universal Standing Bracket (WG9017)

Universal Standing Bracket (WG9017)

N/A

Universal Standing Bracket (WG9017)

Our Serving suggestion

Environment

Low Density / Small offices / Remote Workers

Medium Density / Retail / Schools / Offices

High Density Outdoors / Manufacturing

High Density Indoors / Large Offices / Large Campuses

hardware only

If you are looking to manage and control your WatchGuard access point from your WatchGuard appliance and not through the Cloud Portal, then this may be all you need.

standard wi-fi

The Standard Wi-Fi subscription gives you everything you need to configure and maintain your secure wireless network, along with cloud management, support and hardware warranty.

unified security platform wi-fi

The Unified Security Platform Wi-Fi subscription increases your security by adding additional layers of wireless protection and VPN features. In addition 30 days of cloud stored data is included, allowing increased visibility and reporting.

Standard Wi-Fi

unified security

platform wi-fi

Native WatchGuard Cloud Management Features

24/7 Support And Hardware Warranty

Inventory Management

Configuration Of Radio Settings

Configuration Of SSID

Configuration Of Device Settings

Firmware Updates

24-Hour Reporting / Visibility

Live Status Visibility

WatchGuard Cloud API Integration For PSA

AP Site Templating

Captive Portal

Syslog Server Output

IKEv2 VPN Features (RAP)

30-Day Reporting / Visibility

Future WatchGuard Portfolio Integrations

Future Security And Wi-Fi Features

Watchguard SEcure wireless videos

WatchGuard AP 130 Indoor Access Point

Wi-Fi 6 and WPA3 encryption delivers optimized connectivity with the AP130. We enhance wireless experiences across indoor, low-density environments with deep integration into our portfolio of security solutions.


Explore simplified end-to-end management in WatchGuard Cloud that unlocks endless possibilities across captive portals, device health, remote VPN, user management, and more.

WatchGuard AP 330 Indoor Access Point

Wi-Fi 6 and WPA3 encryption delivers optimized connectivity with the AP330. We enhance wireless experiences across indoor, medium-density environments with deep integration into our portfolio of security solutions.


Explore simplified end-to-end management in WatchGuard Cloud that unlocks endless possibilities across captive portals, device health, remote VPN, user management, and more.

WatchGuard AP 430CR Outdoor Access Point

Wi-Fi 6 and WPA3 encryption delivers optimized connectivity with the AP430CR. We enhance wireless experiences across rugged, high-density environments with deep integration into our portfolio of security solutions.


Explore simplified end-to-end management in WatchGuard Cloud that unlocks endless possibilities across captive portals, device health, remote VPN, user management, and more.

WatchGuard AP 432 Indoor Access Point

Prepare your indoor network with the AP432, our high-performance Wi-Fi 6 access point that is essential to support every wireless need with ease.


Simplified management is delivered with WatchGuard Cloud, unlocking endless possibilities across captive portals, device health, remote VPN, user management, and more.

information hub

What happens if I don't renew my WatchGuard Subscription?

For the best protection a firewall will always need an active and configured security subscription.   If this has lapsed or your are thinking about not renewing it, then the following will happen.


1 - You will loose the option to get free support from the Manufacturer

2 - You will loose all hardware warranty and if your physical unit fails, you will no longer be able to get a free replacement

3 - Any firewall polices that use subscription services will need to be updated to remove them, otherwise they will often switch in to blocking mode.

Is support included in the subscription?

Support is included as standard in the 3 main subscription offerings - Standard Support, Basic Security & Total Security.   This support includes telephone and email support direct with WatchGuard, Firmware Updates and Hardware Warranty.

Is hardware warranty included?

If you have a current Standard Support, Basic Security or Total Security then hardware replacement is included for the length of time you keep that subscription current.  Please do note that in the case of hardware failure, WatchGuard will ship you a replacement from outside of Australia.   You may like to consider additional next business day hardware warranty services to supplement this, to get you back and running as quickly as possible.

What options do I have to get additional support if I get stuck?

We know that sometimes we just need that extra little bit of help and support.   The Tech Geeks have a team that are qualified to assist you and get your back on track as quickly as possible.   We offer rates from $150 + GST per hour and would be happy to quote for any work that you need help with.
