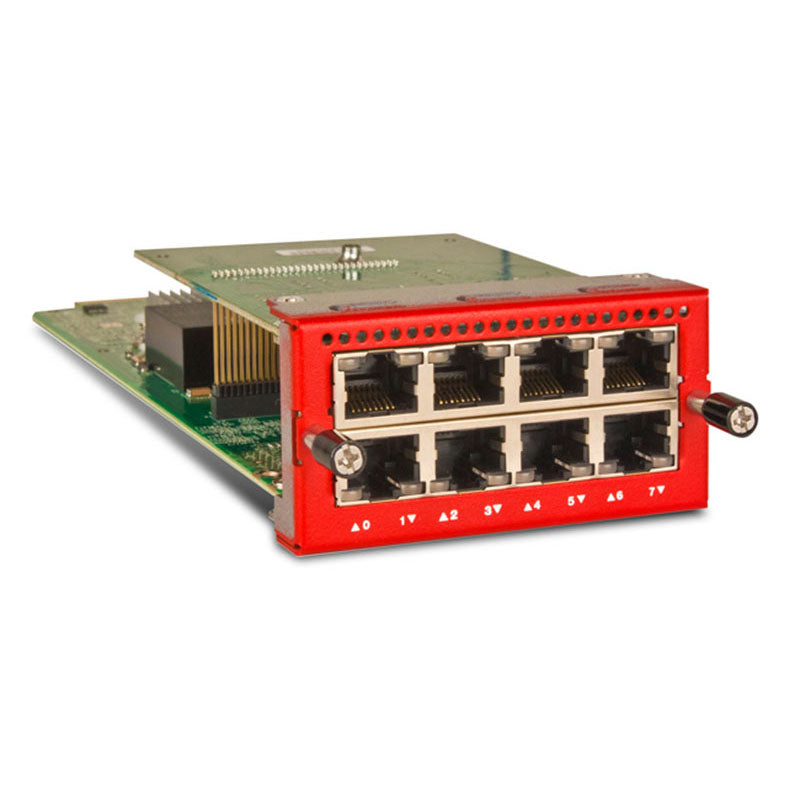

WatchGuard Firebox M 8 Port 1Gb Copper Module

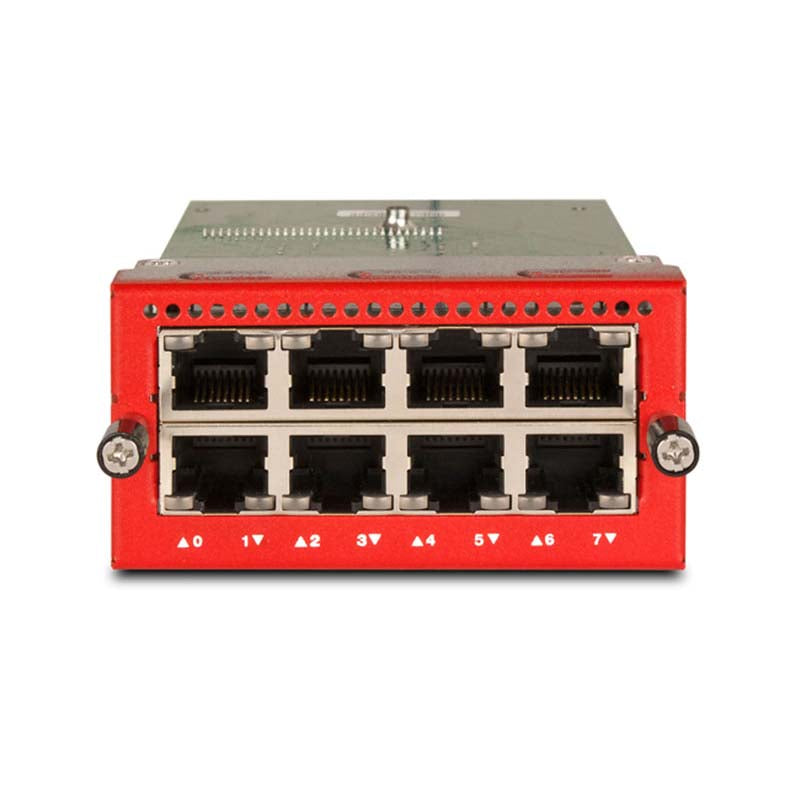

The eight interfaces are numbered from 0 to 7.
Each interface has two indicators. The right indicator shows the interface link status. The left indicator shows interface activity.
| Indicator | Indicator Color | Interface Status |
|---|---|---|
| Connection (right) |
Yellow |
Link at 1000 Mbps |
| Green | Link at 100 Mbps | |
| Not Lit | Link at 10 Mbps or no link | |
| Activity (left) | Yellow, blinks | Power on, network activity |
| Not Lit | Power off, no connections |
