SKU:
U7-Outdoor

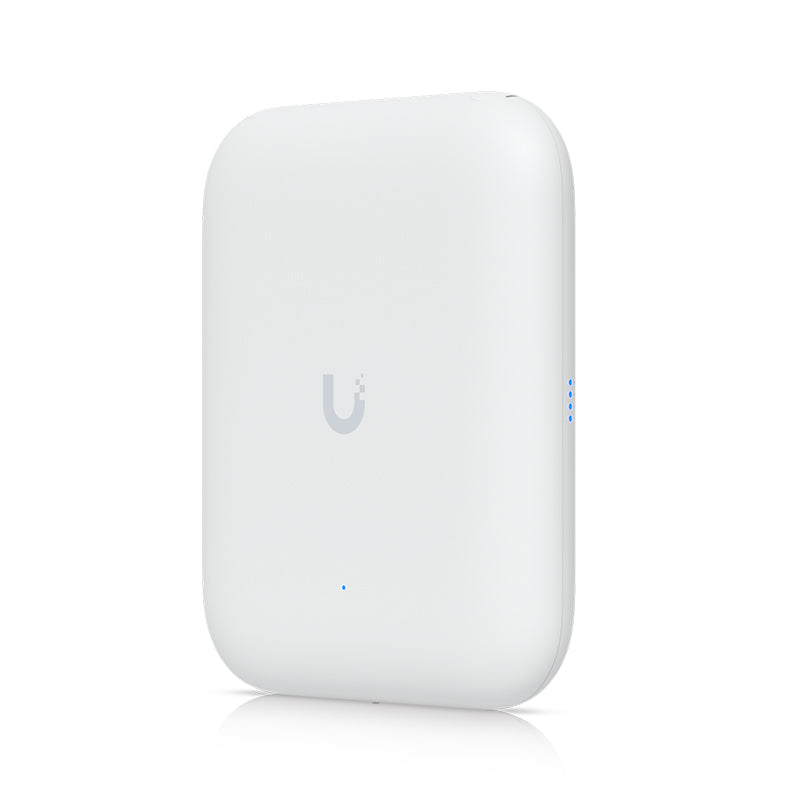

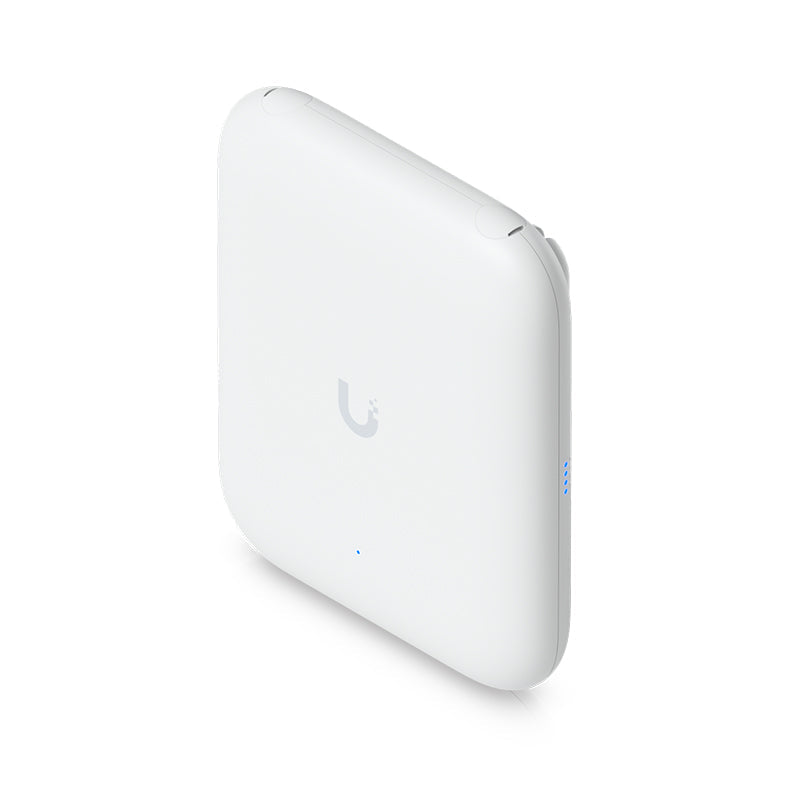

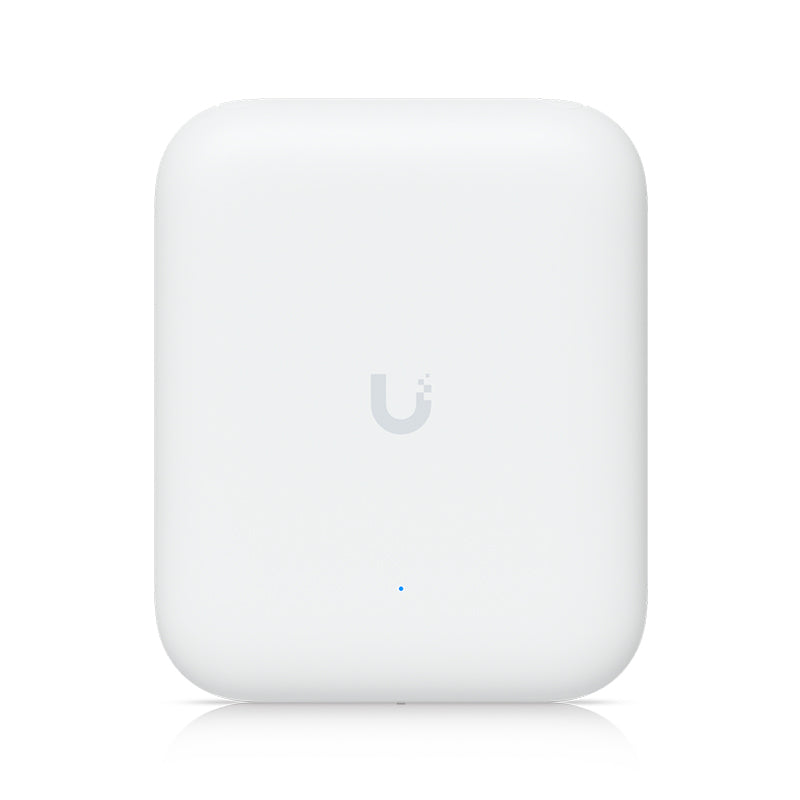

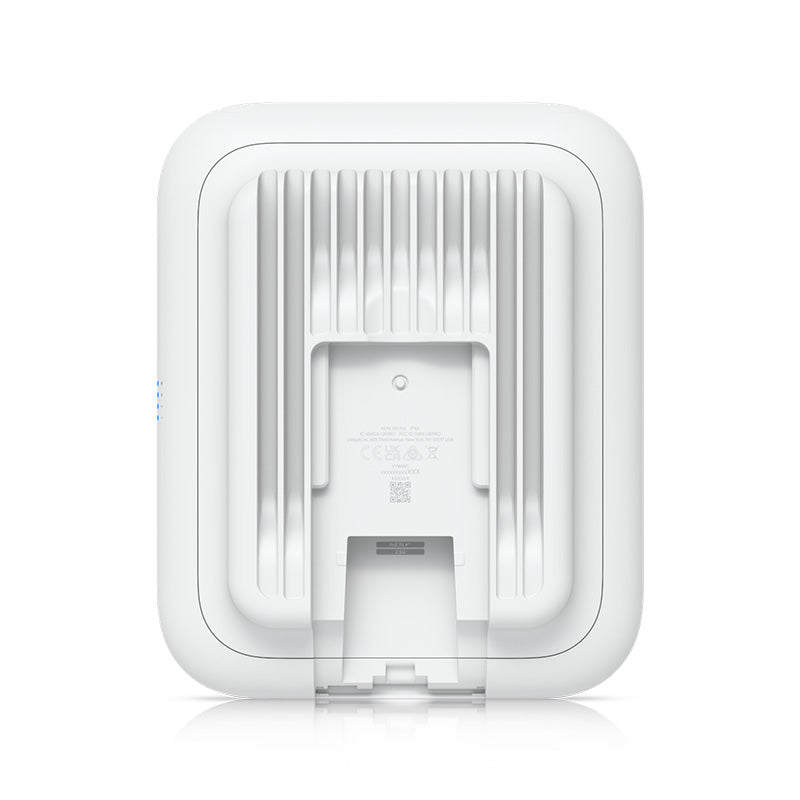

U7-Outdoor Ubiquiti Unifi Wireless 7 Outdoor Access Point
Regular price
$495.04 NZD
Unit price
/
Unavailable
Add to cart, then request a quote for our best price.
Description
Description
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
Features:
WiFi 7
4 spatial streams
465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
Software-adjustable antenna beamwidth for balanced coverage with the included omni antennas
200+ connected devices
Powered using PoE+
2.5 GbE uplink

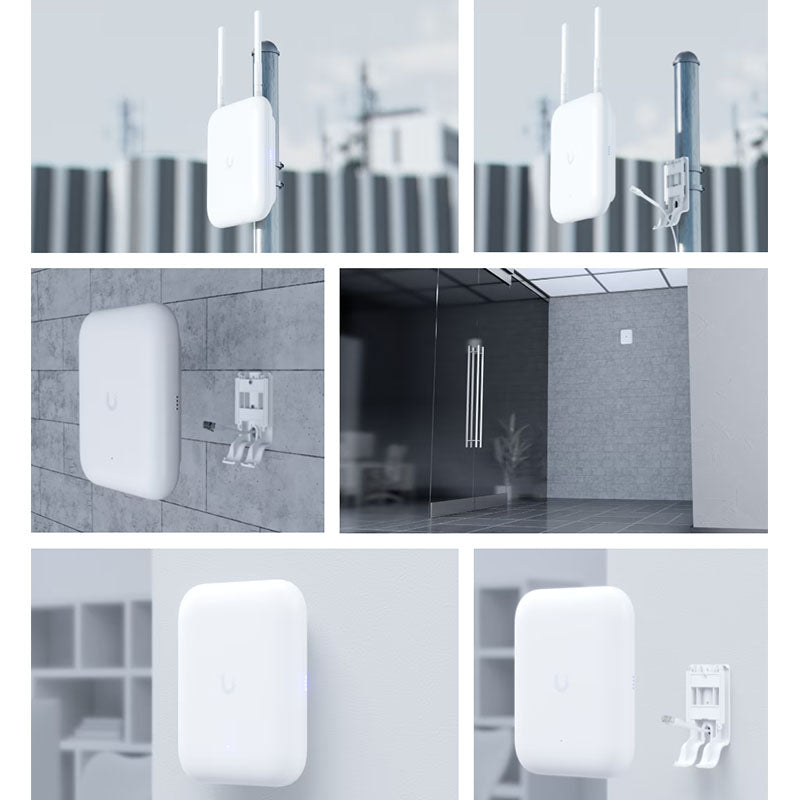

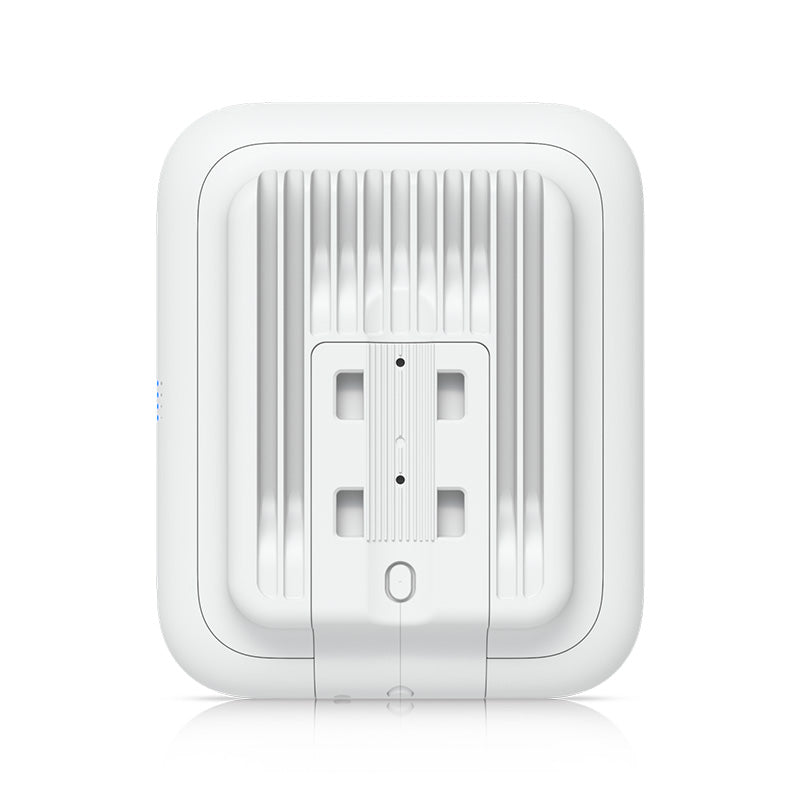

Versatile wall and pole mounting
Weatherproof (outdoor exposed)
Specifications41 specifications · 4 sections
| Overview | |
|---|---|

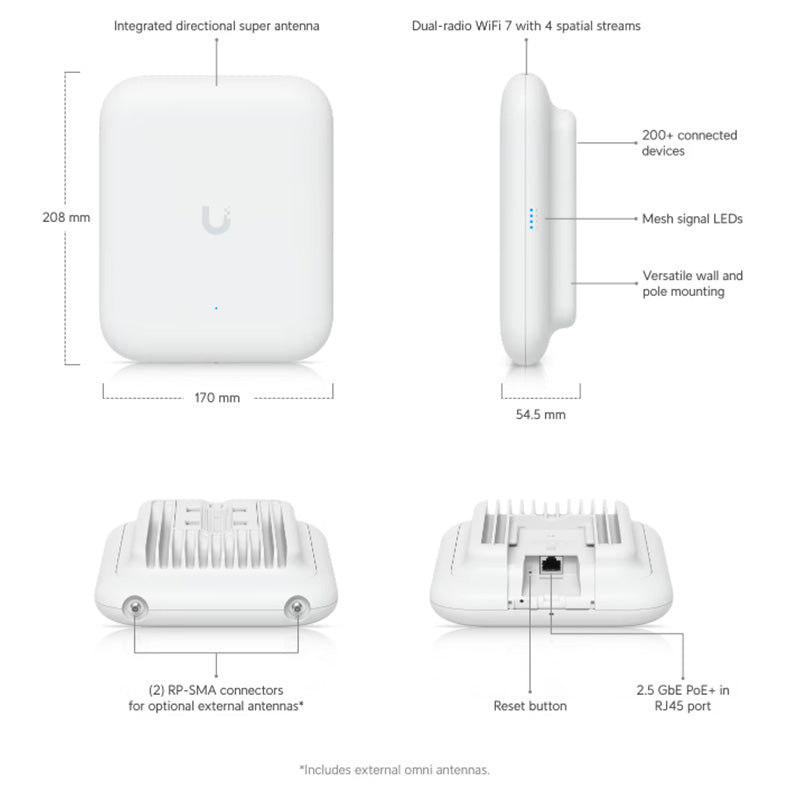

| Dimensions | 170 x 208 x 54.5 mm / (6.7 x 8.2 x 2.1") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 250+ |
| Uplink | 2.5 GbE |

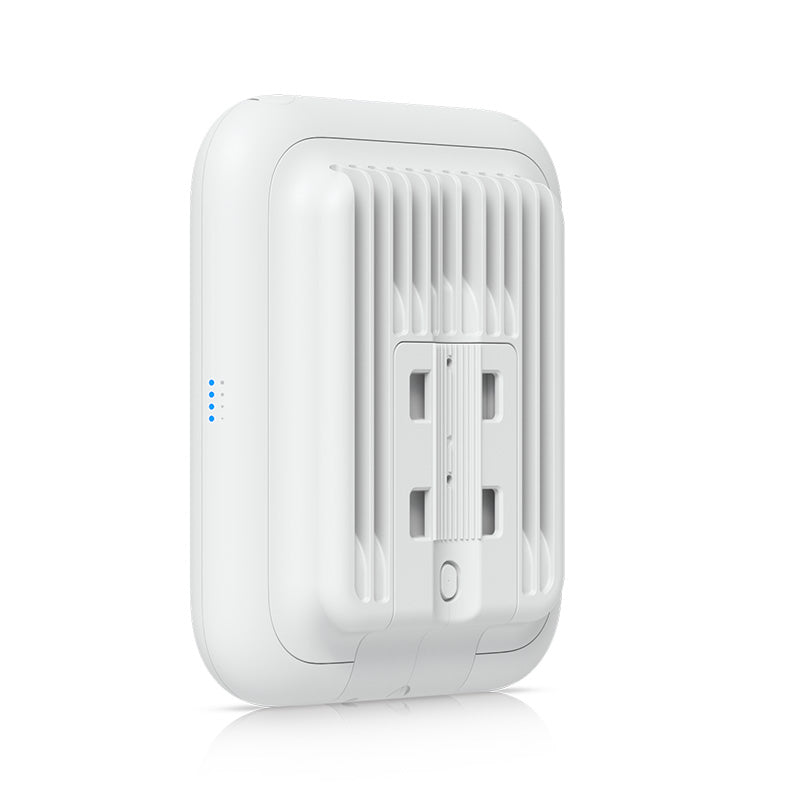

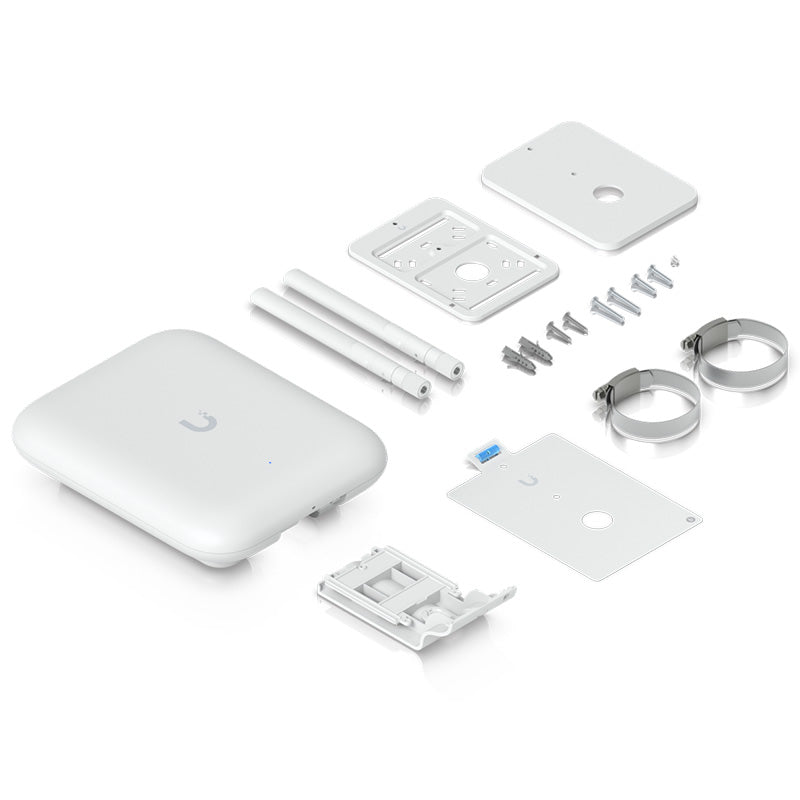

| Mounting | Wall, Pole / (Mounts Included) |
| Weatherproofing | IPX6 |
| Power Method | PoE+ |
| Performance | |
| MIMO · 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 5 GHz | 4.3 Gbps (BW240) |
| Max. Data Rate · 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain · 5 GHz | Directional internal: 12.5 dBi, 45° x 45° / External omni: 4 dBi, 360° x 30° |
| Antenna Gain · 2.4 GHz | Directional internal: 8 dBi, 90° x 90° / External omni: 3 dBi, 360° x 30° |
| Max. TX Power · 5 GHz | 26 dBm |
| Max. TX Power · 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 19W |
| Supported Voltage Range | 42.5–57V DC |

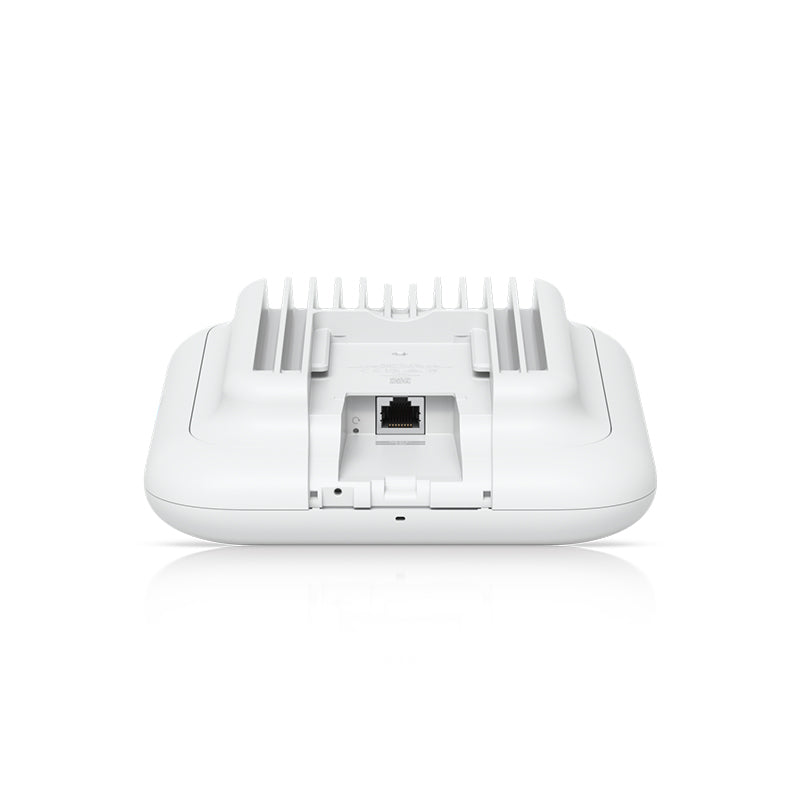

| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | 1.2 kg (2.6 lb) |
| Wind Loading | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.36" (25–60 mm) |

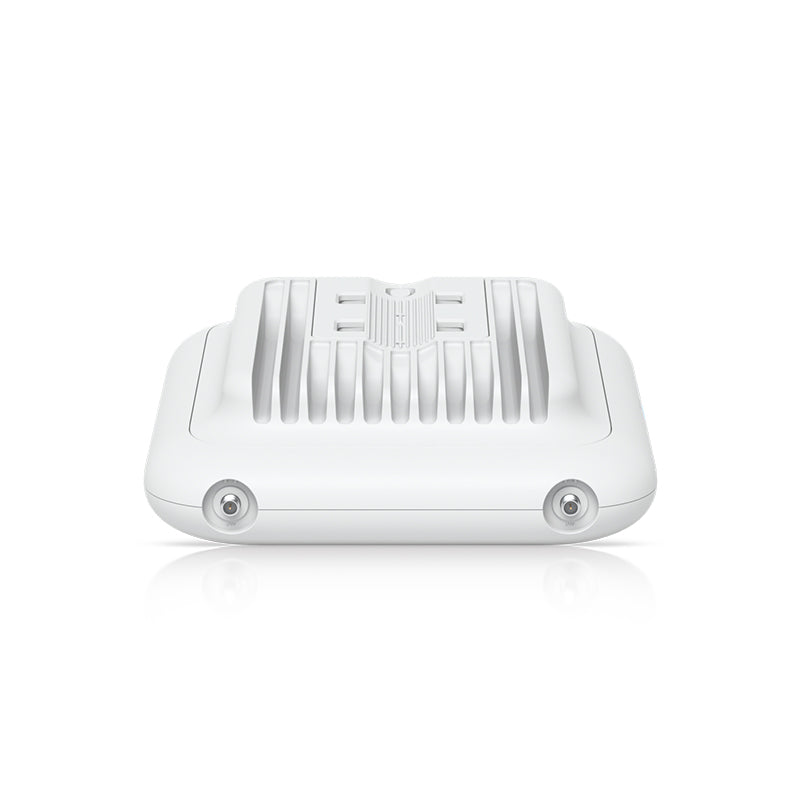

| Antennas | (1) Directional internal antenna / (2) External omni antennas / (2) RP-SMA connectors for external antenna |
| Antenna beamwidth · 5 GHz | 45° |
| Antenna beamwidth · 2.4 GHz | 90° |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, SGCC steel |
| LEDs · System | (1) Power: White/Blue / (1) System: White/Blue / (4) Mesh Signal: Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 08999-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.2.93 and later |
Source: Ubiquiti technical specifications, checked 13 Oct 2026.Model U7-Outdoor · Ubiquiti's spec sheet
