UACC-LRE Ubiquiti UniFi Long-Range Ethernet Repeater
Description
Description
Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.
The Long-Range Indoor/Outdoor Repeater (UACC LRE) is Gigabit adapter that allows you to easily and inexpensively expand your Ethernet network's range.
With its (2) GbE RJ45 ports, the UACC LRE can receive PoE/PoE+ while providing passthrough PoE output. You can also chain multiple UACC LRE adapters together to connect access points and cameras that are far away from your PoE switch.
The UACC LRE also offers 10kA+ surge protection and works reliably in extreme temperatures (-40 to 80° C) to protect your deployment from weather and electrical damage. Supports up to 1 km link distances*.
Features:
Establishes long-range connections between PoE switches and devices
Chains with other UACC LRE units

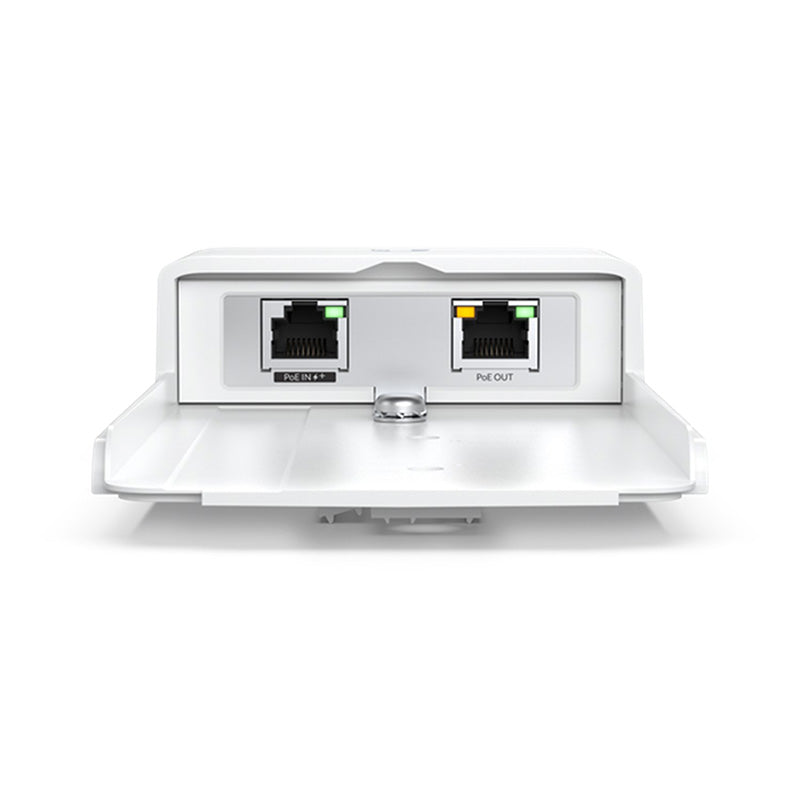

(1) GbE RJ45 port for PoE/PoE+ input
(1) GbE RJ45 port for passthrough PoE output
10kA+ surge protection
Works reliably in extreme temperatures (-40 to 80° C)
* Deployment tested: (9) daisy-chained UACC LRE units connected to an endpoint device (e.g., camera, AP) using (10) 100 m UISP Cable Pros, all powered a by UniFi PoE+ switch.
Specifications24 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | 196.5 x 93.5 x 39 mm / (7.7 x 3.7 x 1.5") |
| Mechanical | |
| Weight | 350 g (12.3 oz) |
| Enclosure Material | UV stabilized polycarbonate |
| Mounting Material | Stainless steel |
| Weatherproofing | IPX5 |
| Hardware | |
| Power Method | PoE/PoE+ 2-pairs (Pins 1, 2+; 3, 6-) |
| Max. Power Consumption | 1.5W (Excluding PoE output) |
| Networking Interface | (2) GbE RJ45 ports |
| PoE Interface | (1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-) |
| Total Non-Blocking Line Rate | 2 Gbps |
| Switching Capacity | 4 Gbps |
| Forwarding Rate | 1.488 Mpps |
| Total Available PoE | 22.5W |
| Voltage Range PoE Mode | 37—57V DC |
| ESD/EMP Protection | Air/contact: ± 30kV |
| DC Sparkover Voltage | 90V at 100V/s |
| Max. Impulse Sparkover Voltage | 700V at 1kV/μs |
| Discharge Current | 10kA+ |
| Max. MTU | 1,500 bytes |
| LEDs · System | Blue: power ON |
| LEDs · Ethernet | Green: 1 Gbps / Amber: 10/100 Mbps |
| LEDs · PoE | Amber: passthrough PoE out |
| Ambient Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
