SKU:
USW-Pro-Max-24

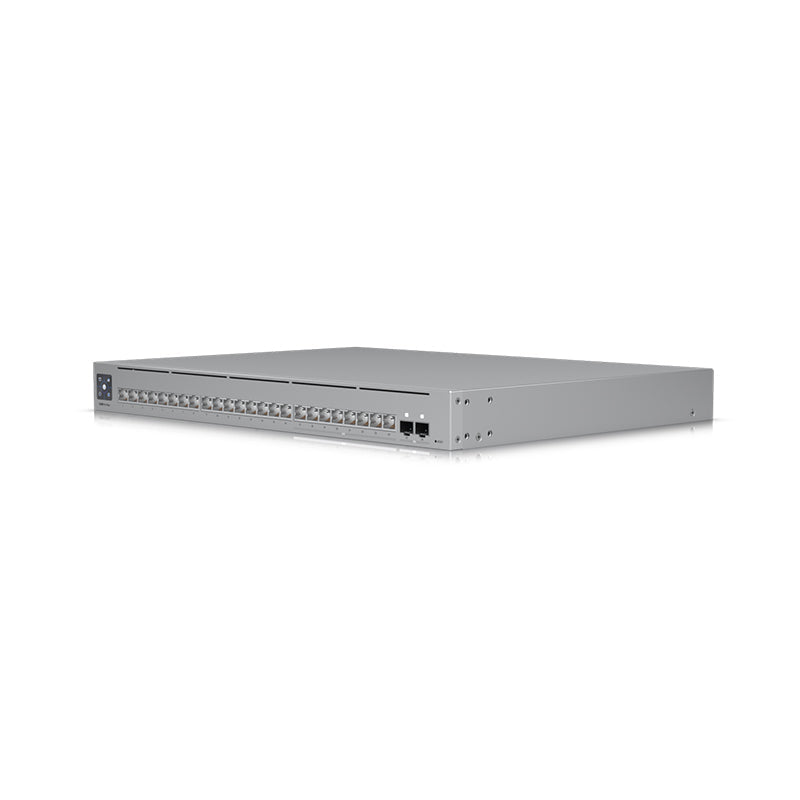

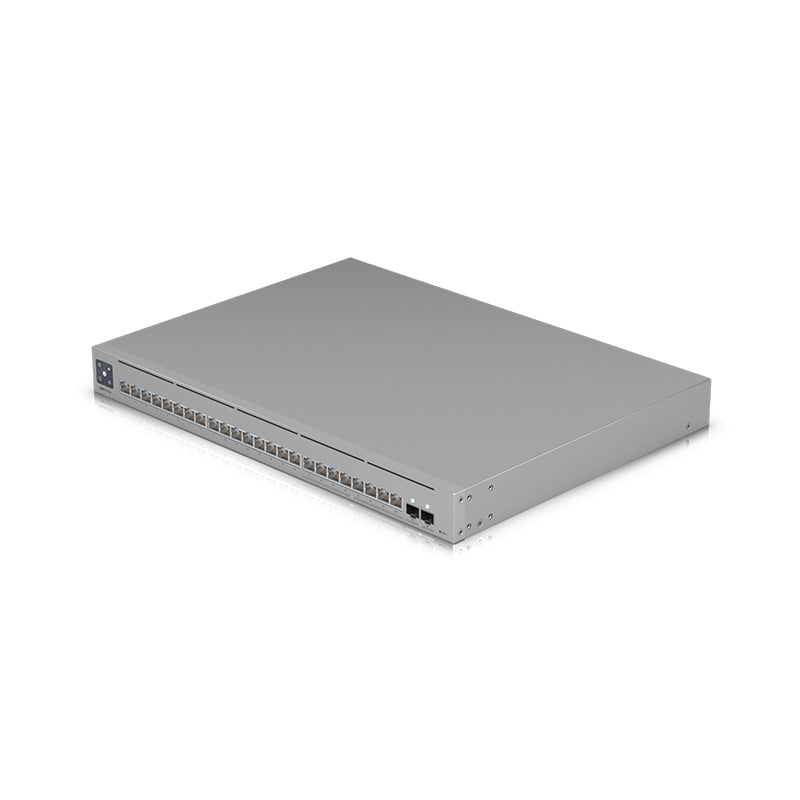

USW-Pro-Max-24 Ubiquiti UniFi Switch Pro Max 24 Port Non PoE
Regular price
$1,109.83 NZD
Unit price
/
Unavailable
Add to cart, then request a quote for our best price.
Description
Description

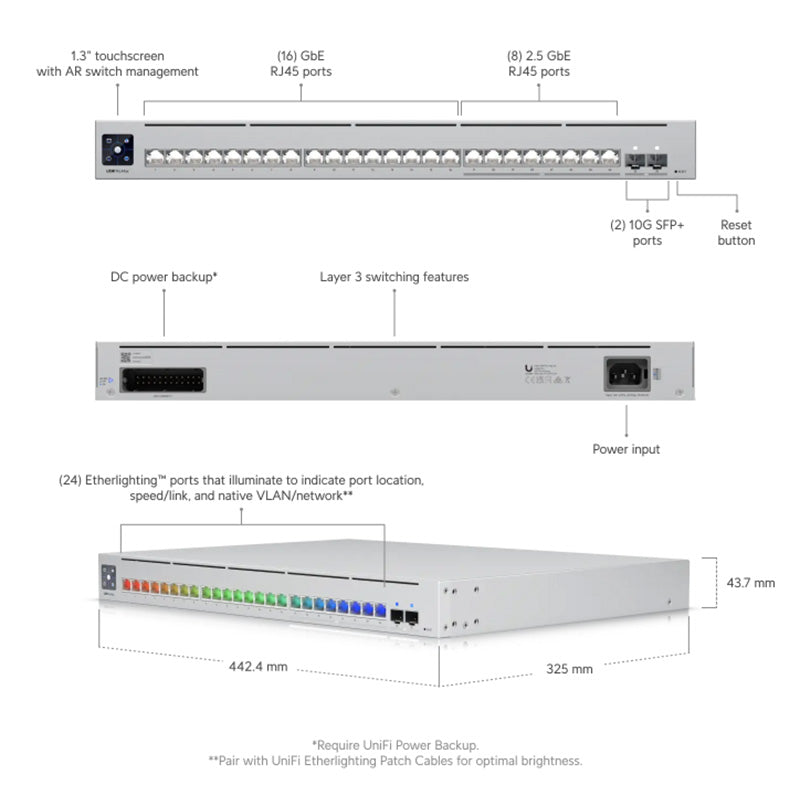

A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
Features:

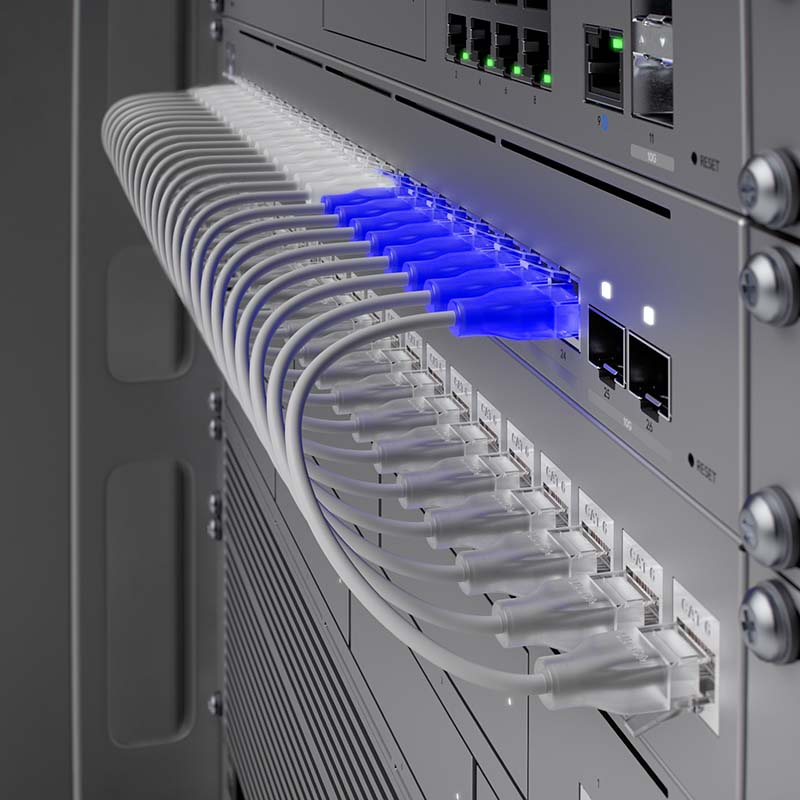

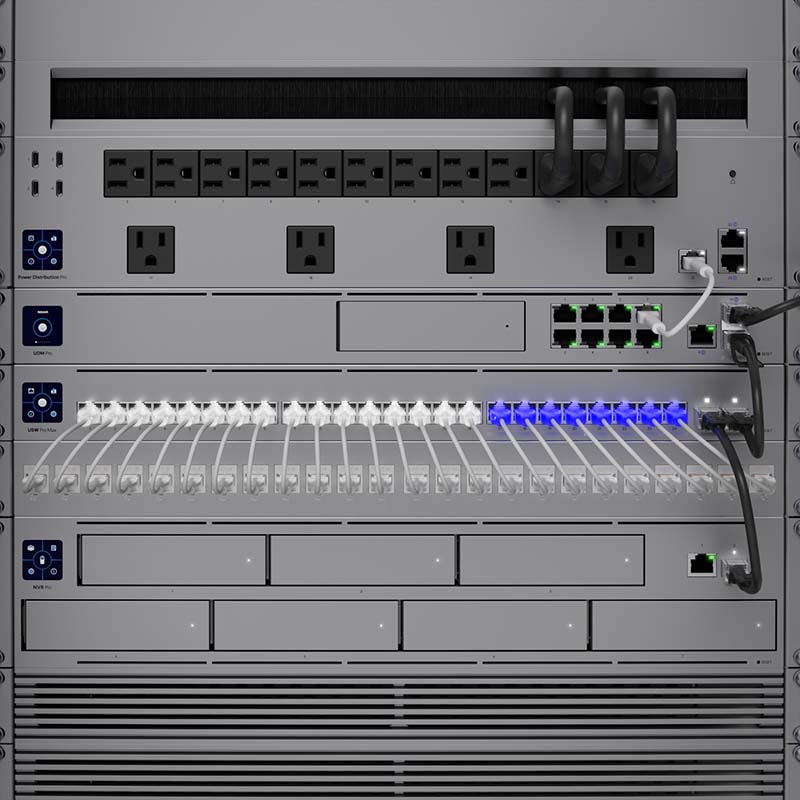

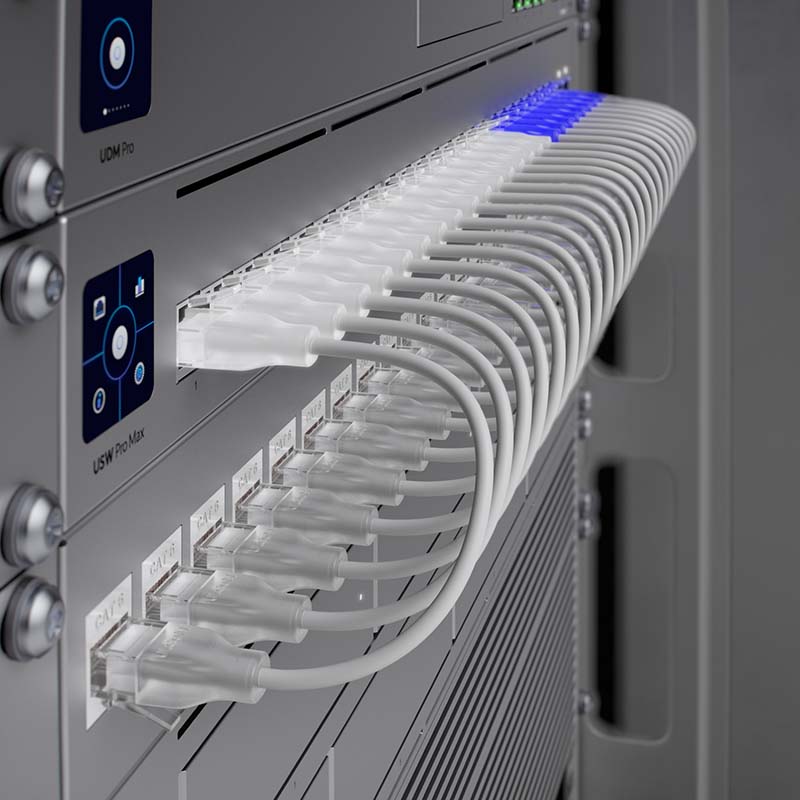

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

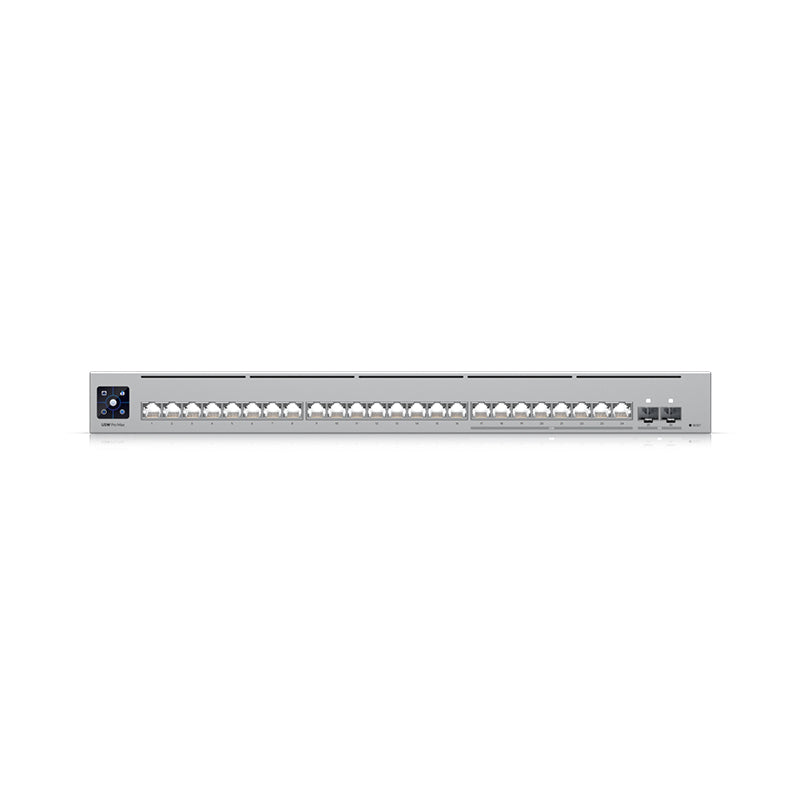

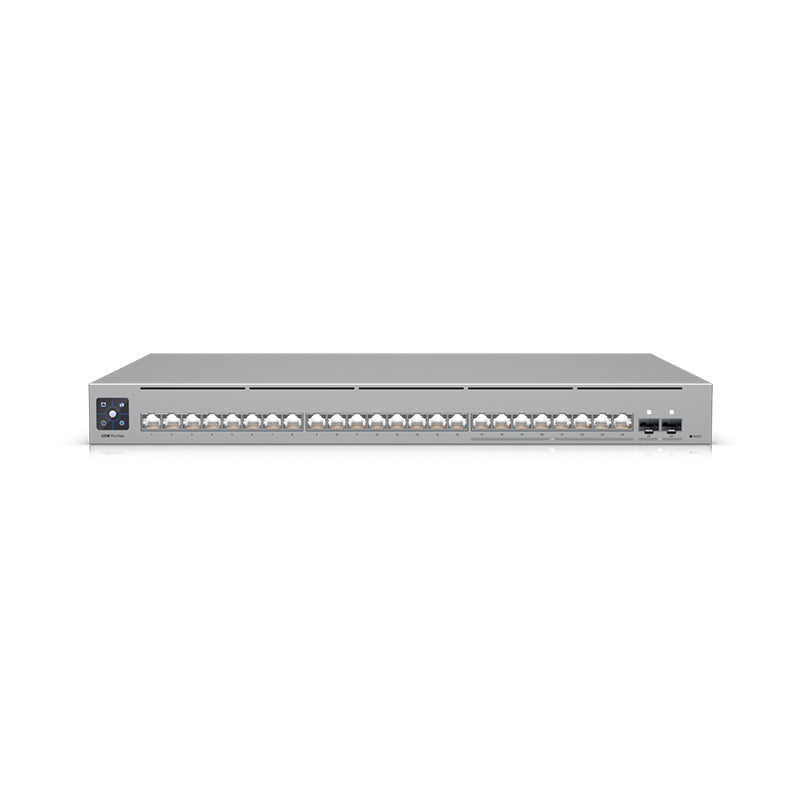

(8) 2.5 GbE RJ45 ports
(16) GbE RJ45 ports
(2) 10G SFP+ ports

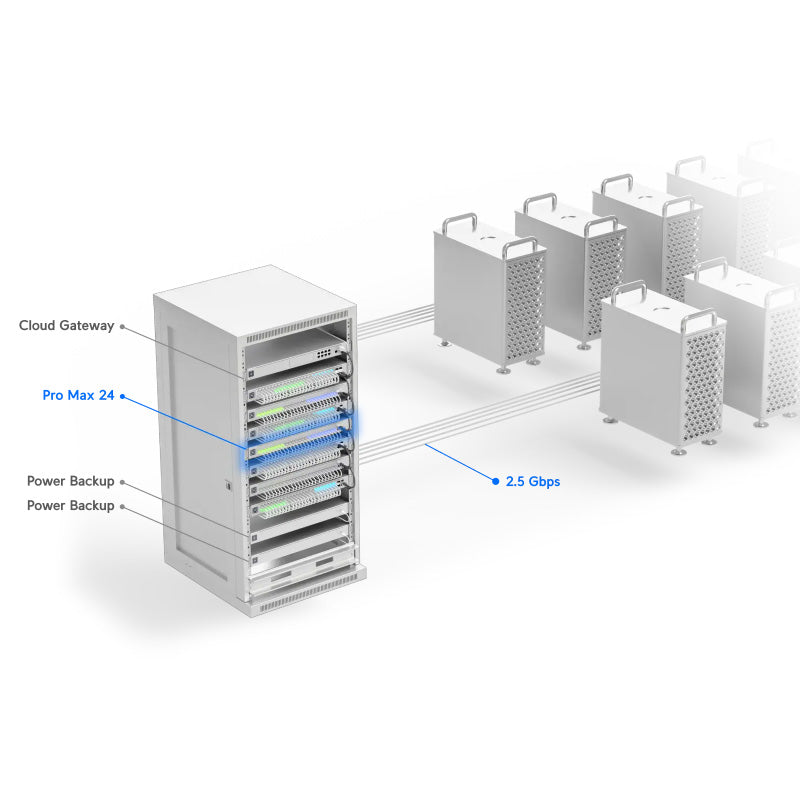

DC power backup ready
Managed with UniFi Network 8.0.24 and later
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Specifications32 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 325 x 44 mm / (17.4 x 12.8 x 1.7") |
| Port Layout · 1 GbE RJ45 | 16 / (1G/100M/10M) |
| Port Layout · 2.5 GbE RJ45 | 8 / (2.5G/1G/100M/10M) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| Redundancy | DC Power Backup |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 112 Gbps |
| Total Non-Blocking Throughput | 56 Gbps |
| Forwarding Rate | 83 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 1.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| Max. Power Consumption | 50W |

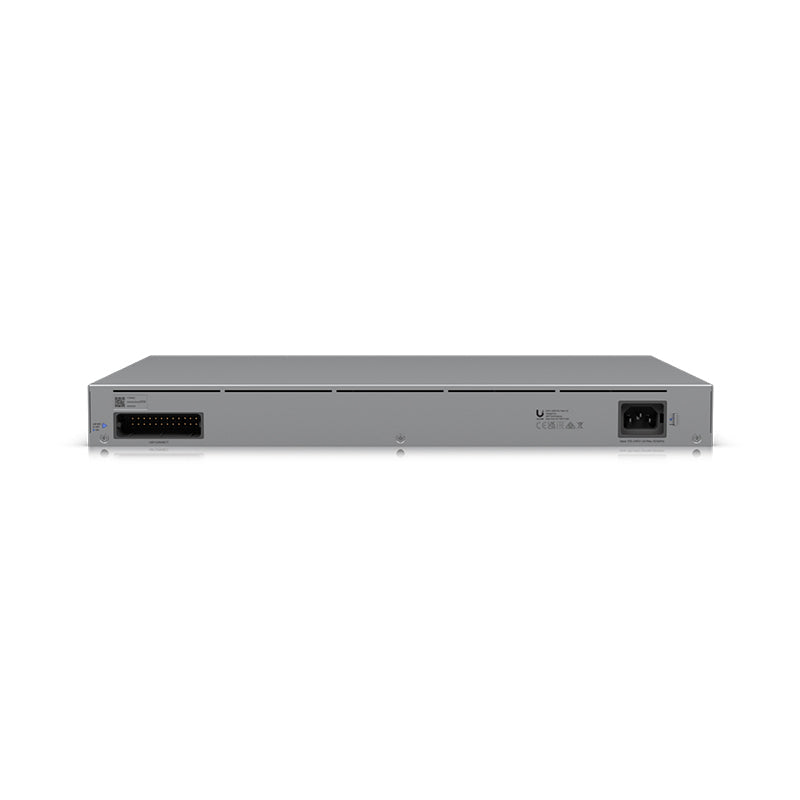

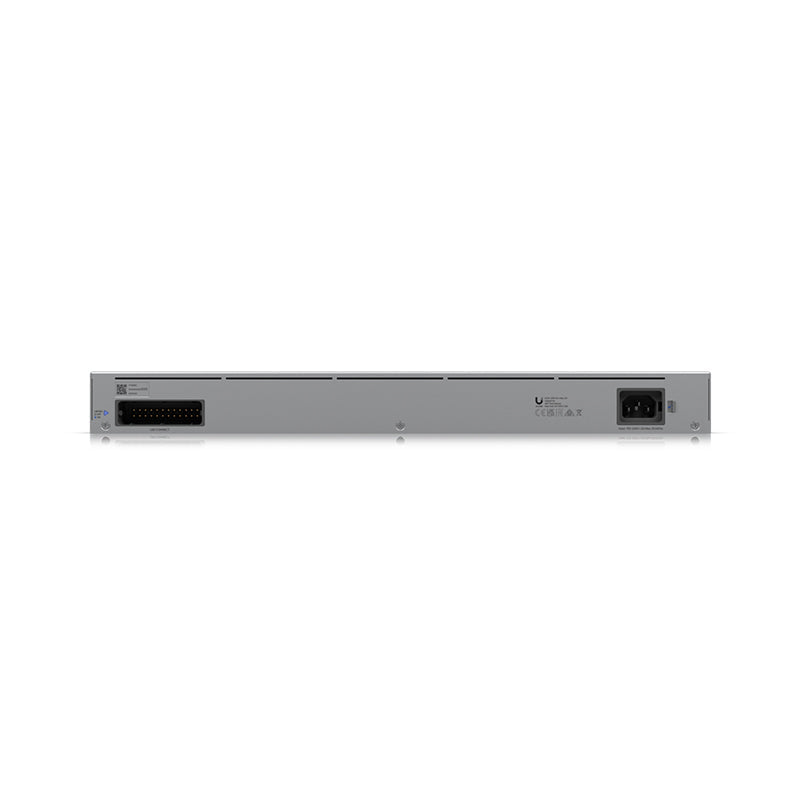

| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 60W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 170.6 BTU/hr |
| Weight | Without mounting brackets: 4.2 kg (9.3 lb) / With mounting brackets: 4.3 kg (9.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06374-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.0.24 and later |
Source: Ubiquiti technical specifications, checked 13 Oct 2026.Model USW-Pro-Max-24 · Ubiquiti's spec sheet
