SKU:
USW-Pro-XG-24-PoE

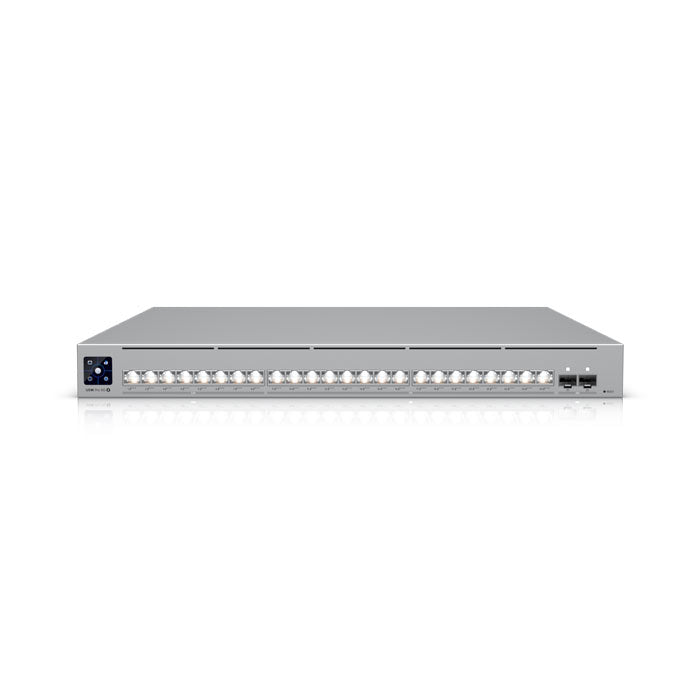

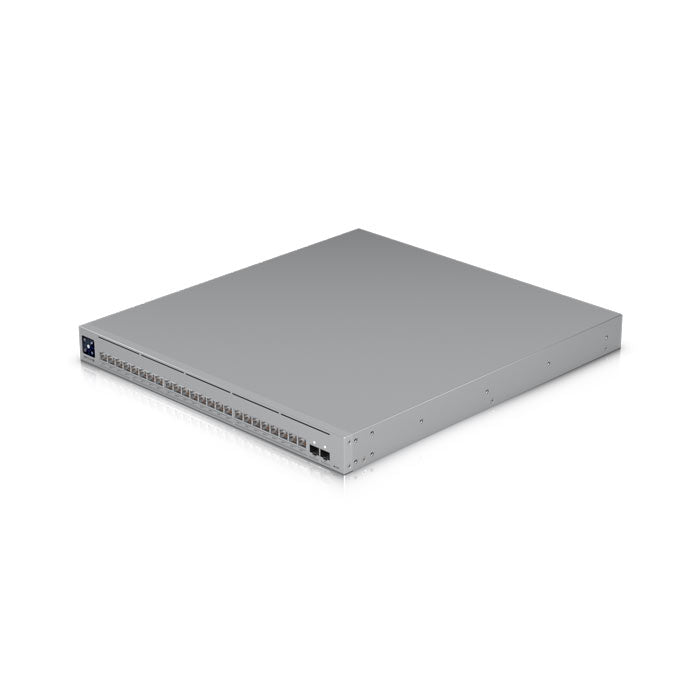

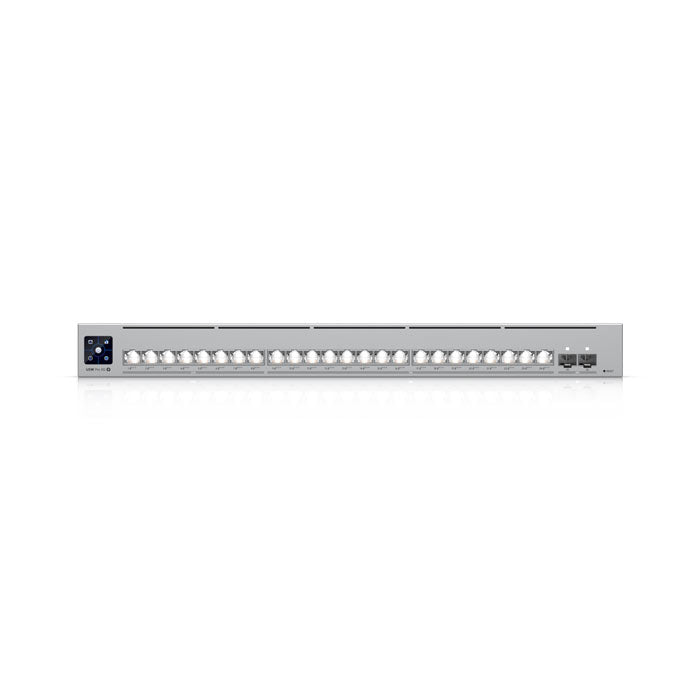

USW-Pro-XG-24-PoE Ubiquiti UniFi Switch Pro XG 24 PoE
Regular price
$3,548.57 NZD
Unit price
/
Unavailable
Add to cart, then request a quote for our best price.
Description
Description
Part of the new Pro XG Switching Family, the Pro XG 24 PoE is a professional-grade, 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output. Offering (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
Features:
Port Count: 24 + 2 SFP28
Downlink Speed: Up to 10 Gbps
Uplink Speed: 25 Gbps
PoE Output: PoE+++
PoE Availability: 720 W
Pro A/V Support
Specifications38 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 480 x 44 mm / (17.4 x 18.9 x 1.7") |
| Port Layout · 2.5 GbE RJ45 | 8 (All PoE+++) / (2.5G/1G/100M/10M) |
| Port Layout · 10 GbE RJ45 | 16 (All PoE+++) / (10G/5G/2.5G/1G/100M/10M) |
| Port Layout · 25G SFP28 | 2 / (25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 720W |
| Redundancy | DC Power Backup |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 460 Gbps |
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| Access Lists · IPv4 | 256 |
| Access Lists · MAC | 256 |
| Hardware | |
| PoE Ports · PoE+++ | 24 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Max. PoE Wattage per Port by PSE · PoE++ | 60W |
| Max. PoE Wattage per Port by PSE · PoE+++ | 90W |
| Max. Power Consumption | 150W (Excluding PoE Output) / 870W (Including PoE Output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 870W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Weight | Without mounting brackets: 7.9 kg (17.4 lb) / With mounting brackets: 8 kg (17.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

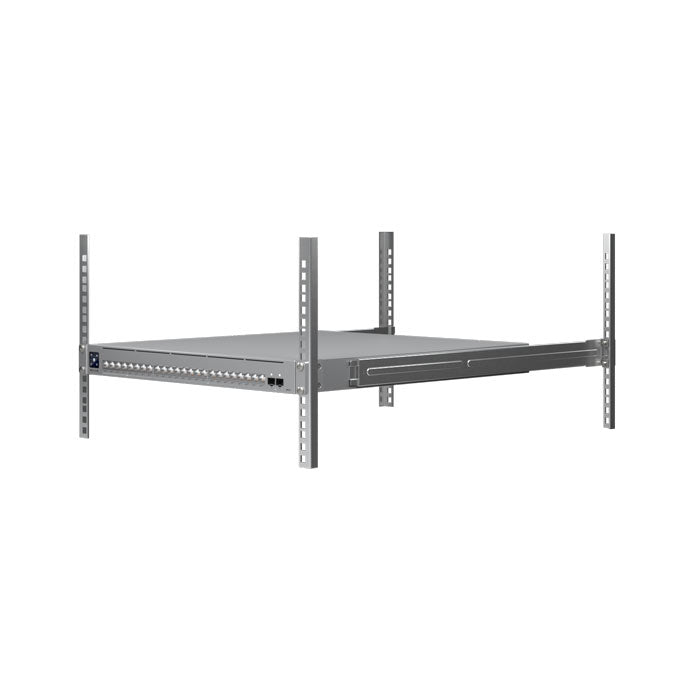

| Supported Rack Depth | 482.6 mm (19") four-post racks / Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 30kV, contact: ± 20kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04322-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 9.1.120 and later |
Source: Ubiquiti technical specifications, checked 13 Oct 2026.Model USW-Pro-XG-24-PoE · Ubiquiti's spec sheet
