U7‑Pro‑Outdoor – Ubiquiti UniFi U7 Pro Outdoor WiFi 7 Access Point
Description
Description
The U7‑Pro‑Outdoor is a high‑performance Ubiquiti UniFi WiFi 7 outdoor access point designed to deliver ultra‑fast, reliable wireless connectivity in demanding outdoor environments. Built with a rugged IP67 weatherproof enclosure, the U7‑Pro‑Outdoor is ideal for large outdoor areas requiring consistent coverage, high client capacity and next‑generation wireless performance.
Powered by WiFi 7 (802.11be) with 6 spatial streams, this access point supports over 300 concurrent clients while delivering exceptional throughput across the 2.4 GHz, 5 GHz and 6 GHz bands. The integrated directional super antenna, combined with optional external omni antennas, ensures focused long‑range coverage and flexible deployment options.
With a 2.5 GbE PoE+ uplink, seamless UniFi Network management and advanced roaming, security and guest networking features, the U7‑Pro‑Outdoor is built for enterprise‑grade outdoor WiFi.
Key Features:
- WiFi 7 (802.11be) tri‑band performance
- 6 spatial streams for high‑density environments
- IP67‑rated all‑weather outdoor design
- Integrated directional super antenna plus external antenna support
- 2.5 GbE PoE+ uplink for high‑speed backhaul
- Supports 300+ connected devices

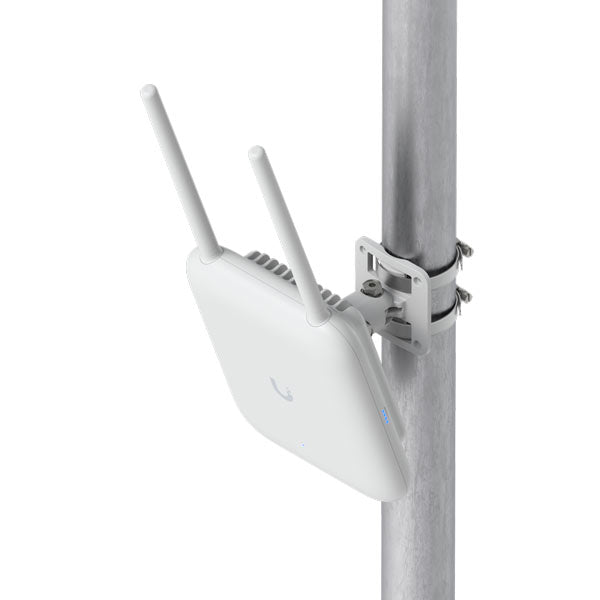

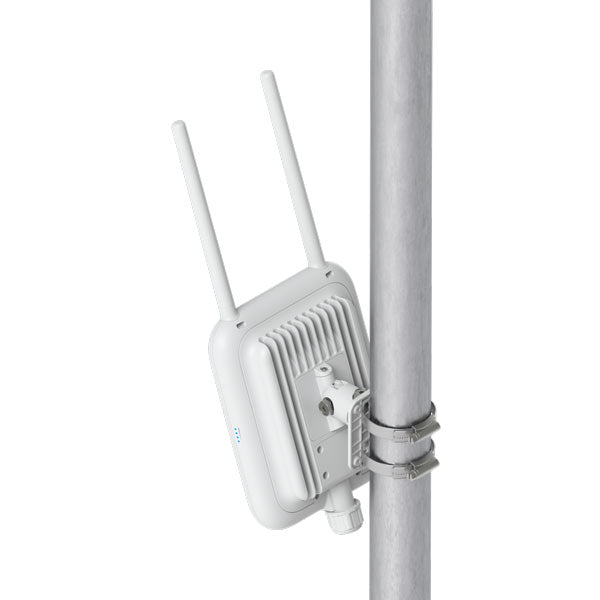

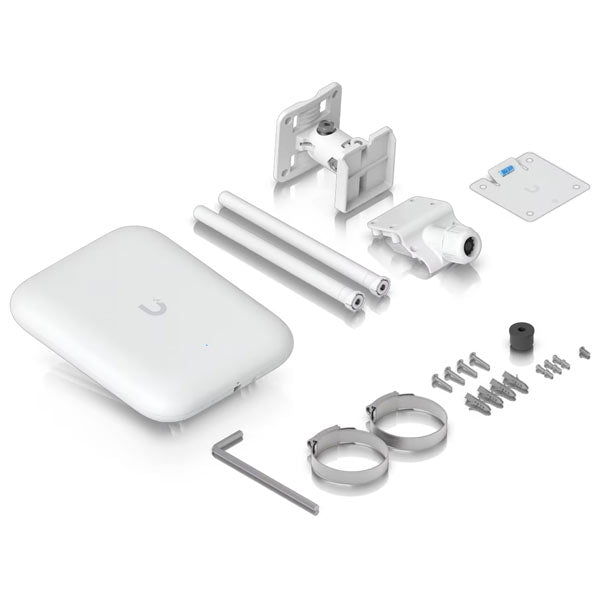

- Wall and pole mounting hardware included
Ideal For:
Outdoor hospitality venues, campuses, warehouses, car parks, sports facilities, public spaces and enterprise outdoor networks requiring fast, reliable and scalable WiFi coverage.
Compatible Products:
UniFi Network Controllers
UniFi PoE and PoE+ Switches
UniFi Cloud Gateways
UniFi External Antennas (RP‑SMA)
FAQs:
Does the U7‑Pro‑Outdoor support UniFi Mesh?
Yes, the U7‑Pro‑Outdoor supports wireless meshing with other UniFi access points.
How is the U7‑Pro‑Outdoor powered?
It is powered using PoE+ via a UniFi PoE switch or compatible PoE injector.
Is the U7‑Pro‑Outdoor suitable for harsh environments?
Yes, its IP67 weatherproof rating ensures reliable operation in rain, dust and extreme temperatures.
Specifications39 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | ⌀206 x 46 mm / (⌀8.1 x 1.8") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall / (Pro Mount Included) |
| Power Method | PoE+ |
| Performance | |
| MIMO · 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 6 GHz | 5.8 Gbps (BW320) |
| Max. Data Rate · 5 GHz | 4.3 Gbps (BW240) |
| Max. Data Rate · 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain · 6 GHz | 5.8 dBi |
| Antenna Gain · 5 GHz | 6 dBi |
| Antenna Gain · 2.4 GHz | 4 dBi |
| Max. TX Power · 6 GHz | 23 dBm |
| Max. TX Power · 5 GHz | 26 dBm |
| Max. TX Power · 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11be (WiFi 7) | 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Supported Data Rates · 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 21W |
| Supported Voltage Range | 44–57V DC |

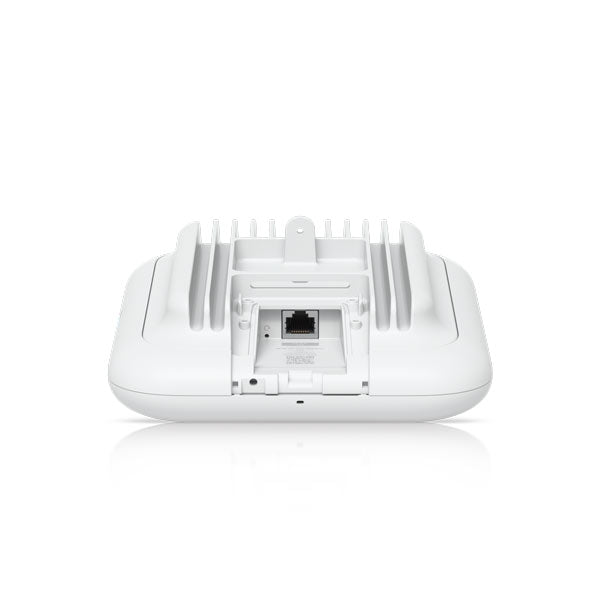

| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | 680 g (1.5 lb) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, metal |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs · System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / U-NII-5 to U-NII-8: 5925 - 7125 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz / 5925 - 7125 MHz |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06370-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.0.28 and later |
