SKU:
AM-2G15-120

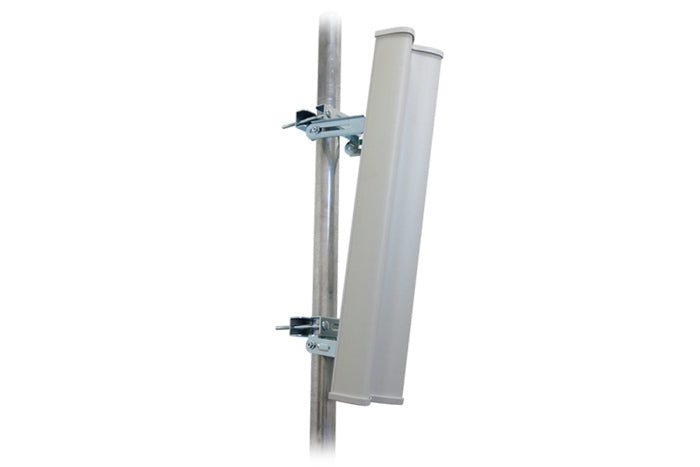

AM-2G15-120 Ubiquiti airMAX Sector 2.4GHz Antenna
Regular price
$291.27 NZD
Unit price
/
Unavailable
Add to cart, then request a quote for our best price.
Description
Description
Introducing the Ubiquiti airMAX Sector AM-2G15-120, which continues the evolution of Ubiquiti.
Advanced RF Isolation Antenna. Advanced Carrier-Class PtMP Basestation Antenna. 2x2 BaseStation Sector Antenna
Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.
15 dBi
Specifications14 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 700 x 145 x 93 mm / (27.6 x 5.7 x 3.7") |
| Weight | 4 kg (8.8 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 107 N at 160 km/h (24 lbf at 100 mph) |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
| Hardware | |
| Frequency Range | 2.3—2.7 GHz |
| Antenna Gain | 15—16 dBi |
| Electrical Downtilt | 4° |
| Electrical Beamwidth | 9° |
| VPOL Beamwidth | 118° (6 dB) |
| Max. VSWR | 1.5:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 28 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
Source: Ubiquiti technical specifications, checked 21 Oct 2026.Model AM-2G15-120 · Ubiquiti's spec sheet
