AMO-2G10

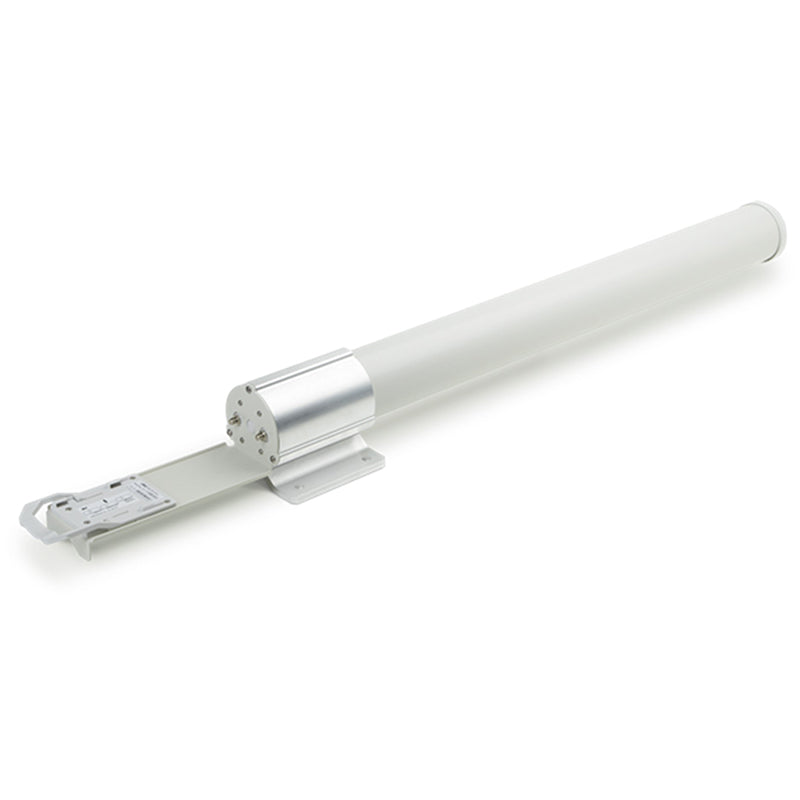

AMO-2G10 Ubiquiti airMAX Omni 2.4GHz Antenna
Regular price
$367.08 NZD
Unit price
/
Unavailable
Add to cart, then request a quote for our best price.
Description
Description
The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately).
Can be deployed in a Point-to-MultiPoint (PtMP) network.
The airMAX Omni Antenna provides powerful 360° coverage, 2x2 MIMO performance in Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) applications.
10 dBi
Specifications13 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 1030 x 122 x 84 mm / (40.6 x 4.8 x 3.3") |
| Weight | 2.1 kg (4.6 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 62.3 N at 160 km/h (14 lbf at 100 mph) |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
| Downtilt | 4° |
| Hardware | |
| Frequency Range | 2.35—2.55 GHz |
| Antenna Gain | 10 dBi |
| Elevation Beamwidth | 12° |
| Max. VSWR | 1.7:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 25 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
Source: Ubiquiti technical specifications, checked 21 Oct 2026.Model AMO-2G10 · Ubiquiti's spec sheet
